CM600HN-5F Mitsubishi 600V 600A High-Frequency IGBT Module

Content last revised on June 26, 2026

CM600HN-5F Mitsubishi 600V 600A IGBT Module

How can power engineers effectively minimize switching losses in high-frequency applications while maintaining a robust 600A current handling capability? The CM600HN-5F provides a calculated answer through its specialized high-speed trench gate architecture, designed specifically to bridge the gap between massive current throughput and fast switching efficiency.

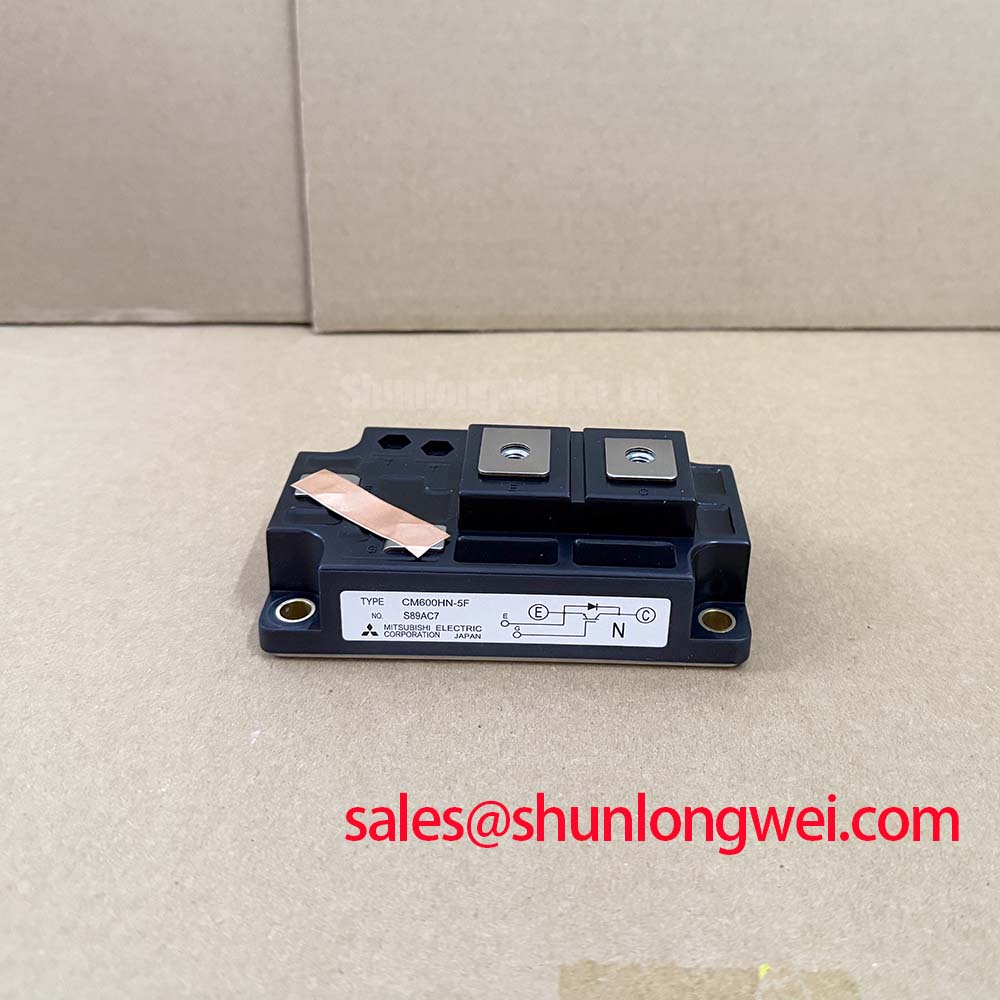

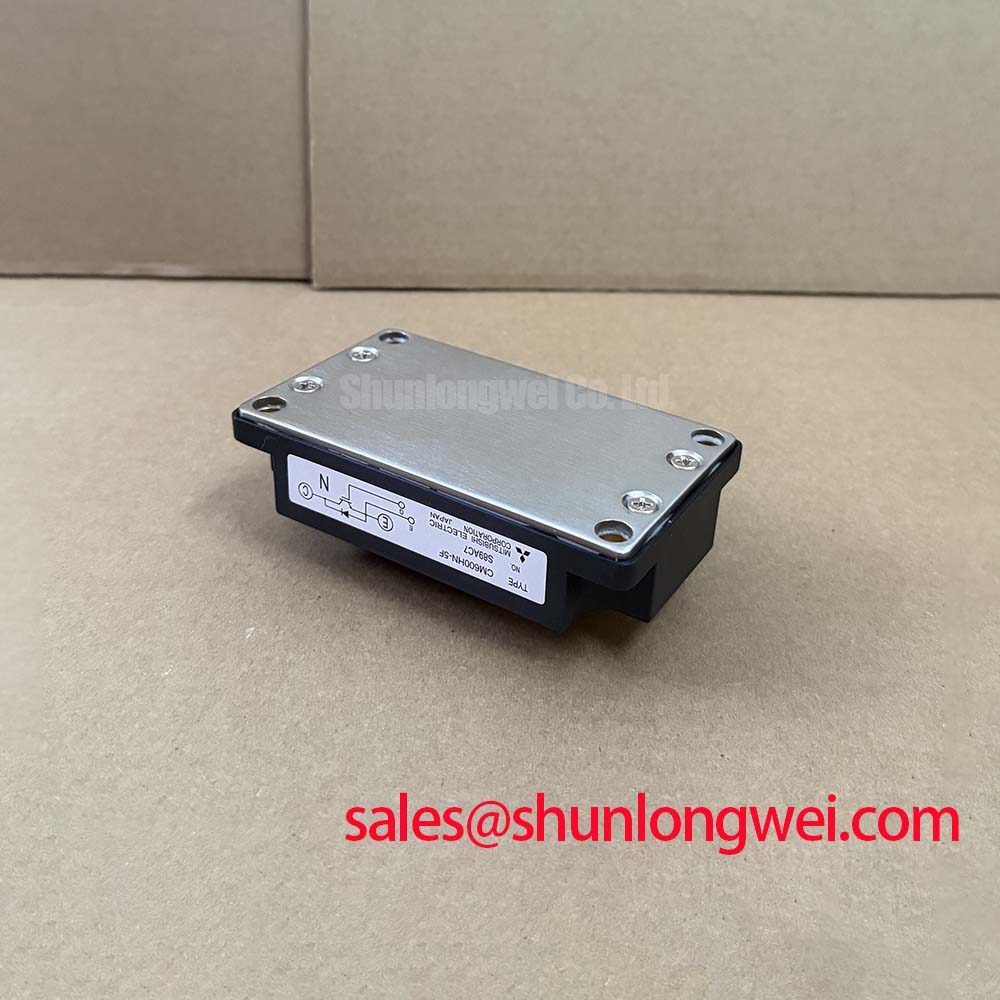

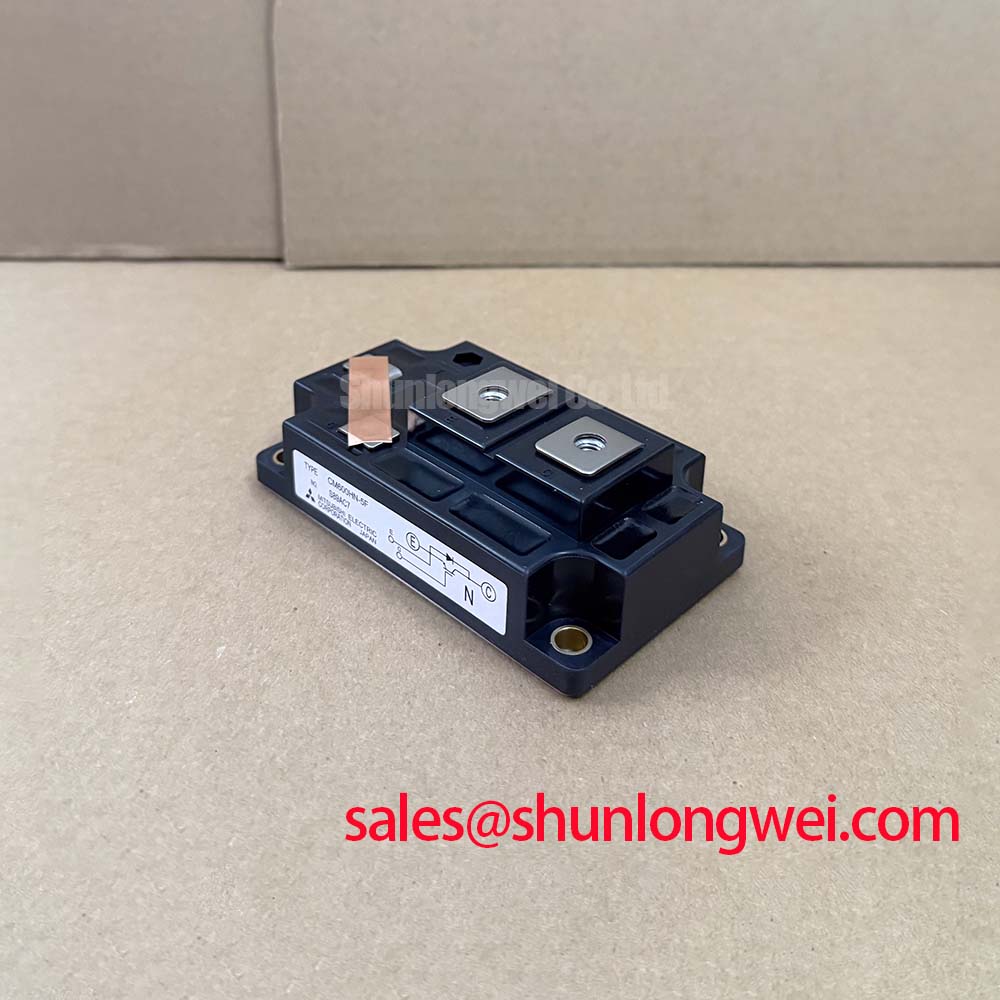

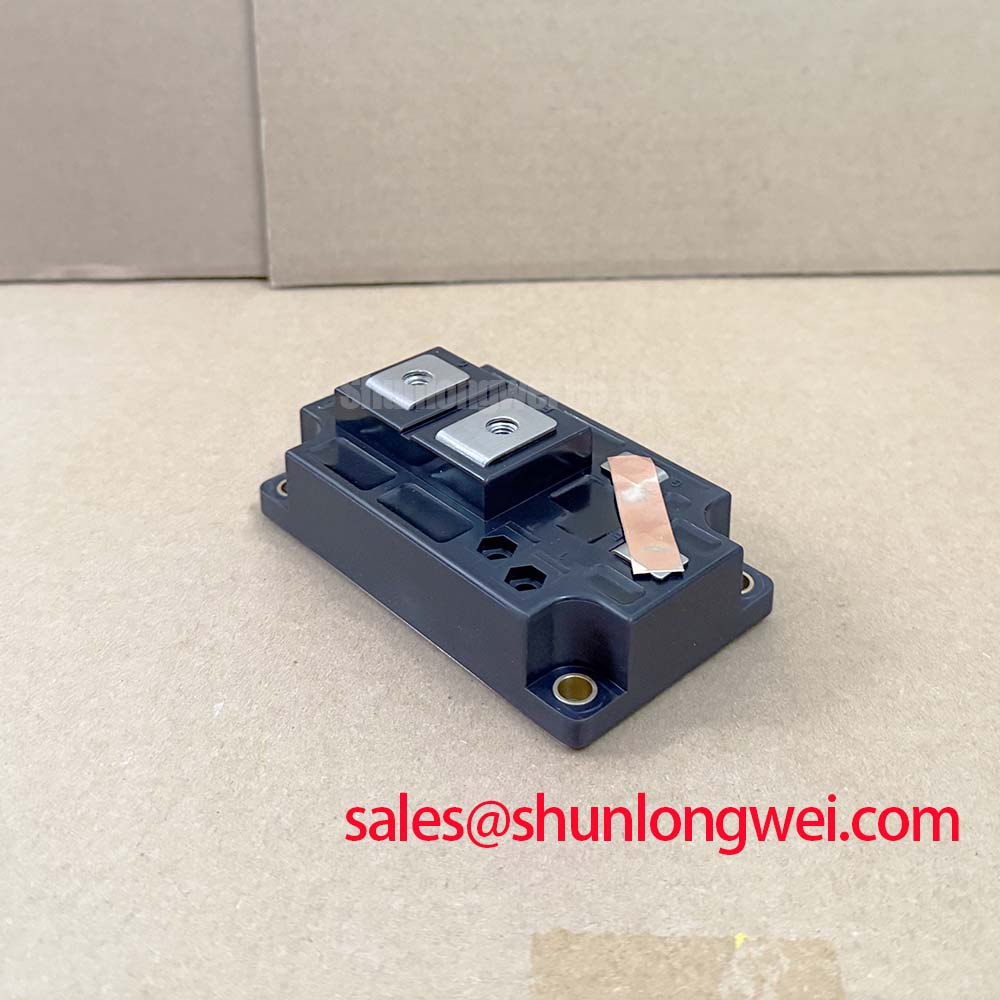

The Mitsubishi CM600HN-5F is a high-performance 600V | 600A single-switch IGBT module. It offers a Vce(sat) optimized for high-speed operation and an exceptionally low thermal resistance (Rth(j-c)). This module is ideally suited for induction heating and high-frequency resonant converters where traditional modules suffer from excessive thermal buildup. For high-frequency industrial induction heating or resonant converters requiring 600V isolation, the CM600HN-5F is the optimal choice.

Frequently Asked Questions

Engineering Insights for High-Speed Switching Integration

How does the "HN" series designation in the CM600HN-5F specifically benefit high-frequency PWM applications compared to standard "HA" series modules?
The HN series is engineered for high-frequency switching, often referred to as the NFH (High Frequency) class. Unlike standard modules optimized for low conduction losses (Vce(sat)), the CM600HN-5F prioritizes the reduction of turn-off energy (Eoff). In a 20kHz to 40kHz environment, switching losses become the dominant heat source. By reducing the "tail current" duration during turn-off, this module allows for higher carrier frequencies without exceeding the safe junction temperature, effectively enabling more compact magnetic component designs.

What is the critical significance of the 600V rating when designing for 230V AC line-fed industrial converters?
A 600V Vces rating provides a necessary safety margin for DC link voltages that typically hover around 320V to 400V in 230V AC systems. When switching 600A, parasitic inductance in the busbars can cause significant voltage spikes (V = L * di/dt). The CM600HN-5F requires careful snubber circuit design to ensure these transients do not breach the 600V limit. Engineers should refer to our guide on preventing overvoltage failure to maximize system longevity.

Key Parameter Overview

Decoding the Specs for Enhanced Thermal Reliability

The following technical data is derived from official Mitsubishi Electric performance specifications. These values are critical for thermal modeling and gate drive synchronization.

Download the CM600HN-5F datasheet for detailed specifications and performance curves.

Technical & Design Deep Dive

Switching Loss Reduction and the Analogy of Fluid Dynamics

To understand the efficiency of the CM600HN-5F, one can use the analogy of a high-pressure mechanical valve. In a standard IGBT, turn-off is like a valve that "sticks" slightly as it closes, allowing fluid (current) to leak through while the pressure (voltage) builds up, creating friction (heat). The CM600HN-5F acts as a "low-friction" valve, snapping shut with minimal leakage. This reduction in the "tail current" phase is what permits the module to operate at frequencies that would typically cause a standard module to fail due to thermal runaway.

Designing with a 600A module at high frequencies also necessitates a focus on gate drive impedance. The CM600HN-5F features a specialized internal structure to minimize internal lead inductance, but the external gate loop must be kept as short as possible to prevent parasitic oscillation. For engineers scaling their designs, understanding high-frequency IGBT selection is paramount to avoiding desaturation issues during rapid di/dt events.

Furthermore, the thermal management of 600A requires more than just a large heatsink. The low Rth(j-c) of the CM600HN-5F allows for efficient heat transfer, but the interface material (TIM) must be applied with precision to avoid localized hot spots. In systems requiring even higher voltage overhead, such as 400V or 690V lines, the CM600HA-24A or the 7th Gen CM600DX-24T may be considered to provide a 1200V Vces margin.

Application Scenarios & Value

Achieving System-Level Benefits in High-Frequency Power Conversion

The CM600HN-5F is particularly effective in Variable Frequency Drives (VFD) and induction heating power supplies. In induction heating, the load is often resonant, and the inverter must switch at the resonant frequency to maintain efficiency. The high current capacity of 600A combined with the high-speed "HN" series silicon allows for multi-kilowatt systems that remain cool and reliable over thousands of operational hours.

Engineers often face the challenge of size constraints in Uninterruptible Power Supplies (UPS) or medical imaging power stages. By utilizing the CM600HN-5F, designers can push switching frequencies higher, which directly allows for smaller filters and transformers, significantly reducing the total cost of ownership (TCO) and the physical footprint of the equipment. This aligns with modern high-efficiency power system trends where power density is a primary competitive advantage. Utilizing authoritative technologies like Mitsubishi 7th Gen IGBT concepts in legacy-compatible packages like the HN-5F ensures that even existing designs can be optimized for modern efficiency standards.

For procurement specialists and engineers evaluating 600V power stages, the CM600HN-5F represents a mature, high-speed solution that minimizes the trade-off between switching speed and current capability. By focusing on low Eoff and high thermal conductivity, it remains a staple for demanding high-frequency industrial applications.
