DF100LA160 Diode Module: Specs & Reliability for Power Apps

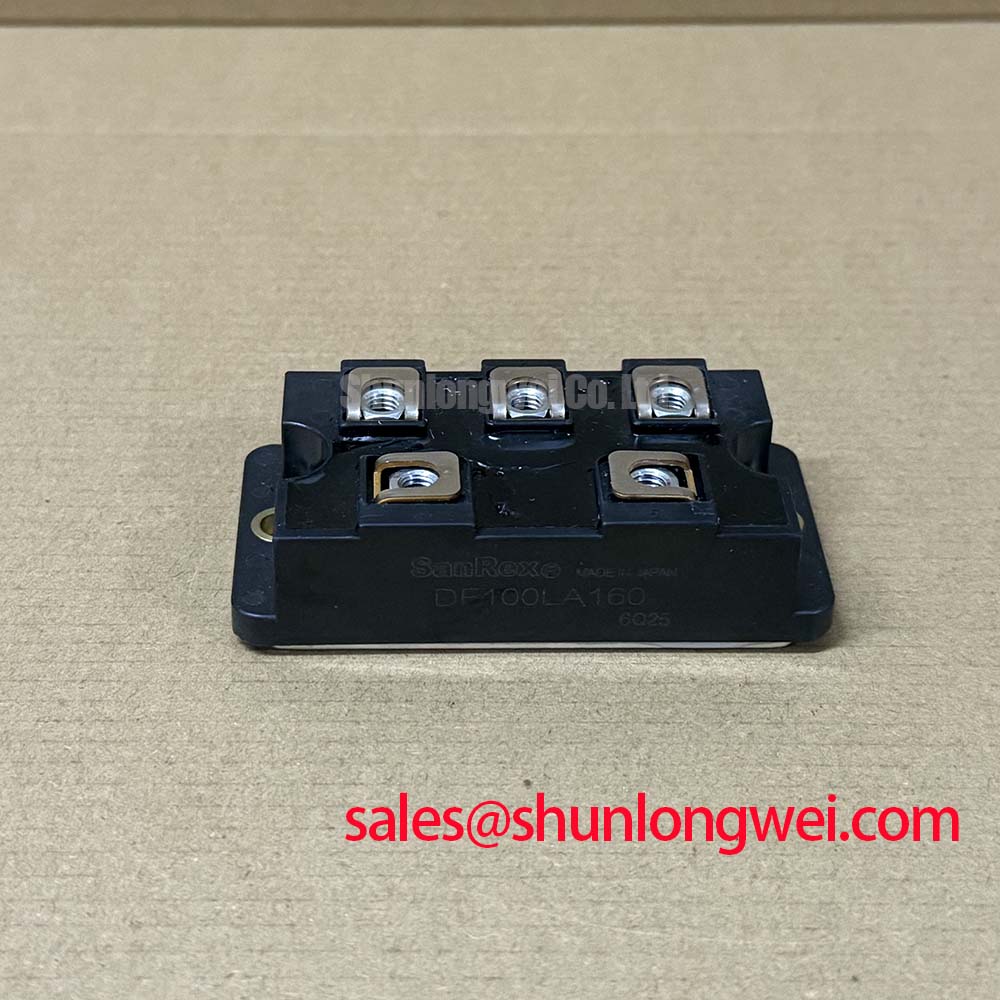

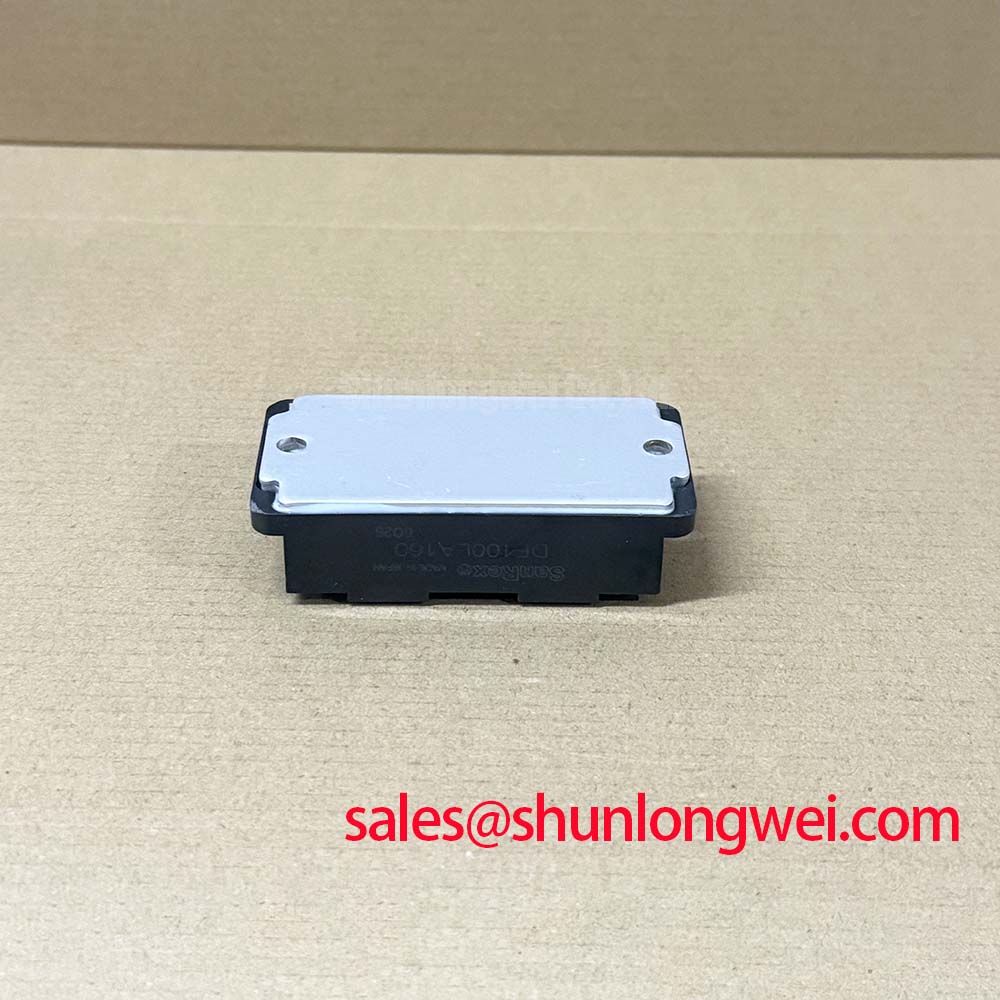

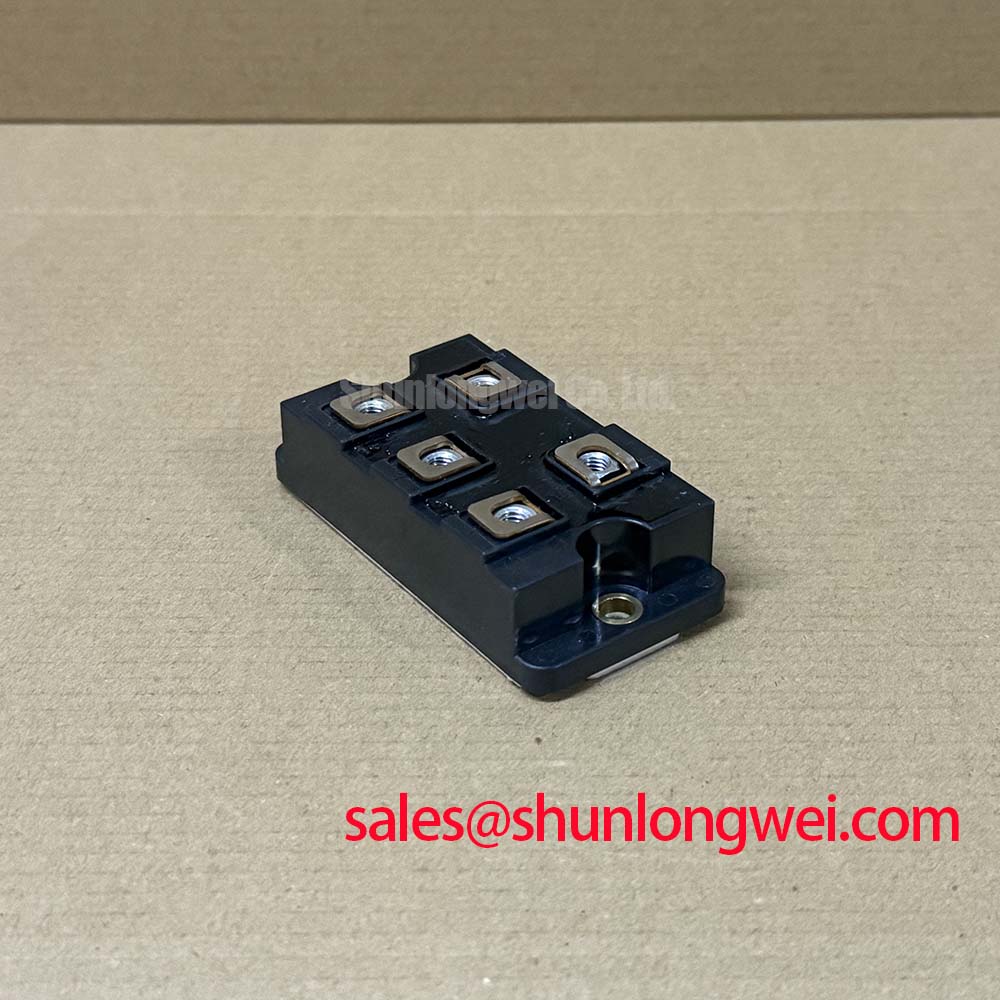

The DF100LA160 Diode Module by Sanrex provides exceptional operational integrity through its robust, isolated construction and glass-passivated die technology. This module features key specifications of 1600V VRRM | 100A IF(AV) | 2500V Viso, delivering benefits of enhanced long-term reliability and simplified thermal management. For engineers questioning how to mitigate failure points in high-power rectification, the DF100LA160's integrated isolation and robust die construction provide a direct answer by reducing mechanical and thermal stresses inherent in non-isolated designs.
Deployment Scenarios: Field-Proven Robustness
The design of the Sanrex DF100LA160 lends itself to environments where electrical noise and physical stress are constant factors. Its robust build is particularly valuable in the following scenarios:
- Industrial Welding Equipment: In arc welders, the module's high surge current capability (IFSM up to 1980A) is critical for enduring the intense inrush currents and output short-circuit conditions common during operation.
- Large-Scale Battery Charging Systems: For industrial forklifts or backup power systems, the module provides a reliable DC rectification front-end. The isolated base simplifies integration into earthed chassis, improving safety and reducing assembly complexity.
- Electroplating Power Supplies: The glass-passivated chip ensures stable performance over long periods of continuous operation, a typical requirement in electroplating processes where consistent DC output is essential for quality surface finishing.
Core Specifications for Resilient Designs
The following parameters from the official datasheet are pivotal for evaluating the DF100LA160's performance in demanding power systems. A comprehensive review can be completed by referencing the official datasheet.
Download the Datasheet for DF100LA160
| Parameter | Value |
|---|---|
| Repetitive Peak Reverse Voltage (VRRM) | 1600V |
| Average Forward Current (IF(AV)) | 100A |
| Non-Repetitive Surge Forward Current (IFSM, 60Hz) | 1980A |
| Isolation Voltage (Viso, AC 1 minute) | 2500V |
| Max Junction Temperature (Tjmax) | 150°C |
| Thermal Resistance (Rth(j-c), per chip) | 0.32 °C/W |
Engineered for High-Stress Rectification Environments
The DF100LA160 is a versatile component designed for the input stages of various power conversion systems. Its high blocking voltage and current handling capabilities make it a suitable foundation for building reliable power infrastructure.
Primary Application Areas:
- General Purpose Inverters and Converters: Serves as a robust AC-DC front-end rectifier in variable frequency drives (VFDs) and other industrial converters.
- DC Power Supplies: Ideal for constructing high-current DC power sources for industrial controls, testing equipment, and telecommunications.
- Uninterruptible Power Supplies (UPS): The module's high surge rating ensures it can handle the switchover currents and line faults often encountered in critical backup power applications.
What is the primary benefit of its high surge rating? It provides a crucial safety margin against system-level faults. With its 1600V rating and high surge capability (1980A), it is best suited for input stages of high-power converters connected to volatile industrial grids, where it offers enhanced resilience over lower-rated components.
Data Points for Component Evaluation
When assessing rectifier modules, the choice between isolated and non-isolated packages is a primary engineering decision. The Sanrex DF100LA160, with its integrated 2500V isolation, presents a clear set of trade-offs compared to non-isolated alternatives. While non-isolated modules may offer a slightly lower thermal resistance path directly to the heatsink, they mandate the use of external insulating pads (e.g., silicate or ceramic wafers) and specially designed mounting hardware. This adds complexity, cost, and potential points of thermal or mechanical failure during assembly and over the product's lifetime. The DF100LA160's design internalizes this isolation, simplifying the bill of materials and assembly process while ensuring certified dielectric strength. For systems where higher current is the primary requirement, the DF200AC160 provides a 200A capability in a similar package topology.
Inside the DF100LA160: A Focus on Construction Integrity
The long-term performance of a power module is fundamentally tied to its internal construction. The Sanrex DF100LA160 incorporates specific design choices that directly contribute to its operational sturdiness and longevity.
Glass Passivated Die
At the heart of this module is a glass-passivated diode chip. Passivation involves applying a layer of glass over the sensitive p-n junction area. This process hermetically seals the junction from ambient humidity, dust, and ions that could otherwise cause gradual degradation of blocking voltage characteristics and an increase in leakage current over time. This construction choice is a key factor in the module's stable performance throughout its operational life, a critical aspect analyzed in IGBT failure analysis.
High Surge Current Capability (IFSM)
The IFSM rating of 1980A is a direct indicator of the die's physical robustness. Think of IFSM as the diode's ability to brace against a sudden, massive influx of current—much like a sea wall is engineered to withstand a rogue wave. A higher rating signifies a stronger die structure, capable of absorbing significant energy during fault conditions like a short circuit or a lightning-induced surge on the power line without fracturing. This protects the entire downstream system from catastrophic failure.
The Strategic Value of Durability in Modern Power Systems
In today's industrial landscape, the emphasis is shifting from initial component cost to Total Cost of Ownership (TCO). System downtime, maintenance, and replacement cycles are significant financial drivers. A component's durability is no longer a secondary characteristic but a primary strategic advantage. The robust design of the DF100LA160, featuring an isolated base and glass-passivated die, directly addresses this trend. By designing-in a component that resists common failure modes—such as dielectric breakdown or environmental degradation—engineers can extend the service life of the end equipment. This contributes to a lower TCO and enhances the brand reputation for reliability, a crucial differentiator in competitive markets like industrial automation and critical power infrastructure.
Designing for the Future: The Role of Robust Components
As power systems continue to push the boundaries of density and efficiency, the fundamental reliability of each component becomes increasingly paramount. Incorporating modules like the Sanrex DF100LA160 is not merely a matter of meeting current specifications but a strategic decision to build resilience into the very foundation of a design. Its integrated isolation and proven die technology provide a stable platform, allowing engineers to focus on optimizing higher-level system performance, secure in the knowledge that the core power rectification stage is built to last. This forward-looking approach, prioritizing component integrity, is essential for developing next-generation equipment that is not only powerful but also dependable and cost-effective over its entire lifecycle.
