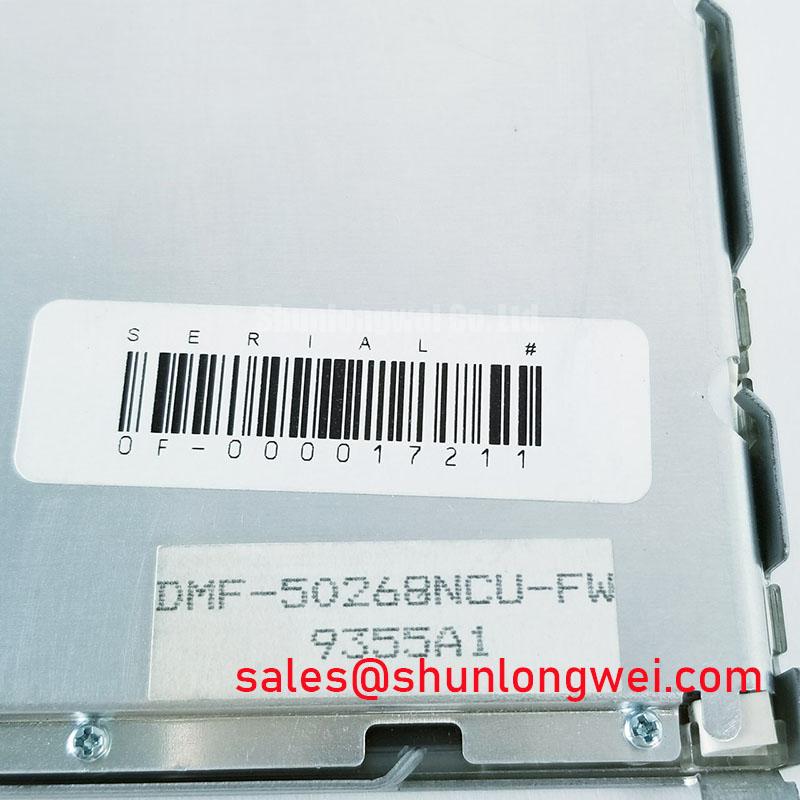

Optrex DMF-50268NCU-FW: Technical Review of the 240x64 FSTN Graphic LCD Module
Engineered for Clarity and Longevity in Industrial Human-Machine Interfaces
The Optrex DMF-50268NCU-FW is a graphic LCD module engineered for long-term performance in demanding industrial applications. Its design delivers high-contrast monochrome visuals and a proven interface, making it a critical component for maintaining and extending the life of legacy control systems. With a 240 x 64 dot matrix resolution powered by a CCFL backlight, it provides the essential readability required for complex data and graphical user interfaces. Key benefits include excellent visual clarity via FSTN technology and a straightforward parallel interface for simplified system integration. This module directly addresses the need for a form-fit-function replacement for a wide range of existing test, measurement, and automation equipment, avoiding costly system redesigns. Best fit for legacy industrial HMI and control panel repair, this display ensures continuity where a complete system overhaul is impractical.
Key Parameter Overview
Decoding Specifications for System Integration and Reliability
The technical specifications of the DMF-50268NCU-FW are tailored for integration into industrial environments where clarity and dependable operation are paramount. The following parameters highlight its capabilities as a robust graphical interface solution.
| Display Characteristics | |
|---|---|
| Display Technology | FSTN (Film-compensated Super-twisted Nematic), Passive Matrix |
| Resolution | 240 x 64 Dots |
| Viewing Area | 132.0(W) × 39.0(H) mm |
| Dot Pitch | 0.49 x 0.49 mm |
| Display Mode | Transflective |
| Physical & Environmental Specifications | |
| Module Dimensions | 180.0(W) × 65.0(H) × 12.5(D) mm |
| Backlight System | 1-pc CCFL (Cold Cathode Fluorescent Lamp) |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Interface & Control | |
| Interface Type | 8-bit parallel data |
| Built-in Controller | Likely T6963C or compatible |
| Supply Voltage (Logic) | 5.0V |
Application Scenarios & Value
System-Level Benefits in Legacy Equipment Sustainment
The primary value of the DMF-50268NCU-FW lies in its role as a direct replacement component for aging or failed screens in a vast installed base of industrial equipment. Consider a scenario involving a CNC machine from the late 1990s or early 2000s; its control panel often utilizes a graphic display of this specific 240x64 resolution. When this display fails, the entire machine—a capital asset worth tens of thousands of dollars—can become inoperable. Sourcing a DMF-50268NCU-FW provides a cost-effective path to recovery. Its standard 8-bit parallel interface is engineered to connect directly to the legacy Programmable Logic Controller (PLC) or microcontroller board without requiring interface converters or software redevelopment. This is a critical advantage for maintenance engineers, minimizing downtime and extending the productive life of the asset. The FSTN technology ensures the displayed G-code, system status, and operator prompts are sharp and readable, a crucial factor for operational accuracy and safety in a factory environment.
While the DMF-50268NCU-FW is ideal for text and basic graphical readouts, systems requiring color-coded status indication or higher pixel density may utilize displays like the KCG057QV1DB-G000, which offers a 320x240 resolution in a similar industrial form factor.
Frequently Asked Questions (FAQ)
What is the key advantage of FSTN technology in this display?
FSTN (Film-compensated Super-twisted Nematic) technology provides significantly better contrast and a wider viewing cone compared to older STN displays. For an operator on a factory floor who may be viewing the control panel from an angle, this ensures that characters and graphics remain legible without distortion or color shift, which is critical for accurate process monitoring and reducing operator error.
Does the CCFL backlight require a separate inverter?
Yes, CCFL backlights operate on high-voltage AC and require an external inverter to function. System designers must ensure their existing system's inverter is compatible or source an appropriate one when integrating this display as a replacement. The backlight's performance and lifespan are directly tied to the quality of the power supplied by the inverter.
Is the parallel interface of the DMF-50268NCU-FW compatible with modern microcontrollers?
While modern MCUs can certainly drive an 8-bit parallel interface, it is often seen as GPIO-intensive. This display's interface is optimized for legacy systems where such parallel buses were standard. Integrating it into a new design is possible, but it is primarily intended as a form-fit-function replacement for older equipment that already utilizes controllers like the Toshiba T6963C, for which extensive code libraries and hardware designs exist.
Industry Insights & Strategic Advantage
The Engineering Case for Component-Level Repair over System Replacement
In an industry focused on Industry 4.0 and IIoT, the continued relevance of components like the DMF-50268NCU-FW highlights a critical, often overlooked, strategic advantage: asset longevity. The decision to repair existing machinery at the component level, rather than replacing it, is not merely a cost-saving measure; it is a sound engineering and business strategy. From a technical standpoint, replacing a failed HMI with a like-for-like module eliminates the substantial risks and costs associated with system re-validation. In regulated industries such as medical devices or aerospace, introducing new hardware, even a modern LCD, can trigger a lengthy and expensive recertification process. By providing a stable, known-quantity component, the DMF-50268NCU-FW enables maintenance programs that prioritize uptime and operational consistency. This approach aligns with sustainability goals by extending the life of complex machinery and reducing electronic waste, offering a compelling argument for maintaining a robust supply chain for these foundational industrial display technologies.
An Engineer's Perspective on Application
From an integration standpoint, the value of the DMF-50268NCU-FW is its predictability. The FSTN display technology and the commonly used built-in controller represent a stable and well-documented platform. For engineers tasked with keeping a fleet of production machines running, this predictability is invaluable. There is no need to contend with new firmware, different timing requirements, or unexpected EMI signatures that a modern, high-speed interface might introduce. It is a solution that respects the engineering principle of "if it isn't broken, don't fix it," allowing for a targeted repair that restores functionality without introducing new variables into a proven system. This focus on reliability and backward compatibility makes it a cornerstone component for strategic maintenance and repair operations.
