An Engineering Review of the Optrex DMF6104NB-FW Graphic LCD Module

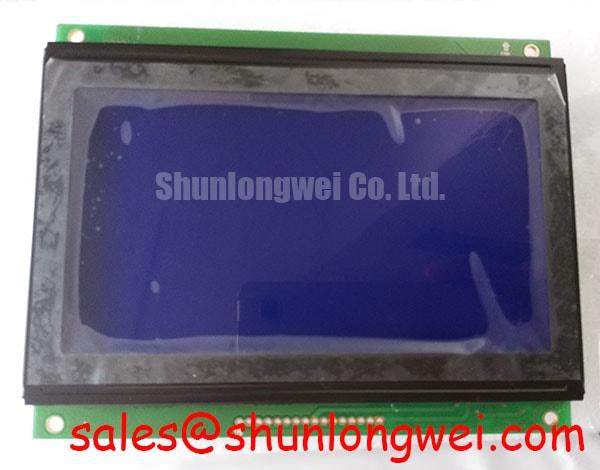

The Optrex DMF6104NB-FW is a 5.3-inch monochrome STN graphic display module delivering a resolution of 256 x 128 pixels. Engineered for clarity and straightforward implementation, it features a transflective screen and a standard 4-bit parallel interface. Key benefits include excellent readability in diverse lighting conditions and simplified integration with microcontroller-based systems. For engineers designing or maintaining equipment with specific interface requirements, this module's standard parallel data bus provides a direct and reliable connection path. Best fit for legacy system sustainment or new designs requiring a simple, readable monochrome graphic interface in controlled industrial environments.
Key Parameter Overview
Decoding the Specs for System Integration
The technical specifications of the DMF6104NB-FW are tailored for integration into industrial and instrumentation applications where clarity and reliability are paramount. The parameters are grouped by function to facilitate a quick assessment for system design compatibility.
| Feature Group | Specification |
| Display Characteristics |
|
| Mechanical & Environmental |
|
| Backlight & Electrical |
|
Application Scenarios & Value
System-Level Benefits in Instrumentation and Control
The DMF6104NB-FW is an optimal choice for applications demanding clear data visualization without the complexity of modern high-speed interfaces. Its feature set provides tangible value in specific engineering scenarios. For systems where total cost of ownership is a key consideration, understanding the difference between industrial and consumer displays is crucial, and this module exemplifies the industrial focus on reliability.
Consider the design of a portable water quality analysis meter. A key challenge is ensuring the device is readable both in a brightly lit laboratory and in shaded outdoor field conditions, all while managing battery life. The transflective screen technology of the DMF6104NB-FW directly addresses this. In direct sunlight, the display uses ambient light for illumination, making it perfectly readable with the backlight completely off, thus conserving significant power. Indoors, the integrated CCFL backlight can be activated to provide a bright, clear view. The 256x128 SXGA resolution provides ample space to display measurement values, units, and simple graphical trend lines, making it a highly effective user interface for specialized test and measurement equipment.
While this model is well-suited for its specific niche, for applications requiring higher data density and resolution within a similar form factor, the KCG057QV1DB-G000 offers a 320x240 resolution in a 5.7-inch package.
Technical Deep Dive
The Engineering Impact of Transflective STN and Parallel Interface
Two core design choices define the value of the DMF6104NB-FW: its transflective STN screen and its simple parallel data bus. The transflective technology functions like a hybrid vehicle for displays. In bright conditions, it operates in a passive, reflective mode, using ambient light to create an image, which is extremely power-efficient. In darkness, it activates its internal "engine"—the CCFL backlight—to become a transmissive display. This dual-mode capability is essential for devices that move between different lighting environments, ensuring readability while optimizing power consumption.

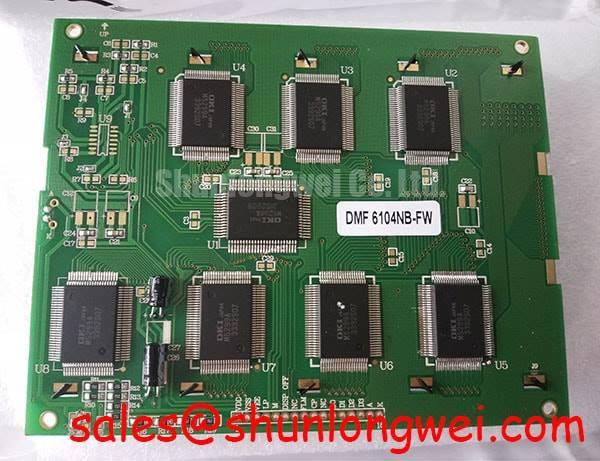

Furthermore, the 4-bit parallel interface is a key advantage for design simplification. Integrating this display is akin to connecting a basic peripheral, not a high-bandwidth component. This interface is directly compatible with the I/O ports of countless microcontrollers, avoiding the need for dedicated driver ICs, complex FPGAs, or the signal integrity challenges associated with high-speed serial interfaces like LVDS. This drastically reduces development time, BOM cost, and PCB layout complexity, making it an ideal solution for cost-sensitive or legacy system designs. This topic is part of a broader discussion covered in The Ultimate Guide to TFT-LCD.
Frequently Asked Questions
Engineering and Application Inquiries
Is the DMF6104NB-FW a suitable replacement for older Optrex models?
Yes, the DMF6104NB-FW is often considered for sustaining legacy systems that originally used similar Optrex graphic modules. Key matching criteria are its 256x128 resolution, 5.3-inch size, 4-bit parallel interface, and 5V logic. Engineers should always verify the physical dimensions, connector pinout, and controller command set against the original datasheet to ensure full drop-in compatibility.
What are the design considerations for the CCFL backlight's power supply?
The CCFL backlight requires a specific high-voltage AC source provided by an external inverter. The datasheet specifies a typical lamp current of 5.0 mArms and a starting voltage of 600 Vrms. Designers must select or design an inverter that can provide these characteristics to ensure proper brightness and achieve the rated 20,000-hour lifespan. What is the primary benefit of the CCFL? It provides a proven, long-life illumination source with a predictable performance curve.
What is the practical implication of the -10°C to +40°C operating temperature range?
This temperature range firmly positions the DMF6104NB-FW for applications in controlled indoor environments, such as factory floors, laboratories, or control rooms. While the storage temperature is wider, the display's performance (especially response time and contrast) is only guaranteed within the specified operating range. It is not suitable for deployment in outdoor applications exposed to direct sun (which can cause overheating) or in unheated environments that fall below -10°C.
To evaluate the DMF6104NB-FW for your specific application, contact our technical sales team for further information and quoting.
