Infineon FF1400R12IP4 IGBT Module

Infineon FF1400R12IP4 IGBT Module | High-Power E4-Generation for Demanding Inverters

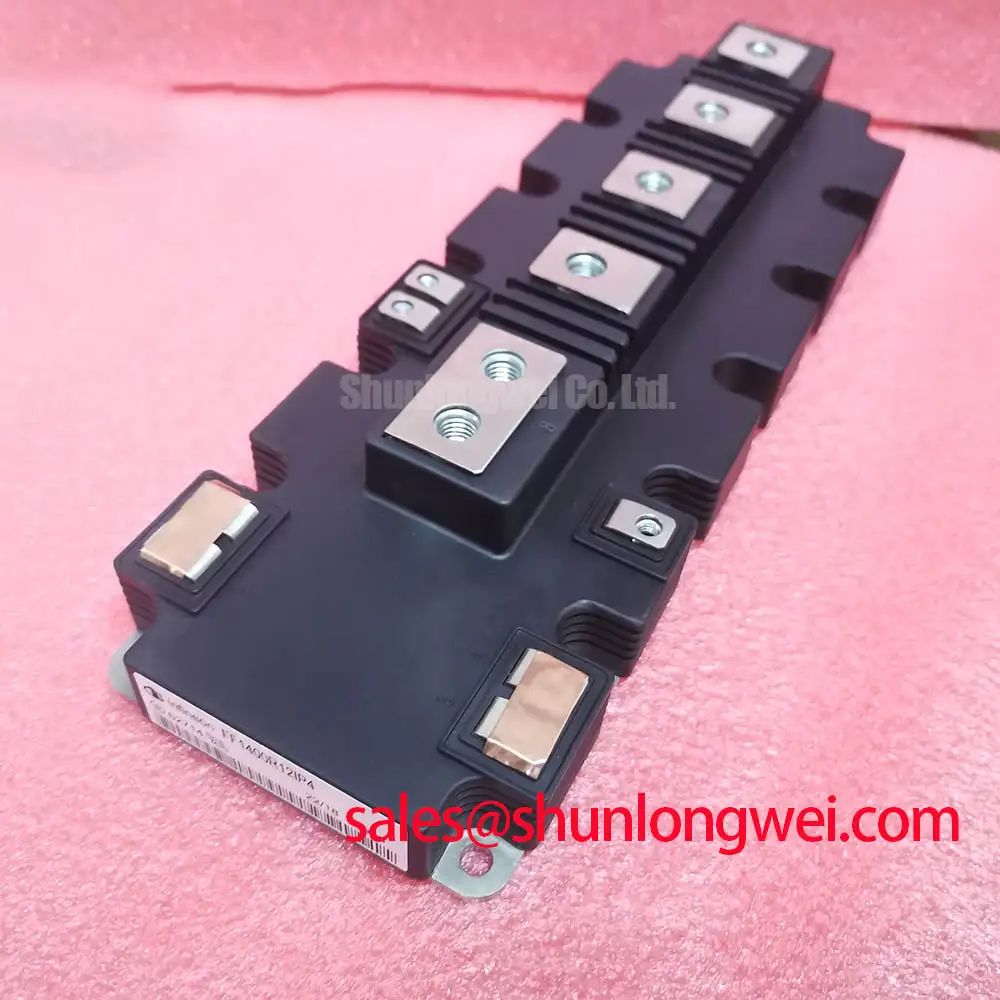

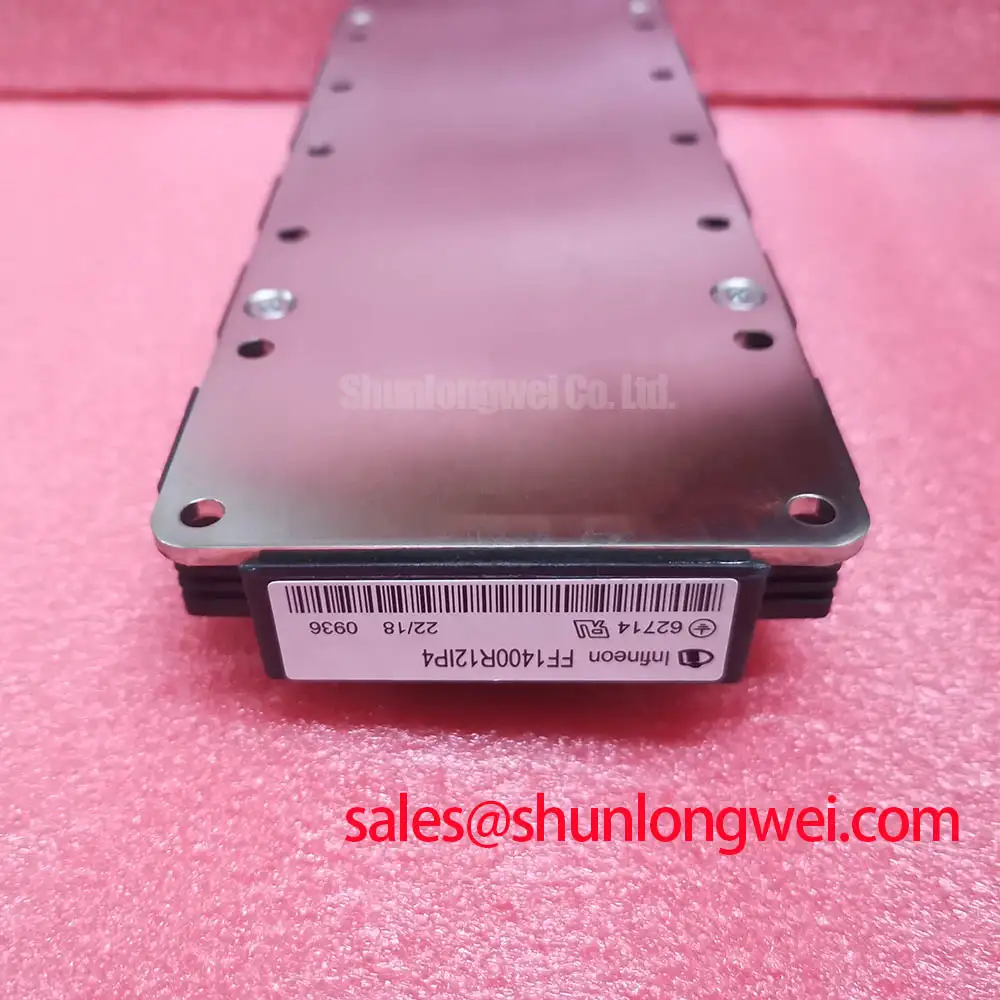

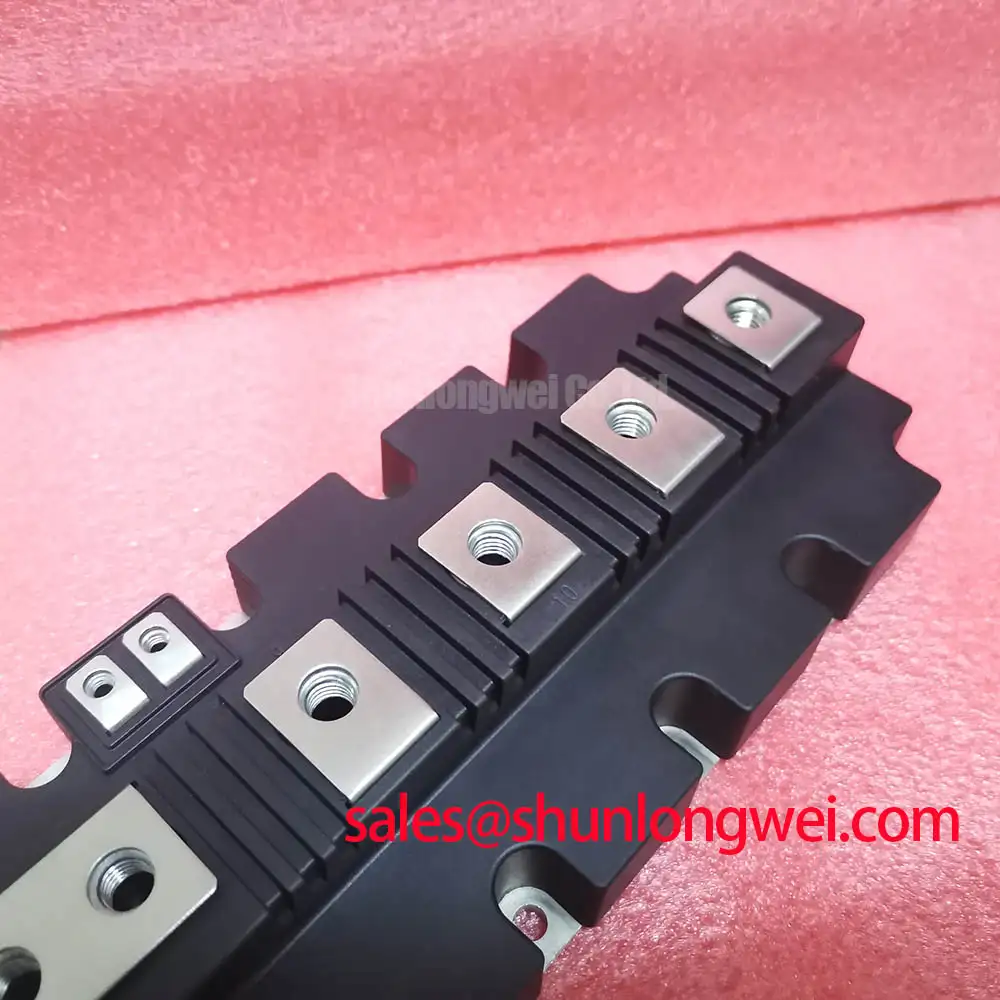

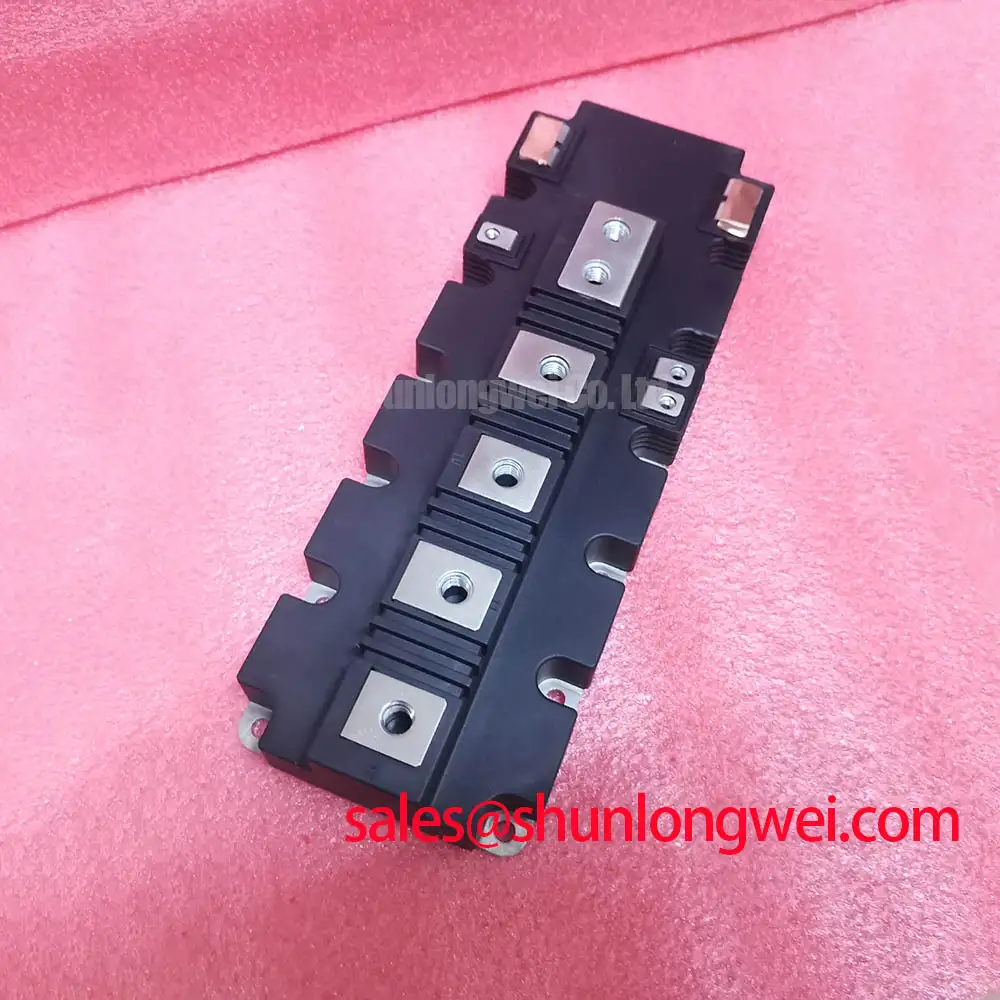

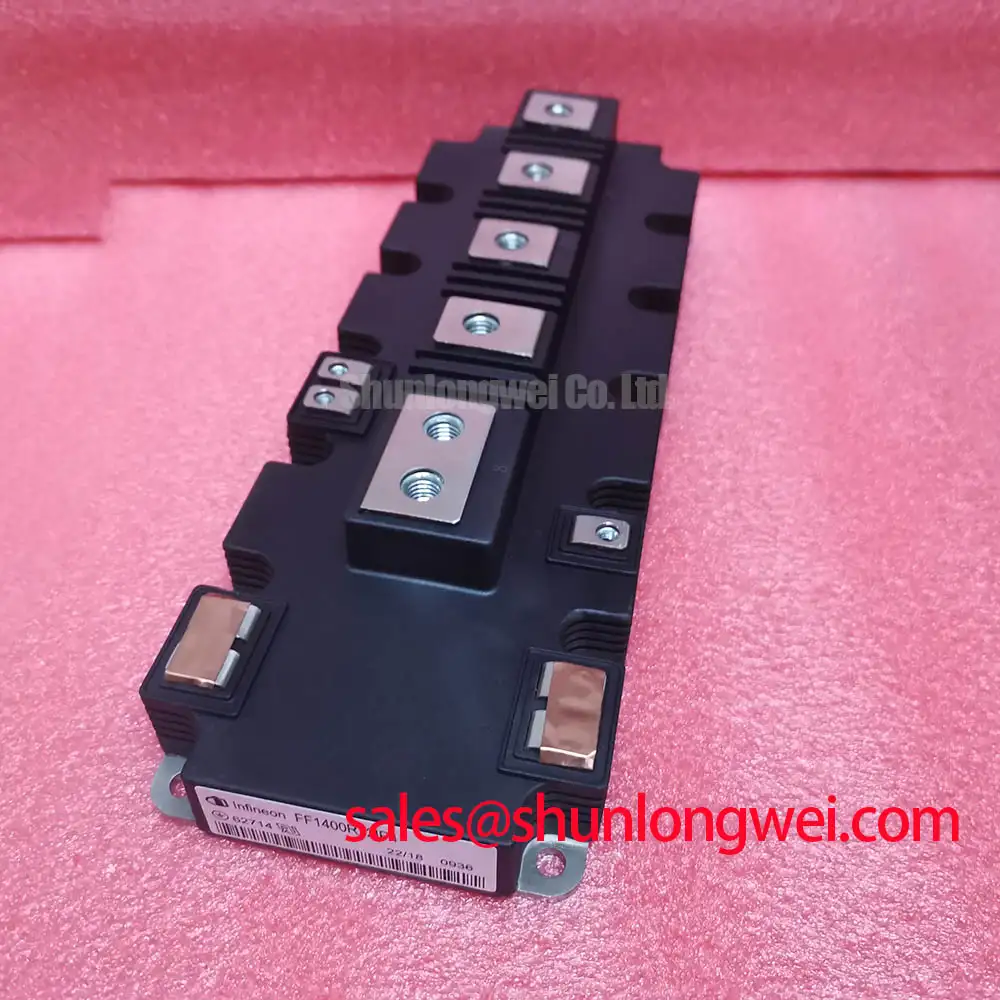

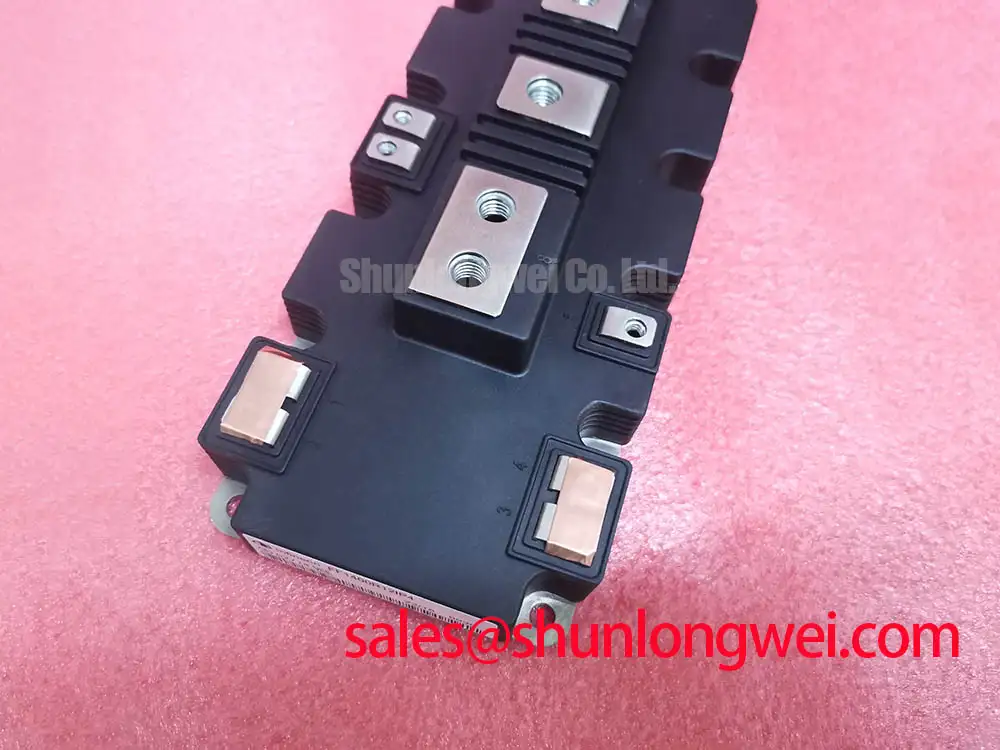

The Infineon **FF1400R12IP4** is a cornerstone of high-power industrial electronics, engineered for applications where reliability and efficiency are non-negotiable. This 1200V, 1400A half-bridge module, housed in the robust IHM-B package, leverages Infineon's mature IGBT4 Trench Field-Stop technology to deliver exceptional performance. It is the go-to solution for designers of large-scale motor drives, renewable energy converters, and uninterruptible power supplies (UPS) seeking a proven, high-current platform.

Technical Deep Dive: Unpacking the IGBT4-E4 Advantage

The performance of the **FF1400R12IP4** is rooted in its sophisticated silicon design. Two key features stand out for system designers:

• Optimized IGBT4 Trench Field-Stop (TFS) Technology: Unlike older planar gate IGBTs, the Trench-Gate structure creates a vertical current path, significantly increasing channel density. The integrated field-stop layer allows for a much thinner N-drift region. For the engineer, this synergy means a dramatically lower collector-emitter saturation voltage (Vce(sat)). This isn't just a number on a datasheet; it directly translates to lower conduction losses, reduced heat generation, and ultimately, a more efficient and reliable power conversion system.
• Soft Switching Emitter-Controlled Diode: Paired with the IGBT is a high-performance freewheeling diode. The "soft" recovery characteristic of this diode minimizes voltage overshoots and oscillations during turn-off. This benefit is crucial for simplifying EMI filter design and reducing stress on the entire system, leading to a more robust and compliant final product without extensive filtering and snubbing circuits.

Multi-Dimensional Application Scenarios

The value of the **Infineon FF1400R12IP4** is best understood through its impact on specific high-power applications:

• Industrial Motor Drives: In multi-megawatt drives for mining, marine propulsion, or large industrial fans, efficiency is paramount. The low Vce(sat) of the FF1400R12IP4 minimizes wasted energy as heat, lowering operational electricity costs and simplifying the demanding thermal design of the inverter cabinet.
• Wind and Solar Inverters: For renewable energy systems, uptime and energy harvest are key performance indicators. The module's robust design and high operational temperature (Tvjop = 150°C) ensure stable performance even under fluctuating load conditions and harsh environmental temperatures, maximizing power generation. Its proven reliability in the field makes it a trusted choice for grid-tied IGBT for wind power applications.
• High-Power UPS Systems: In data centers and critical industrial facilities, the UPS must be fail-safe. The FF1400R12IP4’s high short-circuit capability and rugged construction provide the necessary resilience to handle fault conditions without catastrophic failure, safeguarding critical loads.

Key Technical Parameters Overview

Comparative Insight & Selection Advice

When evaluating options, engineers might compare the **FF1400R12IP4** to newer-generation modules like those based on IGBT7 or even wide-bandgap SiC technology. While SiC modules offer higher switching frequencies and lower switching losses, the IGBT4 platform of the FF1400R12IP4 provides a superior cost-performance balance for applications operating at lower frequencies (typically below 10 kHz). For established designs prioritizing proven reliability and cost-effectiveness in high-current, low-to-medium frequency applications, the FF1400R12IP4 remains an exceptionally strong choice. It offers a clear path to market with a well-understood and highly reliable technology base.

For a comprehensive look at our high-power solutions, Explore More IGBT Modules or Contact Us for a Quote to discuss your specific design requirements with our technical specialists.
