FF300R12KE4 IGBT Module: Technical Data & Application Guide for 1200V/300A Industrial Drives
Introduction: A Balance of Power and Efficiency

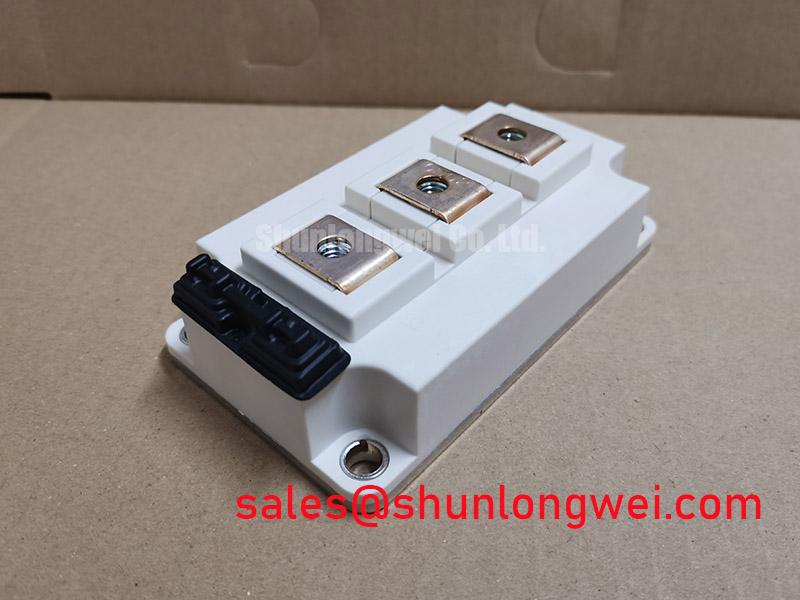

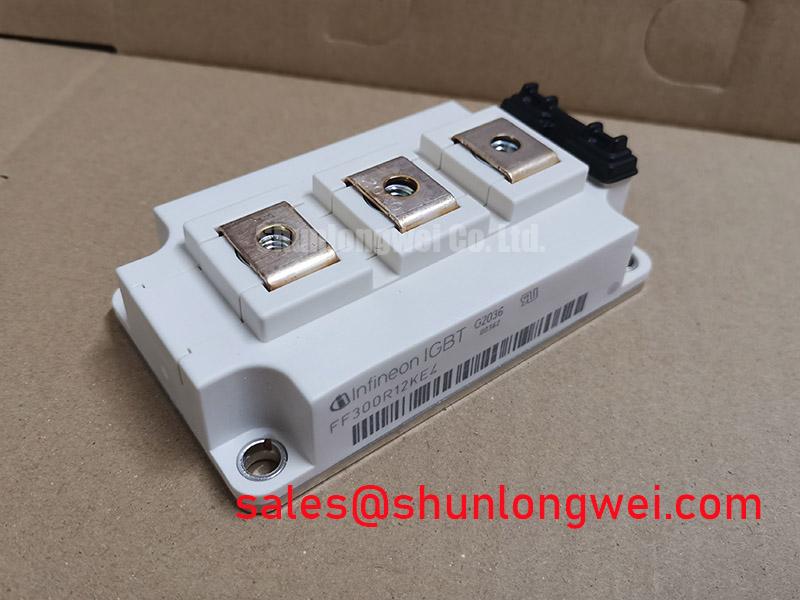

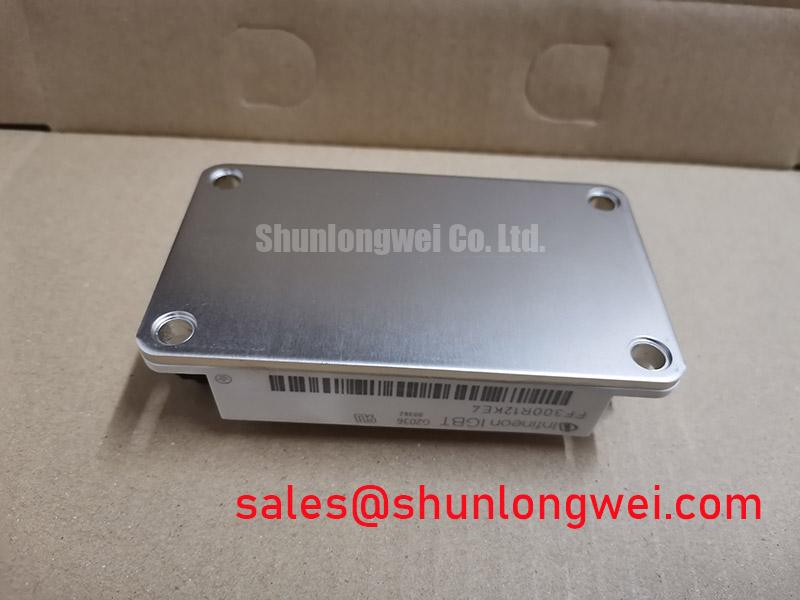

The FF300R12KE4 is a 1200V, 300A dual IGBT module engineered to optimize efficiency in industrial drives through a finely tuned balance of conduction and switching performance. Featuring Infineon's robust TrenchSTOP™ IGBT4 technology, this EconoPACK™+ module provides a reliable foundation for high-power conversion systems. Key specifications include: 1200V | 300A | VCE(sat) 1.95V (typ.). The primary engineering benefits are reduced thermal management costs and enhanced system power density. The module's design effectively answers the critical question of how to manage losses in applications with dynamic loads. For industrial motor drives operating with Pulse Width Modulation (PWM) frequencies up to 15 kHz, the FF300R12KE4's TrenchSTOP™ IGBT4 technology provides an optimal balance between conduction and switching losses.
Key Parameter Overview
Decoding the Electrical and Thermal Specifications for Loss Calculation
The technical specifications of the FF300R12KE4 are foundational to accurate system modeling and thermal design. The values presented below are critical for calculating total power dissipation and ensuring reliable operation within the device's safe operating area. Particular attention should be paid to the trade-off between conduction losses, dictated by VCE(sat), and switching losses, represented by Eon and Eoff.
| Parameter | Symbol | Condition | Value |
|---|---|---|---|
| Collector-Emitter Voltage | VCES | Tvj = 25°C | 1200 V |
| Continuous Collector Current | IC nom | 300 A | |
| Collector-Emitter Saturation Voltage | VCE sat | IC = 300 A, VGE = 15 V, Tvj = 25°C | 1.95 V (typ.) |
| Gate-Emitter Threshold Voltage | VGE(th) | IC = 12.0 mA, VCE = VGE, Tvj = 25°C | 5.8 V (typ.) |
| Switching-on Energy | Eon | IC = 300 A, VCE = 600 V, VGE = ±15 V, RG = 3.6 Ω, Tvj = 125°C | 26.00 mJ (typ.) |
| Switching-off Energy | Eoff | IC = 300 A, VCE = 600 V, VGE = ±15 V, RG = 3.6 Ω, Tvj = 125°C | 25.00 mJ (typ.) |
| Short Circuit Withstand Time | tPSC | VGE ≤ 15 V, VCC = 800 V, Tvj ≤ 150°C | 10 µs |
| Thermal Resistance, Junction to Case | Rth(j-c) | per IGBT | 0.081 K/W (max.) |
| Operating Junction Temperature | Tvj op | -40 to +150°C |
Download the FF300R12KE4 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Motor Drives and Power Conversion Systems
The FF300R12KE4 is strategically positioned for medium-power industrial applications where efficiency and reliability are paramount. Its primary application is in Variable Frequency Drive (VFD) systems used for motor control.
Consider the engineering challenge of a VFD controlling a conveyor system that frequently starts and stops under heavy load. During low-speed, high-torque operation, the current is high and sustained, making conduction losses from the IGBT's VCE(sat) the dominant source of heat. The FF300R12KE4's low typical VCE(sat) of 1.95V directly minimizes this thermal load, simplifying heatsink design. When the motor speed changes, the inverter relies on high-frequency Pulse Width Modulation (PWM), where switching losses become significant. The TrenchSTOP™ IGBT4 technology provides controlled turn-on and turn-off energy (Eon/Eoff), preventing excessive heat generation during these transitions. This balance makes the module highly effective in dynamic load environments, contributing to a lower total cost of ownership through higher efficiency and improved reliability.
Other suitable applications include commercial air conditioning systems, uninterruptible power supplies (UPS), and solar inverters. For applications requiring lower power, the FS150R12KE3 offers a similar 1200V rating in a smaller package, while systems demanding higher output current may benefit from the FF450R12KE4.
Frequently Asked Questions
Engineering Inquiries on Performance Optimization and Reliability
What is the recommended switching frequency range for the FF300R12KE4 to maximize efficiency?
The FF300R12KE4, featuring TrenchSTOP™ IGBT4 technology, is optimized for a balance between conduction and switching losses. It performs optimally in a switching frequency range of approximately 2 kHz to 15 kHz. Below this range, conduction losses dominate, while above it, switching losses increase significantly, potentially requiring more complex thermal management.
How does the TrenchSTOP™ IGBT4 technology in the FF300R12KE4 differ from older IGBT generations?
Compared to older planar or non-punch-through (NPT) IGBT technologies, the TrenchSTOP™ IGBT technology provides a significantly lower collector-emitter saturation voltage (VCE(sat)) for a given switching speed. This results in lower conduction losses, a better trade-off between VCE(sat) and switching energy (Eoff), and higher power density, making it a more efficient solution for modern inverter designs.
What is the practical benefit of the integrated NTC thermistor for system design?
The integrated NTC thermistor provides a direct, real-time measurement of the module's baseplate temperature. This simplifies the control system design by eliminating the need for external sensors, reduces component count, and enables precise over-temperature protection. This data is crucial for implementing proactive thermal shutdown protocols, which are vital for preventing catastrophic failures and extending the service life of the entire power system.
How does the VCE(sat) of 1.95V (typ.) influence the thermal design for a 300A motor drive application?
A lower VCE(sat) directly translates to lower power dissipation (P = VCE(sat) * Ic) during the on-state. For a 300A drive, this reduction in heat generation is substantial. It allows engineers to either select a smaller, more cost-effective heatsink for the same operating temperature or to achieve a lower junction temperature with a standard heatsink. This improves the system's overall reliability and power density, a key aspect of effective thermal management.
Technical Deep Dive
A Closer Look at TrenchSTOP™ IGBT4 and its Impact on Inverter Efficiency
At the core of the FF300R12KE4's performance is the Infineon TrenchSTOP™ IGBT4 chip technology. This represents a critical engineering balance between the two primary sources of power loss in an IGBT: conduction and switching. Understanding this trade-off is essential for optimizing inverter design.
Think of conduction loss (VCE(sat)) as the constant friction inside a pipe as water flows through it. A lower VCE(sat) is like having a wider, smoother pipe—it requires less energy to push the same amount of current through. On the other hand, switching loss (Eon/Eoff) is like the energy wasted each time a heavy, stiff valve is opened or closed. A very low-friction pipe might require a very heavy valve that is slow and energy-intensive to operate. The IGBT4 technology is akin to a perfectly engineered valve system: it offers a very low-friction path (low VCE(sat)) while also being quick and efficient to operate (controlled Eon/Eoff). This balance ensures that in real-world applications with constant switching, the total energy wasted is minimized.
This module also incorporates an Emitter Controlled 4 diode. To extend the analogy, this freewheeling diode acts as a sophisticated pressure-relief valve. When the main IGBT "valve" shuts off, the diode provides a safe path for the current, preventing damaging voltage spikes. The Emitter Controlled 4 diode does this with minimal reverse recovery charge (Qrr), which is like a relief valve that closes instantly and smoothly without causing a secondary "water hammer" effect. This fast and soft recovery behavior is crucial for reducing EMI and improving the overall efficiency and robustness of the inverter, especially when decoding IGBT datasheets for high-frequency designs.
From a strategic design perspective, selecting the FF300R12KE4 is a decision to prioritize proven technology and system-level cost optimization. Its efficiency characteristics directly reduce the burden on cooling systems, which often represent a significant portion of an inverter's bill of materials and physical volume. By enabling smaller heatsinks and improving overall energy conversion, this module helps engineers meet stringent efficiency regulations and market demands for more compact, reliable power electronics. This focus on total cost of ownership, rather than just initial component price, is a hallmark of robust and forward-thinking system architecture.
