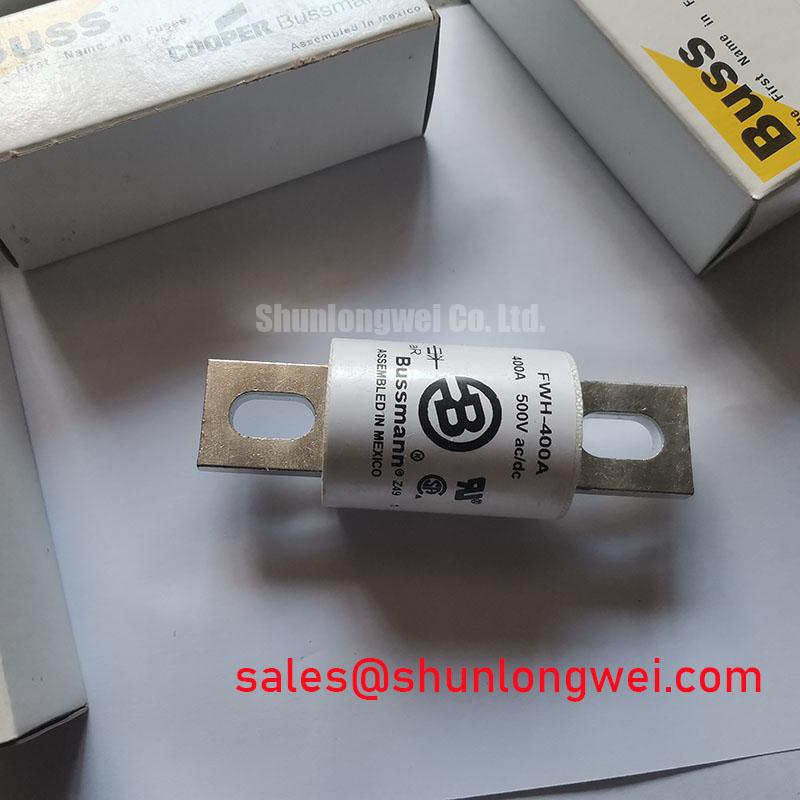

FWH-400A Fuse: Precision I²t Protection for 500V IGBT Modules and Power Converters
In the realm of high-power semiconductor protection, speed is not measured in seconds, but in energy. During a short-circuit event, the destructive force is the immense thermal energy unleashed in microseconds, quantified by a critical parameter: I²t, or "ampere squared seconds." This value represents the energy let-through that a protective device allows before clearing a fault. For a sensitive and expensive IGBT module, minimizing this energy is the difference between survival and catastrophic failure. The Bussmann series FWH-400A is a high-speed fuse engineered with a primary focus on an extremely low I²t value, establishing it as an essential guardian for the power conversion stages in today's demanding industrial applications.
Core Performance Metrics at a Glance
The design of the FWH-400A centers on delivering predictable, high-speed protection. Its performance is defined by a select group of parameters crucial for any system designer focused on reliability and safety.
| Parameter | Value |
|---|---|
| Current Rating | 400 Amperes |
| Voltage Rating | 500V AC/DC |
| Clearing I²t at 500V | 120,000 A²s |
| Interrupting Rating | 200 kA RMS Symmetrical (AC) / 100 kA (DC) |
| Class of Operation | aR (Semiconductor Protection) |
Download the Complete FWH-400A Datasheet
Safeguarding the Core of Electrification and Automation
The push towards higher efficiency and power density in industrial systems presents a significant challenge: the potential for extremely high fault currents. As VFDs become more compact and battery energy storage systems (BESS) grow in capacity, the available short-circuit current can easily exceed the capabilities of conventional protection devices. The FWH-400A directly addresses this trend. Its 200 kA AC and 100 kA DC interrupting ratings ensure it can safely open a circuit even in the most robust electrical environments, preventing arc flash incidents and system-wide damage. This level of protection is no longer a luxury but a strategic necessity for equipment connected to powerful grids or large battery banks, ensuring compliance with stringent industrial safety standards.
Precision Protection Across High-Power Topologies
The FWH-400A's specific design for semiconductor protection makes it a versatile solution across a range of high-stress applications. Its value is realized in preventing the failure of the most critical components within the power chain.
- Variable Frequency Drives (VFDs): Deployed to protect the main inverter stage, which houses costly IGBT modules like the FF400R12KE3. In the event of a motor short-circuit or DC link failure, the fuse acts faster than the IGBT's own short-circuit withstand time, saving the module from destruction.
- Battery Energy Storage Systems (BESS): Essential for protecting the DC-DC converters and inverters connected to battery racks. The massive fault currents available from battery sources demand the high 100 kA DC interrupting capacity of the FWH-400A.
- Uninterruptible Power Supplies (UPS): Guarantees the reliability of the power conversion heart of the UPS, ensuring that downstream critical loads are protected from faults originating within the system itself.
- Welding and Induction Heating Systems: Thrives in environments characterized by high current and frequent power cycling, providing the ultimate failsafe against short-circuits that could damage the power supply's core semiconductors.
Decoding the FWH-400A's Protective Performance
Understanding the FWH-400A requires looking beyond its current rating. Its protective capability lies in its precise energy-limiting characteristics. The critical task for a design engineer is I²t coordination. Think of it like a vehicle's airbag system: the airbag must deploy in the milliseconds before the driver impacts the steering wheel. Similarly, the fuse's total clearing I²t (120,000 A²s) must be substantially lower than the I²t withstand rating of the IGBT module it protects. This ensures the fuse absorbs the energy of the fault event, sacrificing itself to save the far more valuable semiconductor. Furthermore, the fuse’s performance relies on a well-designed gate drive circuit, which serves as the first line of defense. Components such as the SKHI 24 R gate driver provide the control necessary for normal operation and initial fault detection, with the FWH-400A acting as the ultimate safeguard against catastrophic current events.
Selecting the Right Guardian for Your Semiconductors
When protecting power semiconductors, the choice between a fuse and a circuit breaker is clear. Standard circuit breakers, while effective for overload protection, are far too slow to prevent damage from a high-current short-circuit. The FWH-400A, as a current-limiting high-speed fuse, begins to act in microseconds. The key to successful implementation is careful datasheet analysis. A designer must overlay the fuse's time-current curve with the semiconductor's Safe Operating Area (SOA) to confirm that for any given fault current, the fuse will open the circuit before the semiconductor is compromised. This analytical approach to protection, enabled by the predictable performance of the FWH-400A, is fundamental to designing reliable power systems. For a deeper understanding of fault mechanisms, exploring resources on IGBT failure analysis can provide invaluable context for your protection strategy.
As power electronics continue to advance, the demands on protective devices will only intensify. Investing in a precisely engineered component like the FWH-400A is a strategic decision that enhances system robustness, ensures operational safety, and ultimately lowers the total cost of ownership by protecting your most critical power assets. It provides the foundation of trust upon which next-generation, high-efficiency power systems are built.
