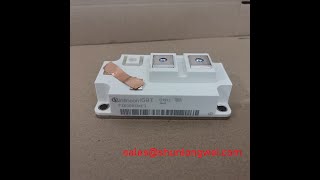

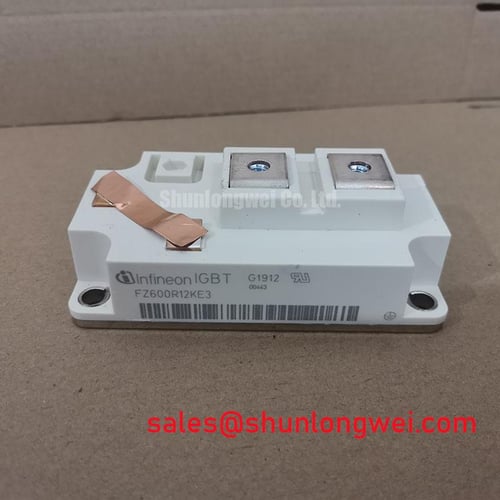

FZ600R12KE3 IGBT Module: A Technical Datasheet Review

A 1200V, 600A single-switch IGBT module engineered for minimized losses in high-power converters, leveraging proven TrenchSTOP™ IGBT3 technology.

Top Specs: 1200V | 600A | VCE(sat) 1.70V (typ.) | Low Total Switching Energy. Key Benefits: Reduced thermal load. Enhanced system efficiency. This module's low collector-emitter saturation voltage directly translates to lower conduction losses, a critical factor that simplifies thermal management and allows for more compact system designs by potentially reducing heatsink size requirements.

Key Parameter Overview

Dissecting the Core Specifications for Efficiency

The performance of the FZ600R12KE3 is defined by its electrical and thermal characteristics, which are optimized for high-power switching applications. A thorough evaluation of these parameters is essential for system-level design and simulation. The specifications below are extracted from the official manufacturer's datasheet for engineering review.

For a comprehensive list of specifications, electrical diagrams, and operational curves, please refer to the official FZ600R12KE3 datasheet.

Interpreting Key Parameters

Collector-Emitter Saturation Voltage (VCE(sat)): This parameter represents the voltage drop across the IGBT when it is fully turned on. Think of it like the pressure loss in a fully open water valve; a lower pressure loss means less energy is wasted. The FZ600R12KE3's typical VCE(sat) of 1.70V signifies low conduction losses, which is a primary contributor to the module's overall high efficiency and reduced heat generation.

Total Switching Energy (Ets): This value quantifies the energy lost during the turn-on and turn-off transitions. Each switching event dissipates a small amount of energy as heat. In high-frequency applications like switch-mode power supplies or Solar Inverter systems, these small losses accumulate rapidly. The defined Ets for this module is a critical parameter for accurately calculating total system losses and ensuring thermal stability at the target operating frequency.

Application Scenarios & Value

Deployment in High-Frequency Power Conversion Systems

The FZ600R12KE3 is engineered for high-power applications where the balance between conduction and switching losses is a primary design driver. Its characteristics make it a strong candidate for power conversion stages in a variety of industrial systems.

• Industrial Motor Drives: In Variable Frequency Drive (VFD) systems, the module's ability to efficiently handle high currents allows for precise and energy-efficient control of large induction motors.
• Renewable Energy Inverters: The module's low total losses are beneficial for central solar inverters and wind turbine converters, where maximizing energy yield is paramount.
• Uninterruptible Power Supplies (UPS): For large-scale data centers and critical infrastructure, the FZ600R12KE3 provides a reliable switching component for the inverter stage, ensuring high operational efficiency and minimizing cooling requirements.
• Welding Technology: High-power welding equipment requires robust components that can handle high current pulses efficiently. The thermal capacity and current ratings of this module support the demanding cycles of industrial welding applications.

For applications demanding a different current rating but similar voltage class, the related FZ400R12KE3 offers a 400A alternative within the same technology family. Given its low VCE(sat) and robust thermal performance, the FZ600R12KE3 is an optimal choice for high-current industrial drives where minimizing conduction losses is the primary design priority.

Technical Deep Dive

Inside the TrenchSTOP™ IGBT3 Architecture

The core of the FZ600R12KE3 module is the Infineon TRENCHSTOP™ IGBT3 chip technology. This generation of IGBTs was developed to establish a new benchmark for low conduction losses, particularly in medium-frequency switching applications (typically 5 kHz to 20 kHz). The technology achieves its low VCE(sat) through an optimized trench gate structure and a field-stop layer, which significantly reduces the voltage drop across the device when it's in the on-state.

What is the trade-off for its low conduction loss? The IGBT3 technology represents a carefully engineered balance between VCE(sat) and switching losses. While later technologies may offer faster switching for very high-frequency designs, the IGBT3 provides a highly effective solution for applications where conduction losses are the dominant factor in the total loss budget. This design choice results in superior thermal performance under high load currents, contributing to overall system reliability and cost-effectiveness. The module's robust construction ensures this chip-level performance is translated into dependable operation at the system level, as detailed in our guide to decoding IGBT datasheets.

Industry Insights & Strategic Advantage

Meeting Modern Energy Efficiency Mandates

In an industrial landscape shaped by rising energy costs and stringent efficiency regulations, the selection of power semiconductors has a direct impact on a product's market viability and an end-user's total cost of ownership. The FZ600R12KE3, with its foundation in low-loss IGBT3 technology, directly addresses these pressures. Systems designed with this module can achieve higher efficiency ratings, reducing operational energy consumption and heat dissipation. This not only lowers running costs but also simplifies the cooling infrastructure, a significant factor in the overall capital expenditure for large-scale power installations. By enabling more efficient power conversion, components like the FZ600R12KE3 are integral to developing systems that comply with global energy standards and contribute to corporate sustainability goals.

Intra-Series Comparison & Positioning

Strategic Placement within the 1200V IGBT Portfolio

The FZ600R12KE3 occupies a strategic position as a high-current, single-switch module within the extensive 1200V IGBT landscape. It is differentiated by its use of the well-established TrenchSTOP™ IGBT3 technology, which prioritizes exceptionally low conduction losses.

• Versus Newer Generations: Compared to modules built on IGBT4 or IGBT7 technology, the FZ600R12KE3 may exhibit higher switching losses. However, for applications operating at lower to medium switching frequencies, its lower VCE(sat) can result in lower overall power dissipation, making it a more efficient and cost-effective choice.
• Versus Older Technologies: When compared to previous non-trench or earlier trench-gate IGBTs, this module offers a substantial reduction in on-state voltage and improved thermal performance, enabling higher power density and system reliability.

Engineers select the FZ600R12KE3 not for the absolute fastest switching speed, but for its optimized performance profile in mainstream industrial applications where efficiency under high current is the critical path to a reliable and cost-effective design. Understanding these trade-offs is key to proper IGBT module selection.

Frequently Asked Questions

1. How do the turn-on (Eon) and turn-off (Eoff) energies specified for the FZ600R12KE3 influence inverter design?
The individual Eon and Eoff values, which combine to form the total switching energy (Ets), are critical for thermal calculations. In an inverter design, the total power loss from switching is calculated as Psw = (Eon + Eoff) * fsw, where fsw is the switching frequency. A designer must use these datasheet values to model the heat generated at the intended operating frequency, ensuring the selected cooling system can maintain the IGBT junction temperature well below the 150°C maximum for reliable operation.

2. What are the primary considerations when paralleling multiple FZ600R12KE3 modules for higher current capacity?
When paralleling IGBTs, ensuring balanced current sharing is crucial. The FZ600R12KE3 features a positive temperature coefficient for VCE(sat), which provides a degree of self-balancing; as one module heats up, its on-state resistance increases, naturally shunting current to cooler, parallel devices. However, for optimal performance, designers must also ensure symmetrical gate drive layouts with individual gate resistors for each module and a symmetrical power bus layout to minimize stray inductance mismatches, which can cause unequal dynamic current sharing during switching.
