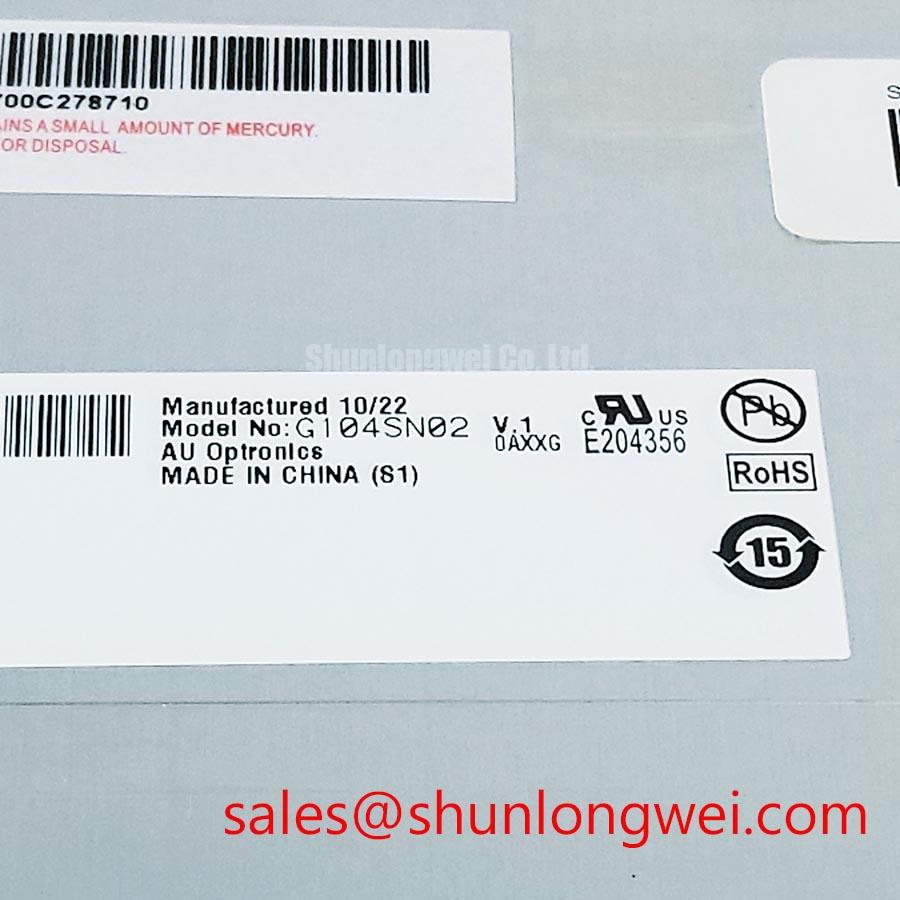

AUO G104SN02 V1 | Reliable 10.4" SVGA Display for Industrial HMIs
The AUO G104SN02 V1 is a testament to robust and reliable display engineering, designed specifically for the rigorous demands of industrial environments. This 10.4-inch SVGA TFT-LCD panel delivers the essential performance characteristics required for long-term operational stability, making it a benchmark component for system integrators and engineers developing next-generation or legacy-compatible human-machine interfaces (HMIs), control systems, and monitoring equipment.
Product Highlights: Engineered for Performance and Longevity
- Industrial-Grade Reliability: With a wide operating temperature range and a durable construction, this display is built to withstand the challenging conditions of factory floors, control rooms, and field instrumentation.
- Consistent Visual Performance: The panel offers wide viewing angles, ensuring that critical data is clearly legible from various operator positions without significant color or contrast shift.
- Standard SVGA Resolution: The 800x600 resolution is an industry standard, providing excellent compatibility for retrofitting existing systems or for applications where intricate graphical detail is secondary to clear data presentation.
- Efficient LED Backlight: Features a long-life LED backlight system that provides stable brightness and lower power consumption compared to older CCFL technologies, contributing to a lower total cost of ownership.
Technical Deep Dive: The Engineering Behind the G104SN02 V1
As an engineer, you know that specifications only tell part of the story. The true value of a component like the AUO G104SN02 V1 lies in how its design parameters translate into real-world performance advantages. Two key areas highlight its suitability for demanding applications.
Superior Viewing Consistency
The display utilizes advanced a-Si TFT (Amorphous Silicon) technology to deliver a horizontal viewing angle of 160° and a vertical angle of 140°. In a practical industrial setting, this is not just a comfort feature; it's a critical safety and efficiency attribute. It ensures that multiple operators or a single operator moving around a machine can view process parameters, alarms, and controls without misinterpretation caused by chromaticity shifts. This consistent off-axis readability is crucial in applications from CNC machine controls to medical monitoring stations.
Built for Demanding Thermal Environments
An industrial display's ability to perform reliably across a wide temperature spectrum is non-negotiable. The G104SN02 V1 is specified for operation from -10°C to +70°C. This wide range guarantees stable performance in unconditioned environments, such as a factory floor that experiences significant temperature swings or an enclosed kiosk exposed to direct sunlight. The robust thermal design, coupled with an efficient LED backlight that generates less heat, directly translates to increased system uptime and reduced need for costly field replacements.
Key Parameter Overview
For engineers requiring quick-reference data, the table below outlines the core specifications of the G104SN02 V1. For a comprehensive list of all electrical and optical characteristics, please download the full datasheet here.
| Parameter | Specification |
|---|---|
| Manufacturer | AUO |
| Model Name | G104SN02 V1 |
| Screen Size | 10.4 inches |
| Resolution | 800(RGB)×600 [SVGA] |
| Brightness | 230 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) |
| Viewing Angle | 80/80/60/70 (Typ.)(CR≥10) |
| Interface Type | LVDS (1 ch, 6-bit) |
| Operating Temperature | -10 ~ 70 °C |
| Backlight | WLED, 20K hours (Typ.) |
Application Scenarios & Value Proposition
- Industrial Automation HMI: The standard SVGA format and robust temperature range make it a drop-in replacement or a reliable choice for new designs in PLC and CNC controllers, offering clarity and longevity.
- Test and Measurement Equipment: Provides a clear, stable display for oscilloscopes, spectrum analyzers, and other benchtop instruments where data accuracy is paramount.
- Medical Devices: Its reliable performance and consistent viewing angles are suitable for patient monitoring systems and medical diagnostic equipment where downtime is not an option.
- Point-of-Sale (POS) & Kiosks: For indoor or semi-outdoor kiosk applications, the display's durability and solid visual performance offer a cost-effective and dependable user interface solution.
For your next project requiring proven, long-lasting industrial LCD displays, the AUO G104SN02 V1 offers a balanced combination of performance, reliability, and value. If you have questions regarding compatibility or require support for your specific application, please do not hesitate to contact our technical team for expert guidance.
