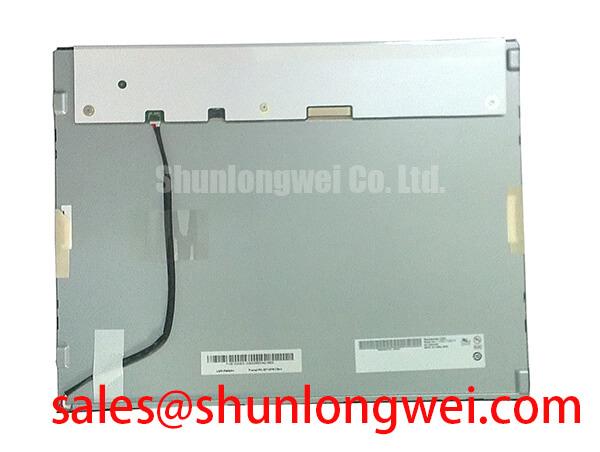

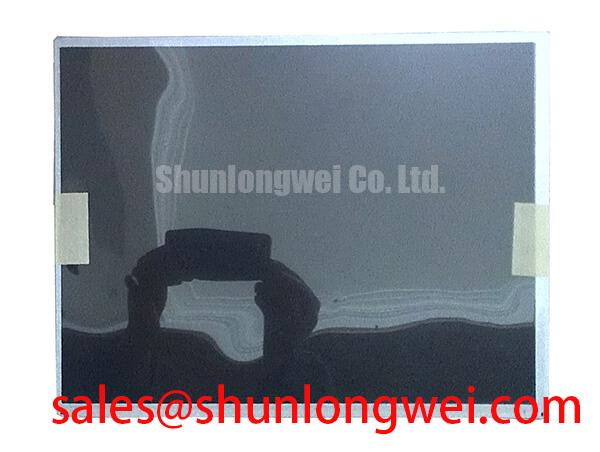

AUO G150XTN03.0 | Reliable 15" XGA TFT-LCD for Industrial HMI & Control Systems
The AUO G150XTN03.0 is a 15.0-inch TFT-LCD panel engineered for long-term performance in demanding industrial environments. It delivers a proven combination of visual clarity, operational durability, and integration simplicity, making it a benchmark choice for developing or upgrading Human-Machine Interfaces (HMIs), process control systems, and specialized instrumentation.
Product Highlights: Engineered for Industrial Uptime
- Industrial-Grade Reliability: With a wide operating temperature range of -20°C to 70°C and a robust anti-glare surface, this display is built to withstand the rigors of factory floors, control rooms, and field equipment.
- Extended Backlight Lifespan: The WLED backlight system is rated for 50,000 hours of operation, significantly reducing maintenance cycles and total cost of ownership over the product's lifecycle.
- Simplified Integration: Featuring an integrated LED driver and a standard LVDS interface, the G150XTN03.0 streamlines the design-in process, lowering BOM complexity and development time.
- Classic XGA Resolution: The 1024x768 resolution provides a sharp, clear canvas for complex graphical user interfaces, data visualization, and legacy system compatibility without requiring excessive processing power.
Key Technical Specifications
This table offers a snapshot of the core performance metrics for the AUO G150XTN03.0. For complete electrical and mechanical details, you can download the official datasheet.
| Parameter | Specification |
|---|---|
| Screen Size | 15.0 inch |
| Resolution | 1024(RGB)×768 [XGA] |
| Panel Technology | a-Si TFT-LCD |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) |
| Viewing Angle | 80/80/70/70 (L/R/U/D) |
| Operating Temperature | -20 ~ 70 °C |
| Backlight System | WLED, 50,000 hours, with Integrated LED Driver |
| Signal Interface | LVDS (1 ch, 6/8-bit), 20 pins |
Technical Deep Dive: The Engineering Behind the Reliability
Two core design philosophies make the G150XTN03.0 a standout choice. First is its unwavering focus on industrial durability. The -20°C to 70°C operating range isn't just a number; it's an assurance of stable performance in unconditioned environments, from cold-start manufacturing facilities to enclosures with significant heat load. This is complemented by the 50,000-hour WLED backlight. For a system running 24/7, this translates to over 5.7 years of continuous, reliable illumination, a critical factor in minimizing costly downtime for screen replacements. Learn more about how modern displays are engineered for extreme environments in our technical guide.
Second is its emphasis on integration efficiency. By incorporating the LED driver directly into the panel assembly, AUO eliminates the need for engineers to source, qualify, and design a separate driver board. This not only reduces the system's bill of materials but also removes a common point of failure and electrical noise, simplifying EMC compliance and ensuring the backlight is driven optimally for its entire lifespan.
Application Scenarios & Value Proposition
The AUO G150XTN03.0 excels in applications where reliability and clarity are paramount.
- Industrial Automation HMIs: The antiglare surface and solid contrast ratio ensure that machine operators can clearly read status screens and interact with controls, even under harsh factory lighting.
- Medical Equipment Interfaces: Ideal for non-diagnostic displays on equipment like infusion pumps, ventilators, or patient monitoring systems where consistent, long-term readability is essential for clinical use.
- Test & Measurement Instruments: Provides a crisp, stable display for presenting complex data, waveforms, and measurements in laboratory and field service equipment. The standard form factor makes it a perfect upgrade path for older instruments.
Frequently Asked Questions (FAQ)
Is the G150XTN03.0 suitable for outdoor, sunlight-readable applications?
No. With a typical brightness of 300 cd/m², this panel is optimized for indoor or heavily shaded industrial environments. For applications in direct sunlight, a display with a brightness of at least 800-1000 cd/m² and advanced optical bonding is required. You can explore our guide on sunlight-readable HMIs for suitable alternatives.
What is the primary benefit of the a-Si TFT technology used in this panel?
The a-Si TFT-LCD (Amorphous Silicon Thin-Film Transistor) technology is a mature, highly reliable, and cost-effective manufacturing process. It enables the production of robust, large-format displays like the G150XTN03.0 with consistent quality and performance, making it the workhorse technology for a vast range of industrial LCD displays.
