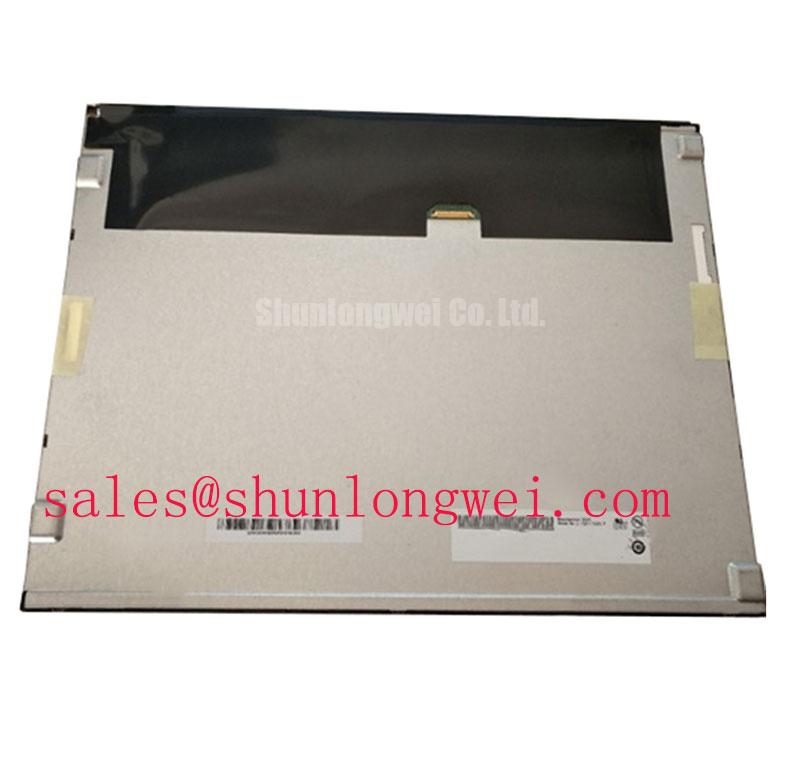

G150XTN06.6 AUO 15.0 inch 1024 x 768 LVDS LCD Display

Assess the G150XTN06.6 AUO LCD for machine-tool HMI terminal replacement: 15.0 inch, 1024 x 768, LVDS, with practical integration checks.

· Categories: LCD Display
· Manufacturer: AUO
· Price:
Price Range: US$ 50 - US$ 200 (Estimated)
Submit RFQ to Get Price
· Date Code: Please Verify on Quote
. Available Qty: 335
MOQ: 1 PC
Express Shipping
90-Day Warranty
1-2 Days Lead Time
100% Tested
Whatsapp: 0086 189 2465 1869

Content last revised on November 21, 2026

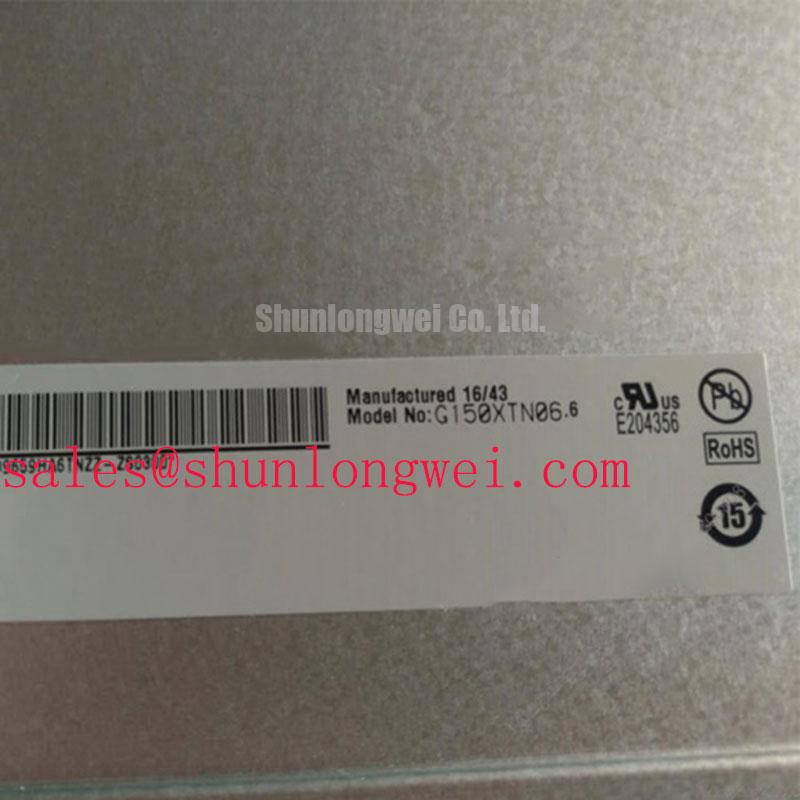

G150XTN06.6 Display Identification and Initial Inspection

Inspect the perimeter gasket and mounting supports before reconnecting the G150XTN06.6; uneven compression can introduce optical nonuniformity that resembles a panel fault. With power isolated, check for trapped debris, displaced cushioning, and cable tension before disturbing the display assembly. Record whether the original symptom changes with enclosure temperature, backlight setting, or machine operation so the subsequent bench test reproduces relevant conditions.

The product’s supplied specifications identify Manufacturer: AUO (友达光电); Part Number: G150XTN06.6; Diagonal Size: 15.0 inch; Resolution: 1024 x 768; and Interface: LVDS. These identify this TFT-LCD active matrix color display module. The resolution describes the native pixel matrix, while LVDS identifies the signal interface rather than connector compatibility. Supply voltage, connector assignments, backlight requirements, dimensional tolerances, and environmental limits require the applicable manufacturer datasheet during replacement approval.

High-Humidity Storage Margins and Delamination Prevention Protocols

Let a cold display assembly acclimatize before applying power when it has been moved into a warmer, humid workspace. As a Design Consideration, condensation control depends on the assembly temperature relative to the surrounding dew point, not simply the room temperature. Inspect the enclosure seal and cable entries for moisture paths, and avoid trapping damp packaging or cleaning residue against the panel perimeter.

Humidity screening should distinguish contamination on accessible surfaces from changes within the optical assembly. Photograph edge haze, localized discoloration, or apparent layer separation under repeatable lighting without pressing the affected area. These observations support fault localization, but they do not establish a particular adhesive chemistry or a confirmed delamination mechanism. Environmental test conditions must come from the approved qualification plan; accelerated humidity exposure is not a substitute for a specified storage rating.

Temperature-dependent image lag also deserves a separate record. As a Design Consideration, liquid-crystal response can slow as temperature decreases, whereas missing pixels, unstable synchronization, and intermittent image corruption require different checks. Compare a repeatable moving pattern with a static image after thermal stabilization. If corruption changes with temperature, inspect the LVDS path against the transmitter and receiver timing requirements, including clock quality and data timing. Do not apply TTL timing assumptions to the LVDS connection.

Suppressing Localized Thermal Gradients to Limit Optical Color Shift

Map temperature differences around the installed display before adding heat-spreading hardware or changing the enclosure ventilation. As a Design Consideration, nearby power components, restricted airflow, and asymmetric mounting contact can create localized heating. Any proposed heat spreader should be assessed for electrical clearance, mechanical loading, and its effect on the complete assembly rather than sized from the display diagonal alone.

Compare color and luminance using the same image, backlight setting, viewing position, and warm-up condition. A progressive color shift can involve several parts of the optical or illumination system; appearance alone does not identify a specific internal material. Likewise, brightness retention, backlight service life, and MTBF describe different characteristics and should not be treated as interchangeable maintenance guarantees.

For replacement evaluation, G150XG02 V1 provides a same-class comparison reference, not an automatic substitute. The following checks keep the comparison focused on the interfaces that determine installation compatibility.

Selection checkpoint G150XTN06.6 G150XG02 V1 comparison requirement
Manufacturer AUO (友达光电) Confirm exact manufacturer documentation and revision
Diagonal Size 15.0 inch Compare active area and enclosure opening
Resolution 1024 x 768 Confirm native matrix and controller timing
Interface LVDS Compare connector, pin assignment, and data mapping
Mechanical and backlight fit Consult Datasheet Compare mounting geometry and driver requirements

Engineers evaluating factory automation machine-tool HMI operator terminals should also check the existing viewing window and ambient reflections. The specifications listed here do not establish a numerical sunlight-readability rating or confirm an anti-glare or anti-reflective coating. Evaluate readability through the actual protective window rather than assuming the bare panel and enclosed terminal perform identically.

Backlight Power Compatibility and Insulation Testing Boundaries

Identify the installed backlight circuit from its wiring and approved documentation before attaching a replacement driver or test supply. As an Engineering Recommendation, separate panel logic power, illumination power, enable control, and brightness control during schematic review. The LVDS designation establishes none of those power requirements, and a matching video connector does not prove backlight compatibility.

The G156XW01 V101 is a related display reference for comparing controller and illumination arrangements, not a backlight-driver component for the G150XTN06.6. Any comparison should follow the actual power architecture and connector functions. Where a documented LED driver is involved, examine current regulation, thermal behavior, enable sequencing, and its specified open-load or short-circuit protection responses.

For a dark screen, correlate the illumination command, supply behavior, and any documented driver fault output. A protection indication can narrow the investigation but does not, by itself, identify whether the problem lies in the driver, wiring, connector, or light source. High-voltage insulation testing belongs only to circuits and procedures that explicitly permit it; applying a generic striking-voltage test to an unidentified backlight assembly risks invalid results and damage.

As a Design Consideration, investigate image disturbance near switching equipment by checking cable routing, connector seating, shield continuity, and the signal return path. Preserve differential-pair geometry and assess signal quality against the actual receiver requirements. EMC performance belongs to the integrated equipment, so a successful panel bench test cannot establish machine-level compliance.

Micro-Twist Mechanical Stress Prevention and Image Defect Isolation

Support the display on its intended mounting surfaces and check that tightening the enclosure does not twist the frame. As a Design Consideration, gasket compression should remain uniform without transferring localized loads into the viewing area. Compare the image before and after enclosure fastening; a change in clouding or edge brightness can justify reviewing the mounting stack without proving an internal glass or driver defect.

Display solid red, green, and blue fields, then neutral and dark patterns to separate persistent line defects from content-dependent artifacts. Record whether a defect remains at the same screen coordinates. A faint image visible under oblique illumination can support further investigation of the illumination path, but neither that observation nor a fixed line uniquely establishes the failed component. Avoid pressure-based tests on the glass or bonded connections.

Maintenance Note: With power isolated, periodically inspect cooling passages and perimeter cushioning without pressing on the display glass.

If a separate touch assembly is fitted, evaluate its alignment and operation independently; touch capability, glove response, and wet-surface behavior are not established panel specifications. The system-level discussion in Integrated by Design provides context for enclosure integration. After reassembly, repeat the image-pattern test with the protective window installed and check for new edge clouding, cable-induced intermittency, or changes caused by fastening stress.
