AUO G156HAN01.0: Full HD Industrial Display Engineered for Visual Fidelity and Longevity
Content last revised on October 6, 2025.
Introduction & Key Highlights
Defining Visual Performance in Demanding Industrial Environments
The AUO G156HAN01.0 is an industrial-grade 15.6-inch TFT-LCD module delivering exceptional image quality and operational durability for applications where visual precision is non-negotiable. With its Full HD resolution and robust backlight system, it provides the clarity and longevity required for modern industrial HMIs, medical diagnostic equipment, and public information kiosks. Its core specifications include: 1920x1080 Resolution | 400 cd/m² Brightness | 50,000-Hour LED Lifespan. This combination ensures both crisp, detailed imaging and a low total cost of ownership. The G156HAN01.0 directly addresses the need for a display that maintains consistent performance and wide viewing angles under continuous operation. For applications demanding high-resolution imaging and proven long-term reliability, the G156HAN01.0's 50,000-hour backlight life makes it a strategically sound choice.
Application Scenarios & Value
System-Level Benefits in Medical and Industrial Imaging
The G156HAN01.0 is engineered for environments where diagnostic and operational decisions depend on superior image quality. Its best-fit applications include medical imaging stations, high-end industrial control panels, and digital signage. In a medical diagnostics scenario, for instance, an engineer faces the challenge of displaying intricate visual data from modalities like ultrasound or endoscopy with absolute clarity. The G156HAN01.0's Full HD (1920x1080) resolution is pivotal here; it renders fine details and subtle gradations without the pixelation that could obscure critical information. What is the primary benefit of its AHVA technology? It ensures consistent and accurate color reproduction across wide viewing angles (89°/89°/89°/89°), allowing multiple professionals to view the screen simultaneously without color shift. This capability is crucial for collaborative diagnostics. Furthermore, the 50,000-hour backlight lifetime directly translates to system reliability, reducing the frequency of maintenance cycles and ensuring the display is operational when needed most. While the G156HAN01.0 excels in high-resolution tasks, for systems where full HD is not a primary requirement and cost-effectiveness is prioritized, the related G156XTN01.0 offers a viable alternative with a 1366x768 resolution.
Key Parameter Overview
Decoding the Specs for Enhanced Visual Performance
The technical specifications of the G156HAN01.0 are tailored to deliver a superior and reliable visual experience. The combination of high resolution, strong brightness, and wide viewing angles makes it a versatile solution for a range of professional applications.
| Parameter | Specification | Engineering Value |
|---|---|---|
| Screen Size | 15.6 inches | Provides a significant active area for detailed information display without an excessive footprint. |
| Resolution | 1920(RGB)×1080 (Full HD) | Enables sharp, clear rendering of complex graphics, text, and high-detail imagery. |
| Brightness | 400 cd/m² (Typ.) | Ensures excellent readability in typical indoor industrial and medical environments. |
| Viewing Angle | 89/89/89/89 (L/R/U/D) | Leverages AHVA technology for consistent image quality from nearly any viewing direction. |
| Contrast Ratio | 800:1 (Typ.) | Delivers deep blacks and vibrant colors, enhancing image depth and legibility. |
| Backlight Lifetime | 50,000 hours | Signifies long-term reliability and reduced maintenance, lowering total cost of ownership. |
| Interface | eDP (Embedded DisplayPort) (2 Lanes) | Supports high data rates required for FHD resolution and simplifies system integration. |
| Operating Temperature | 0 ~ 50 °C | Suitable for controlled industrial and commercial environments. |
Download the G156HAN01.0 datasheet for detailed specifications and performance curves.
Technical Deep Dive
Analyzing the Impact of AHVA and a 50,000-Hour Backlight

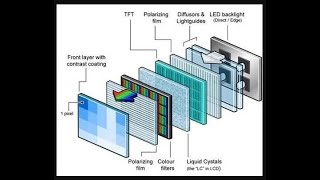

Two key features elevate the G156HAN01.0 beyond a standard display: its Advanced Hyper-Viewing Angle (AHVA) technology and its 50,000-hour rated WLED backlight. AHVA, a type of IPS (In-Plane Switching) technology developed by AUO, is central to the panel's superior off-axis performance. Unlike older TN panels where colors would distort and contrast would fade when viewed from an angle, AHVA aligns the liquid crystals horizontally. This arrangement is analogous to looking at a bookshelf from the side; the books (crystals) remain clearly visible without distortion. For an operator who needs to monitor a control panel while moving around a machine, or for a group of clinicians reviewing a patient scan, this consistent, wide viewing angle is a critical functional requirement, not just a luxury. The 800:1 contrast ratio further supports this by ensuring that the distinction between shades is maintained even in challenging ambient light.
The 50,000-hour backlight lifetime is an equally critical engineering parameter that directly impacts system reliability and total cost of ownership. This rating translates to over 5.7 years of continuous 24/7 operation before the backlight reaches half its initial brightness. For a system integrator, this specification provides a strong assurance of long-term performance, minimizing the likelihood of costly field service for display replacement. This is especially vital for equipment deployed in remote locations or integrated into complex machinery where downtime is unacceptable, such as in automated manufacturing lines or critical care medical devices.
Frequently Asked Questions (FAQ)
What is the primary advantage of the 1920x1080 resolution on a 15.6" screen?
The Full HD resolution on this screen size provides a high pixel density (141 PPI), which results in sharper text, clearer lines, and more detailed images. This is crucial for applications like medical imaging or complex user interfaces where accurately interpreting fine details is essential for proper operation and diagnosis.
How does the AHVA display mode benefit multi-user viewing environments?
AHVA (Advanced Hyper-Viewing Angle) technology ensures that color and contrast remain consistent even at off-axis viewing angles up to 89 degrees in all directions. This means multiple people can view the screen from different positions without experiencing the color shifting or inversion common with older display technologies, making it ideal for collaborative work environments.
What does the 50,000-hour backlight lifetime mean in a practical industrial application?
A 50,000-hour lifetime rating means the display's LED backlight can operate continuously for over 5.7 years before its brightness is expected to degrade to 50% of its original level. This long-term stability is a key indicator of reliability, reducing the need for maintenance and ensuring a lower total cost of ownership over the product's lifecycle.
Is the eDP interface a significant advantage over LVDS for this panel?
Yes, the eDP (Embedded DisplayPort) interface offers higher bandwidth with fewer connections compared to traditional LVDS. This supports the Full HD resolution at a 60Hz refresh rate smoothly, reduces potential EMI (electromagnetic interference), and allows for a more direct connection to modern chipsets, simplifying system design and potentially lowering power consumption.
Strategic Considerations for System Integration
Integrating the AUO G156HAN01.0 into a system design is a decision that prioritizes long-term visual performance and reliability. Its feature set, particularly the combination of Full HD resolution, AHVA technology, and a 50,000-hour backlight, aligns directly with the needs of high-value industrial and medical equipment. The eDP interface signals compatibility with contemporary processing platforms, facilitating streamlined development cycles. For engineering and procurement teams, this module represents a commitment to component quality that enhances the end-product's value proposition by ensuring a dependable and high-quality human-machine interface. This focus on durability and visual fidelity provides a competitive advantage in markets where operational uptime and user experience are paramount.
