Silvermicro GF150CL120T2VH | Ultra-Fast 1200V IGBT for High-Frequency Power Conversion

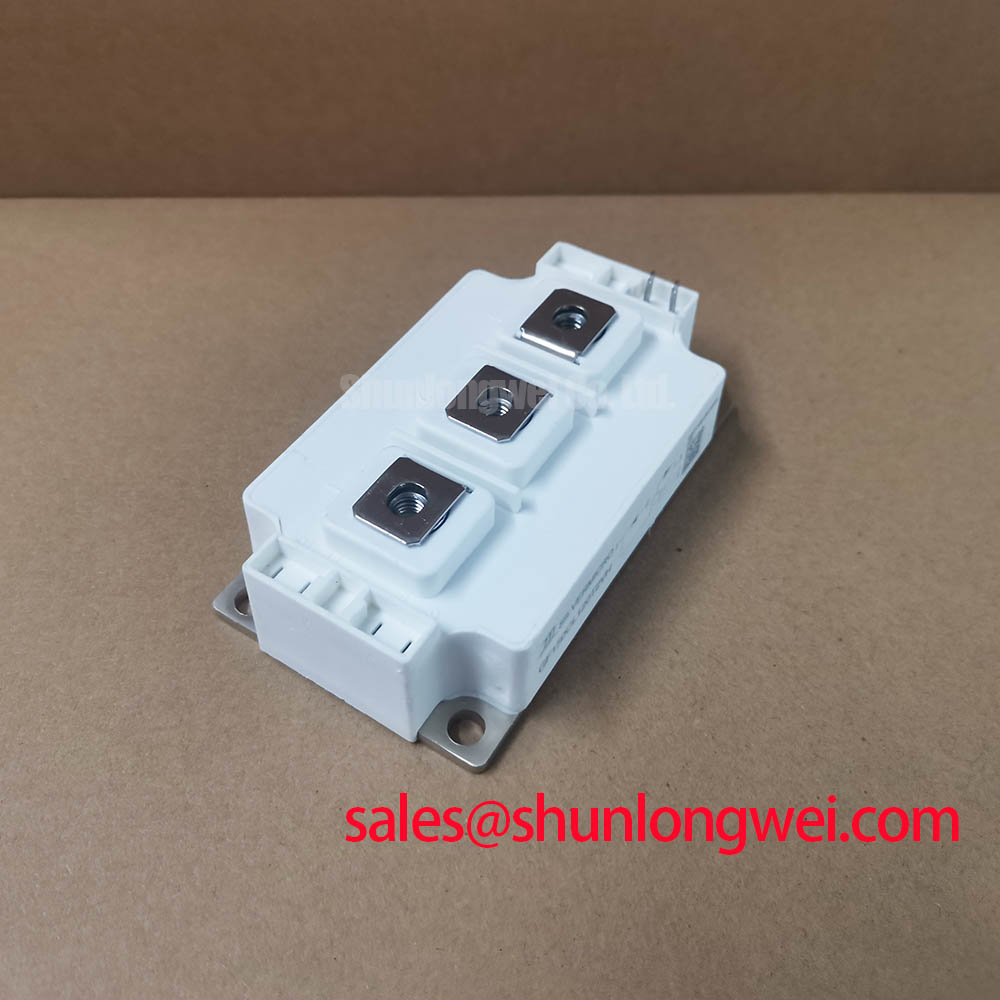

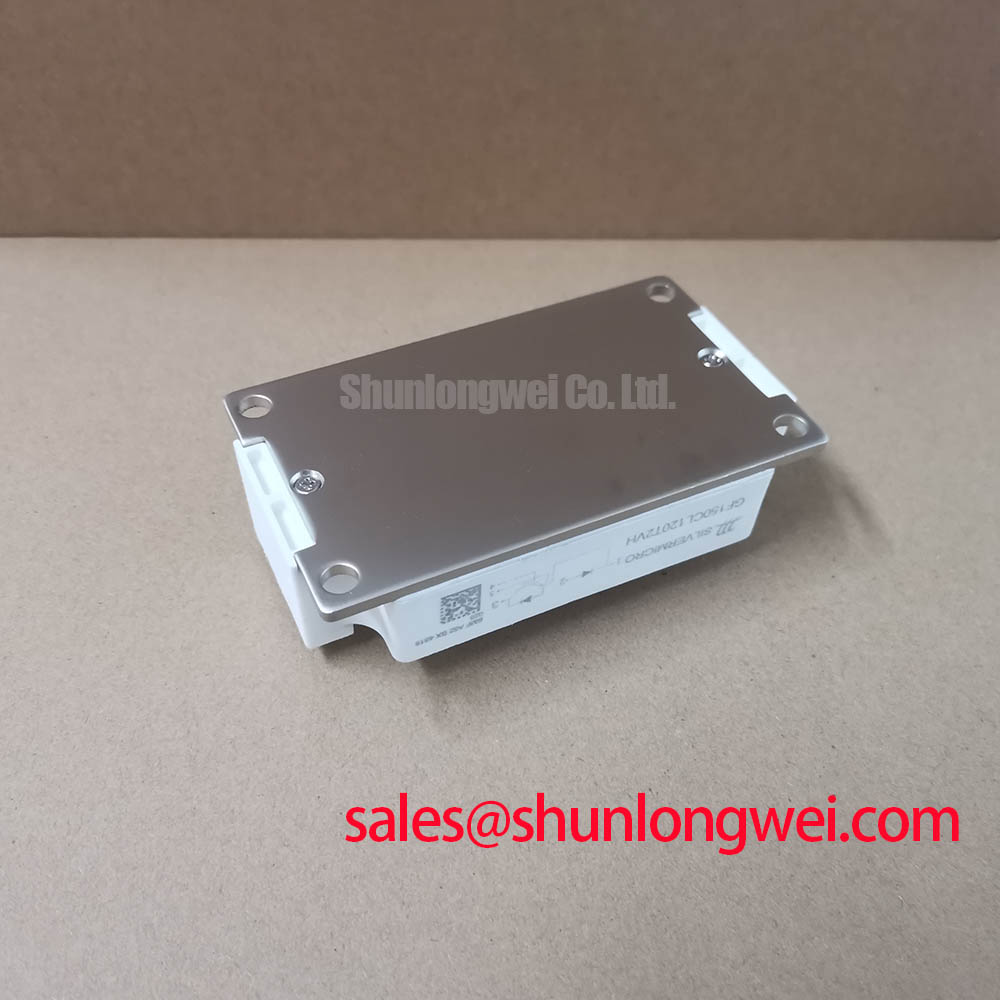

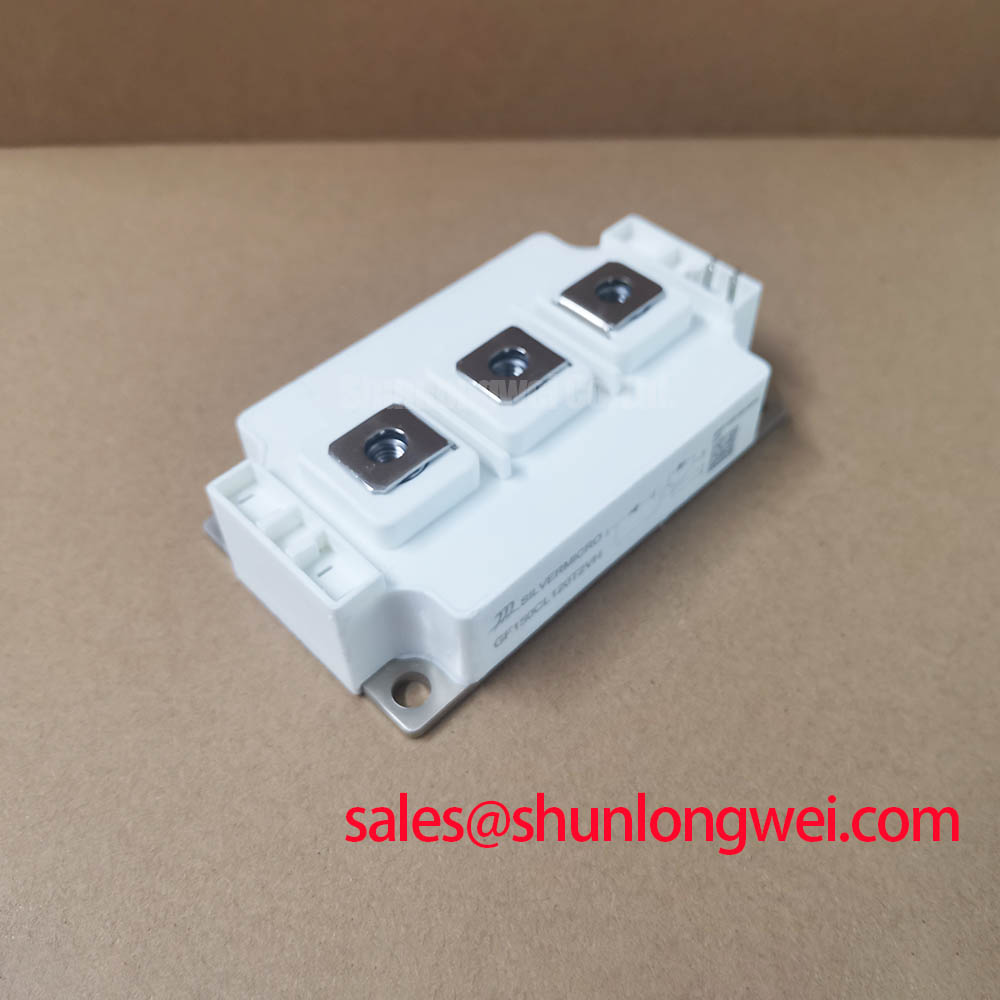

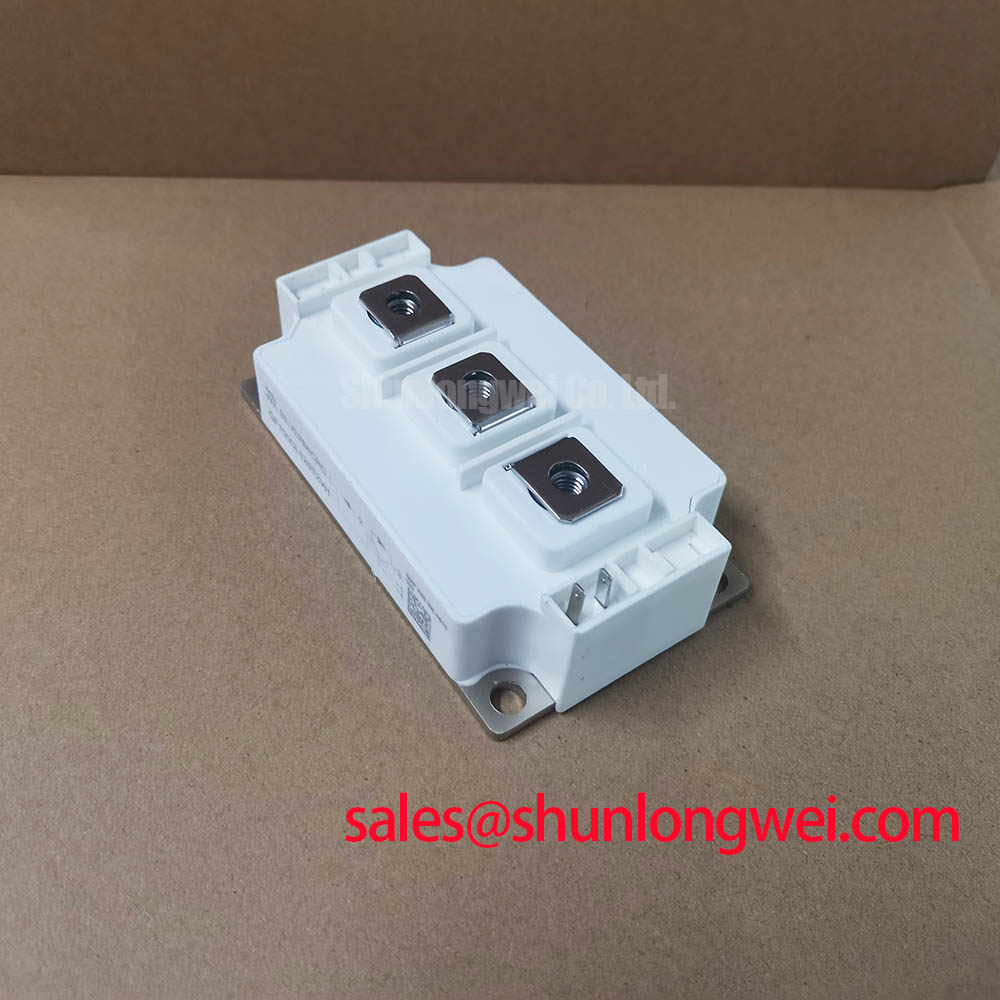

The Silvermicro GF150CL120T2VH is an expertly engineered 1200V, 150A half-bridge IGBT module, specifically designed for power systems where switching speed and efficiency are not just desirable, but mission-critical. Leveraging advanced Trench Field Stop technology, this module offers a superior balance between low conduction losses and ultra-fast switching characteristics, making it a cornerstone component for next-generation high-frequency applications.
Technical Deep Dive: The Engineering Behind the Speed
The performance of the GF150CL120T2VH is rooted in two core technological advancements that directly address the challenges of high-frequency power conversion. Understanding these provides a clear picture of its value in demanding circuits.
- Ultra-Fast Trench Field Stop (TFS) IGBT Technology: Unlike older planar IGBT structures, the TFS design dramatically reduces the thickness of the n-drift region and incorporates a highly effective field-stop layer. This engineering choice significantly curtails the "tail current" during the turn-off phase, which is a primary source of Switching Loss. For a design engineer, this means lower overall energy loss per cycle, enabling higher operating frequencies without thermal runaway.
- Low Conduction Loss (VCE(sat)): With a typical VCE(sat) of just 2.1V at its nominal current, this module ensures minimal power dissipation when the switch is fully on. This is crucial for maintaining high system efficiency, especially in applications with high duty cycles. The low VCE(sat) directly translates to reduced heat generation, simplifying thermal management and potentially allowing for smaller, more cost-effective heatsink solutions.
Application Scenarios & Value Proposition
The GF150CL120T2VH is not a general-purpose module; it is a specialized tool engineered to excel in specific high-stress environments. Its unique features provide tangible benefits across several key industrial applications.
- Welding Power Supplies: In high-frequency inverter-based welders, rapid and precise control over the welding arc is paramount. The module's ultra-fast switching capability allows for higher inverter frequencies (typically >50 kHz), resulting in a more stable arc, reduced spatter, and a smaller, lighter welding unit due to the miniaturization of magnetic components.
- Solar Inverters: For modern solar power systems, maximizing the energy harvested is the primary goal. The GF150CL120T2VH's combination of low switching and conduction losses reduces the power wasted during the DC-AC conversion process, directly increasing the overall efficiency and energy yield of the Solar Inverter.
- Uninterruptible Power Supplies (UPS): In online (double-conversion) UPS systems, efficiency is critical to reducing operating costs. The low total losses of this module minimize wasted energy, leading to a lower Total Cost of Ownership (TCO) and improved reliability by reducing thermal stress on all components.
Key Parameter Overview
This table provides a snapshot of the critical performance metrics for the GF150CL120T2VH. For a complete analysis and application notes, please download the official datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (V_CES) | 1200 V |
| Continuous Collector Current (I_C) @ T_c=80°C | 150 A |
| Collector-Emitter Saturation Voltage (V_CE(sat)) @ I_C=150A, T_j=25°C | 2.1 V (Typ.) |
| Total Switching Energy (E_ts) @ I_C=150A, T_j=125°C | 14.0 mJ (Typ.) |
| Short-Circuit Withstand Time (t_sc) | 10 µs |
| Isolation Voltage (V_isol) | 2500 V (AC, 1 min) |
Frequently Asked Questions (FAQ)
1. Given its "Ultra-Fast" rating, are there special gate drive requirements?
Yes, to fully exploit the fast-switching potential and prevent issues like parasitic turn-on, a robust gate drive design is essential. We recommend using a driver with a strong sink/source capability and considering a negative gate voltage (-5V to -15V) during the off-state to ensure immunity against dV/dt induced turn-on. For a deeper dive, explore our guide on practical tips for robust IGBT gate drive design.
2. How does the thermal performance of the GF150CL120T2VH compare in high-frequency designs?
The module's low total power loss (P_total = P_cond + P_sw) is a significant advantage. While the switching losses (P_sw) will increase with frequency, the low starting point of both V_CE(sat) and E_ts means the module generates less heat overall compared to slower IGBTs at the same frequency. This provides greater thermal headroom, enhancing system reliability and longevity.
For detailed application support or to discuss how the Silvermicro GF150CL120T2VH can optimize your next project, please contact our technical team.
