HannStar HSD150SX84 | A Robust 15" XGA TFT-LCD for Industrial HMIs

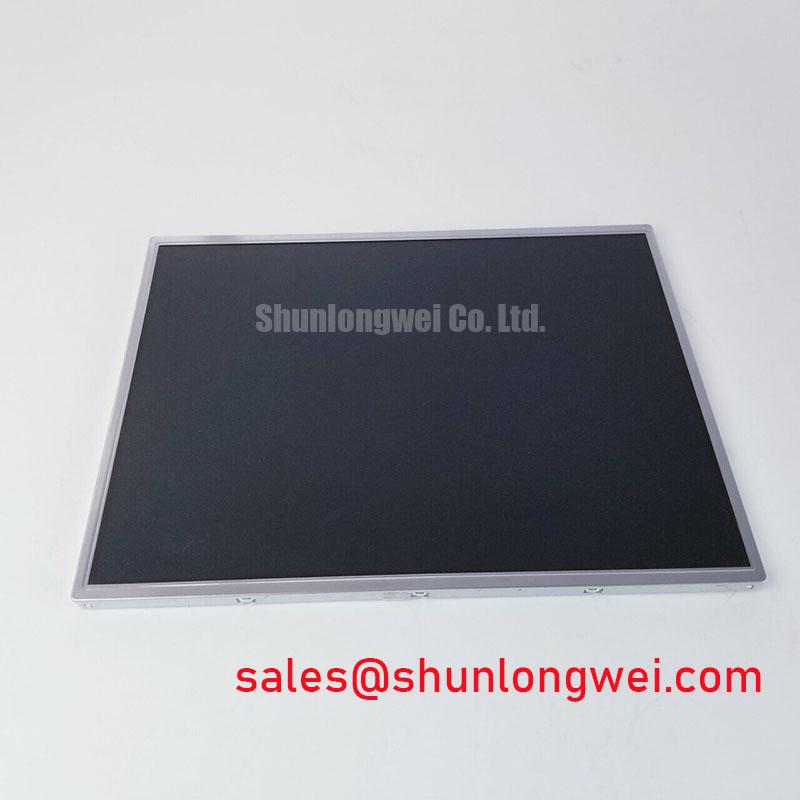

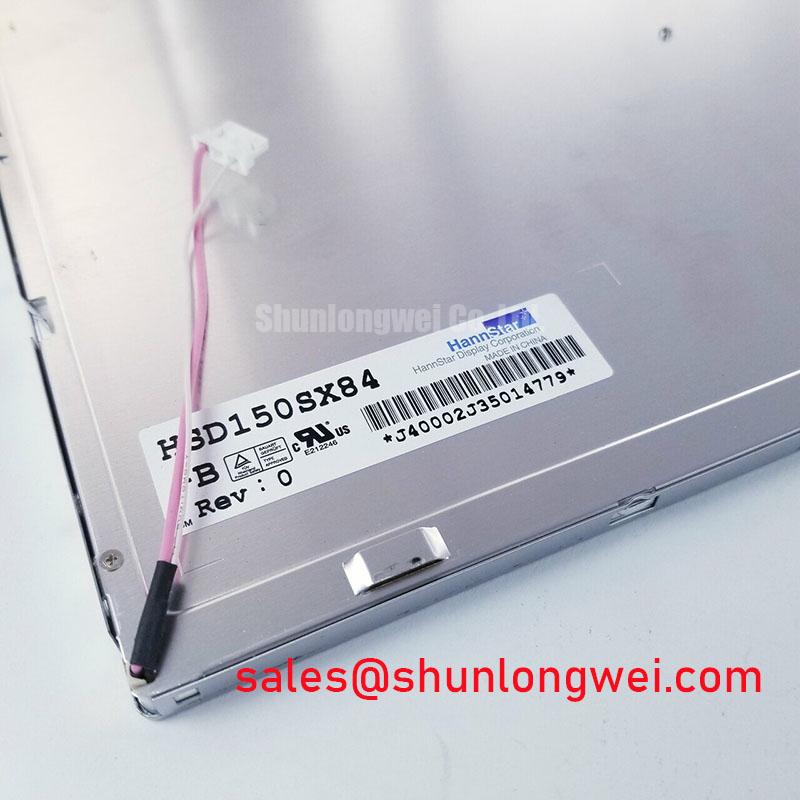

The HannStar HSD150SX84 is a proven 15.0-inch industrial display module, engineered for reliability and consistent performance in demanding applications. It delivers a crisp 1024x768 XGA resolution, making it an ideal solution for system upgrades, legacy equipment maintenance, and new designs where clarity, durability, and cost-effectiveness are paramount.
Key Performance Characteristics
Engineered for long-term industrial deployment, the HSD150SX84 provides a balanced feature set focused on integration and operational stability.
| Parameter | Specification |
|---|---|
| Screen Size | 15.0 inches |
| Resolution | 1024(RGB) × 768 [XGA] |
| Brightness | 250 cd/m² (Typical) |
| Contrast Ratio | 400:1 (Typical) |
| Technology | a-Si TFT-LCD, CCFL Backlight |
| Signal Interface | LVDS (1 channel, 6-bit) |
| Operating Temperature | 0°C to 50°C |
| Viewing Angle | 60/60/40/60 (L/R/U/D) |
Technical Deep Dive: Engineering Value
While specifications provide a snapshot, the true value of the HannStar HSD150SX84 lies in its engineering choices, which directly address common industrial challenges.
- The Strategic Advantage of XGA Resolution: In an era of high-pixel-density displays, the 1024x768 resolution remains a cornerstone of industrial automation. This standard format ensures backward compatibility with a vast ecosystem of existing software and hardware, eliminating the need for costly GUI redesigns. For applications like CNC controllers, process monitoring systems, and test equipment, XGA provides the perfect balance of information density and legibility without overwhelming the operator.
- Robust LVDS Interface: The display utilizes a single-channel, 6-bit LVDS Interface. This is a deliberate choice for industrial environments. LVDS (Low-Voltage Differential Signaling) is inherently resistant to the electromagnetic interference (EMI) commonly generated by motors, drives, and power supplies. This results in a stable, flicker-free image and simplifies system integration by allowing for longer cable runs compared to parallel interfaces.
Application Scenarios & Value Proposition
The HSD150SX84 excels in environments where reliability and clear data visualization are non-negotiable.
- Industrial Control Panels & HMIs: Its standard 15-inch form factor and proven a-Si TFT (Amorphous Silicon) technology make it a drop-in replacement or a reliable component for new industrial HMI systems. The brightness and contrast are optimized for typical factory floor lighting conditions.
- Point-of-Sale (POS) and Kiosk Systems: For indoor retail and information kiosk applications, this display offers an economical yet highly effective visual interface. Its dependable performance ensures maximum uptime, a critical factor in commercial settings.
- Medical & Laboratory Equipment: In devices where long-term component availability is crucial for certification and support, the HSD150SX84 provides a stable supply chain solution. It is well-suited for diagnostic machines, patient monitoring systems, and lab instrumentation that require a clear, unchanging user interface.
Frequently Asked Questions (FAQ)
1. Is the HSD150SX84 suitable for direct sunlight or outdoor applications?
With a typical brightness of 250 nits, the HSD150SX84 is engineered for indoor or controlled-environment applications. It is not a sunlight-readable display. For outdoor or high-ambient-light conditions, we recommend exploring specialized high-brightness industrial LCD displays designed for such challenges.
2. With its CCFL backlight, is this display still a viable choice for new product designs?
Absolutely, for the right application. While LED backlights are now common, the HSD150SX84's CCFL backlight is a mature, well-understood technology with a predictable performance curve. For cost-sensitive projects, equipment requiring recertification with minimal changes, or as a service replacement for systems already using this panel, it remains a strategically sound and reliable choice. To better understand the foundational technology, explore our ultimate guide to TFT LCDs.
For detailed integration support or to discuss how the HannStar HSD150SX84 can fit into your project, please contact our technical team.
