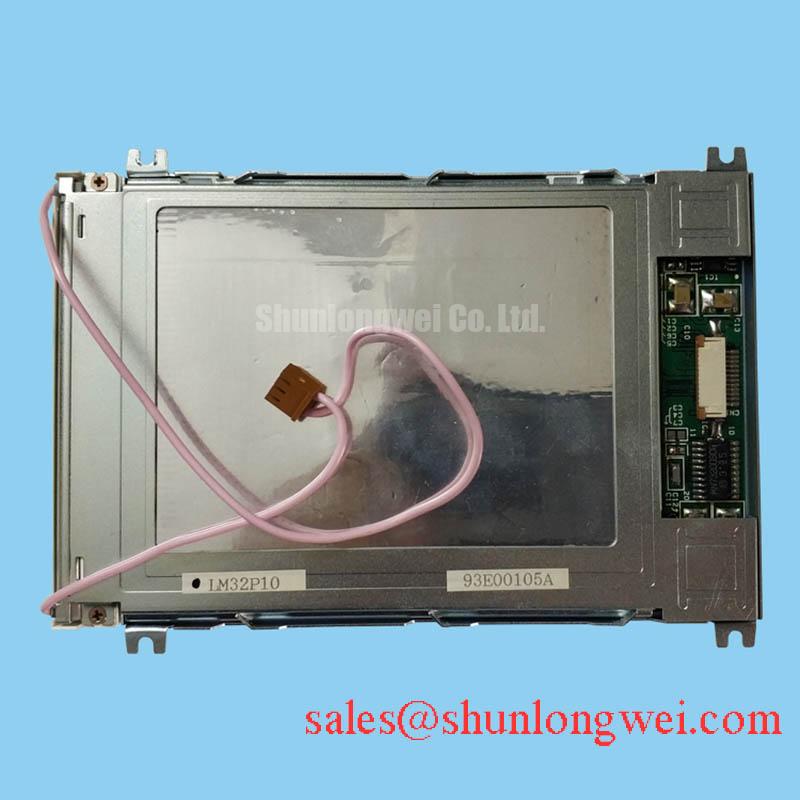

Sharp LM32P101 | 4.7-inch 320x240 Monochrome STN-LCD Module for Industrial Integration
The Sharp LM32P101 stands as a cornerstone in legacy industrial visualization, offering a reliable 320x240 QVGA resolution within a compact 4.7-inch footprint. Primarily utilized in precision instrumentation and CNC control units, this monochrome STN (Super-Twisted Nematic) display provides the high contrast and wide viewing angles necessary for clear data representation in harsh factory environments. Featuring a 4-bit parallel interface and a robust CCFL backlight system, the LM32P101 serves as a critical component for maintaining the operational life of high-value industrial assets where modern TFT upgrades may not be architecturally feasible. For systems requiring consistent legibility under industrial lighting, this monochrome module is the optimal choice for drop-in maintenance and design continuity.
Application Scenarios & Value
Resolving Legacy Display Challenges in CNC and Automation Systems
Engineers often face the significant challenge of sourcing reliable, high-contrast replacements for aging monochrome interfaces in legacy CNC workstations and medical diagnostic tools. The LM32P101 addresses this by providing a stable STN-LCD platform that maintains pixel integrity even in environments subject to electromagnetic interference. Its 320x240 resolution is specifically tailored for text-heavy and simple graphical data, ensuring that critical error codes or coordinates remain legible. In the context of industrial HMI development, the LM32P101 simplifies the signal processing chain, as its 4-bit parallel architecture requires significantly less overhead than modern high-speed serial protocols. This is particularly valuable for maintenance engineers who must ensure 100% compatibility with older microprocessor buses without redesigning the entire control board. When compared to larger modules like the LM64183PR, the LM32P101 offers a more space-efficient solution for handheld test equipment and compact panel mounts. Furthermore, integrating this display within a system documented in the ultimate guide to industrial displays highlights the strategic importance of choosing long-lifecycle components to reduce the Total Cost of Ownership (TCO).
Industry Insights & Strategic Advantage
Enhancing System Longevity through Strategic Legacy Support
In an era dominated by high-resolution touchscreens, the strategic advantage of the LM32P101 lies in its proven durability and energy efficiency for dedicated industrial tasks. The use of monochrome STN technology allows for an excellent Contrast Ratio of 10:1, which is often superior to entry-level color displays when viewed under direct overhead industrial lighting. From a strategic procurement perspective, maintaining equipment with original specification displays like the LM32P101 avoids the hidden costs of software re-validation and mechanical bezel modifications. This is a critical factor in sectors like medical imaging and aerospace ground support, where any change in hardware can trigger a costly re-certification process. Furthermore, the LM32P101 demonstrates the resilience of CCFL backlighting in providing uniform brightness across the 4.7-inch active area. While modern LED-backlit models such as the LMG6912RPFC are available for newer designs, the LM32P101 remains the standard for engineers prioritizing the "repair-not-replace" philosophy. Choosing high-quality industrial displays over consumer-grade alternatives is essential for preventing premature failures in the field, a topic explored in depth in the analysis of industrial vs consumer display longevity.
Key Parameter Overview
Specifications for Precise Engineering Integration
| Parameter | Specification |
|---|---|
| Manufacturer | Sharp |
| Part Number | LM32P101 |
| Display Mode | STN Monochrome (Blue or Black/White) |
| Resolution | 320 x 240 (QVGA) |
| Outline Dimensions | 148.0 x 100.2 x 7.5 mm |
| Active Area | 95.98 x 71.98 mm |
| Interface Type | 4-bit Parallel |
| Backlight Type | CCFL (1 pc) |
| Supply Voltage (Logic) | 5.0V (Typical) |
| Contrast Ratio | 10:1 (Typical) |
FAQ
How does the STN technology in the LM32P101 handle high-glare industrial environments?
The LM32P101 utilizes Super-Twisted Nematic (STN) fluid, which offers higher contrast than standard TN displays. By adjusting the VO (Bias Voltage) pin, engineers can fine-tune the liquid crystal orientation to maximize legibility even under harsh overhead lighting, similar to adjusting the focus on a high-precision optical instrument.
What are the critical considerations when replacing the CCFL backlight in this module?
The CCFL backlight in the LM32P101 requires a high-voltage AC inverter. When integrating a replacement, ensure the inverter's output frequency and voltage match the original Sharp specifications to prevent flickering or reduced lamp life, which is essential for maintaining the display's brightness and uniformity.
Is the 4-bit parallel interface compatible with modern 3.3V microcontrollers?
The LM32P101 logic typically operates at 5.0V. When interfacing with 3.3V MCUs, level shifters are required to ensure signal integrity and prevent damage to the display controller, ensuring the 320x240 data is transmitted without corruption.
How does the operating temperature range affect the response time of the LM32P101?
Liquid crystal viscosity increases at lower temperatures, which can slow down the Response Time (Tr+Td). For applications in unheated environments, it is vital to account for this latency in the HMI refresh rate to maintain a smooth user experience during data updates.
Can the contrast of the LM32P101 be adjusted dynamically via software?
Yes, by using a digital potentiometer to control the voltage supplied to the VO terminal, the system can dynamically adjust the contrast based on ambient temperature sensors, compensating for the natural thermal sensitivity of the STN material.
By prioritizing technical precision and factual data, the LM32P101 emerges as a highly reliable solution for specialized industrial display needs. Its mechanical robustness and clear visual output continue to provide significant value in maintaining the global infrastructure of legacy automation and medical diagnostic systems.
