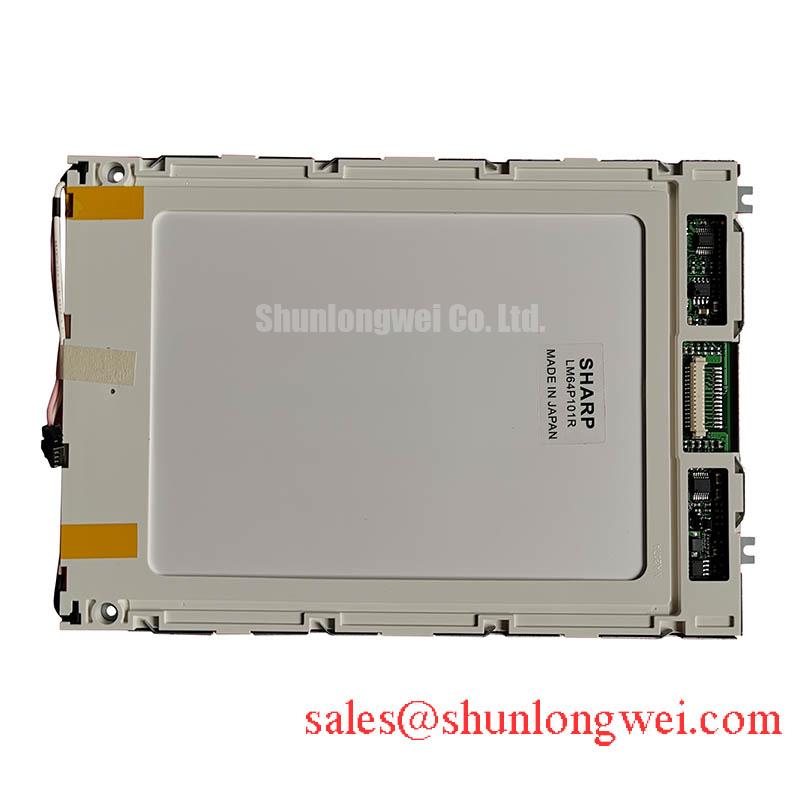

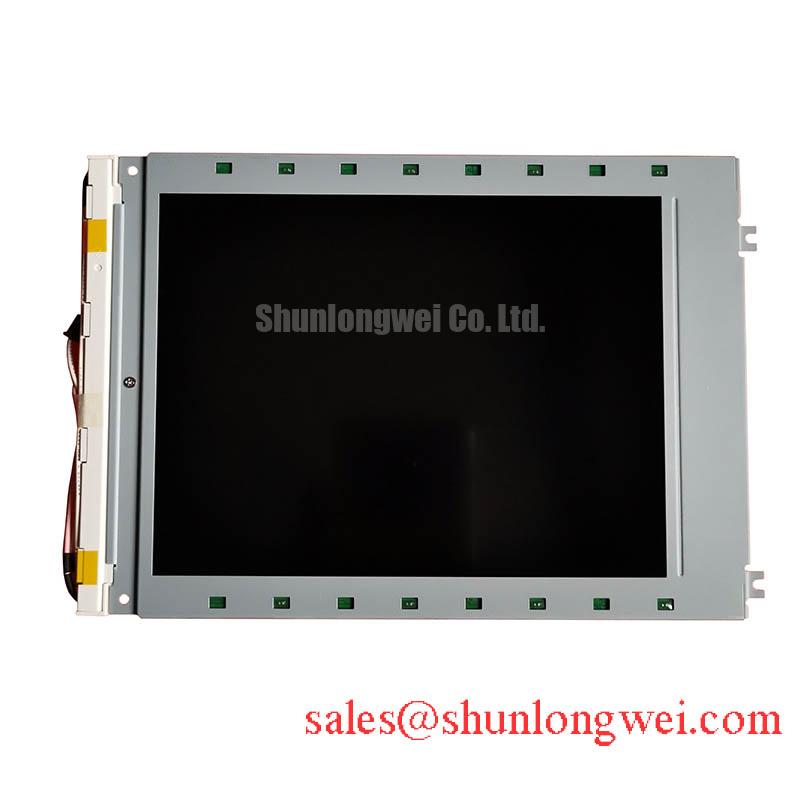

Sharp LM64P101R | A Legacy of Reliability in Industrial Monochrome Displays
The Sharp LM64P101R isn't just a component; it's a testament to engineering endurance. For over two decades, this 9.4-inch FSTN monochrome display has been the trusted visual interface for critical industrial machinery. Its continued relevance stems from a design philosophy that prioritizes clarity, durability, and long-term stability over fleeting trends, making it an indispensable part for maintaining and servicing a vast installed base of equipment.
- Unmatched Readability: Features high-contrast Film-compensated Super-twisted Nematic (FSTN) technology, delivering crisp black-and-white visuals ideal for text-heavy GUIs and parameter readouts.
- Industrial-Grade Durability: Built by Sharp with a robust construction and a reliable CCFL backlight, engineered to withstand the operational stresses of factory floors and field instruments.
- Seamless Integration: A 640x480 VGA resolution and standard parallel data interface ensure drop-in compatibility for legacy system repairs and upgrades without costly redesigns.
- Proven Performance: An established workhorse in CNC controls, medical devices, and test equipment, valued for its predictable lifecycle and consistent performance.
Key Technical Specifications
For engineers requiring precise data for system integration or replacement, the following parameters define the LM64P101R's performance envelope. A comprehensive datasheet is available for detailed electrical and mechanical specifications.
| Parameter | Value |
|---|---|
| Manufacturer | Sharp |
| Model | LM64P101R |
| Display Technology | FSTN (Film-compensated Super-twisted Nematic) LCD |
| Screen Size | 9.4 inches (24 cm) |
| Resolution | 640 x 480 pixels (VGA) |
| Display Mode | Transmissive, Normally White |
| Contrast Ratio | 18:1 (Typical) |
| Backlight | Cold Cathode Fluorescent Lamp (CCFL) |
| Operating Temperature | 0°C to +40°C |
| Outline Dimensions | 257.5mm x 174mm x 24.5mm |
Application Scenarios & Engineering Value
The true value of the Sharp LM64P101R lies in its application-specific strengths. While modern color industrial LCD displays excel in complex graphical interfaces, this monochrome panel delivers where clarity and reliability are paramount.
- CNC Machinery & PLC Controllers: In a machine shop environment, operators need immediate, unambiguous readouts of G-code, tool paths, and system status. The LM64P101R's high-contrast, text-optimized display is immune to the color-washout that can affect lower-grade color panels under harsh industrial lighting.
- Medical Monitoring Equipment: For legacy patient monitors and diagnostic instruments, component consistency is a matter of certification and patient safety. The LM64P101R provides a proven, field-tested replacement part, ensuring that validated systems can be serviced and kept operational without requiring complete recertification.
- Test and Measurement Instruments: In oscilloscopes, spectrum analyzers, and network testers from a previous era, the user interface is often a direct representation of data. The crisp pixel definition of this VGA panel ensures that waveforms and measurements are displayed with precision, a critical requirement for accurate analysis. Its ruggedness is key for engineering for extremes in both portable and benchtop equipment.
Frequently Asked Questions (FAQ)
Based on our experience, engineers often have the following questions when considering the LM64P101R.
1. My equipment's original display is failing. Is the LM64P101R a direct replacement?
In many cases, yes. The Sharp LM64P101R was an industry-standard panel used by numerous equipment manufacturers. The key is to verify the mounting dimensions, connector type, and signal interface. If your existing display is a 9.4-inch VGA monochrome panel, there is a high probability of compatibility. We recommend consulting the original service manual or contacting our technical team with photos of your current unit for confirmation.
2. The CCFL backlight has a finite lifespan. What are the considerations for long-term maintenance?
The CCFL backlight in the LM64P101R is known for its stability and a typical half-life of 20,000-30,000 hours. When it does require replacement, the backlight and its associated inverter are modular components. Proper industrial display maintenance involves sourcing a compatible CCFL tube and inverter board. While LED conversion kits exist, using an original-spec CCFL replacement is the most straightforward way to restore original brightness and performance without altering the display's driving electronics.
