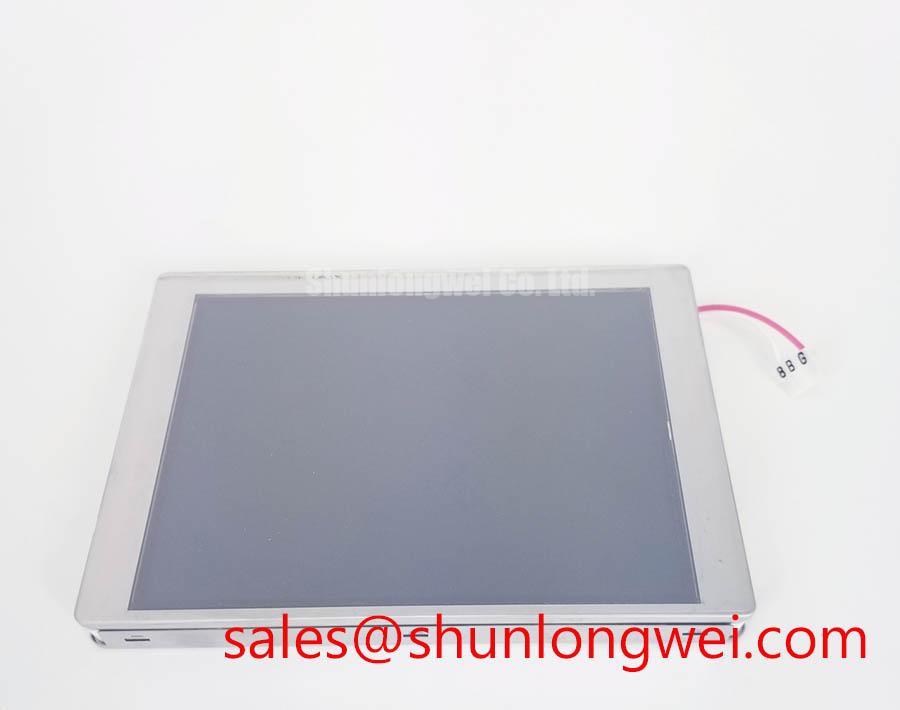

Sharp LQ057Q3DC12: Engineering Details for the 5.7-inch Industrial QVGA TFT-LCD
A Legacy of Reliability for Demanding HMI Applications
Content last revised on October 5, 2025.
The Sharp LQ057Q3DC12 is a robust 5.7-inch QVGA TFT-LCD, engineered for mission-critical reliability across an extreme -30°C to 80°C temperature range. This display delivers proven performance through a combination of essential specifications: 5.7" QVGA (320x240) | 400 cd/m² Brightness | -30 to +80°C Op. Temp. Its key engineering benefits are unmatched thermal resilience and a field-serviceable design that lowers the total cost of ownership. It achieves reliable operation in sub-zero and high-heat conditions by utilizing specialized liquid crystal fluid and industrial-grade components, making it ideal for outdoor or unconditioned environments. For industrial HMIs demanding proven reliability in extreme temperatures, the LQ057Q3DC12's wide operating range is the defining specification.
Key Parameter Overview
Decoding the Specifications for Environmental Resilience
The technical specifications of the LQ057Q3DC12 are carefully balanced to deliver consistent performance in applications where standard displays would fail. The parameters below highlight its suitability for challenging industrial and outdoor equipment, focusing on durability and visual clarity.
| Parameter | Value | Engineering Significance |
|---|---|---|
| Screen Size | 5.7 inch (14 cm) | Provides a compact yet clear viewing area suitable for space-constrained control panels and portable devices. |
| Resolution | 320(RGB)×240, QVGA | Delivers sharp, clear graphics and text for essential data visualization in HMIs and monitoring equipment. |
| Operating Temperature | -30°C to 80°C | Enables deployment in unconditioned environments, from cold storage facilities to sun-exposed outdoor kiosks, without auxiliary heating or cooling. |
| Storage Temperature | -30°C to 80°C | Ensures component integrity and reliability during transport and storage in non-climate-controlled logistics chains. |
| Luminance | 400 cd/m² (Typ.) | Ensures the display remains readable in typical indoor industrial lighting and moderately bright outdoor conditions. |
| Contrast Ratio | 250:1 (Typ.) | Provides distinct separation between colors and shades, critical for accurate interpretation of on-screen information. |
| Backlight Unit | 1 pc CCFL, User Replaceable | A key feature for maintainability. It allows for field servicing to extend the product's operational life, significantly reducing the total cost of ownership. |
| Surface Treatment | Anti-glare (AG) | Minimizes distracting reflections from overhead lighting or sunlight, reducing operator eye strain and improving data legibility. |
Download the LQ057Q3DC12 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Uncontrolled Environments
The LQ057Q3DC12 is engineered for applications where environmental conditions are a primary design constraint. Its value extends beyond the component level, simplifying overall system design and enhancing long-term reliability. What defines the LQ057Q3DC12's reliability? Its extreme -30°C to +80°C operating temperature range.
A high-fidelity engineering scenario is the design of a control panel for heavy construction equipment or an HMI for a refrigerated logistics warehouse. In these cases, the ability of the display to perform a cold start at -30°C is a critical challenge. The LQ057Q3DC12 directly solves this problem by eliminating the need for a dedicated internal heater and the associated control circuitry. This simplification results in a lower bill of materials (BOM), reduced power consumption during startup, and fewer potential points of failure, leading to a more robust and cost-effective final product.
Furthermore, the user-replaceable backlight addresses the inevitable aging of the CCFL light source. In applications like medical monitoring equipment or industrial automation panels that run 24/7, the ability to service the backlight in the field prevents costly downtime and extends the life of the entire system. While this model is ideal for displaying critical data and controls, for systems requiring higher information density in a similar 5.7-inch form factor, the related G057VN01 V2 offers an upgrade to VGA (640x480) resolution.
Frequently Asked Questions (FAQ)
How does the -30°C to +80°C operating temperature range impact system design for outdoor equipment?
This wide range directly simplifies thermal management. It eliminates the need for costly and complex heating elements for cold-start performance and can reduce the requirements for active cooling in high-temperature environments. This leads to a more reliable, power-efficient, and compact end-product design.
What is the engineering benefit of the replaceable backlight unit in the LQ057Q3DC12?
The primary benefit is a significantly lower Total Cost of Ownership (TCO). Backlights have a finite lifespan, especially in continuous-use applications. A replaceable unit allows for field maintenance, restoring original brightness without replacing the entire, more expensive TFT-LCD panel. This is a critical feature for long-lifecycle industrial and medical products.
Is the 400 nit brightness of the LQ057Q3DC12 sufficient for use in environments with high ambient light?
A luminance of 400 cd/m² is well-suited for most indoor industrial settings, control rooms, and shaded outdoor applications. Combined with its anti-glare surface treatment, it provides excellent clarity. For direct, full-sunlight applications, a display with higher brightness would be necessary, but for the majority of industrial use cases, 400 nits offers a strong balance of readability and power consumption.
How does the anti-glare (AG) surface treatment improve usability in an industrial HMI?
The AG surface diffuses reflections from point light sources, such as overhead factory lighting. This reduces specular highlights that can obscure on-screen information, leading to less operator eye fatigue and a lower probability of misreading critical data, which directly enhances both productivity and operational safety.
What type of interface is used for the LQ057Q3DC12, and what does this mean for integration with embedded systems?
The LQ057Q3DC12 uses an 18-bit parallel RGB digital interface. This is a common and straightforward interface for embedded systems, widely supported by microcontrollers and graphics processors used in industrial applications. It allows for direct connection and control, simplifying driver development and hardware integration.
Technical Deep Dive
The Engineering Philosophy of Longevity and Low TCO
The design of the LQ057Q3DC12 is rooted in a philosophy of long-term operational viability. This is achieved through the synergy of its two most defining features: the extreme temperature tolerance and the serviceable backlight. These are not independent specs but components of a holistic approach to reliability in the field.
The ability to function across a 110°C window is a significant engineering feat. Think of the liquid crystal in this display like the engine oil in an arctic vehicle versus a race car. Standard display "oil" would freeze or break down at these temperatures, causing slow response times or permanent damage. The LQ057Q3DC12 from Sharp uses a specialized liquid crystal formulation that maintains its designed viscosity and responsiveness, ensuring pixels switch correctly whether in a freezing warehouse or a sun-baked enclosure. This is central to understanding the difference between industrial vs. consumer displays.
This thermal robustness is complemented by its mechanical serviceability. The replaceable backlight is like having serviceable tires on a commercial truck. You wouldn't scrap the entire truck when the tires wear out. Similarly, this design allows an engineer to plan for the replacement of the most common wear item—the CCFL backlight—extending the service life of the entire HMI unit at a fraction of the cost of a full replacement. How does this display lower long-term costs? Through a field-replaceable backlight unit. This design choice makes the LQ057Q3DC12 a strategic component for equipment with expected operational lives of a decade or more.
An Engineer's Perspective
From a design engineer's viewpoint, the LQ057Q3DC12 is less a component and more a pre-engineered solution for environmental challenges. Its specifications directly de-risk the project by removing thermal management as a major design hurdle. The combination of a wide temperature range and a field-replaceable backlight provides a predictable and manageable lifecycle, allowing for the confident deployment of sophisticated HMIs in places they previously could not operate reliably.
