LQ065T5AR01: Robust 6.5" TFT-LCD for Automotive & Industrial HMIs
Introduction: Core Features & Engineering Value
Delivering Proven Reliability and Clarity for In-Vehicle Systems

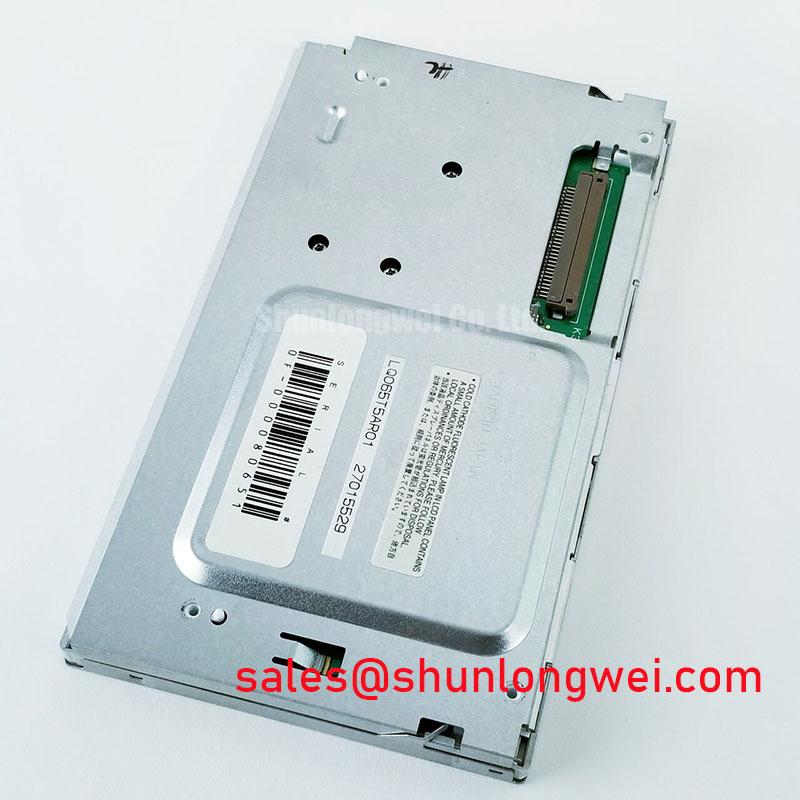

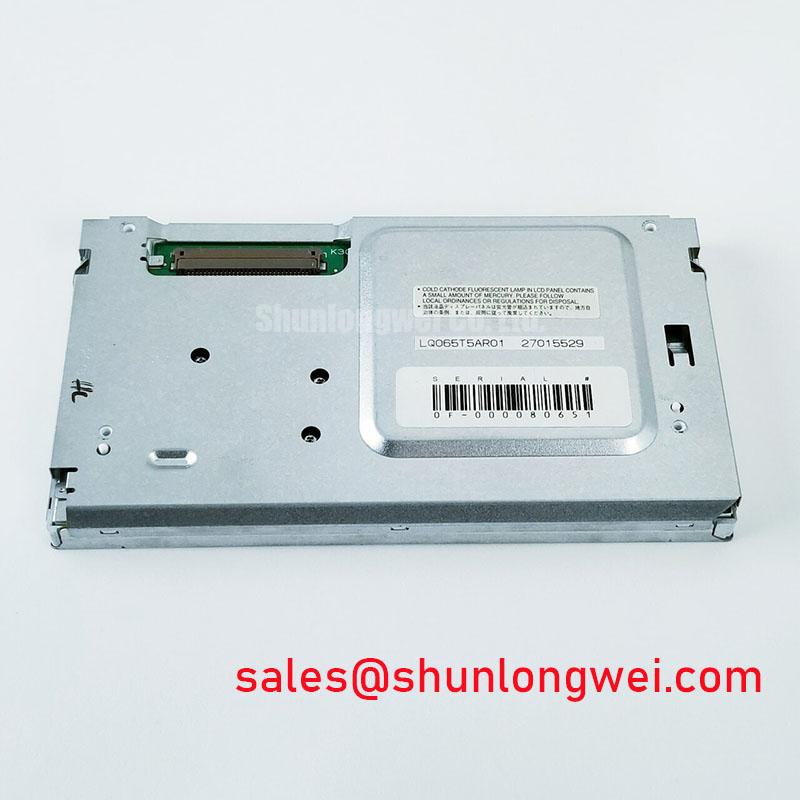

The Sharp LQ065T5AR01 is a 6.5-inch a-Si TFT-LCD module engineered for exceptional durability and visual performance in challenging environments. With its key specifications of a 400x234 resolution, 350 cd/m² brightness, and an expansive operating temperature range, this display provides a dependable foundation for systems where reliability is paramount. Its primary engineering benefits include consistent performance across extreme temperatures and superior screen clarity in high ambient light. For engineers developing or maintaining systems for automotive infotainment or industrial controls, this display directly addresses the need for a robust, sunlight-readable visual interface. Best fit for legacy automotive navigation systems and industrial controls requiring proven durability over high pixel density.
Key Parameter Overview
Decoding the Specs for Environmental Durability
The technical specifications of the LQ065T5AR01 underscore its suitability for demanding applications. The parameters below have been selected to highlight the display's core strengths in reliability and visual performance, empowering engineers to make informed integration decisions.
| Parameter | Specification | Engineering Implication |
| Display Size | 6.5 inch (16.5 cm) | Compact form factor suitable for embedded vehicle dashboards and control panels. |
| Resolution | 400(H) x 234(V) pixels | Provides clear rendering of graphical user interfaces and critical system information. |
| Operating Temperature | -30°C to +85°C | Ensures functional integrity in harsh climates, from cold-start conditions to high-heat cabin environments, minimizing the need for external thermal management. |
| Luminance | 350 cd/m² (typ.) | Delivers bright, legible images, crucial for maintaining readability in daylight or high ambient light settings. |
| Surface Treatment | Anti-glare (AG) | Reduces specular reflections and diffuses ambient light, significantly enhancing viewer ergonomics and reducing eye strain. |
| Viewing Angles (H/V) | 65°/65° (L/R), 40°/65° (U/D) | Offers flexible viewing for typical operator or driver positions. |
| Color Gamut | NTSC 60% (typ.) | Renders a vibrant and accurate range of colors for intuitive and effective user interfaces. |
| Backlight System | 1x CCFL (External inverter required) | Provides mature and stable illumination; requires a separate driver circuit, allowing for design flexibility in power system integration. |
Disclaimer: The parameters listed are for reference only. For complete technical details, performance curves, and integration guidelines, please consult the official datasheet.
Download the LQ065T5AR01 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Demanding In-Vehicle Environments
The LQ065T5AR01 is purpose-built for applications where environmental resilience is non-negotiable. Its primary value is demonstrated in automotive and industrial systems that operate outside of climate-controlled settings.
High-Fidelity Engineering Scenario: Consider an engineer designing a Human-Machine Interface (HMI) for an agricultural or construction vehicle. The operator's cab can experience extreme temperature swings, from freezing mornings to sun-baked afternoons. A standard display might fail to power on in the cold or suffer from image degradation and shortened lifespan in the heat. The LQ065T5AR01's wide operating temperature range of -30°C to +85°C directly solves this challenge, ensuring the HMI remains operational and reliable without costly and complex auxiliary heating or cooling systems. This inherent robustness translates to higher vehicle uptime and lower total cost of ownership.
Furthermore, the anti-glare surface is critical in these environments. Glare from direct sunlight can render a display unreadable, impacting operator efficiency and safety. The AG coating on the LQ065T5AR01 diffuses these reflections, maintaining critical visibility of machinery diagnostics, GPS navigation, and control interfaces. This focus on fundamental reliability makes it an excellent choice for:
- In-dash automotive navigation and infotainment systems
- Control panels for industrial machinery and heavy equipment
- Data terminals in logistics and transportation vehicles
- Marine electronics and outdoor kiosks
For systems requiring a slightly more compact footprint with similar robustness, the related LQ064V3DG06 presents a viable alternative for evaluation.
Application Vignette
Performance in the Field: A Case Study in Heavy Machinery HMI
An engineering team at a leading manufacturer of earth-moving equipment faced a critical field reliability issue: frequent failures of the operator cab's control display. The challenge was multifaceted, stemming from the extreme operating conditions. The HMI needed to withstand intense, prolonged vibration, function flawlessly from pre-dawn winter starts to the peak heat of a summer day, and remain perfectly legible under the glare of direct sunlight. The previous display solution suffered from backlight failures in the cold and screen blackouts due to overheating, leading to costly downtime and service calls.
The integration of the Sharp LQ065T5AR01 provided a definitive solution. Its specification for an operating temperature between -30°C and +85°C meant the display's performance was stable across the entire required thermal spectrum. This is a hallmark of Sharp's commitment to industrial-grade components. The panel's mechanical construction proved resilient to the persistent vibrations of the machinery. Most importantly for the operators, the combination of 350-nit brightness and an anti-glare screen surface ensured excellent Sunlight Readability. Operators could now clearly see vital engine data and positioning information without being hindered by reflections, improving both operational efficiency and on-site safety. By choosing a display engineered specifically for these environmental stressors, the manufacturer drastically reduced field failures, enhancing their product's reputation for reliability.
Frequently Asked Questions (FAQ)
Engineering Clarifications for System Integration
What is the primary benefit of the -30°C to +85°C operating temperature range?
This wide range ensures the display's reliability in unmanaged thermal environments, such as a vehicle cabin. It allows the system to function correctly during a cold start in freezing weather and to resist degradation from heat soak on a hot day, directly contributing to higher system availability and a longer operational lifespan.
How does the anti-glare (AG) surface on the LQ065T5AR01 impact usability in direct sunlight?
The AG surface has a micro-etched finish that scatters incident light rather than reflecting it directly back at the viewer. In direct sunlight, this significantly reduces mirror-like reflections that would otherwise wash out the image. This diffusion maintains screen contrast and legibility, which is critical for safety and efficiency in outdoor or in-vehicle applications.
What are the design implications of the external CCFL inverter requirement?
The requirement for an external CCFL inverter means the backlight driving circuit is not integrated into the display module itself. For an engineer, this provides flexibility to select an inverter that best fits their system's power supply architecture and EMI requirements. However, it also means an additional component must be specified, sourced, and integrated into the final design.
Is the 400x234 resolution sufficient for modern graphical interfaces?
While not a high-definition display, the 400x234 resolution is well-suited for its intended applications, which typically involve displaying system parameters, diagnostic information, menus, and map data where clarity and reliability are prioritized over pixel density. It is highly effective for clear, unambiguous graphical user interfaces designed for at-a-glance readability.
Strategic Outlook for System Design
For engineering teams focused on long-term product stability and performance in demanding real-world conditions, the LQ065T5AR01 represents a strategic choice. Its design prioritizes environmental robustness and fundamental visual clarity over cutting-edge resolution or features. This focus ensures a lower total cost of ownership through enhanced reliability and reduced field failures, particularly in automotive and industrial sectors where product lifecycles are long and servicing is costly. Integrating this display is a decision that favors proven, dependable technology as the foundation for a resilient HMI system.
