Sharp LQ070Y3DG3C: Industrial-Grade 7.0-inch WVGA Display for Extreme Thermal Environments
The Sharp LQ070Y3DG3C is a high-performance 7.0-inch TFT-LCD engineered to deliver consistent visual clarity in environments where consumer-grade panels fail. Featuring a WVGA (800 x 480) resolution and a specialized CMOS 6-bit interface, this module is optimized for industrial HMI applications requiring a wide -30°C to +80°C operating temperature range.
Top Specs: 800x480 Resolution | 350 cd/m² Brightness | -30°C to +80°C Op. Temp
Key Benefits: Superior thermal resilience for outdoor use; Simplified CMOS integration for low-latency data paths.
Does the Sharp LQ070Y3DG3C require external heating for sub-zero startups? No, its specialized liquid crystal chemistry and LED backlight driver are designed for immediate response at -30°C without ghosting or lag. For industrial HMI designs prioritizing cold-start reliability and wide-temp stability, the LQ070Y3DG3C is the optimal choice.
Key Parameter Overview
Decoding the Specs for Enhanced Environmental Reliability
| Technical Parameter | Specification Value | Engineering Significance |
|---|---|---|
| Display Size | 7.0-inch (17.8 cm) | Standard footprint for compact industrial control panels. |
| Resolution | 800 x 480 (WVGA) | Optimal pixel density for clear GUI rendering in 15:9 aspect ratio. |
| Luminance | 350 cd/m² (Typical) | Adequate visibility for indoor and shaded outdoor industrial settings. |
| Contrast Ratio | 450:1 | Ensures legibility of critical data under varied ambient lighting. |
| Interface Type | CMOS (1 channel, 6-bit) | Reduces system complexity and cost for short-range signal routing. |
| Operating Temp | -30°C to +80°C | Extends service life in unconditioned enclosures and heavy machinery. |
| Backlight Life | 50,000 Hours (Min) | Reduces total cost of ownership (TCO) in 24/7 mission-critical systems. |
Application Scenarios & Value
Achieving System-Level Benefits in Harsh Environmental Conditions
The Sharp LQ070Y3DG3C is frequently integrated into heavy machinery dashboards and outdoor charging stations. Engineers often face the challenge of "display sluggishness" in winter conditions. Because this module supports a -30°C cold-start, it eliminates the need for expensive, power-hungry internal heaters within the HMI enclosure. This directly contributes to higher energy efficiency and lower bill-of-materials (BOM) costs.

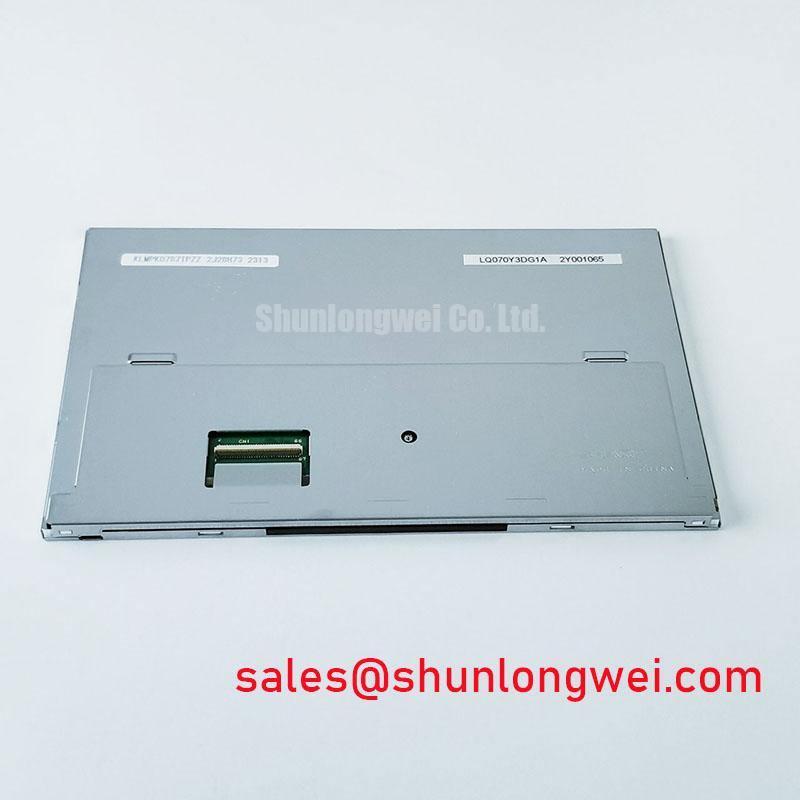

In the context of industrial HMI, the 15:9 aspect ratio provides more horizontal real estate compared to standard 4:3 panels, allowing for more complex data visualization. For applications requiring different viewing angles or slightly different interface requirements, the LQ070Y3DG1A serves as a notable relative in this display family.
This module is a staple in heavy machinery displays where vibration and thermal cycling are constant threats. Its a-Si TFT-LCD structure ensures mechanical stability under high-stress conditions.
Technical Deep Dive
Analyzing Thermal Robustness and Signal Integrity
One of the defining features of the LQ070Y3DG3C is its CMOS interface. While LVDS is common for long-distance signal transmission, the 6-bit CMOS interface on this 7.0-inch panel is ideal for localized control boards where EMI can be managed through PCB layout. Think of CMOS as a direct, high-speed conversation between neighbors in a quiet room; it is efficient and requires less overhead than LVDS "long-distance" protocols, provided the trace lengths are kept short.
Furthermore, the thermal management of the LED backlight is critical. Unlike CCFL backlights, the LED system in the LQ070Y3DG3C generates minimal heat at the panel surface. This is like a high-performance athlete performing in an ice bath; the internal chemistry remains stable because the external "thermal noise" is minimized, preventing the liquid crystals from reaching their isotropic state even at +80°C ambient temperatures. This makes the panel exceptionally durable for harsh environment solutions.
For further reading on display selection, see our engineer's guide to TFT-LCD applications. For technical details on the underlying TFT-LCD technology, visit Wikipedia's TFT-LCD resource.
FAQ
How does the LQ070Y3DG3C handle high-vibration industrial environments?
The Sharp LQ070Y3DG3C features a reinforced frame and secure 31-pin connector interface, designed to maintain TFT-LCD alignment and signal continuity under standard industrial vibration profiles (e.g., IEC 60068-2-6).
Does the 6-bit CMOS interface limit the color depth significantly?
The 6-bit interface provides 262,144 colors. For industrial monitoring, status indicators, and mapping, this is typically more than sufficient, offering a balance between visual fidelity and simplified Microcontroller or FPGA interfacing.
What is the primary benefit of the -30°C to +80°C operating range?
It ensures that the LQ070Y3DG3C maintains contrast and response time in unconditioned outdoor kiosks or engine-side diagnostics, where temperatures frequently fluctuate outside the standard 0-50°C consumer range.
Can this panel be used in direct sunlight?
With a 350 cd/m² luminance, it is excellent for high-ambient light but may require an anti-reflective (AR) overlay or a protective hood for direct sunlight legibility.
How long will the LED backlight last in a 24/7 application?
The LQ070Y3DG3C is rated for 50,000 hours to half-brightness. In a 24/7 environment, this equates to roughly 5.7 years of continuous operation before the LED reaches its end-of-life (EOL) threshold.
From an engineering perspective, the LQ070Y3DG3C represents a strategic choice for designers who must balance environmental ruggedness with ease of integration. By choosing a Sharp panel with a wide thermal margin, you are effectively "over-engineering" the display's survival probability, ensuring that the HMI remains the most reliable part of the industrial system.
