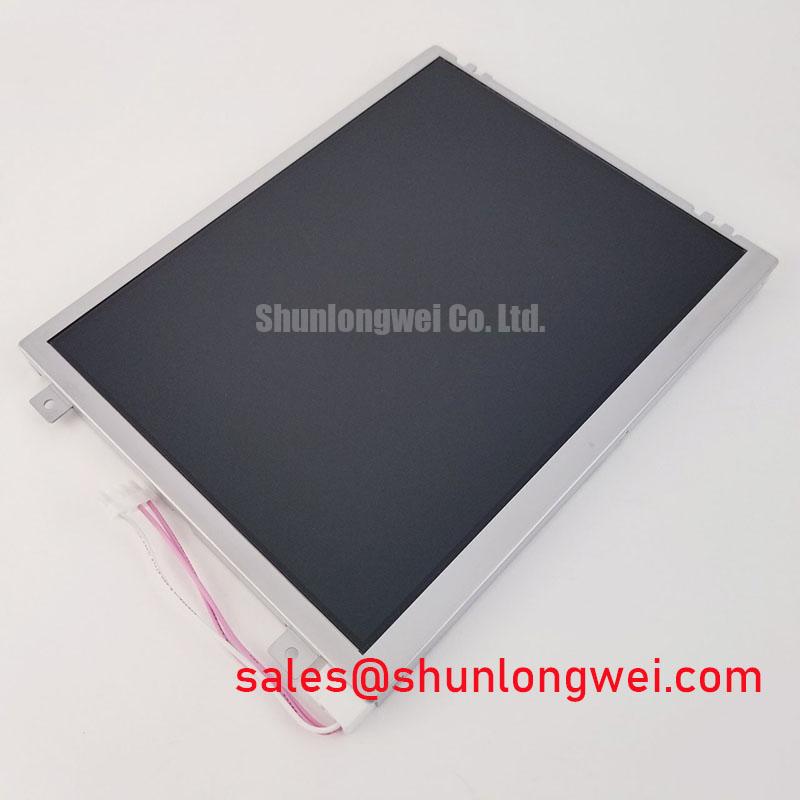

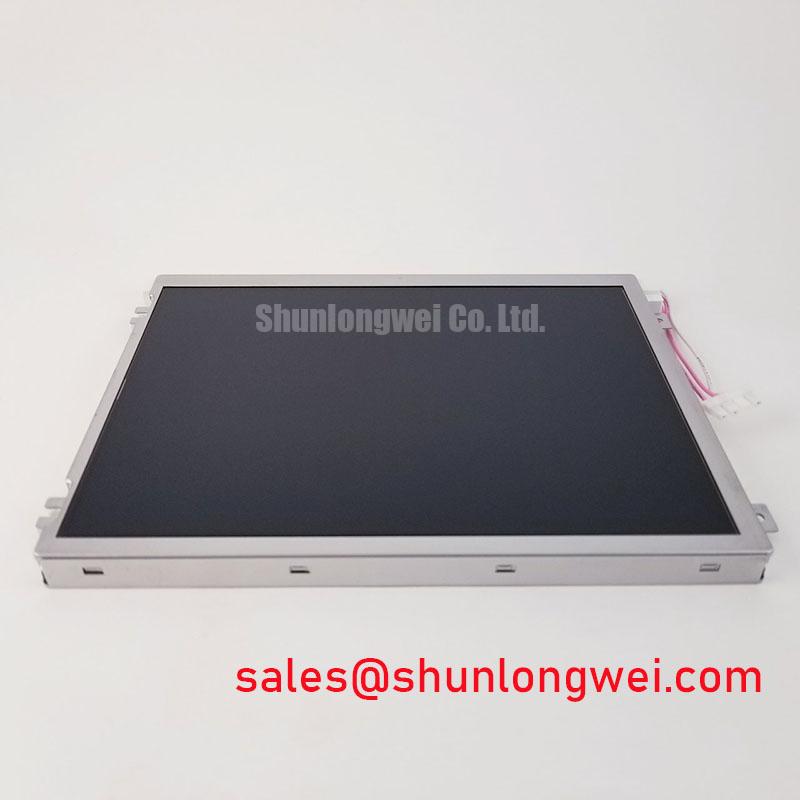

Sharp LQ084V3DG01 LCD Display

Sharp LQ084V3DG01: Robust 8.4" VGA LCD for legacy systems. Features a serviceable CCFL backlight & TTL interface for true drop-in compatibility.

· Categories: LCD Display
· Manufacturer: Sharp
· Price: US$
· Date Code: 2021+
. Available Qty: 903
Like
Tweet
Pin It
4k
Email: sales@shunlongwei.com
Whatsapp: 0086 189 2465 1869
Tags:

Contact us To Buy Now!

LQ084V3DG01 Specification

Sharp LQ084V3DG01 | Robust 8.4-inch VGA Display for Legacy System Integration

The Sharp LQ084V3DG01 is an 8.4-inch a-Si TFT-LCD module engineered for exceptional durability and long-term reliability in demanding industrial environments. With its classic 4:3 aspect ratio and 640x480 VGA resolution, this display serves as a vital component for maintaining and extending the operational life of legacy equipment. It is an ideal solution for industrial controls, medical devices, and test and measurement systems where proven performance and form-fit-function replacement are non-negotiable.

Technical Deep Dive: Engineered for Longevity and Compatibility

  • Serviceable CCFL Backlight System: Unlike modern displays with integrated, non-replaceable LED backlights, the Sharp LQ084V3DG01 features a Cold Cathode Fluorescent Lamp (CCFL) backlight that is designed to be replaceable. This critical design choice directly addresses a major pain point for operators of long-service-life equipment. Instead of a complete panel overhaul when the backlight dims, a simple lamp replacement restores original brightness, significantly extending the display's usable lifespan and lowering the total cost of ownership.
  • Legacy-Ready 18-bit TTL Interface: The display utilizes a standard 18-bit parallel digital (TTL) RGB interface. This ensures seamless electrical compatibility with a vast installed base of controller boards designed in the past two decades. For engineers maintaining existing systems, the LQ084V3DG01 provides a true drop-in replacement, eliminating the costly and time-consuming process of redesigning interface hardware or developing signal conversion solutions.

Application Scenarios: Where Proven Performance Matters

  • Industrial Human-Machine Interfaces (HMI): In CNC machines, PLC controllers, and factory automation systems, uptime is paramount. The robust construction and stable performance of the LQ084V3DG01 ensure clear, reliable visualization of process data, minimizing the risk of failure in critical manufacturing environments. Its proven design is a cornerstone of many systems in the field of industrial power electronics.
  • Medical Diagnostic Equipment: For legacy medical imaging and patient monitoring systems, component consistency is key to maintaining regulatory certification. This Sharp display delivers the dependable image quality and long-term availability required, ensuring that certified devices can be serviced and maintained for their full intended lifecycle without requalification.
  • Test and Measurement Instruments: The clear, artifact-free VGA resolution provides precise readings for oscilloscopes, spectrum analyzers, and other benchtop instruments. The panel's reliability ensures that measurements remain consistent over years of use, a critical factor for laboratory and quality control applications.

Key Technical Specifications

ParameterValue
ModelLQ084V3DG01
Screen Size8.4 inch
Resolution640(RGB)×480, VGA
Brightness400 cd/m² (Typ.)
Contrast Ratio450:1 (Typ.)
Viewing Angle60/60/40/60 (Typ.)(CR≥10)
Interface TypeParallel RGB (1 ch, 6-bit) + 2-bit
Backlight1 pc CCFL, 50K hours, with Inverter
Operating Temperature0 ~ 60 °C

[LQ084V3DG01 Datasheet]

Strategic Selection for System Sustainment

While newer, high-resolution IPS panels offer wider viewing angles and color gamuts, they often require significant system redesigns to accommodate different interfaces (like LVDS or eDP) and physical dimensions. The Sharp LQ084V3DG01 represents a strategic choice for asset sustainment. It prioritizes backward compatibility and serviceability over cutting-edge specs, making it the superior option for repairing or refurbishing existing capital equipment. Opting for this display avoids engineering overhead, software redevelopment, and potential recertification, delivering immediate value and operational continuity.

Frequently Asked Questions (FAQ)

  • Is the CCFL backlight inverter included?Yes, the LQ084V3DG01 typically ships with the inverter board required to drive the CCFL backlight, simplifying the integration process.
  • How difficult is it to replace the backlight lamp?The panel is designed for serviceability. The CCFL lamp is housed in a cassette that can be accessed and replaced by a qualified technician, which is far simpler than replacing an entire display assembly. All components adhere to established electronics standards like RoHS compliance.

For systems that depend on proven VGA technology, the Sharp LQ084V3DG01 remains a first-class choice. To secure this essential component for your maintenance and production needs, contact us for availability and pricing. You can also explore our full range of industrial LCDs for other specialized applications.
