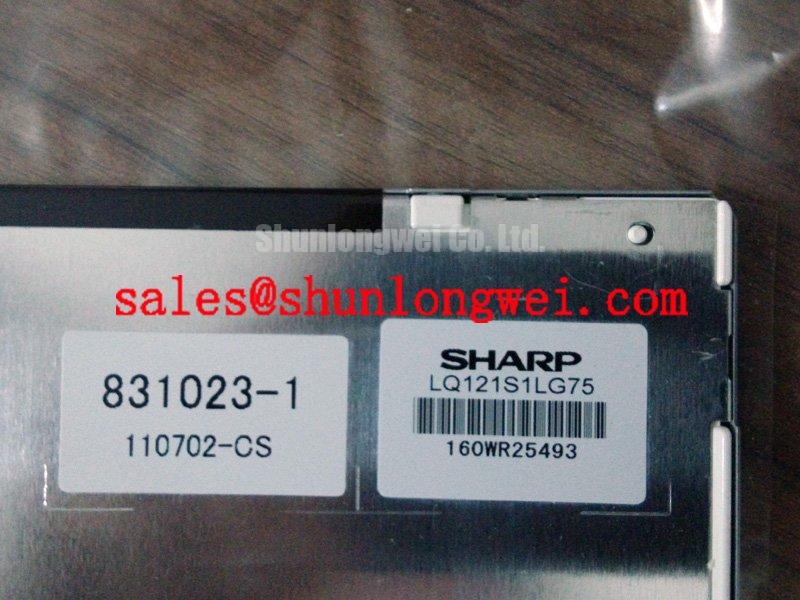

Sharp LQ121S1LG75: Industrial SVGA Display Engineered for Long-Term Reliability
An In-Depth Engineering Review of the 12.1" Industrial TFT-LCD Panel
The Sharp LQ121S1LG75 is a 12.1-inch a-Si TFT-LCD panel engineered for operational stability and visual consistency in demanding industrial applications. It delivers a robust HMI solution built for longevity, prioritizing durable performance for equipment with extended life cycles. With key specifications of 800x600 SVGA resolution | 330 cd/m² brightness | 50K hour backlight lifetime, its primary benefits are its exceptional operational lifespan and wide operating temperature range. This display directly addresses the need for a reliable, easy-to-integrate panel in environments where uptime and consistent performance are critical. For systems requiring a standard 4:3 aspect ratio display with proven durability, the LQ121S1LG75 offers a stable and dependable platform.
Application Scenarios & Value
System-Level Benefits in Industrial Control and Instrumentation
The Sharp LQ121S1LG75 is engineered for environments where display failure leads to significant operational disruption. Its value is most evident in applications like factory floor HMIs, process control systems, and medical diagnostic equipment, where consistent, clear visualization of critical data is paramount. A key engineering challenge in these settings is ensuring readability and reliability across fluctuating environmental conditions. The LQ121S1LG75's wide operating temperature range of -10°C to 75°C is a critical parameter that directly addresses this challenge. This specification means the display can be deployed in non-climate-controlled areas, such as manufacturing facilities or enclosed outdoor kiosks, without requiring complex and costly thermal management systems. It ensures stable performance, preventing image artifacts or shutdown events that could occur with less robust, consumer-grade panels when ambient temperatures rise or fall.
The display's WLED backlight system, rated for a 50,000-hour typical lifespan, further enhances its value proposition. This is not just a measure of longevity but a direct contributor to a lower total cost of ownership (TCO). For an OEM, this extended life reduces the frequency of field replacements and maintenance calls, a crucial factor for equipment intended to operate for a decade or more. While this panel is optimized for SVGA resolution, for applications demanding higher pixel density in a similar form factor, the G121XCE-L01 offers XGA resolution.
Key Parameter Overview
Decoding the Specs for Environmental Resilience and Integration
The technical specifications of the Sharp LQ121S1LG75 are selected to deliver reliable performance and straightforward system integration. The following table groups key parameters by their functional impact on an engineer's design process.
| Feature Category | Parameter | Specification |
|---|---|---|
| Display & Optical Performance | Screen Size | 12.1 inches |
| Resolution | 800(RGB) x 600 [SVGA] | |
| Brightness | 330 cd/m² (Typ.) | |
| Contrast Ratio | 800:1 (Typ.) | |
| Integration & Connectivity | Signal Interface | LVDS (1 ch, 8-bit), 30 pins |
| Supply Voltage (Logic) | 3.3V (Typ.) | |
| Backlight System | WLED with integrated LED driver | |
| Overall Dimensions | 265 x 205 x 9.5 mm (H x V x D) | |
| Environmental & Reliability | Operating Temperature | -10°C to 75°C |
| Storage Temperature | -30°C to 75°C | |
| Backlight Lifetime | 50,000 hours (Typ.) |
Download the LQ121S1LG75 datasheet for detailed specifications and performance curves.
Technical Deep Dive
A Closer Look at the Design for Industrial Longevity
Two core design choices underpin the LQ121S1LG75's suitability for industrial applications: its TN panel technology and its integrated backlight driver system. The use of a TN (Twisted Nematic) display mode, while offering narrower viewing angles compared to IPS technology, provides a crucial advantage in many industrial contexts: fast response times. With a typical response time of 30ms (Tr+Td), the panel can render changing data from process controllers or monitoring systems with minimal motion blur, ensuring operators can accurately read dynamic values.
Furthermore, the integration of the LED driver circuit onto the module itself significantly simplifies the system design for engineers. This design choice means that instead of sourcing and qualifying a separate constant-current driver and designing the interface circuitry, engineers only need to provide a stable 12V DC supply for the backlight. This is akin to providing a component with its own built-in power management unit; it reduces the bill of materials (BOM), shrinks the overall design footprint, and minimizes potential points of failure associated with external driver boards and cabling. This level of integration accelerates development time and enhances the overall reliability of the final HMI assembly.
Frequently Asked Questions (FAQ)
What is the primary advantage of the -10°C to 75°C operating temperature range?
This wide range ensures operational reliability in environments without strict climate control, such as factory floors, warehouses, or sheltered outdoor terminals. It allows the display to function consistently during cold starts and under high thermal loads from surrounding equipment, reducing the need for external heating or cooling systems and improving system uptime.
How does the 50,000-hour backlight lifetime translate to real-world value for an industrial product?
A 50,000-hour lifetime equates to approximately 5.7 years of continuous 24/7 operation. For a device operating on a typical 8-hour workday schedule, this extends to over 17 years. This longevity is critical for industrial machinery and medical devices, as it minimizes maintenance costs and ensures the display does not become the life-limiting component of the overall system.
Is the 800x600 SVGA resolution sufficient for modern industrial HMIs?
For a vast number of industrial control applications focused on displaying process data, status indicators, and simple graphical user interfaces, SVGA resolution on a 12.1" screen provides excellent clarity and readability. It is a proven, cost-effective standard that meets the needs of systems where the priority is robustness and reliability over high-definition video capability. This makes it an ideal choice for legacy system upgrades or new designs that require a stable, long-lifecycle display platform.
What does the integrated LED driver simplify in the design process?
The integrated LED driver eliminates the need for an external constant-current driver board. System designers only need to provide a single 12V power rail for the backlight, reducing component count, board space, and potential EMI issues from separate driver cabling. This plug-and-play approach simplifies both the electrical and mechanical integration, speeding up development and enhancing system reliability.
Strategic Implications for System Design
Integrating the Sharp LQ121S1LG75 into a product line is a strategic decision favoring long-term stability over cutting-edge specifications. It is an ideal component for OEMs building systems for markets where product qualification cycles are long and field reliability is a primary competitive differentiator. By choosing a panel with a proven track record and specifications tailored for industrial stress, engineers can mitigate risks associated with component obsolescence and environmental failure, ensuring product performance and brand reputation are maintained throughout an extended service life. For a deeper understanding of the technologies behind modern industrial displays, a review of TFT-LCD fundamentals can provide valuable context.
