Sharp LQ14X01E: An In-Depth Technical Review for Industrial Display Integration
A Legacy Display for Long-Life Industrial Applications
System Integration & Design Simplification
The Sharp LQ14X01E is a 13.8-inch a-Si TFT-LCD panel engineered for longevity and consistent performance in established industrial systems. Offering a classic 4:3 aspect ratio with a 1024x768 XGA resolution, this display provides a durable solution for legacy equipment integration and specialized human-machine interfaces (HMIs). Its core value lies in its straightforward parallel RGB interface and robust CCFL backlight system, ensuring compatibility and reliability. Key specifications include a typical brightness of 200 cd/m², a 150:1 contrast ratio, and an operational temperature range of 0 to 50°C. This display is particularly suited for control panels and monitoring systems where maintaining form factor and interface compatibility is a critical design constraint. For applications requiring a different form factor or higher resolution, the G156XW01 V1 offers a widescreen format and higher pixel density.
Key Parameter Overview
Decoding the Specs for System Compatibility
The technical specifications of the Sharp LQ14X01E are tailored for straightforward integration into existing industrial frameworks. The panel's design prioritizes established technology for predictable, long-term operation. Understanding its electrical and optical parameters is key to leveraging its strengths in targeted applications.

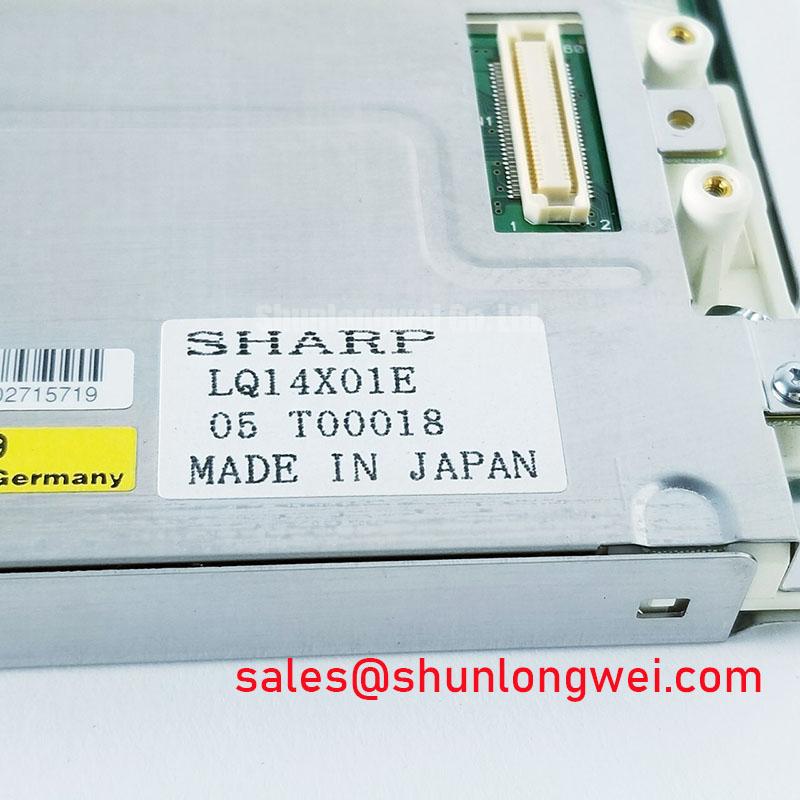

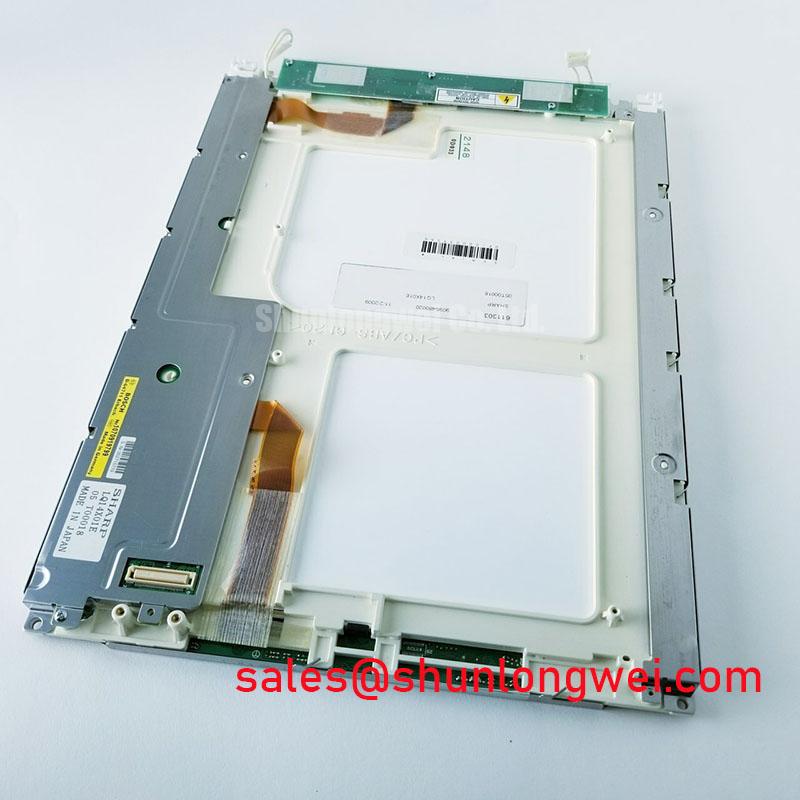

| Optical Characteristics | |
| Panel Size | 13.8 inches |
| Resolution | 1024(RGB)×768, XGA |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 150:1 (Typ.) (Transmissive) |
| Viewing Angle | 45/45/10/30 (Min.)(CR≥10) |
| Display Colors | 262K (6-bit) |
| Physical & Electrical Specifications | |
| Active Area | 279.6(H) × 209.7(V) mm |
| Outline Dimensions | 330(H) × 242(V) mm |
| Interface Type | Parallel RGB (2 ch, 6-bit), 60 pins Connector |
| Power Supply Voltage | 5.0V (Typ.) (VCC) |
| Backlight System | 2 pcs CCFL with included inverter |
| Environmental Ratings | |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -25 ~ 60 °C |
Application Scenarios & Value
System-Level Benefits in Legacy System Maintenance and Upgrades
The primary value of the Sharp LQ14X01E lies in its role as a continuity solution for long-deployed industrial machinery and control systems. What is the benefit of its standard parallel RGB interface? It eliminates the need for complex interface converters, allowing for direct, one-to-one replacement in systems designed decades ago. Consider a CNC milling machine from the early 2000s; its original HMI panel may fail after 20 years of service. Sourcing a modern display often requires significant engineering effort to adapt from LVDS or eDP interfaces. The LQ14X01E, with its 60-pin parallel RGB connection, provides a near drop-in replacement, drastically reducing downtime and engineering costs. Its 4:3 aspect ratio is perfectly matched to the graphical user interfaces of that era, preventing distortion and software redevelopment. This makes the LQ14X01E a strategic component for maintenance, repair, and operations (MRO) providers and asset managers looking to extend the life of valuable capital equipment without undertaking a complete system overhaul.
Frequently Asked Questions (FAQ)
What is the primary advantage of the CCFL backlight in the LQ14X01E for industrial environments?
The Cold Cathode Fluorescent Lamp (CCFL) backlight, while an older technology, is well-understood and known for its stable performance and gradual failure mode. Unlike the sudden failure that can occur with some LED drivers, a CCFL backlight's brightness typically degrades slowly over its 10,000-hour minimum lifespan, providing operators with advance warning of a pending maintenance requirement. This predictability is highly valued in critical industrial processes where unexpected downtime is costly.
How does the 5.0V supply voltage simplify integration into older systems?
The 5.0V logic level was a common standard for digital circuits and display interfaces in the era this panel was designed for. This single-voltage supply requirement simplifies power delivery design, as many legacy controller boards already provide a stable 5V rail, eliminating the need for additional DC-DC converters that would be necessary to support modern panels often requiring 3.3V.
Industry Insights & Strategic Advantage
Ensuring Operational Continuity in a World of Rapid Obsolescence
In an industry focused on constant innovation, the strategic value of components that bridge the gap between legacy and modern systems cannot be overstated. The Sharp LQ14X01E serves a critical niche by providing a stable, reliable display solution that aligns with the physical and electrical requirements of established industrial infrastructure. This addresses a significant challenge for industries like manufacturing, automation, and test & measurement, where equipment lifecycles often exceed 20 years. By providing a form-fit-function replacement, the LQ14X01E helps companies adhere to the principles of Total Cost of Ownership (TCO) management. It avoids the immense costs associated with complete system replacement, including hardware redesign, software porting, and operator retraining. The use of mature technologies like a-Si TFT-LCD ensures a deep base of engineering knowledge for support and integration, making it a low-risk choice for maintaining business-critical assets.
For engineers and procurement specialists tasked with maintaining the operational readiness of long-service equipment, the Sharp LQ14X01E offers a direct path to extending asset life and ensuring system reliability. Please contact our technical sales team to discuss your specific application requirements.
