Investigating Acoustic Capacitor Buzz and EMI Emissions during PWM Dimming
| Model | LTM12C275A |
|---|---|
| Manufacturer | Toshiba |

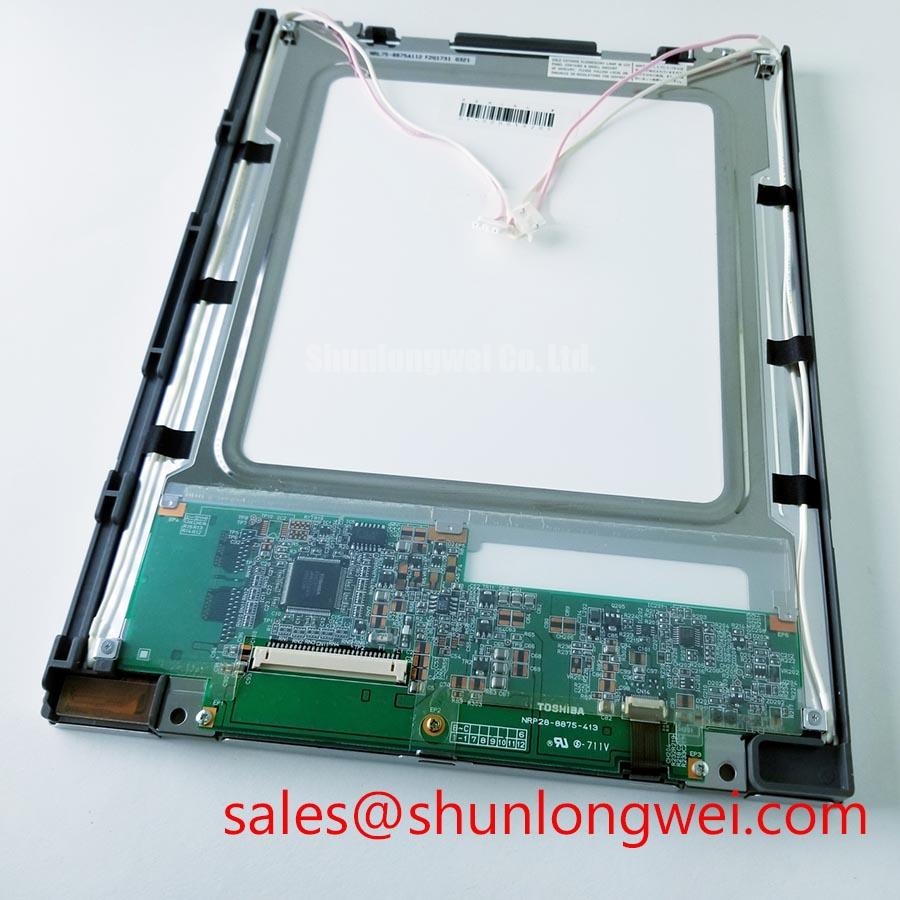

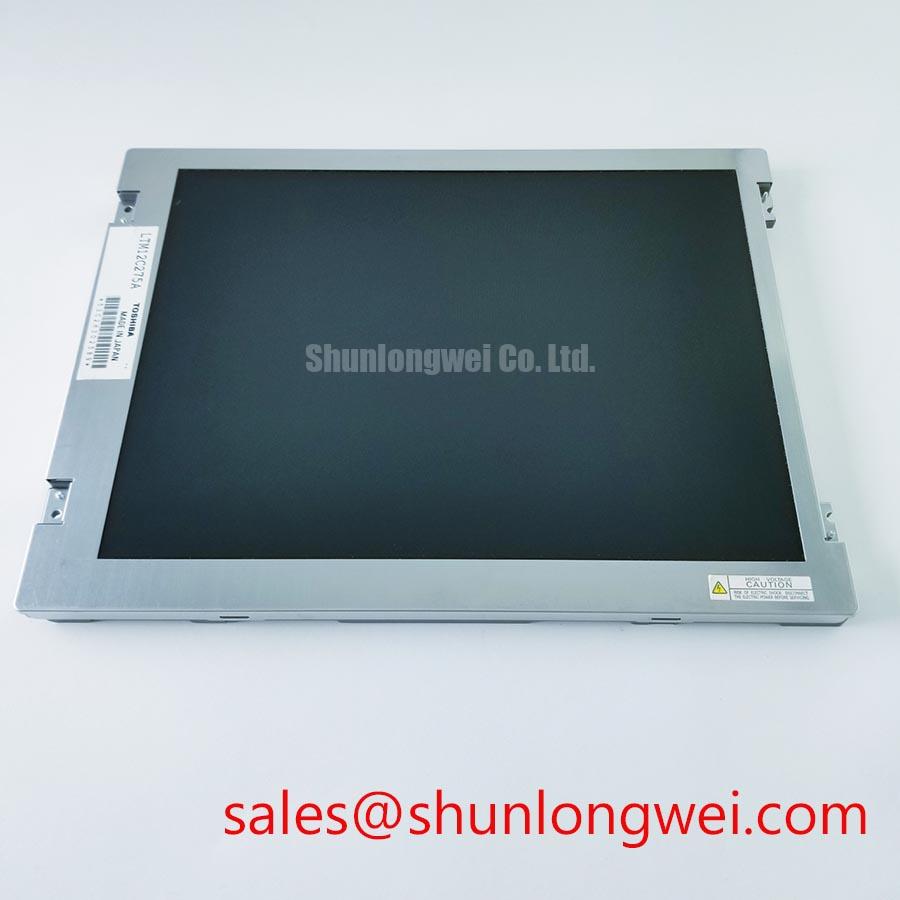

| Product Category | TFT LCD Display Module |
| Specification Status | Limited structured information available |
Probe the display power input and backlight control path while the screen transitions between brightness settings, then listen for a change in audible vibration from nearby driver components or capacitors. A buzz that follows the dimming command can originate in the host backlight driver, its magnetic parts, loose mechanical mounting, or an unstable control signal. It does not establish that the LTM12C275A panel itself is defective.
The available product information identifies a TFT LCD display module, but it does not establish the backlight technology, inverter topology, dimming method, logic voltage, or panel connector assignment. The system integrator should verify the required supply voltage, backlight arrangement, and control pins from the original panel documentation and the machine’s display controller schematic. This distinction matters during urgent HMI repairs because a correct physical module can still be damaged or remain dark if driven by an incompatible power or control interface.
Where the host assembly uses pulse width modulation for brightness control, inspect the control waveform and the associated supply rail together. Irregular brightness, intermittent darkening, or changing audible noise may indicate a driver enable issue, poor return path, unstable supply regulation, or cable movement. Check the waveform against a known good installation when available rather than assigning the symptom to one cause.
High voltage cold ignition is a concern only where the original equipment documentation confirms a CCFL backlight arrangement. Do not apply a generic inverter output or substitute a driver based on another panel family. Likewise, LED current regulation and PWM dimming behavior are system-level characteristics, not official specifications of this model unless confirmed by its original documentation.
EMI investigation should begin at the physical route from the display controller to the panel and backlight assembly. Confirm that screen, chassis, and signal-return connections are present exactly as intended by the equipment manufacturer. A missing conductive cover, displaced shield termination, or poorly seated connector can turn an otherwise stable display path into a source of visible noise or intermittent control behavior.
Field Alert: Disconnect display and backlight connectors only after the machine supply has been isolated and stored energy has been allowed to discharge.
For a broader technical reference on TFT behavior, panel selection, and the difference between panel-level and system-level display functions, see The Ultimate Guide to Industrial TFT LCD Technology.
Display Cable Signal Integrity and Noise Verification in High-Vibration Bays
Inspect the display cable at both connector ends while gently observing the image for movement-related pixel disturbance, horizontal bands, image dropouts, or color corruption. A disturbance that appears only when the harness is moved may indicate a connector latch problem, cable strain, shield discontinuity, damaged conductors, or vibration transfer from the enclosure. It should be investigated at the cable and host-board level before the panel is judged responsible.
The LTM12C275A is identified as a TFT LCD module, yet the available structured information does not confirm whether the host interface is TTL RGB, LVDS, or another digital format. Interface assumptions are unsafe in a replacement repair. Examine the original harness pinout, panel-side connector geometry, controller documentation, and measured signal behavior before attaching a replacement module.
Where differential signalling is confirmed by the original system design, Engineering Recommendation is to preserve paired routing, continuity, shielding strategy, and return paths used by the machine. Differential links reject some common noise only when the pair remains electrically balanced and the receiver sees a valid signal relationship. Cable damage, exposed braid, poor shield termination, and a ground path shared with noisy loads can reduce that benefit.
Near variable frequency motor drives, evaluate image noise with the machine in several operating states. Compare the display while the motor is stopped, accelerating, and running under normal load. If noise changes with drive activity, inspect the display harness path relative to motor cables, inverter enclosures, switching power supplies, and chassis bonding points. Use an oscilloscope and a known good signal path where possible to determine whether the issue is present in the incoming video data, logic supply, or backlight control path.
A 360-degree shield termination can be a Design Consideration where the original equipment uses screened cable assemblies and the connector shell supports that treatment. Do not improvise a shield arrangement that conflicts with the host enclosure or grounding architecture. The system engineer should validate image stability and emissions performance under the actual machine wiring layout.
For industry background on display system integration, optical behavior, and industrial display architecture, the Sharp Display Solutions Official Portal provides relevant display technology resources.
Display Interface Synchronization and Logic Power Rail Verification
Measure the host logic rail at the panel connector during power-up, steady operation, and power-down while observing whether the screen remains blank, white, distorted, or intermittently active. A stable meter reading alone is not enough for this check; a short supply interruption, incorrect enable sequence, or poor connector contact may only become visible on an oscilloscope or during repeated start cycles.
The available information for LTM12C275A identifies the TFT active-matrix color module category but does not define a 3.3 V rail, a 5.0 V rail, a TTL 24-bit bus, an LVDS interface, JEIDA mapping, VESA mapping, timing parameters, or connector pin assignment. The system integrator should verify the required supply voltage from the original panel documentation. That verification must precede any continuity test that bridges suspected pins or any attempt to power the panel from a bench supply.
Split-screen artifacts, incorrect colors, unstable sync, and repeating vertical patterns can arise from more than one condition. Possible areas to inspect include data mapping, clock integrity, cable seating, controller configuration, supply sequencing, and mechanical stress at the connector. Compare the original display controller settings with the panel documentation and, where available, test against a known good panel of the same approved model.
Engineering Recommendation is to preserve the original controlled-impedance routing and paired signal topology when the equipment documentation confirms a differential interface. The routing principle is to minimize discontinuities and skew that can reduce timing margin, especially in electrically noisy machinery. Final acceptable margins are determined by the host transmitter, cable assembly, receiving electronics, and measured switching behavior of the complete system.
Power-on and power-off behavior requires the same discipline. A white screen, temporary colored field, or image retention after shutdown may be associated with sequencing, a floating control line, residual charge in the host board, or an issue within the display assembly. Record the sequence with the original panel installed where practical, then compare it with the replacement installation under equivalent conditions. This approach prevents a controller fault from being mistaken for a panel mismatch.
Investigating Display Response during Cold-Start Machine Power-Up
Observe the panel immediately after a cold start and compare text movement, cursor response, gray transitions, and image uniformity after the enclosure reaches its normal operating condition. Slower visual transitions at low temperature can be associated with liquid-crystal behavior, yet a delayed image can also involve low supply performance, host timing instability, backlight startup, or an inadequate connection. Check the entire display chain before assigning the effect to one mechanism.
No official operating-temperature range, gray-to-gray response figure, thermal-cycle rating, perimeter seal construction, or backlight lifetime figure is provided in the available data for LTM12C275A. Statements such as a specified low-temperature operating limit, a defined response time, or a guaranteed operating life would therefore be unsupported. Equipment maintainers should use the original machine documentation and approved environmental requirements when determining whether this module is suitable for a cold-start or wide-temperature installation.
During cold-condition troubleshooting, inspect the visible state first. A fully dark panel, a lit panel without image content, a washed-out image, and a slowly updating image represent different observations and should lead to different checks. Confirm the panel supply and enable conditions, inspect cable retention, verify source data activity, and compare the panel after temperature stabilization. This produces a more reliable repair record than relying on appearance alone.
Mechanical stress is often overlooked during display replacement. Avoid sharply folding a flexible cable, twisting the connector during insertion, or allowing the harness to pull against the panel-side termination. Engineering Recommendation is to route the cable with enough free movement for the host enclosure, maintain the original bend direction, and secure it only through the system’s intended retention features. Any vibration restraint, cushioning, or enclosure support should follow the original equipment arrangement rather than an assumed universal method.
For railway passenger information terminals and cab signalling displays, this module can be evaluated as a replacement candidate only after the mechanical dimensions, connector arrangement, electrical interface, optical requirements, and environmental requirements have been matched to the existing approved installation. That assessment protects the repair process from interface errors that cannot be identified from the model designation alone.
