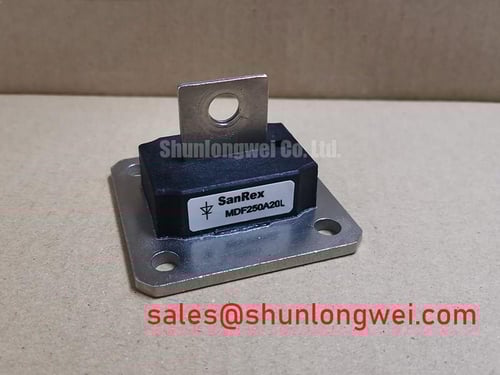

MDF250A20L | Robust 200V Half-Bridge IGBT for High-Current Power Control
The MDF250A20L is a high-current IGBT module engineered for robust performance in demanding, lower-voltage power conversion systems. Configured as a versatile half-bridge, this module provides a powerful and thermally efficient solution for designers looking to control significant current with high reliability. It serves as a workhorse component where raw power handling and durability are paramount.
Core Strengths of the MDF250A20L
From an engineering perspective, the MDF250A20L is built to address specific system design challenges. Its value is centered on delivering high current density in a package optimized for effective thermal management.
- High Current Capability: With a 250A continuous collector current rating, this module is purpose-built for applications that demand substantial power throughput.
- Optimized 200V VCES: The 200V rating makes it an ideal choice for battery-powered systems (e.g., 48V, 72V, 96V systems) and industrial power supplies, providing sufficient voltage headroom without the higher conduction losses of 600V or 1200V devices.
- Integrated Half-Bridge Topology: The pre-configured half-bridge (two IGBTs) simplifies PCB layout, reduces stray inductance compared to discrete solutions, and streamlines the assembly process.
- Robust Thermal Performance: Housed in an industry-standard isolated module package, it provides a low thermal resistance path to a heatsink, crucial for reliability under heavy load conditions.
Application Scenarios and Engineering Value
The MDF250A20L excels where high current and efficiency at moderate voltages are the primary design drivers. It is less about high-frequency switching and more about brute-force power handling.
- Electric Vehicle Motor Drives: Ideal for traction inverters in material handling vehicles like forklifts, golf carts, and utility vehicles. Its 250A capacity can handle the high starting torque currents, while the 200V rating is well-suited for common battery bus voltages.
- High-Power DC-DC Converters: In applications requiring bulk power transfer, such as battery charging systems or isolated DC power supplies, this module provides the necessary muscle for the primary switching stage.
- Industrial Welding: The module’s ability to handle high pulse currents makes it a solid foundation for building the output stage of modern inverter-based welding power supplies, ensuring stable arc characteristics.
- Battery Test and Cycling Equipment: For systems that charge and discharge high-capacity battery packs, the MDF250A20L offers the bidirectional current control needed in a robust and easily cooled package.
Key Technical Parameters
The following table provides a quick reference for the essential specifications of the MDF250A20L module. For comprehensive design data, including dynamic characteristics and safe operating area curves, please refer to the official product documentation.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 200V |
| Continuous Collector Current (IC) @ TC=80°C | 250A |
| Collector-Emitter Saturation Voltage (VCE(sat)) (Typ. @ IC=250A) | 1.6V |
| Maximum Junction Temperature (Tjmax) | 150°C |
| Configuration | Half-Bridge (2-in-1) |
| Isolation Voltage (VISO) | 2500V (AC, 1 minute) |
For detailed schematics and performance graphs, you can search for the MDF250A20L datasheet here.
Technical Deep Dive: The Advantage of a High-Current, Lower-Voltage IGBT Module
While the industry often focuses on high-voltage IGBTs for grid-tied applications, devices like the MDF250A20L fill a critical niche. The primary advantage of its 200V-class silicon is a lower VCE(sat) compared to its 600V or 1200V counterparts at the same current. This directly translates to lower conduction losses—the dominant loss factor in high-current, moderate-frequency applications like motor control. By minimizing I²R losses during the on-state, designers can achieve higher system efficiency and reduce the burden on the cooling system.
Furthermore, integrating two IGBTs and their corresponding freewheeling diodes into a single module offers significant benefits over using discrete components. The controlled internal layout minimizes parasitic inductance, reducing voltage overshoots during switching transients. This simplification not only improves reliability but also potentially reduces the need for complex and costly snubber circuits. For a deeper understanding of module benefits, explore our guide on the backbone of high-efficiency power systems.
Frequently Asked Questions (FAQ)
Can the MDF250A20L be paralleled for even higher current output?
Yes, paralleling these IGBT modules is feasible but requires careful engineering. To ensure proper current sharing, designers must focus on symmetrical PCB layouts to equalize stray inductance in both the power path and the gate drive circuit. Using devices from the same manufacturing batch is recommended to minimize VCE(sat) variation. Additionally, individual gate resistors for each module are critical to prevent gate-level oscillations.
What are the primary thermal design considerations for this module?
With a potential power dissipation of several hundred watts, effective thermal management is non-negotiable. The first step is ensuring a low-resistance thermal interface between the module's baseplate and the heatsink, using a high-quality thermal interface material (TIM). The heatsink itself must be sized appropriately based on the calculated total losses (conduction + switching) and the maximum ambient operating temperature. Proper thermal design is key to long-term reliability; learn more about why thermal resistance (Rth) matters in our detailed analysis.
If your design requires robust high-current switching and you need a reliable, no-nonsense power module, the MDF250A20L is an excellent candidate. For pricing, availability, or further technical consultation, please contact our technical team.
