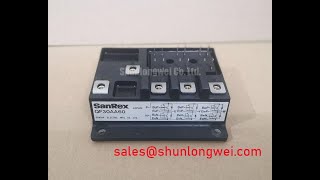

SanRex QF30AA60 IGBT Module

Content last revised on October 26, 2025.

QF30AA60 SanRex: A 600V, 30A Six-Pack Darlington Transistor Module for High-Efficiency Motor Control

QF30AA60 Product Page

Engineering Insights for Distributors, Engineers, and Procurement Professionals

The SanRex QF30AA60 is an integrated six-pack Darlington power transistor module designed to streamline the development of three-phase motor control and power conversion systems. It delivers a robust 600V | 30A | 250W power handling capability, architected around low saturation voltage for superior efficiency and an isolated mounting base to simplify thermal management. Key benefits include reduced conduction losses and a simplified assembly process. This module directly addresses the engineering need for a compact, efficient power stage in applications like small AC servo drives and uninterruptible power supplies (UPS). For systems demanding higher power density in the same voltage class, its low VCE(sat) is a critical enabler.

Application Scenarios & Value

Achieving System-Level Benefits in Three-Phase Power Conversion

The QF30AA60 is engineered for core power conversion tasks where efficiency and reliability are paramount. Its primary application is in the inverter stage of low-to-medium power AC motor drives and servo controllers. In a typical Variable Frequency Drive (VFD), the challenge is to minimize power loss within the module to reduce heat sink size and improve overall system reliability. The QF30AA60's low saturation voltage directly tackles this issue by lowering conduction losses during operation, a crucial factor for drives operating under continuous load.

Furthermore, its integrated three-phase bridge topology, complete with parallel fast recovery diodes, offers a significant advantage. This integration reduces the bill of materials (BOM) and simplifies the PCB layout compared to a discrete component solution. This design choice accelerates development time and reduces potential points of failure, contributing to a more robust final product. While the QF30AA60 is optimized for 600V systems, for applications requiring operation on higher voltage industrial lines, a module like the DF30AA160 offers a higher blocking voltage capability.

Key Parameter Overview

Decoding the Specs for Efficient Power Stage Design

The following parameters are critical for evaluating the QF30AA60 in your power circuit design. The specifications highlight its suitability for applications demanding a balance of switching performance and thermal efficiency.

Note: The parameters listed are based on available technical documentation. For complete characteristic curves and application notes, it is essential to consult the official manufacturer's resources.

Download the QF30AA60 datasheet for detailed specifications and performance curves.

Frequently Asked Questions (FAQ)

Design Considerations for the QF30AA60 Module

How does the integrated isolated mounting base of the QF30AA60 benefit the thermal design process?
The electrically isolated base simplifies mechanical assembly by allowing the module to be mounted directly to a common heatsink without the need for additional insulating layers like mica pads. This not only reduces assembly time and component count but also provides a more consistent and lower thermal resistance path, improving heat dissipation and overall system reliability. Think of it as having the insulation built-in, removing a variable from your thermal calculations.

What is the primary advantage of the Darlington pair configuration in this module for motor control applications?
The Darlington configuration provides a very high DC current gain (hFE). For a gate driver circuit, this means that only a small amount of input current is needed to control a much larger collector current. This simplifies the drive circuitry, reducing the power requirements and cost of the components needed to switch the transistors on and off in a Servo Drive.

What is the role of the fast recovery diode paralleled with each transistor?
Each internal transistor is paired with a freewheeling diode. In motor drive applications, which are inductive loads, this diode provides a safe path for the current to flow when a transistor is switched off. The "fast recovery" characteristic is critical for reducing switching losses and preventing voltage spikes, thereby protecting the transistor and improving the efficiency of the power conversion stage.

Technical Deep Dive

Implications of the Darlington Architecture on System Performance

The QF30AA60's design as a six-pack Darlington module is a strategic choice aimed at balancing performance and design simplicity. A Darlington pair essentially cascades two bipolar junction transistors (BJTs) to function as a single transistor with significantly higher current gain. This high gain is a key asset in simplifying the required gate drive circuitry, a common pain point in power stage design. It allows for control with lower input currents, reducing the complexity and power consumption of the control-side electronics.

However, a classic trade-off of the Darlington configuration is a higher saturation voltage compared to a single transistor. The manufacturer's emphasis on "low saturation voltage" for this module indicates the use of advanced chip technology to mitigate this inherent drawback. A lower VCE(sat) is directly proportional to lower conduction losses (P = VCE(sat) * IC), which is the primary source of heat in many applications. By optimizing this parameter, the QF30AA60 enables designers to push for higher power density or operate with more thermal margin, enhancing the long-term reliability of the end system, such as an uninterruptible power supply (UPS).

Strategic Component Selection

Selecting the QF30AA60 module is a strategic decision for engineering teams looking to optimize the balance between performance, integration, and design effort. Its architecture provides a robust foundation for building efficient and reliable three-phase power stages, aligning with market trends that demand higher power conversion efficiency and faster time-to-market. For designers working on next-generation compact motor drives or power supplies, this module offers a compelling, highly integrated solution.
