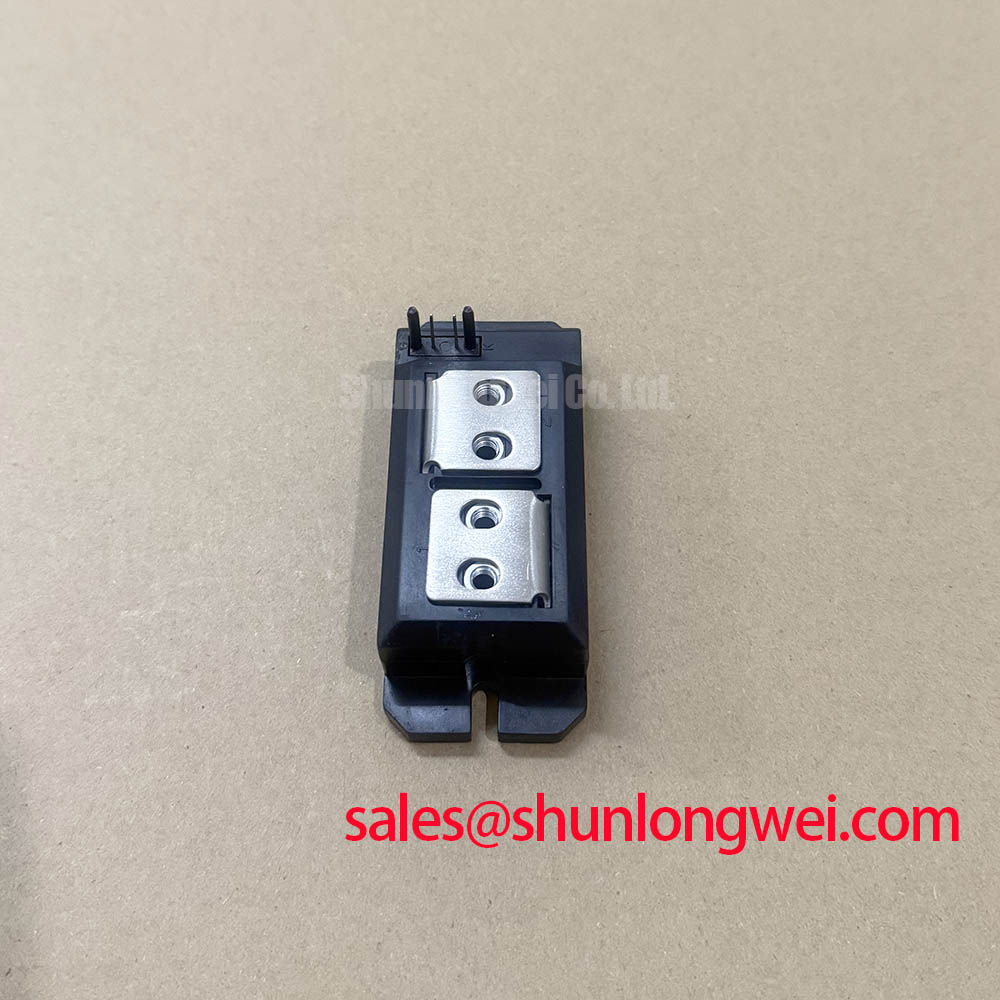

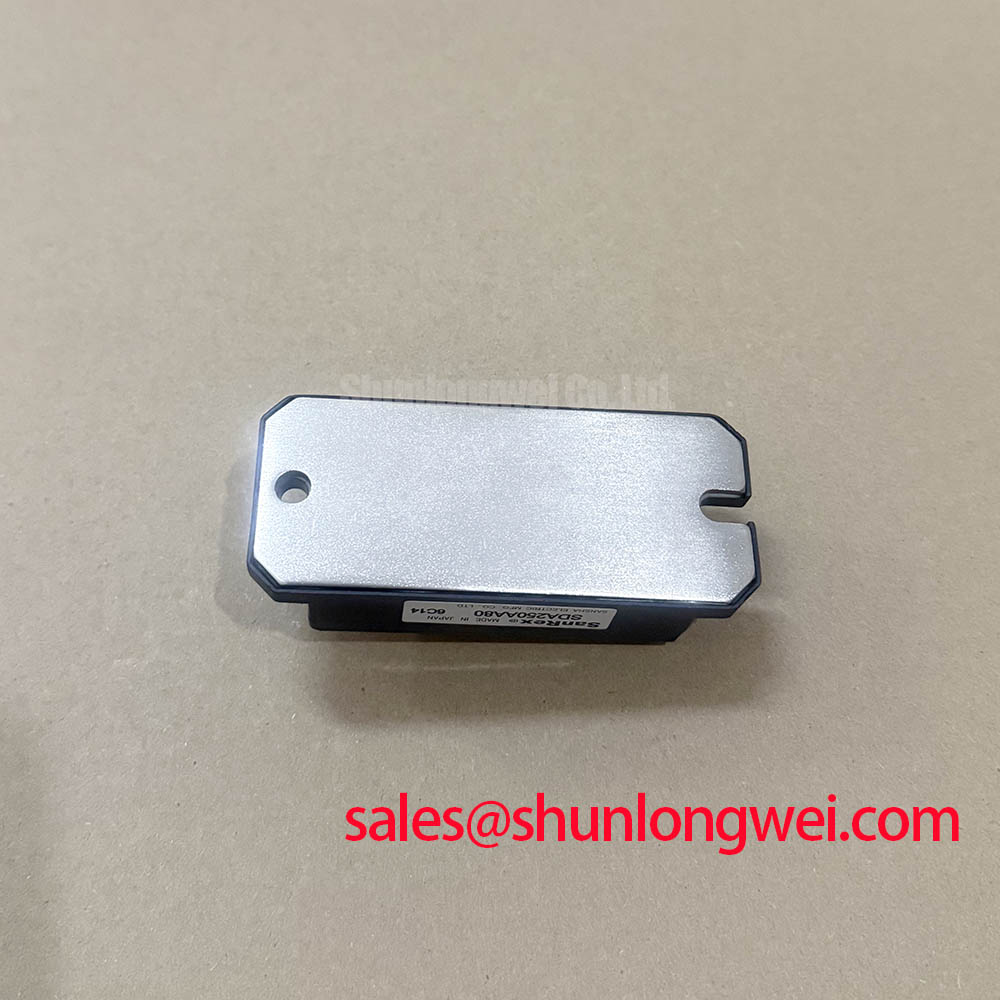

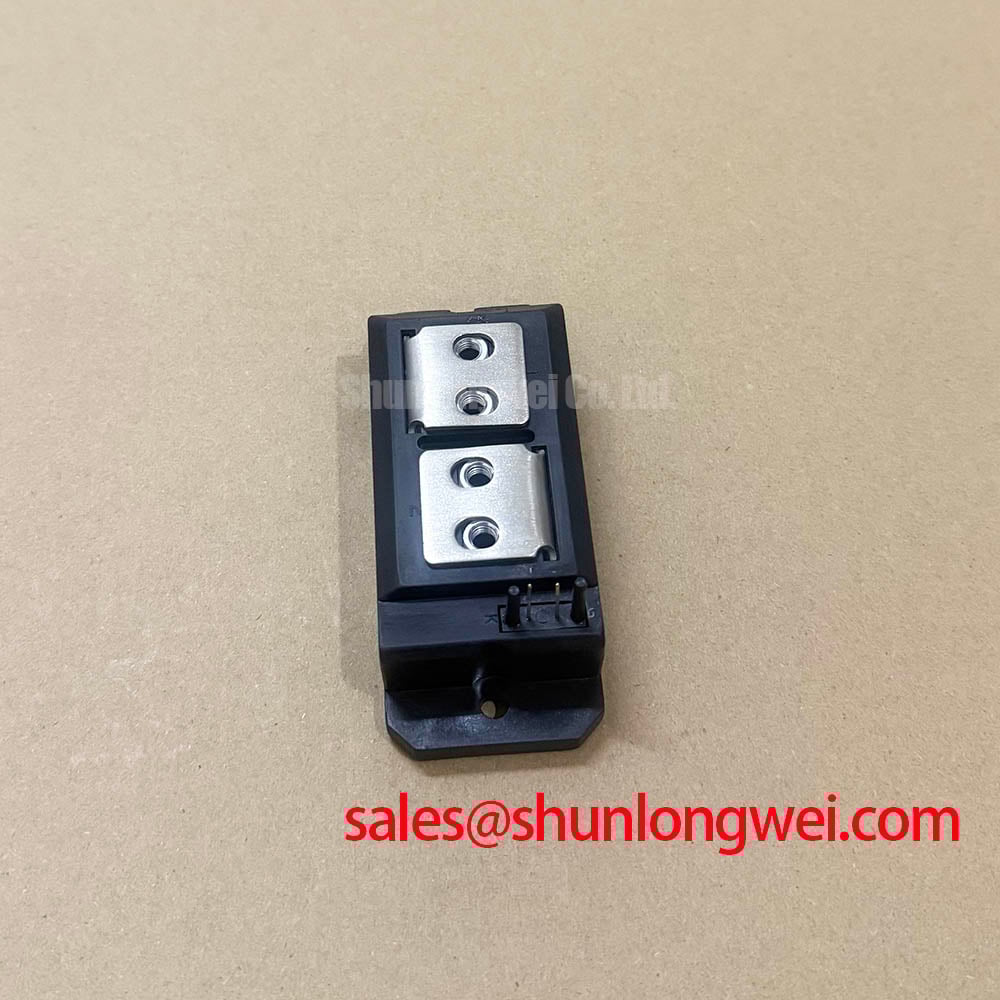

Sanrex SDA250AA80 | Thyristor/Diode Module for High-Power Rectification and Control
The Sanrex SDA250AA80 is a robust and highly reliable power module engineered for demanding industrial power conversion applications. Combining three thyristors (SCRs) and three diodes in a single, isolated package, this module provides a complete three-phase bridge rectifier with phase control capability. It is designed for engineers seeking a proven, cost-effective solution for controlling high-current AC loads, particularly in applications where simplicity and durability are paramount.
Key Parameter Overview
The technical specifications of the Sanrex SDA250AA80 are tailored for high-power industrial environments. This module delivers consistent performance and a substantial safety margin for reliable, long-term operation. For comprehensive electrical and thermal characteristics, you can Download the Datasheet.
| Parameter | Value |
|---|---|
| Repetitive Peak Reverse Voltage (VRRM / VDRM) | 800 V |
| Average On-State Current (IT(AV)) - Thyristor | 250 A |
| Average Forward Current (IF(AV)) - Diode | 250 A |
| Peak On-State Voltage (VTM) @ 785A | 1.6 V (Max) |
| Isolation Voltage (Visol) | 2500 V (AC, 1 minute) |
| Operating Junction Temperature (Tj) | -40°C to +125°C |
Application Scenarios & Value Proposition
The true value of the Sanrex SDA250AA80 lies in its direct applicability to core industrial systems. Its hybrid thyristor-diode topology makes it a versatile workhorse for power control.
- Motor Soft Starters: In fixed-speed AC motor applications, the primary challenge is managing high inrush current during startup. By precisely phase-controlling the thyristor gates, this module can gradually ramp up the voltage supplied to the motor. This minimizes mechanical shock on gears and belts and reduces electrical stress on the power grid, directly extending equipment lifespan.
- Industrial Battery Chargers: For large-scale battery charging systems, the SDA250AA80 provides a simple yet powerful controlled rectification stage. It allows for regulated DC output to charge battery banks efficiently, offering a more robust and thermally manageable solution than complex, high-frequency switcher designs in harsh factory settings.
- Regulated Power Supplies: In applications requiring a high-current, variable DC voltage, such as electroplating or large-scale electrolysis, this module serves as the core of the power control unit. Its high current rating and proven reliability ensure stable operation under continuous heavy loads.
- Welding Power Supplies: The module’s ability to handle high current surges and its rugged construction make it an ideal component for the power regulation stage in certain types of Welding Power Supply systems.
Technical Deep Dive: The Engineering Advantage
Two core design choices set the SDA250AA80 apart for its target applications: its integrated topology and its robust packaging.
1. Integrated Thyristor/Diode Topology: Unlike fully controllable IGBT modules used in high-frequency inverters, this module integrates thyristors and diodes specifically for phase-angle control and rectification. This design significantly simplifies the overall system. You get a complete three-phase controlled bridge in one component, reducing assembly time, minimizing busbar complexity, and lowering the potential points of failure compared to using six discrete devices. The inherent ruggedness of thyristors provides excellent surge current handling capability, a critical factor for surviving faults in industrial machinery.
2. Hermetically Sealed Ceramic Package: The power dies are housed in an industry-standard package with a ceramic baseplate (Alumina DCB). This provides excellent electrical isolation (2500V) between the circuit and the heatsink, simplifying thermal design and enhancing safety. This construction is inherently resistant to moisture, dust, and vibration, which are common challenges in industrial plants. This focus on physical robustness contributes directly to a lower total cost of ownership through enhanced system reliability and longevity.
Frequently Asked Questions (FAQ)
Q1: When should I choose the SDA250AA80 over a full IGBT Power Integrated Module (PIM)?
A: The choice depends entirely on your application's control requirements. Choose the SDA250AA80 for cost-sensitive, line-frequency (50/60Hz) applications where the goal is voltage regulation or soft-starting (e.g., motor starters, simple DC power supplies). Choose a full IGBT PIM when you need high-frequency switching for applications like a Variable Frequency Drive (VFD), a solar inverter, or an active front-end (AFE) rectifier that requires power factor correction and bi-directional power flow. The SDA250AA80 prioritizes simplicity and ruggedness over switching speed.
Q2: What are the critical considerations for the gate trigger circuit for this module?
A: A reliable gate drive is essential. First, ensure the gate trigger pulse has sufficient current and voltage to guarantee a full turn-on, especially under low-temperature conditions. A "hard" pulse with a fast rise time is recommended. Second, for inductive loads, the gate pulse must be maintained until the anode current has latched above the device's holding current. A continuous train of pulses is often the safest strategy to prevent the thyristor from misfiring or turning off prematurely. Finally, proper isolation between the control logic and the high-power gate circuit is non-negotiable for both safety and preventing noise-induced issues. Understanding these nuances is key to preventing common power module failures.
For expert guidance on selecting the right power module for your specific design, contact our technical team to discuss your application in detail.
