ME701203 | 1200V Thyristor/Diode Module: Engineering Data for High-Reliability Power Control
Content last revised on October 26, 2025.

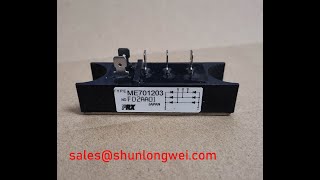

The Powerex ME701203 is a high-reliability thyristor/diode module, engineered to deliver precise and robust power control in demanding industrial environments. It integrates two thyristors and three diodes in a single, electrically isolated package, offering a streamlined solution for AC and DC power regulation. With its focus on superior thermal efficiency and electrical safety, this module provides a dependable foundation for long-life power conversion systems. Best Fit: For three-phase power controllers up to 30A that require robust thermal margins and high electrical safety, the ME701203 offers an optimal balance of performance and reliability.
Key Parameter Overview
Decoding the Electrical and Thermal Specifications for System Design
The ME701203's specifications are tailored for industrial power systems where both performance and durability are critical. The module's low thermal resistance is a defining feature, directly enabling more effective heat dissipation and supporting higher power density in the end application. This table highlights key parameters with their engineering implications.
| Parameter | Value | Engineering Significance |
|---|---|---|
| Repetitive Peak Reverse Voltage (VRRM) | 1200 V | Provides substantial safety margin for operation on 400V/480V AC lines, ensuring reliability against voltage transients. |
| Average Output Current (IO @ TC=80°C) | 30 A | Defines the continuous current handling capability, suitable for a wide range of small to mid-power motor drives and power supplies. |
| Thermal Resistance (Rth(j-c), Per Junction) | 1.0 °C/W (Diode), 0.7 °C/W (Thyristor) | Indicates superior heat transfer from the semiconductor junction to the case, simplifying Heatsink Design and improving long-term component life. |
| RMS Isolation Voltage (Visol) | 2500 V | Ensures high electrical isolation between the power circuit and the mounting baseplate, enhancing system safety and simplifying compliance. |
| Peak Surge Current (ITSM) | 500 A | Demonstrates the module's ability to withstand significant inrush currents, critical for the reliability of applications like motor soft starters. |
Download the ME701203 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Controlled Rectifiers and Soft Starters
The ME701203 is optimally suited for deployment in industrial power conversion systems where controlled rectification and durability are paramount. Its integrated nature simplifies the power stage design for applications such as DC power supplies, battery chargers, and light-duty DC motor controls.
A high-fidelity engineering scenario for this module is the design of a Soft Starter for a three-phase induction motor. The primary challenge in such a system is managing the high inrush currents during motor startup while controlling the voltage ramp-up. The ME701203's robust peak surge current rating of 500A provides the necessary resilience to handle these repeated startup stresses without degradation. Simultaneously, its thyristor elements allow for precise phase-angle control to smoothly accelerate the load, reducing mechanical shock and electrical stress on the grid. The module's low thermal resistance ensures that the heat generated during this process is efficiently dissipated, maintaining a safe operating temperature and ensuring reliable operation over thousands of cycles. For systems requiring significantly higher current handling, the related QM150DY-24 offers a 150A capability in the same 1200V class.
Technical Deep Dive
An Analysis of the Internal Construction and its Impact on Thermal Performance

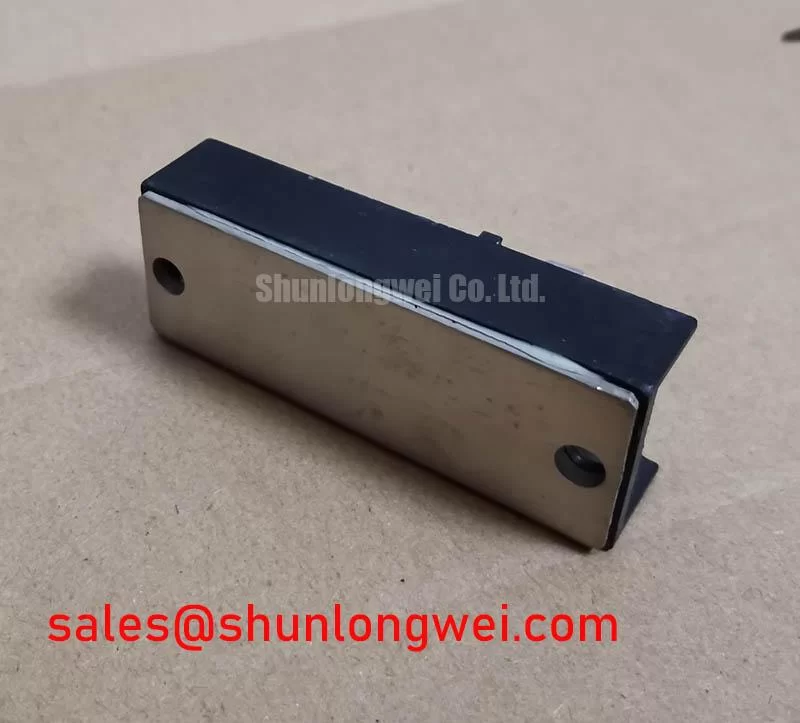

A critical aspect of the ME701203's design is its emphasis on effective thermal management, which is central to its long-term reliability. The module utilizes an isolated baseplate, typically incorporating a ceramic material like Alumina (Al₂O₃). What is the primary benefit of its low thermal resistance? It allows for smaller heatsinks and higher system power density. This construction provides a robust barrier against high voltage, as indicated by its 2500V isolation rating, while simultaneously creating an efficient pathway for waste heat to travel from the semiconductor junctions to the external heatsink. Think of the ceramic insulator as a specialized thermal bridge: it completely blocks the 'river' of electrical current while allowing the 'heat' to flow across with minimal resistance, a crucial attribute for protecting the system and ensuring predictable performance. The effectiveness of this entire thermal system is contingent on proper installation, where applying the correct mounting torque and a thin, uniform layer of thermal compound minimizes the contact Thermal Resistance and ensures the datasheet specifications are met in the field.
Frequently Asked Questions
Engineering Questions on Performance and Implementation
How does the ME701203's thermal resistance directly impact heatsink selection and system size?
The low junction-to-case thermal resistance (Rth(j-c)) means that heat is transferred more efficiently from the active silicon to the module's baseplate. This allows engineers to use a smaller, more cost-effective heatsink for a given power dissipation or to operate at higher output currents with the same size heatsink, thereby enabling greater power density.
What is the significance of the 2500V isolation rating for system design and safety?
The 2500V RMS isolation simplifies mechanical design by allowing the module to be mounted directly to a grounded chassis or heatsink without the need for additional, often bulky, insulating materials. This enhances system safety by preventing hazardous voltages from reaching accessible parts, helping the final product meet stringent industrial safety standards like those from UL.
How does the 500A surge current rating (I_TSM) contribute to reliability in motor drive applications?
In applications like motor soft starters or variable speed drives, the module must repeatedly endure high inrush currents upon startup. The 500A I_TSM rating ensures the device can survive these events without damage, a key factor in preventing field failures and building a robust, long-lasting system. For deeper insights into potential failure modes, see our guide on IGBT failure analysis.
What are the typical gate drive requirements for the thyristors within the ME701203?
While the full details are in the official datasheet, thyristors in this class typically require a specific gate current (I_GT) and voltage (V_GT) to ensure reliable turn-on. It's crucial for the drive circuit to provide a pulse with sufficient energy, especially when dealing with inductive loads, to ensure the thyristor latches fully into conduction and to minimize switching losses.
Is the ME701203 suitable for use in applications with high levels of mechanical shock and vibration?
The module is designed in an industry-standard package built for industrial environments. The internal wire bonds and solder joints are engineered to withstand typical industrial vibration levels. However, for applications with extreme mechanical stress, designers should consult the manufacturer's reliability data and ensure proper mounting techniques are used to minimize stress on the module's terminals and baseplate.
Ultimately, the ME701203's value is realized in the system's operational life. The thoughtful thermal design translates directly into a wider safety margin, reduced thermal cycling stress, and predictable performance, which are the cornerstones of any industrial-grade power system built to last.
