MG50M2YK1 Toshiba 1200V 50A Dual IGBT Module

Content last revised on February 5, 2026

MG50M2YK1 Toshiba 1200V 50A Dual IGBT Module for Industrial Motor Control

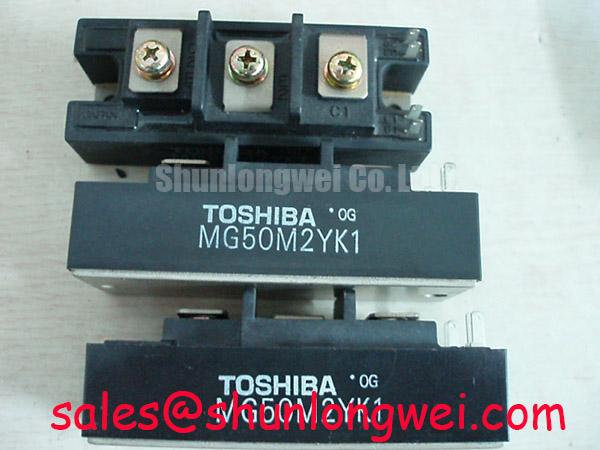

The MG50M2YK1, manufactured by Toshiba, is a high-performance N-channel IGBT module engineered for the rigorous demands of industrial power conversion. Featuring a dual-switch half-bridge configuration, it provides a 1200V collector-emitter voltage rating and a 50A continuous collector current capability. This module is specifically optimized for applications requiring high-speed switching and low saturation voltage, ensuring reduced power dissipation in variable frequency drives and uninterruptible power systems. For engineers navigating 400V AC line applications, the MG50M2YK1 offers a substantial safety margin against voltage transients, resolving common concerns regarding long-term dielectric reliability. For 400V industrial drives prioritizing voltage headroom and thermal stability, this 1200V module is the optimal choice.

Key Parameter Overview

Decoding the Specs for Enhanced Thermal Reliability

The following technical specifications define the operating boundaries of the MG50M2YK1. Accurate assessment of these values is critical for designing robust gate drive circuits and heat dissipation systems.

Download the MG50M2YK1 datasheet for detailed specifications and performance curves.

Application Scenarios & Value

Achieving System-Level Benefits in High-Frequency Power Conversion

The MG50M2YK1 excels in environments where switching efficiency and footprint are paramount. In industrial Variable Frequency Drive (VFD) units, the half-bridge topology allows for direct integration into inverter stages, reducing parasitic inductance compared to discrete components. Engineers often face the challenge of startup surge currents in induction motors; the 100A peak current rating of the MG50M2YK1 provides the necessary ruggedness to handle these momentary overloads without risking latch-up or catastrophic failure.

In Uninterruptible Power Supply (UPS) designs, the low 2.7V typical Vce(sat) minimizes conduction losses. To visualize this, consider Vce(sat) as the internal friction of a valve: the lower the friction, the less energy is wasted as heat while the fluid (current) flows. This translates to smaller heat sinks and higher overall system density. For systems requiring significantly higher current handling in the same voltage class, the related MG150Q2YS50 offers a 150A rating to support larger motor loads. Further technical insights on implementing these modules can be found in our guide on IGBT module selection.

Technical Deep Dive

A Closer Look at the Half-Bridge Structure and Switching Loss Mitigation

The MG50M2YK1 utilizes an advanced N-channel silicon structure that balances switching speed with ruggedness. The 1200V rating is achieved through a optimized drift region, which prevents electric field crowding during the "off" state. From an engineering perspective, the Switching Loss during the transition from "on" to "off" is the primary heat generator in high-frequency designs. This module's gate structure is tuned to minimize Miller capacitance, which acts like a small internal spring that resists rapid changes in voltage; a weaker "spring" allows the module to switch faster, thereby reducing the time spent in the high-dissipation active region.

Furthermore, the Isolation Voltage of 2500V AC is a critical safety parameter for IEC 61800-3 compliance. This internal insulation ensures that the high-voltage collector remains electrically isolated from the grounded heat sink, preventing hazardous chassis currents. This level of protection is vital in sensitive environments like medical imaging power stages or precision servo drives where signal integrity is non-negotiable. For a broader comparison of how these legacy designs stack up against modern alternatives, consult the analysis of IGBT vs MOSFET technologies.

FAQ

How does the 1200V rating of the MG50M2YK1 impact its suitability for 480V AC industrial networks?
In 480V AC networks, the DC bus often reaches 650V-700V. A 1200V rating provides a safety margin of approximately 500V, which is essential for absorbing the V=L(di/dt) voltage spikes generated by stray inductance during high-speed switching transitions.

What is the recommended gate drive voltage for optimal performance?
While the MG50M2YK1 has a Vge(th) up to 8.0V, we typically recommend a gate drive voltage of +15V for full turn-on to ensure the lowest Vce(sat). A negative gate bias of -5V to -10V is often used in the "off" state to prevent accidental turn-on caused by dV/dt noise in the half-bridge circuit.

Does the MG50M2YK1 require a snubber circuit in high-current applications?
Yes. Because the MG50M2YK1 switches 50A rapidly, any inductance in the DC bus bars will cause voltage overshoot. Integrating a high-frequency snubber capacitor directly across the C1 and E2 terminals is standard practice to protect the 1200V rating from being exceeded during shutdown.

For procurement inquiries or technical support regarding the MG50M2YK1 and other Toshiba power semiconductors, please contact our technical sales team for current availability and logistics options.
