NL6448BC20-08: A Robust 6.5-inch VGA Display for Long-Term Industrial Applications
Content last revised on October 5, 2025.

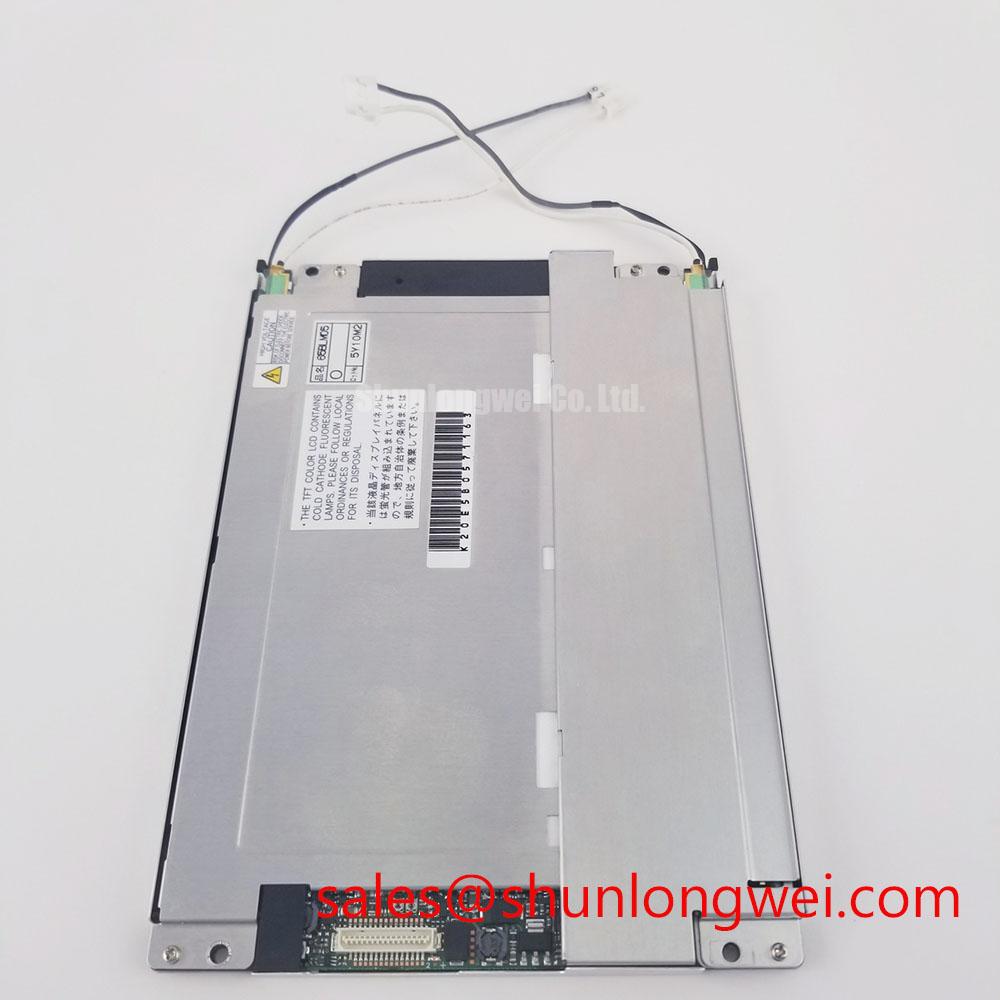

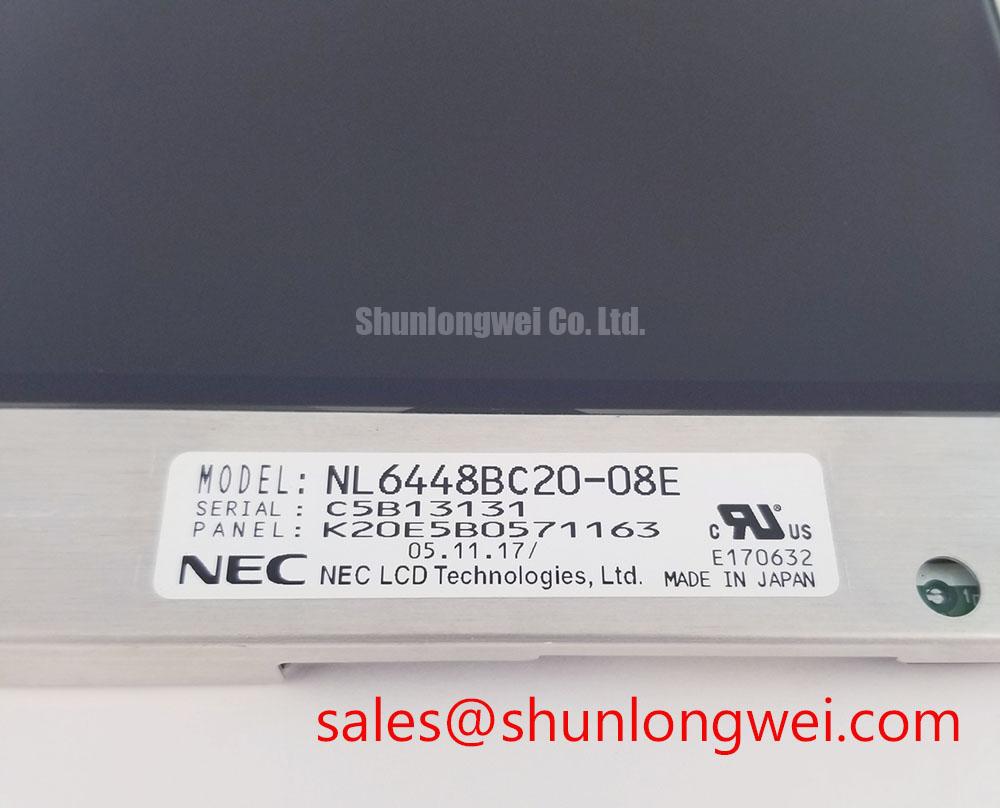

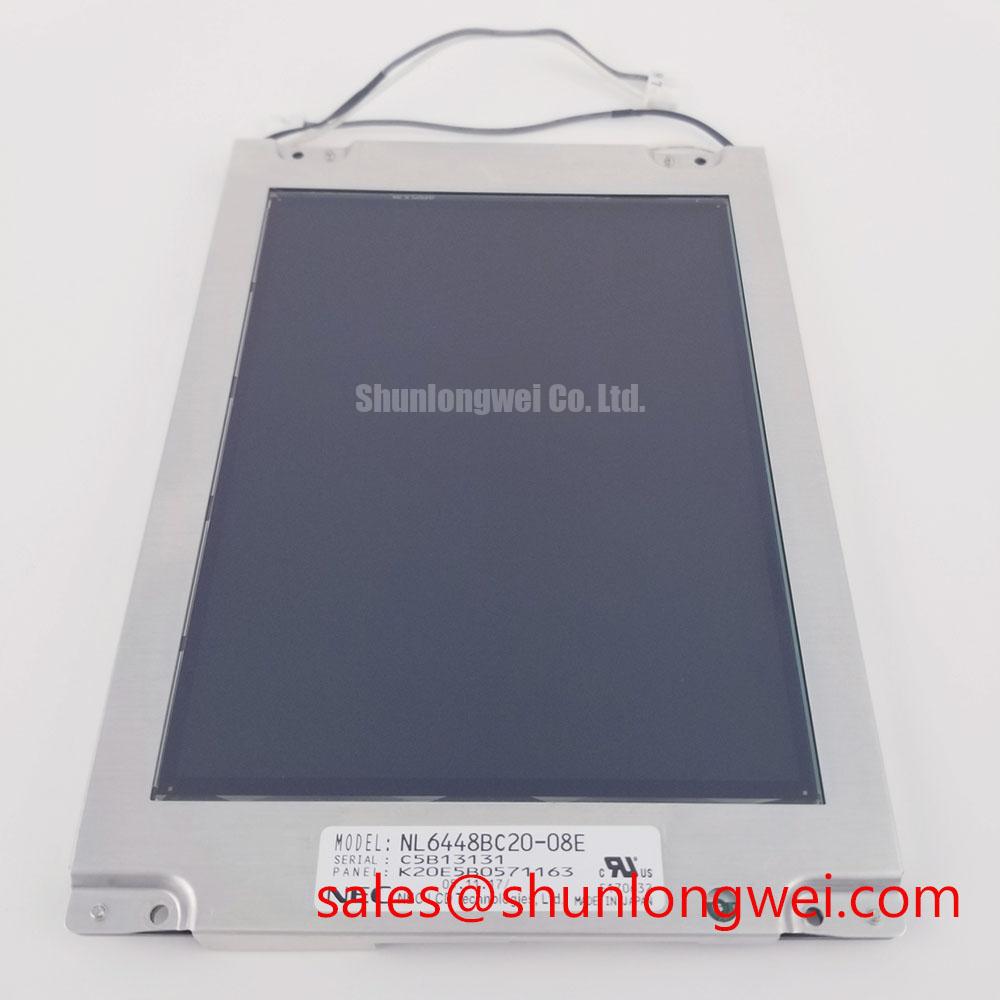

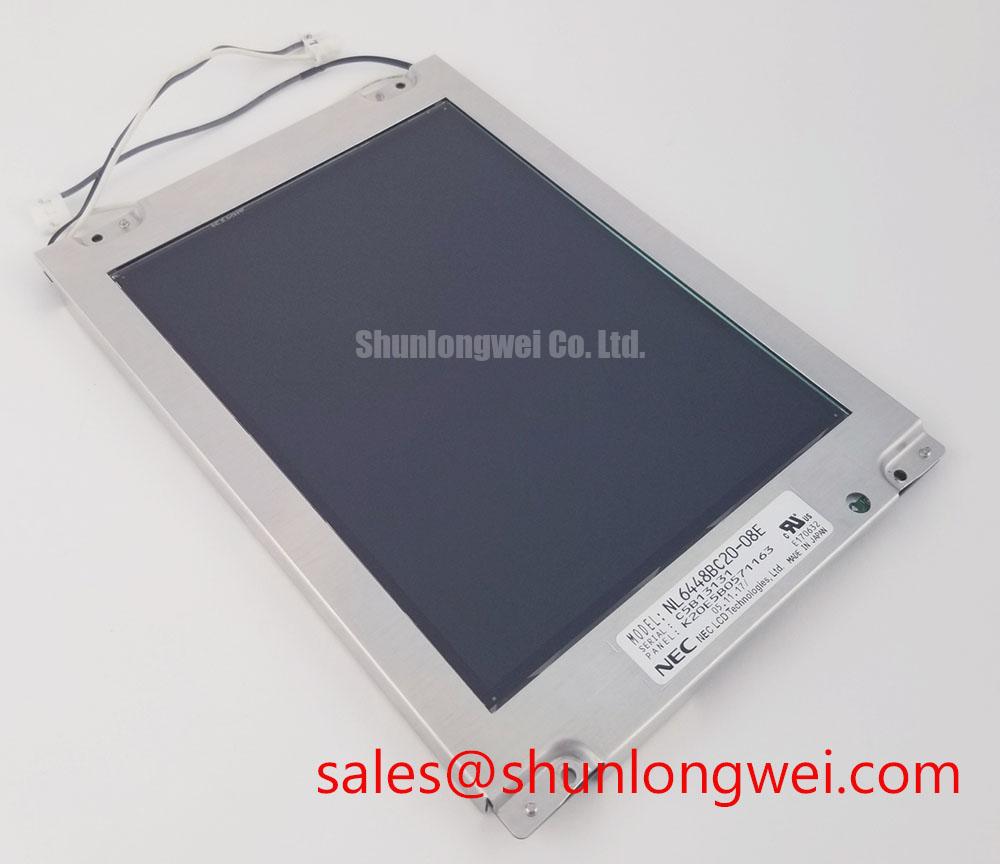

Engineered for stability and straightforward integration, the NEC NL6448BC20-08 is a 6.5-inch a-Si TFT-LCD panel delivering proven performance for industrial human-machine interfaces (HMIs) and control systems. It offers a classic 640x480 VGA resolution with a 300 cd/m² brightness and a parallel 6-bit CMOS interface, ensuring compatibility with a wide range of established system architectures. Key benefits include its durable construction with an anti-glare, hard-coated surface and a reliable CCFL backlight system. For engineers needing a direct-fit replacement or a dependable display for new designs in stable, long-lifecycle equipment, this module provides a proven and effective solution. Its standard VGA format makes it a prime candidate for upgrading legacy HMI panels without extensive software or hardware redevelopment.
Application Scenarios & Value
System-Level Benefits in Legacy Equipment Upgrades and New Designs
The NL6448BC20-08 is optimized for applications where reliability and seamless integration are paramount. Its standard 6.5-inch form factor and 640x480 VGA resolution make it an ideal drop-in replacement for aging displays in industrial control panels, test and measurement equipment, and medical monitoring devices. For system integrators, the key challenge in these upgrades is minimizing redesign efforts. The NL6448BC20-08's 6-bit parallel CMOS interface directly addresses this by providing compatibility with a vast ecosystem of existing controller boards, bypassing the need for complex interface converters. This simplifies the engineering process, reduces development costs, and accelerates time-to-market. For systems requiring a different interface or higher brightness, the related NL6448BC33-70C offers alternative specifications for consideration.
Key Parameter Overview
Functional Specifications for System Integration
The following table outlines the key operational parameters of the NL6448BC20-08, grouped by function to facilitate engineering evaluation. These specifications are critical for matching the display to the electrical and mechanical requirements of the target system.
| Feature | Specification | Engineering Value |
|---|---|---|
| Display Panel | ||
| Panel Type | a-Si TFT-LCD, TN, Normally White | Provides a cost-effective and fast-response display technology suitable for dynamic GUIs. |
| Resolution | 640(RGB)×480 [VGA] | Standard resolution ensures broad compatibility with industrial software and legacy systems. |
| Active Area | 132.48 × 99.36 mm | Defines the usable screen real estate for interface design. |
| Optical Performance | ||
| Brightness | 300 cd/m² (Typ.) | Ensures clear readability in typical indoor industrial environments. |
| Contrast Ratio | 250:1 (Typ.) | Delivers clear differentiation between text, graphics, and background elements. |
| Viewing Angle | 50/50/35/45 (L/R/U/D) (Typ., CR≥10) | Provides adequate viewing for direct operator use in fixed-mount HMI applications. |
| Display Colors | 262K (6-bit) | Sufficient color depth for standard industrial graphical interfaces. |
| Interface & Electrical | ||
| Signal Interface | CMOS (1 ch, 6-bit) | A straightforward parallel interface that simplifies integration with common microcontrollers. |
| Input Voltage (VCC) | 3.3/5.0V (Typ.) | Flexible logic voltage compatibility supports various system power rail designs. |

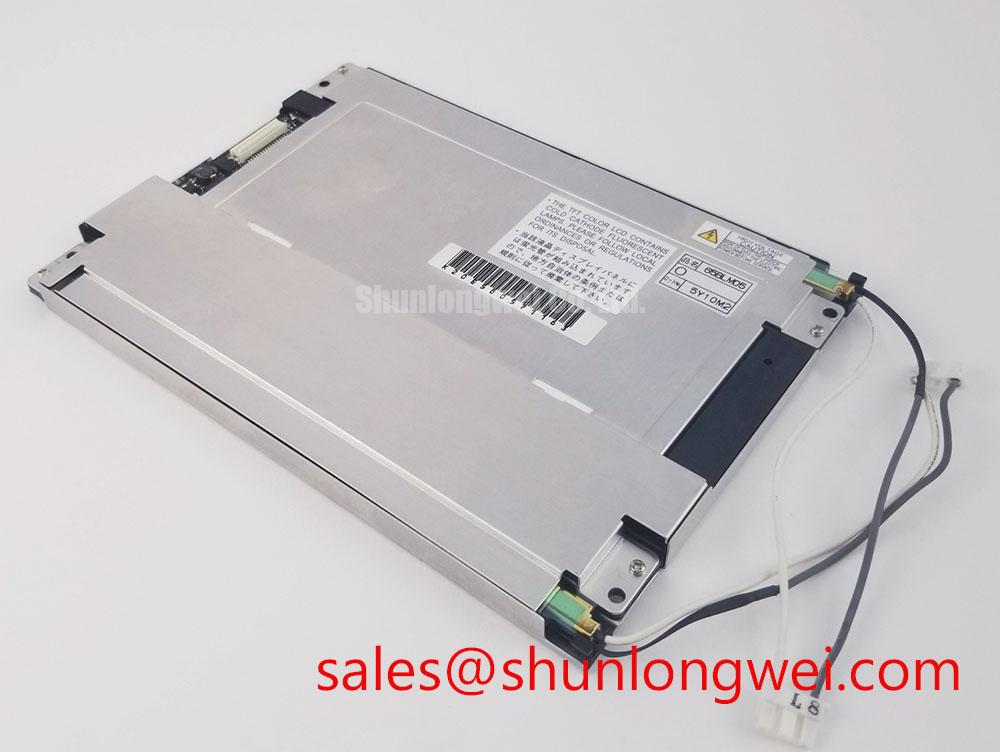

| Backlight | 2 pcs CCFL with W/O Driver | A mature and reliable lighting technology; requires an external inverter. |
| Mechanical & Environmental | ||
| Outline Dimensions | 178.8 × 126.8 × 11.0 mm | Provides the physical footprint for mechanical integration and enclosure design. |
| Operating Temperature | 0 ~ 50 °C | Suitable for controlled indoor industrial and commercial environments. |
| Surface Treatment | Antiglare, Hard coating (2H) | Reduces reflections and provides moderate scratch resistance for enhanced durability. |
Download the NL6448BC20-08 datasheet for detailed specifications and performance curves.
Technical Deep Dive
Decoding the Interface: The Value of 6-Bit Parallel CMOS

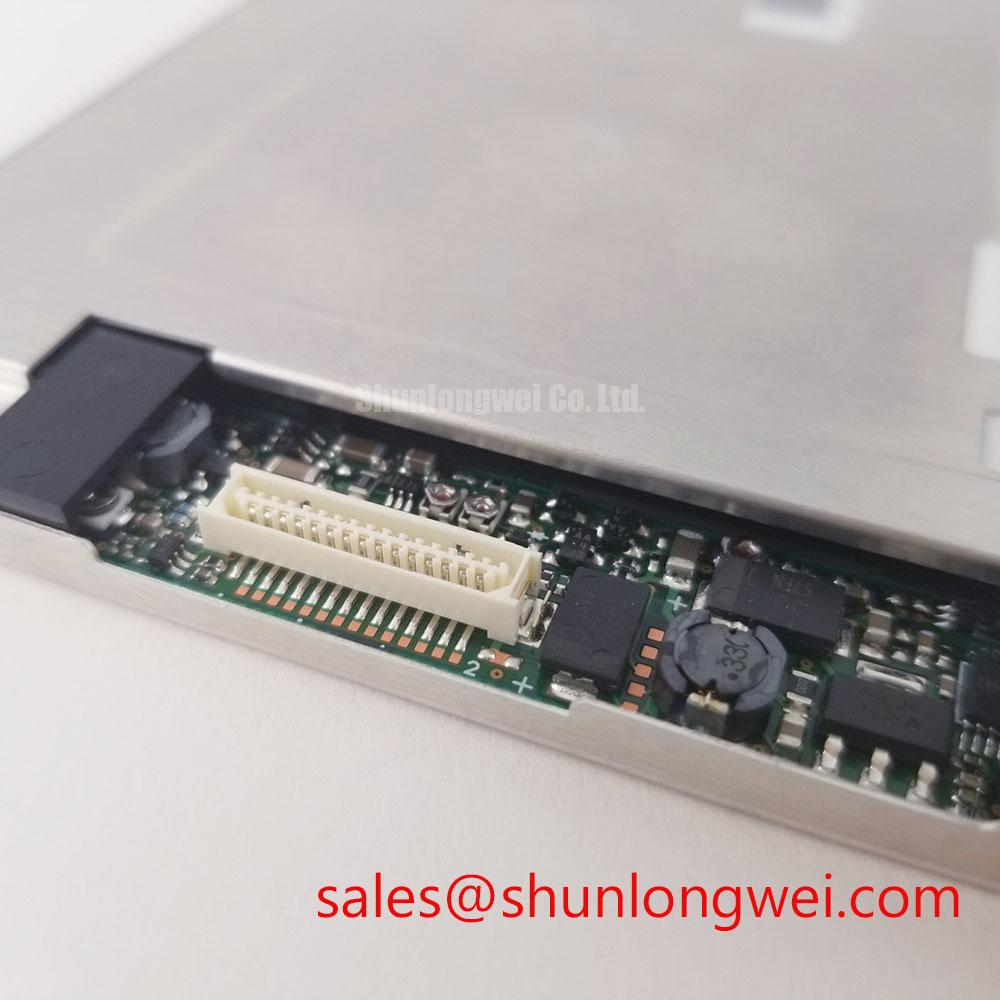

Unlike modern displays that often rely on serialized interfaces like LVDS or MIPI, the NL6448BC20-08 utilizes a 6-bit parallel CMOS/TTL signal interface. For engineers, this is a critical design consideration with significant implications. Think of it as a multi-lane highway versus a single-lane tunnel. With a parallel interface, red, green, and blue color data (6 bits for each) are sent simultaneously over dedicated lines, along with timing signals like dot clock and horizontal/vertical sync. This direct, non-serialized approach eliminates the need for complex serializer/deserializer (SerDes) chipsets. The primary engineering benefit is a greatly simplified hardware design, reduced BOM cost, and lower EMI/RFI concerns, which is a key factor in sensitive industrial HMI and medical device applications. This makes the display directly controllable from many standard FPGAs and older microcontrollers, preserving hardware investments and simplifying firmware development.
Frequently Asked Questions (FAQ)
What is the primary benefit of the standard 640x480 VGA resolution?
The 640x480 VGA resolution is a long-standing industry standard. Its main advantage is backward compatibility, allowing the NL6448BC20-08 to serve as a direct replacement for older displays in existing systems without requiring changes to the system's graphics controller, drivers, or application software. This significantly de-risks and simplifies equipment maintenance and life-cycle extension projects.
Does the CCFL backlight require an external component?
Yes, the datasheet specifies a Cold Cathode Fluorescent Lamp (CCFL) backlight system without an integrated driver. This means an external inverter is required to provide the high AC voltage necessary to power the lamps. This modular approach allows engineers to select an inverter that best fits their system's power supply and control requirements, offering flexibility in design.
For engineering teams evaluating this display, we recommend a thorough review of the official datasheet to confirm its suitability for your specific application's mechanical, electrical, and environmental demands. Access to comprehensive technical data is key to a successful integration.
