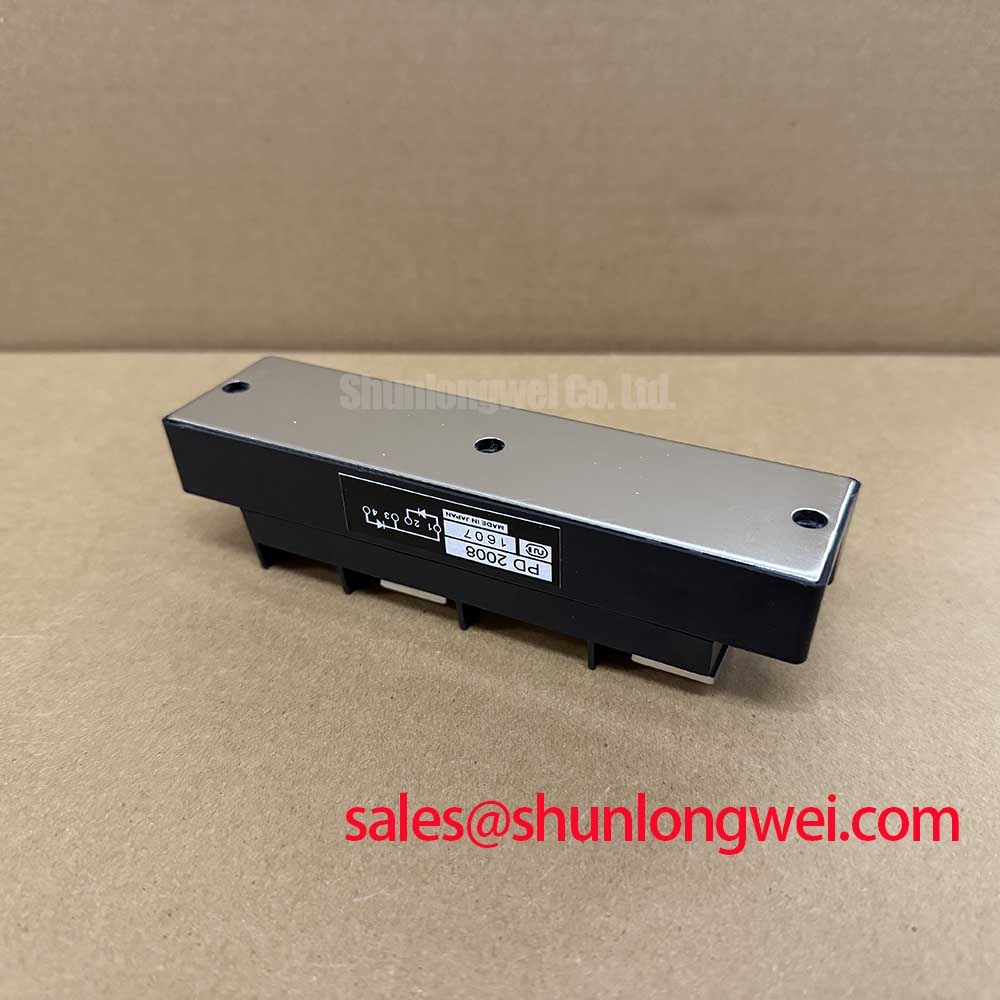

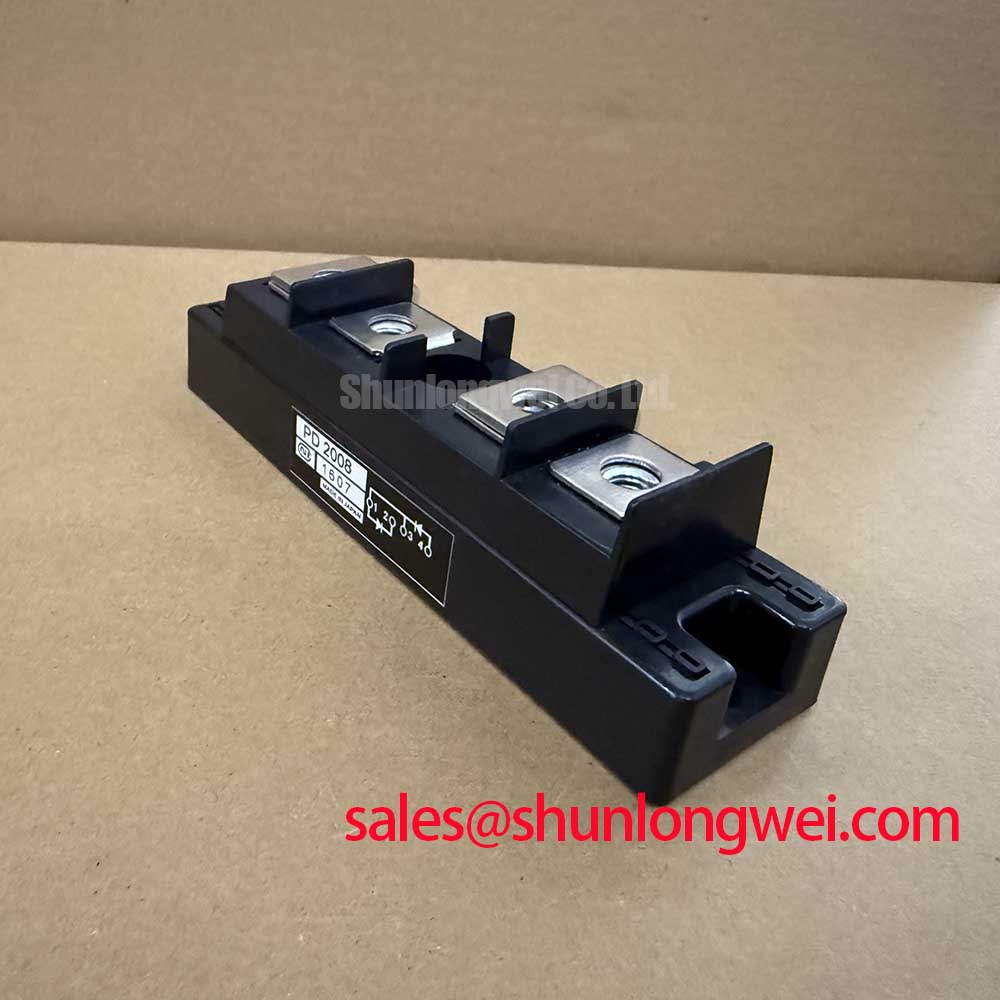

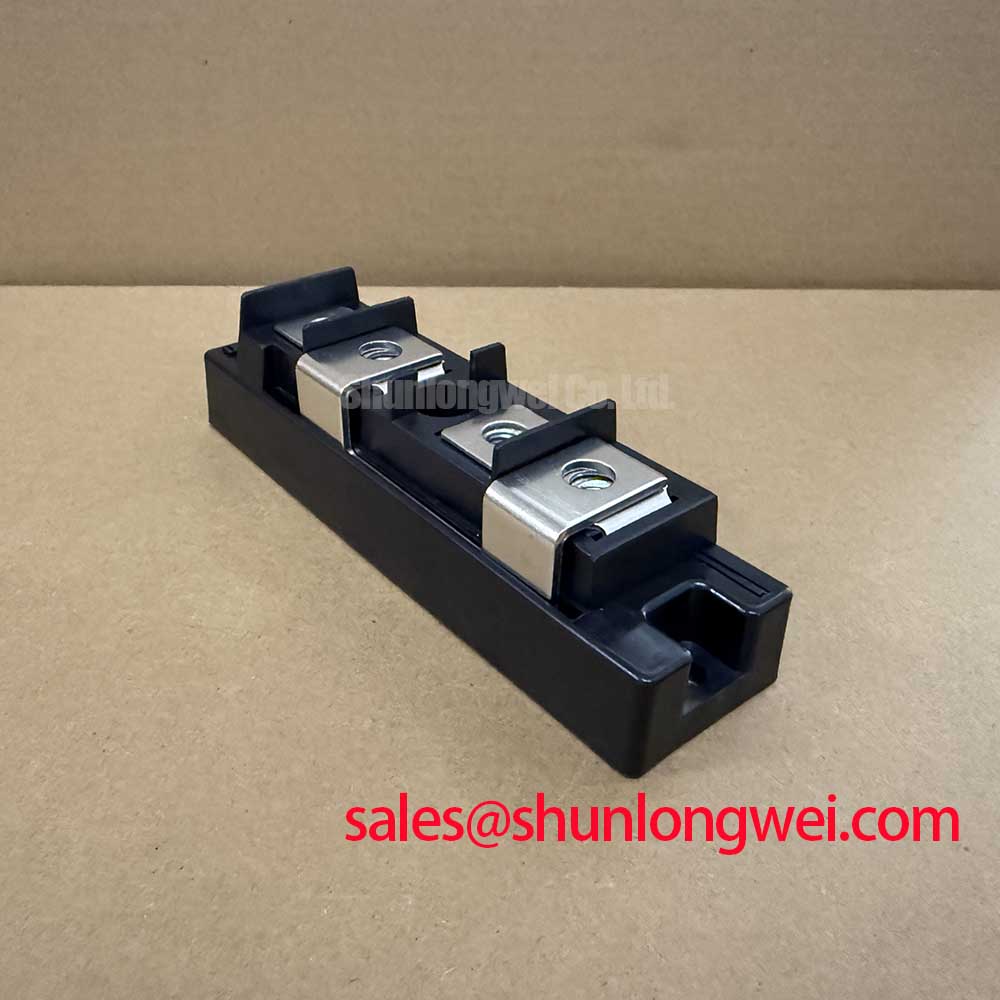

PD2008 NIEC (Kyocera) Power Diode Module | 800V 200A Dual Rectifier
The PD2008, manufactured by NIEC (now part of Kyocera), is a high-performance power diode module designed for industrial-grade rectification where thermal stability and surge robustness are non-negotiable. Featuring a dual-diode configuration in a standard isolated package, this module provides 800V of repetitive peak reverse voltage and a high average rectified output current of 200A. It is specifically engineered to minimize forward voltage drops and maximize heat transfer efficiency, making it a staple in heavy-duty DC power supplies and battery charging infrastructure.
UVP: High-current rectification for industrial power systems requiring low thermal resistance and superior peak surge handling.
- Core Specs: 800V | 200A | Rth(j-c) 0.18°C/W
- Key Benefits: Enhanced thermal fatigue resistance and simplified mechanical mounting.
- Core Question: How does the PD2008 handle startup inrush? It features a massive 1-cycle surge current rating of 4000A, ensuring reliability during inductive load transitions.
For industrial battery chargers requiring stable 200A continuous output under fluctuating thermal loads, the PD2008 serves as a reliable, thermally optimized rectification backbone.
Application Scenarios & Value
Achieving System-Level Benefits in High-Power Industrial Rectification
Engineers often face the challenge of managing significant heat generation in compact power enclosures. The PD2008 addresses this by utilizing a high-purity isolated baseplate that maintains an exceptionally low Thermal Resistance (Rth(j-c)) of 0.18°C/W. In a typical Uninterruptible Power Supply (UPS) or industrial Variable Frequency Drive (VFD) front-end, this allows for smaller heatsinks or reduced airflow requirements, directly impacting the total cost of ownership (TCO) and system footprint. For systems requiring significantly higher voltage margins, engineers might also evaluate the MDS200A1600V, which offers 1600V capability in a similar current class.
In applications like high-capacity battery chargers or Welding Power Supplies, the PD2008 handles the rectification stage with minimal power loss. The Average Rectified Output Current of 200A is supported by a robust internal bus structure that mitigates localized hotspots. By integrating this module, designers can ensure compliance with IEC 61800-3 standards for power drive systems while maintaining high electrical isolation (2500V AC for 1 minute) between the terminals and the mounting base. This safety margin is critical in Marine LCDs and offshore power systems where grounding reliability is paramount.
Technical & Design Deep Dive
A Closer Look at Thermal Management and Surge Ruggedness
The internal architecture of the PD2008 is centered around a pressure-contact design that eliminates common failure modes associated with solder fatigue in high-cycle applications. Think of the thermal interface of this module as a "superhighway" for heat; any bottleneck at the junction-to-case level would lead to immediate derating. By achieving a Maximum Junction Temperature (Tj) of 150°C, the PD2008 provides a significant safety buffer during peak load conditions.
From an engineering perspective, the Surge Forward Current (IFSM) of 4000A (at 50Hz) is perhaps the module's most critical "ruggedness" metric. When an industrial motor starts or a transformer energizes, the initial current spike can be several times the nominal rating. The PD2008 absorbs this energy without degradation. This level of durability is why choosing an integrated module is often superior to discrete alternatives; for a deeper understanding of this trade-off, see our guide on IPM vs Discrete IGBTs, which explores similar integration philosophies in power electronics.
Key Parameter Overview
Decoding the Specs for Enhanced Industrial Reliability
The following table outlines the critical technical boundaries for the PD2008 as defined by official engineering documentation.
| Critical Metric | Technical Value | Engineering Significance |
|---|---|---|
| Repetitive Peak Reverse Voltage (VRRM) | 800V | Ensures safety in 400V-480V AC line rectification. |
| Average Rectified Output Current (IO) | 200A | Continuous power handling capability at Tc=100°C. |
| Surge Forward Current (IFSM) | 4000A | Robustness against 10ms peak current pulses. |
| Maximum Forward Voltage (VF) | 1.3V | Determines conduction losses and cooling requirements. |
| Isolation Voltage (Visol) | 2500V AC | Critical for user safety and equipment protection. |
| Thermal Resistance (Rth(j-c)) | 0.18 °C/W | Defines the efficiency of heat transfer to the sink. |
Download the PD2008 datasheet for detailed specifications and performance curves.
Frequently Asked Questions
What is the primary benefit of the PD2008's low thermal resistance?
The Rth(j-c) of 0.18°C/W directly impacts the required heatsink size. By minimizing the temperature gradient between the semiconductor junction and the module case, engineers can operate at higher current densities without exceeding the 150°C junction temperature limit, effectively increasing system power density.
Can the PD2008 be used for 690V AC line rectification?
No. With a VRRM of 800V, the PD2008 is optimized for 200V-480V AC systems. For 690V lines, where peak voltages can exceed 1000V, a module with a VRRM of at least 1600V, such as the SKKD162/16, should be considered to ensure adequate safety margins.
How does the IFSM rating affect fuse selection?
The 4000A surge rating (IFSM) must be correlated with the $I^2t$ value of the protective fuse. To protect the PD2008 from catastrophic failure during a short circuit, the clearing $I^2t$ of the semiconductor fuse must be lower than the rated $I^2t$ of the diode module.
Is the isolation baseplate compatible with standard mounting?
Yes, the PD2008 features a standard industrial footprint with isolated mounting holes. This allows multiple modules to be mounted on a single common heatsink without the need for additional insulating pads, which further optimizes the Thermal Management of the overall power stack.
Strategically, the PD2008 represents a mature, highly reliable solution for the global transition toward high-efficiency industrial automation and energy storage. As power systems move toward higher integration, the role of robust rectification modules remains central to ensuring the longevity of DC-link architectures in the era of Industry 4.0.
