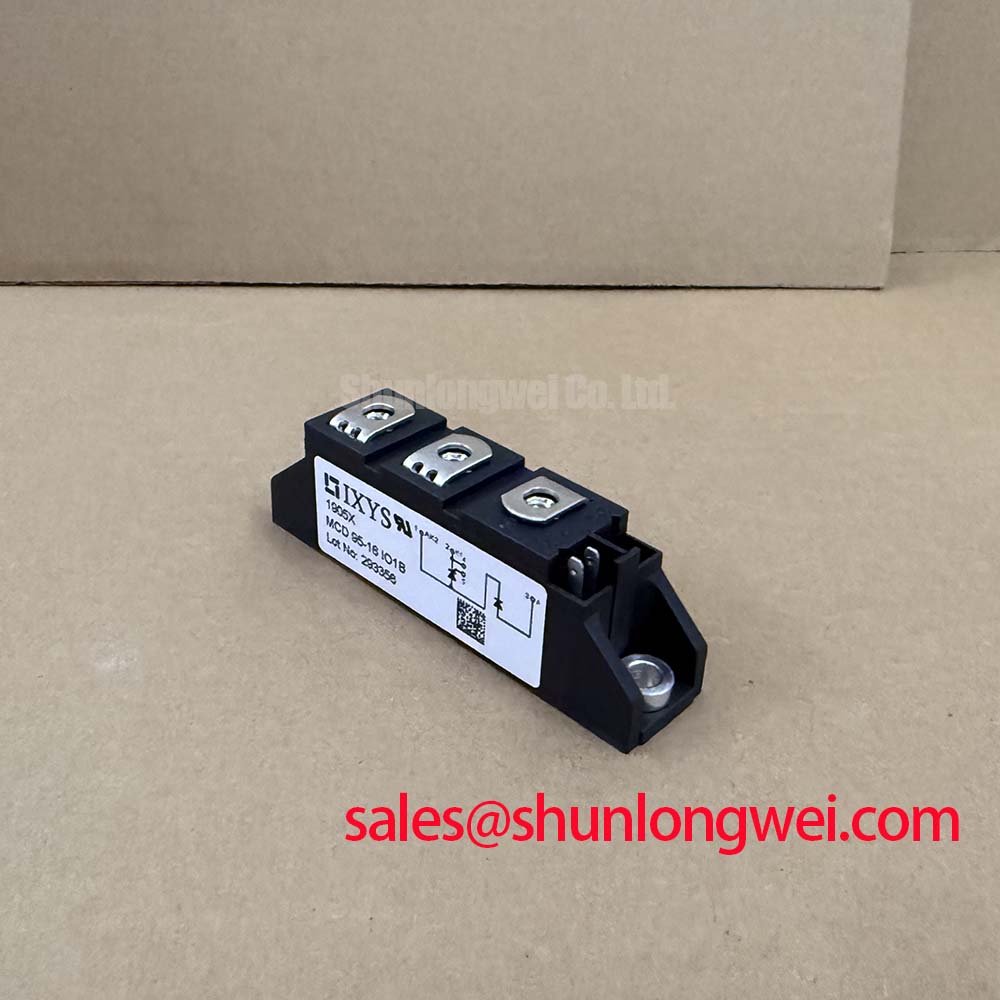

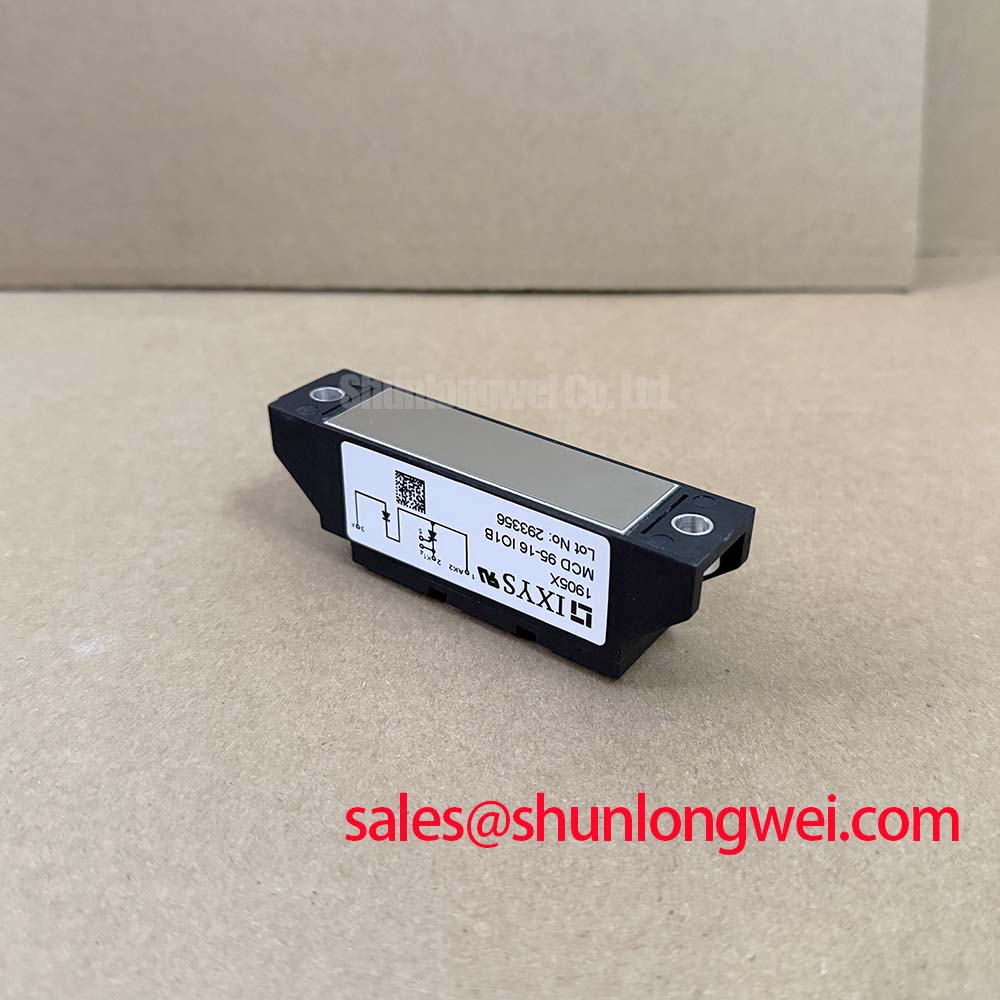

MCD95-16IO1B IXYS 1600V 116A Thyristor/Diode Module for High-Efficiency Industrial Power Control
The MCD95-16IO1B, a high-performance Thyristor/Diode Module from IXYS (a Littelfuse brand), is designed for robust phase-leg control in industrial power conversion systems where long-term thermal reliability and transient voltage immunity are non-negotiable. Featuring a 1600V repetitive peak reverse voltage and a 116A average forward current (at Tc=85°C), this module provides the necessary overhead for 480V and 600V line applications, effectively answering the engineering challenge of designing reliable systems for fluctuating power grids.
Top Specs: 1600V | 116A | Rth(j-c) 0.22 K/W
Key Benefits: Superior thermal cycling via planar passivated chips; 3600V isolation voltage for safety.
For engineers asking if this module can handle high-surge inductive loads, the MCD95-16IO1B offers a surge current rating (ITSM) of 2250A, making it a stable choice for motor starters and heavy-duty rectifiers. For 690V industrial drives requiring higher current handling and thermal margins, the related MCC200-16IO1 offers an alternative power profile.
Application Scenarios & Value
Achieving System-Level Reliability in Industrial Motor Drives and Power Supplies
Engineers often face the difficulty of managing thermal stress during frequent start-stop cycles in high-power applications. The MCD95-16IO1B addresses this by utilizing an Al2O3 ceramic substrate, which significantly improves Thermal Management. In a typical Soft Starter or DC motor drive, the I²t value of 25,400 A²s ensures that the semiconductor can survive short-duration overloads while the circuit protection (such as high-speed fuses) clears. This high energy-handling capability is critical in preventing catastrophic failure during motor stalling or grid faults.
In UPS systems and battery charging infrastructure, the module’s low forward voltage drop (Vf) reduces conductive losses, which directly translates to lower cooling requirements. For systems designed for extreme environments, understanding thermal resistance is vital. Engineers should review why Rth matters in power performance to optimize their heatsink designs. For applications requiring a simpler diode-only configuration at a similar current level, the MDD95-12N1B provides a 1200V dual diode alternative.
Technical Deep Dive
Planar Passivation and TO-240AA Mechanical Robustness
The core advantage of the MCD95-16IO1B lies in its chip architecture. IXYS employs planar passivated chips, a technology that creates a highly stable surface for the semiconductor junction. This minimizes leakage current even at high junction temperatures (up to 125°C) and prevents voltage breakdown over time. This is particularly important for Phase Control applications where the thyristor must maintain its blocking state under high dv/dt stress.

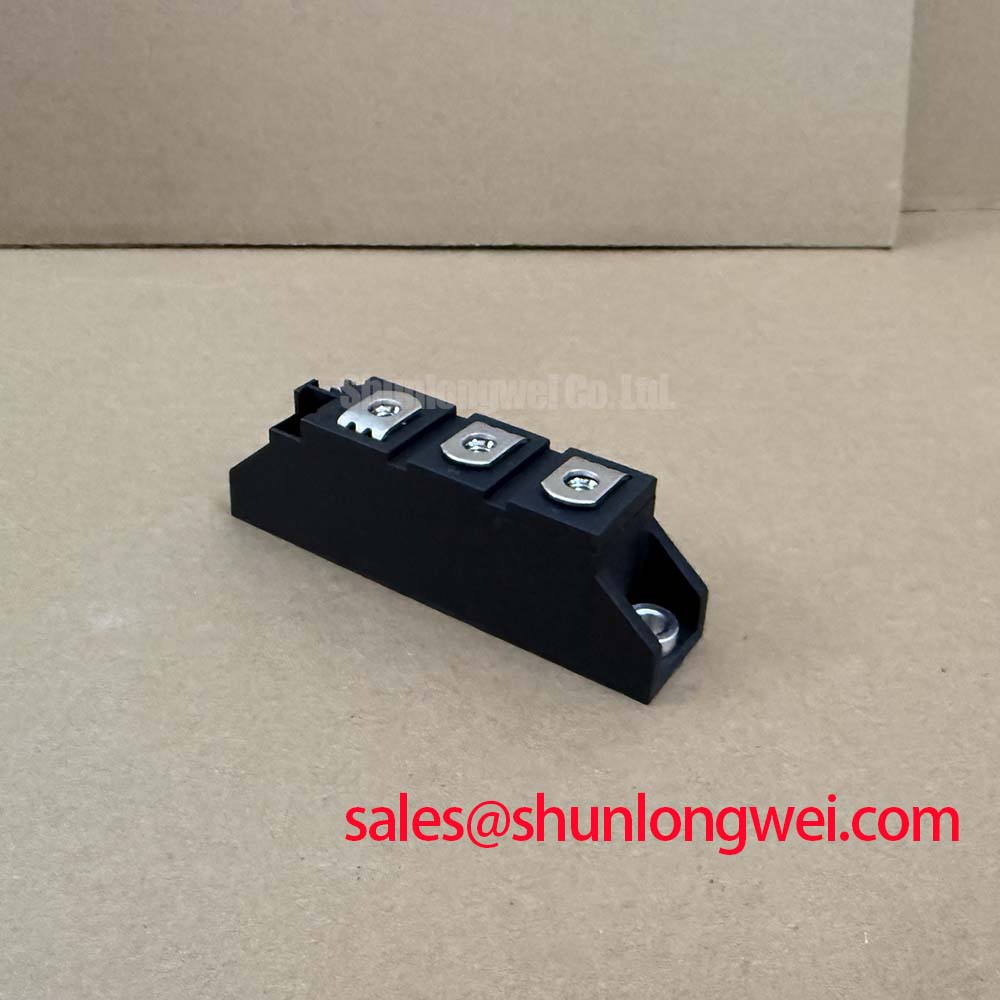

The mechanical design follows the industry-standard TO-240AA (Y4-M6) footprint, which is widely recognized for its vibration resistance and ease of installation. The 3600V~ isolation voltage ensures that multiple modules can be mounted on a single common heatsink without the risk of ground loops or flashovers, a critical requirement for IEC 61800-3 compliance in variable speed drives. For a deeper understanding of how these voltage-controlled devices function at a fundamental level, engineers may refer to this deep dive into switching principles.
Key Parameter Overview
Decoding the Specs for Enhanced Industrial Reliability
| Voltage & Current Ratings | |
|---|---|
| Repetitive Peak Reverse/Off-state Voltage (VRRM/VDRM) | 1600V |
| Average On-state Current (IT(AV)) at Tc = 85°C | 116A |
| Non-repetitive Surge Peak Current (ITSM) (10ms, 45°C) | 2250A |
| Thermal & Mechanical Characteristics | |
| Isolation Voltage (VISOL) (50/60 Hz, RMS, 1 min) | 3600V |
| Maximum Junction Temperature (Tvj) | 125°C |
| Thermal Resistance, Junction to Case (Rthjc) | 0.22 K/W |
| Package Style | TO-240AA |
Download the MCD95-16IO1B datasheet for detailed specifications and performance curves.
FAQ
How does the ITSM rating of 2250A impact high-speed fuse selection for the MCD95-16IO1B?
The 2250A surge rating and the corresponding I²t of 25,400 A²s define the maximum energy the thyristor can absorb before damage. When selecting a protection fuse, the fuse's melting I²t must be lower than the semiconductor’s I²t to ensure the fuse blows before the thyristor is compromised, protecting the rest of the power control circuit.
What is the primary benefit of the 3600V isolation rating in 480V industrial cabinets?
In 480V systems, transient spikes can often exceed 1000V. The 3600V isolation voltage provides a safety factor of more than 7x the nominal line voltage, ensuring that the MCD95-16IO1B remains electrically isolated from the grounded chassis, thereby enhancing operator safety and reducing electromagnetic interference (EMI) issues in sensitive control electronics.
