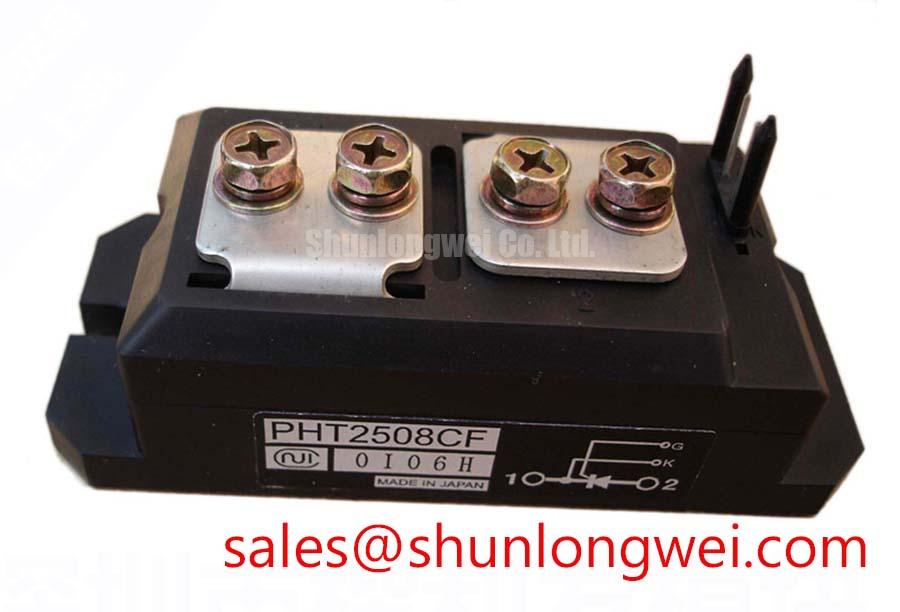

PHT2508CF: High-Reliability 800V Thyristor Module for Industrial Power Control
The PHT2508CF is an 800V, 250A single thyristor module engineered for robust performance in demanding industrial power conversion systems. With a focus on thermal management and high surge capability, this module provides a dependable solution for rectification and power control applications.
Key Parameter Overview
Decoding the Specs for System Reliability
The PHT2508CF's specifications are tailored for high-current industrial environments. Understanding these parameters is key to leveraging its full potential in system design.
| Absolute Maximum Ratings (Tj=25°C unless otherwise specified) | |
|---|---|
| Parameter | Value |
| Repetitive Peak Off-State Voltage (VDRM) | 800V |
| Repetitive Peak Reverse Voltage (VRRM) | 800V |
| Average Rectified Output Current (IO(AV)) @ Tc=65°C | 250A |
| RMS On-State Current (IT(RMS)) | 390A |
| Surge On-State Current (ITSM) | 4000A |
| I²t for fusing (2msec to 10msec) | 80000 A²s |
| Isolation Voltage (Viso) | 2000V |
| Operating Junction Temperature (Tjw) | -40°C to +125°C |
Application Scenarios & Value
Engineered for High-Current Rectification and Control
The PHT2508CF is an optimal choice for the input stages of high-power equipment where reliability is paramount. Its primary value lies in its ability to handle significant current and withstand electrical stresses typical in industrial settings. For systems requiring higher current handling, the related PHT3008CF offers an increased current rating within a comparable footprint.
A key engineering challenge in applications like industrial motor soft starters or heater controls is managing inrush currents and ensuring long-term operational stability. The PHT2508CF directly addresses this with an exceptional surge current rating (ITSM) of 4000A and a high I²t value of 80000 A²s. This high thermal capacity is like having a robust safety buffer, allowing the module to absorb large, short-duration energy pulses without degradation. This ensures reliable startup sequences and protection against line disturbances, which are common in factory environments. The module's 2000V isolation voltage further enhances system safety by providing a reliable barrier between the power circuit and the grounded heatsink, a critical requirement in many industrial control cabinets.
Technical Deep Dive
A Closer Look at the Isolated Base Design for Long-Term Reliability
At the core of the PHT2508CF's design is its electrically isolated baseplate. This construction simplifies thermal management by allowing the module to be mounted directly to a common, grounded heatsink without the need for additional, often thermally inefficient, insulating layers. This direct mounting path minimizes thermal resistance, ensuring that heat generated during high-current operation is evacuated effectively. For a design engineer, this translates into a more compact and cost-effective thermal solution and a lower operating junction temperature, which is a cornerstone of long-term reliability in power electronics. The robust mechanical design, utilizing M5 screw terminals, ensures secure and reliable connections, resistant to vibration and thermal cycling.
Frequently Asked Questions (FAQ)
What is the primary benefit of the PHT2508CF's 4000A surge current rating?
Its high surge capability ensures survival and reliability during high-stress events such as motor startups or fault conditions, preventing catastrophic failure and enhancing the overall ruggedness of the end application.
How does the 2000V isolation voltage impact system design?
The Viso rating of 2000V simplifies the mechanical and thermal design process. It allows for direct mounting to a grounded chassis or heatsink, improving heat dissipation and eliminating the need for bulky and costly external insulation materials, which is crucial for building compact and safe power assemblies.
