PDT308 Datasheet, Specs & Applications | 800V 30A Thyristor/Diode Module
An Integrated Front-End Solution for Compact AC Drives

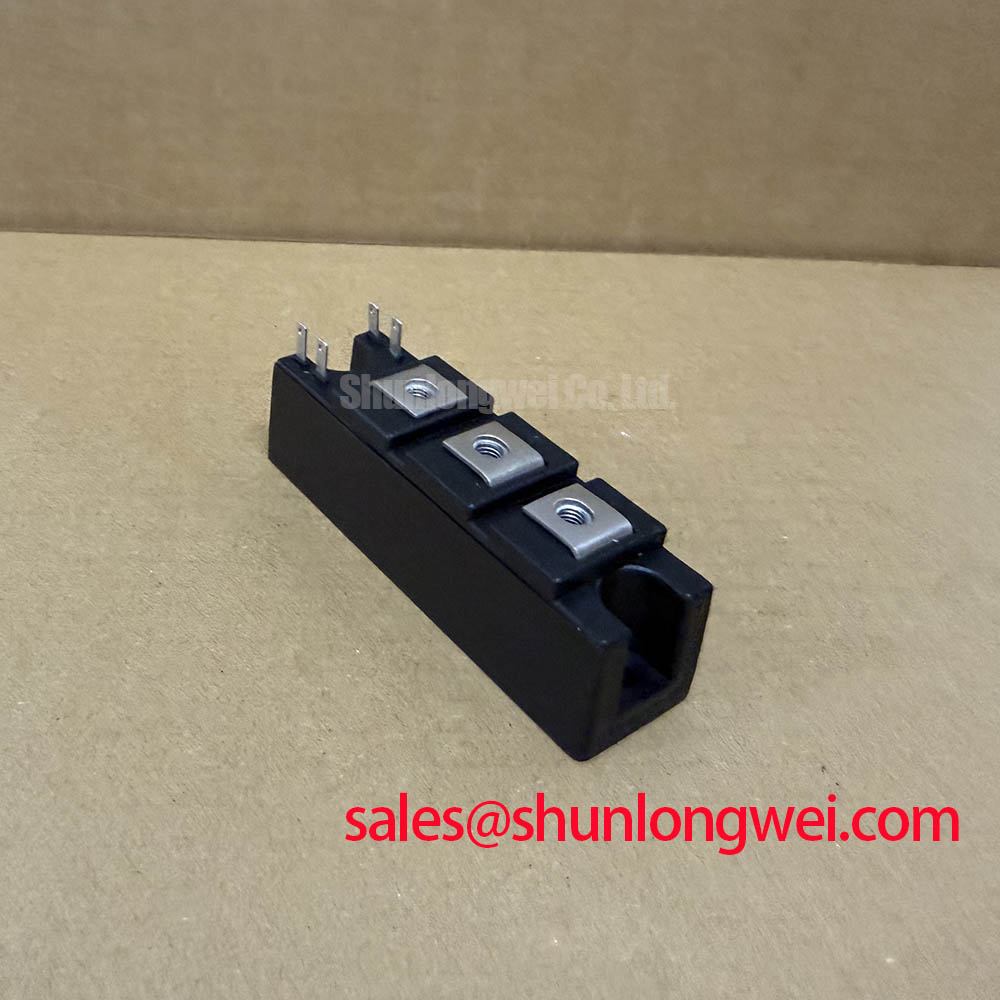

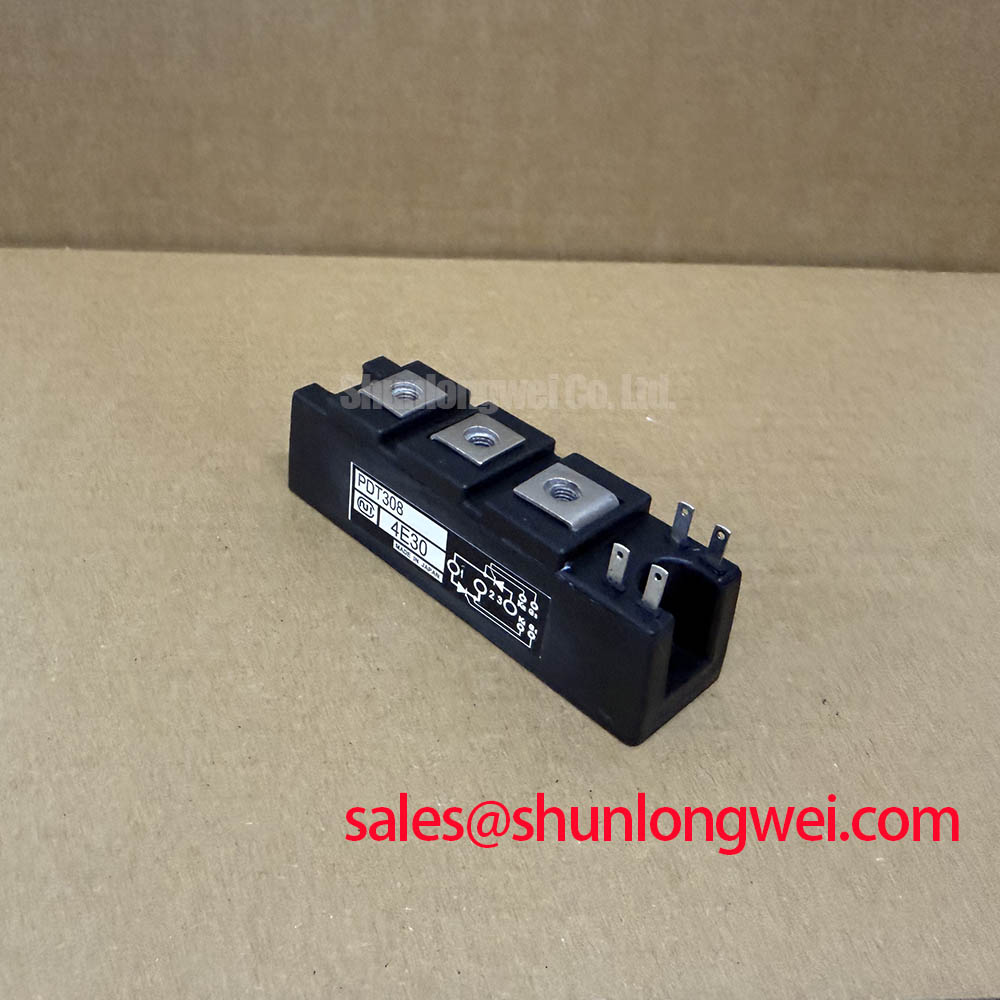

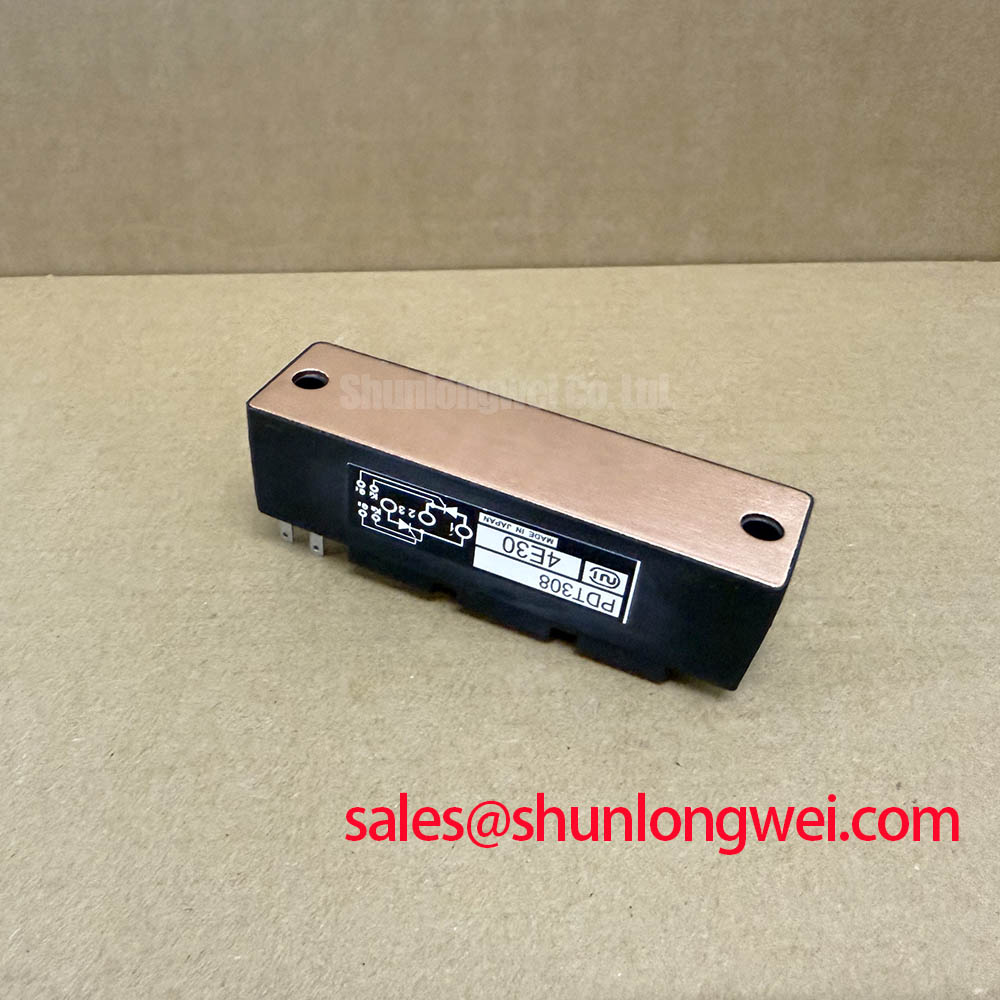

The PDT308 is a highly integrated power module combining an 800V three-phase rectifier and a control thyristor, engineered for reliable AC motor drive front-ends. With key specifications of 800V | 30A | 2500V Isolation, this module delivers two primary engineering benefits: simplified circuit design and enhanced system reliability. It provides a robust, single-component solution for power rectification and DC bus management in industrial systems operating on 200/240V AC lines. For compact AC motor drives up to approximately 5 kW that require an integrated rectification and a simple braking chopper circuit, the PDT308 presents an optimized and efficient solution.
Key Parameter Overview
Decoding the Specs for System-Level Reliability
The technical specifications of the PDT308 are organized below by functional block. These ratings are critical for ensuring reliable operation within the device's safe operating area and for accurate thermal design. All values are specified at a case temperature (Tc) of 25°C unless otherwise noted.
| Parameter | Symbol | Conditions | Value | Unit |
|---|---|---|---|---|
| Absolute Maximum Ratings - Diode Section | ||||
| Repetitive Peak Reverse Voltage | VRRM | 800 | V | |
| DC Output Current | ID | Tc = 85°C, Three-phase full wave | 30 | A |
| Surge Forward Current | IFSM | 50Hz half-sine wave, 1 cycle, non-repetitive | 300 | A |
| I²t Limiting Value | I²t | 1ms ≤ t ≤ 10ms | 450 | A²s |
| Absolute Maximum Ratings - Thyristor Section | ||||
| Repetitive Peak Off-State Voltage | VDRM | 800 | V | |
| RMS On-State Current | IT(RMS) | 30 | A | |
| Surge On-State Current | ITSM | 50Hz half-sine wave, 1 cycle, non-repetitive | 300 | A |
| I²t Limiting Value | I²t | 1ms ≤ t ≤ 10ms | 450 | A²s |
| Thermal and Mechanical Specifications | ||||
| Operating Junction Temperature | Tj | -40 to +125 | °C | |
| Storage Temperature | Tstg | -40 to +125 | °C | |
| Isolation Voltage | Visol | AC, 1 minute | 2500 | V |
| Mounting Torque | - | M5 screws | 2.5 - 3.5 | N·m |
Download the PDT308 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Achieving System-Level Benefits in Motor Control and Power Conversion
The PDT308 is engineered to streamline the power stage in a range of industrial applications. Its primary value lies in its functional integration, which directly translates to reduced assembly complexity, smaller footprint, and improved reliability over discrete solutions. What is the primary benefit of this integrated design? A significant reduction in component count and simplified thermal management.
- Compact AC Motor Drives: In applications like conveyor systems, pumps, and fans, the PDT308 serves as the ideal front-end. It handles the AC-to-DC rectification, while the integrated thyristor can be used to control a dynamic braking resistor, safely dissipating regenerative energy during motor deceleration. This prevents DC bus overvoltage faults in the Variable Frequency Drive (VFD).
- Small Servo Drives: For robotic and CNC applications, where space is at a premium and reliability is paramount, this module provides a compact power input stage. The 2500V isolation ensures safe operation and simplifies compliance with industrial safety standards.
- General Purpose Power Supplies: The module can be used as a controlled rectifier in battery chargers or DC power supplies where a simple method of regulating the DC bus is required.
This module is optimized for systems built around 200V-class AC lines. For systems requiring operation on 400V/480V lines or handling significantly higher power levels, a component with a higher voltage rating such as the PM75CL1A120 would be a more suitable selection for the power stage.
Frequently Asked Questions (FAQ)
What is the purpose of the integrated thyristor in the PDT308?
The thyristor is typically used as a switch in a dynamic braking circuit. When a motor decelerates, it acts as a generator, sending energy back to the drive's DC bus. The thyristor, when triggered, connects an external high-power resistor across the DC bus to dissipate this excess energy as heat, preventing a potentially damaging overvoltage condition.
How does the 2500V isolation voltage (Visol) benefit my system design?
The 2500V isolation simplifies mechanical design and enhances safety. It creates a robust dielectric barrier between the high-voltage power circuit and the module's baseplate, which is typically mounted to a grounded chassis or heatsink. This helps designers meet safety agency requirements (like UL and CE) and prevents ground loop issues, contributing to overall system reliability.
Is the 800V VRRM sufficient for a 240V three-phase AC input?
Yes, it is generally sufficient and provides a solid safety margin. A 240V AC line has a peak voltage of approximately 340V (240V * √2). The 800V rating of the PDT308 provides more than double this nominal peak voltage, offering robust protection against common line voltage swells and transients found in industrial environments, which is a key aspect of unlocking IGBT thermal performance and long-term reliability.
For further inquiries about the PDT308 or to discuss your specific application needs, please contact our technical support team for detailed guidance and component information.
