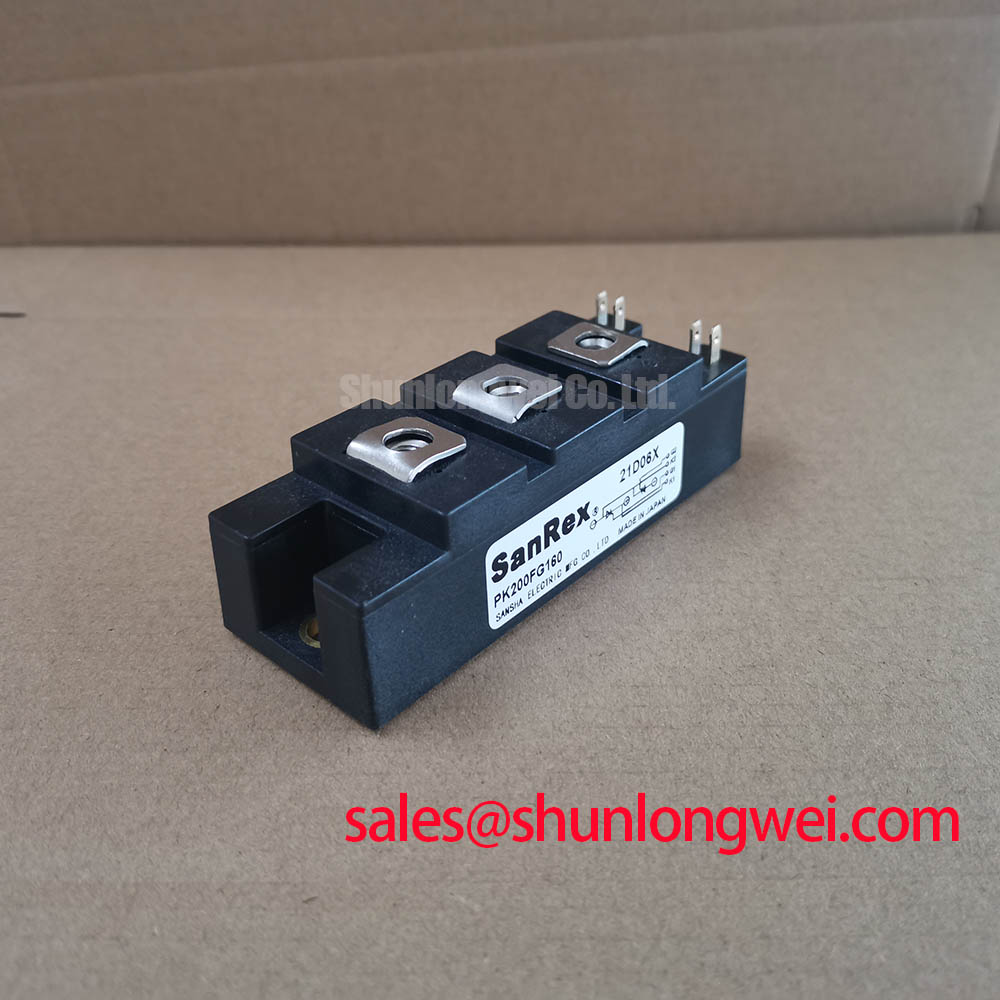

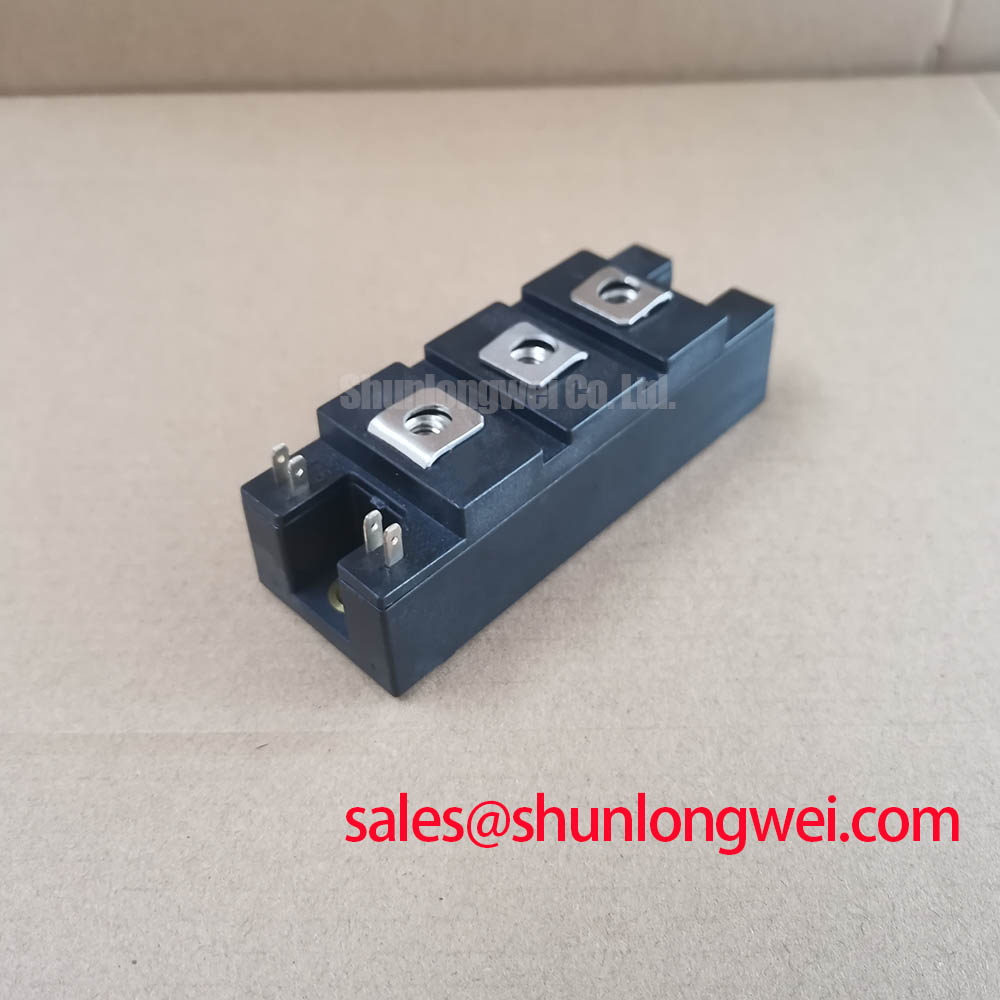

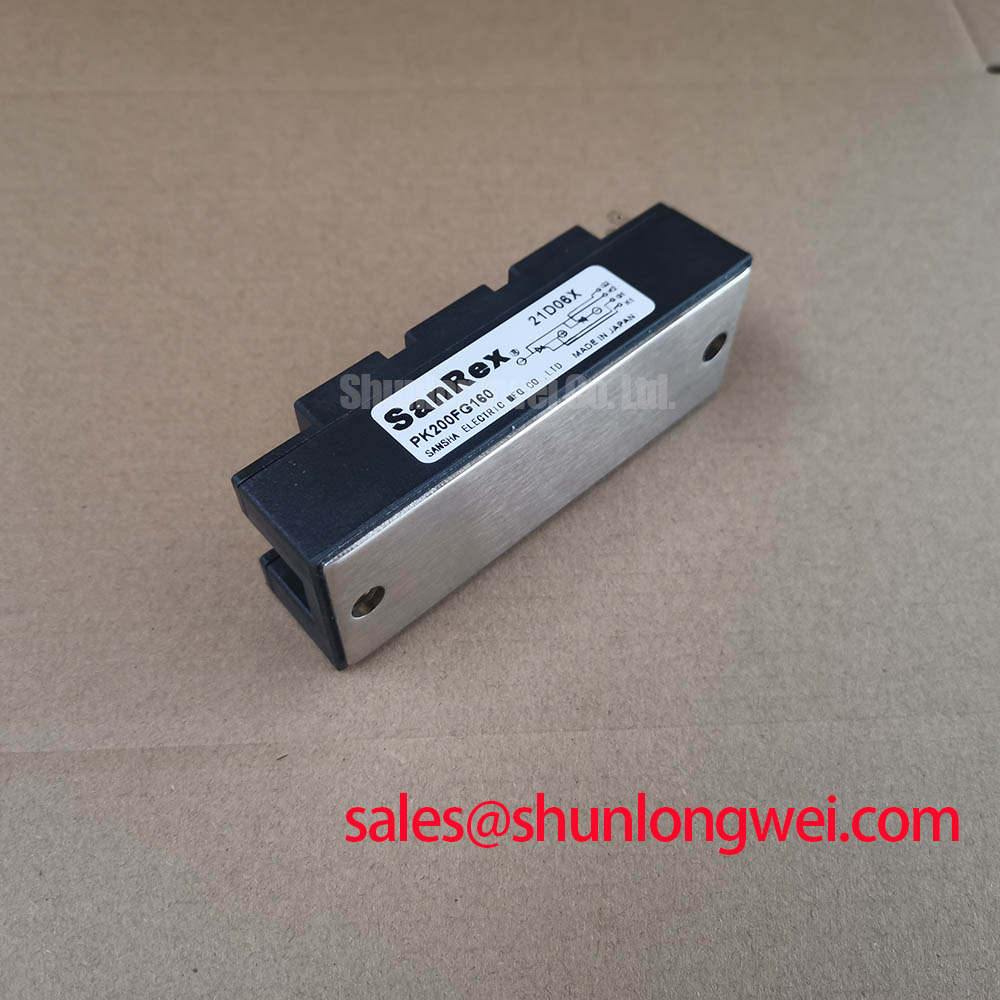

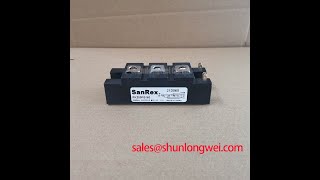

Sanrex PK200FG160 Thyristor Module: Engineering Analysis for High-Power AC Control
An In-Depth Review of the 1600V, 200A Phase Control SCR Module
Content last revised on October 8, 2025.
The Sanrex PK200FG160 is a high-reliability thyristor module engineered for precise, high-current AC power control, delivering exceptional voltage stability through its glass-passivated chip design. This module integrates two series-connected Silicon Controlled Rectifiers (SCRs), providing a robust building block for demanding industrial applications. With core specifications of 1600V | 200A | V(TM) 1.65V, it combines high power handling with operational longevity. Its key engineering benefits include superior voltage blocking reliability and simplified thermal system integration. This component directly addresses the need for dependable power regulation in harsh industrial environments. For 480V to 690V AC line applications requiring robust 200A phase control, the PK200FG160 offers a superior reliability margin.
Application Scenarios & Value
System-Level Benefits in Industrial Power Regulation
The PK200FG160 is engineered for core roles in high-power AC control systems where reliability is non-negotiable. Its primary value is demonstrated in applications like industrial motor soft starters, where it precisely manages inrush current to reduce mechanical stress on machinery and electrical stress on the power grid. The module's 1600V repetitive peak off-state voltage (VDRM) provides a crucial safety margin for systems operating on volatile 480V and 690V industrial lines, mitigating the risk of failure from line transients.
A high-fidelity engineering scenario involves its use in large-scale industrial heating control systems. In such a setup, the challenge is to deliver precisely modulated power to resistive heating elements without causing flicker or grid disturbances. The PK200FG160's 200A average on-state current rating allows it to handle substantial loads, while its glass-passivated chip construction ensures stable performance over millions of cycles. This stability prevents thermal runaway and maintains consistent process temperatures, which is critical for manufacturing quality. Unlike lower-rated modules, its robust thermal design minimizes derating requirements, simplifying heatsink selection and enclosure design. For applications demanding higher current, the related CM600DX-24T provides a different technology set for higher power ranges.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
The technical specifications of the PK200FG160 are tailored for robust performance in industrial power electronics. The parameters below highlight its capacity for reliable, long-term operation under demanding thermal and electrical conditions. Understanding these values is key to optimizing system design for both efficiency and durability.
| Parameter | Value | Engineering Implication |
|---|---|---|
| Repetitive Peak Reverse Voltage (V_RRM) | 1600V | Provides a high safety margin for direct use in 480V and 690V AC systems, enhancing resilience against voltage spikes. |
| Average On-State Current (I_T(AV)) | 200A | Enables control of high-power loads, suitable for large motors, industrial heaters, and welding applications. |
| Thermal Resistance, Junction to Case (R_th(j-c)) | 0.1 K/W | Indicates efficient heat transfer from the semiconductor junction to the module case, simplifying thermal management and allowing for higher power density. |
| Peak On-State Voltage (V_TM) | 1.65V (max) | A lower on-state voltage translates directly to reduced conduction losses, improving overall system efficiency and reducing waste heat. |
| Isolation Voltage (V_isol) | 2500V | The integrated isolated baseplate simplifies mounting onto a common heatsink, enhancing safety and reducing assembly complexity. |
Download the PK200FG160 datasheet for detailed specifications and performance curves.
Frequently Asked Questions (FAQ)
What is the primary benefit of the glass-passivated chip technology in the PK200FG160?
Glass passivation creates a highly stable and hermetic seal on the thyristor chip's junction. This process significantly reduces surface leakage currents and protects the junction from ambient contaminants over the device's lifetime. For a system designer, this translates to more predictable high-voltage blocking performance and enhanced long-term reliability, especially in environments with fluctuating temperatures and humidity.
How does the 1600V rating benefit a design for a 480V AC motor soft starter?
While a 480V AC line has a peak voltage of around 679V, industrial power lines are prone to significant voltage transients and spikes caused by switching of other large loads. The 1600V rating provides a safety factor of over 2.3x. This robust margin ensures the PK200FG160 can withstand these common overvoltage events without degradation or failure, a critical requirement for building a resilient Motor Soft Starter.
What does the Thermal Resistance (Rth(j-c)) of 0.1 K/W mean for thermal design?
The Rth(j-c) value quantifies how effectively heat moves from the active semiconductor chip to the module's baseplate. A low value like 0.1 K/W (or 0.1°C/W) is excellent. It means that for every 100 watts of heat generated by losses, the chip temperature will only rise 10°C above the baseplate temperature. This high efficiency simplifies heatsink selection, potentially allowing for a smaller, less costly thermal solution to maintain the junction temperature within its safe operating limits.
Can the PK200FG160 be used as a simple AC switch?
Yes. The module contains two SCRs connected in an anti-series or common cathode configuration. By applying the appropriate gate signals, it can function as a high-power AC switch (or AC controller) for single-phase applications, enabling both on/off control and Phase Angle Control for power modulation. Two modules can be used to control a three-phase load.
Industry Insights & Strategic Advantage
Ensuring Uptime and Reliability in Industrial Automation
In the landscape of industrial automation and process control, operational continuity is a primary economic driver. Component failure in a production line can lead to costly downtime. The Sanrex PK200FG160 addresses this challenge by focusing on intrinsic reliability. Its design, featuring glass-passivated junctions and a robust isolated package, aligns with the industry's strategic shift towards deploying "fit-and-forget" components that minimize maintenance cycles and maximize system availability.
The module's high voltage and current ratings make it a cornerstone component for upgrading or designing new equipment compliant with modern efficiency standards. As industries face increasing pressure to reduce energy consumption, the ability to precisely control power delivery with efficient and reliable thyristor modules becomes a key strategic advantage. The PK200FG160 provides the engineering foundation for building power controllers that are not only powerful but also exceptionally durable, supporting the backbone of modern manufacturing and process industries.
Strategic Outlook
For engineers and procurement managers focused on the total cost of ownership (TCO), the Sanrex PK200FG160 presents a compelling case. Its design emphasizes longevity and stable performance, which translates into reduced maintenance, lower risk of unscheduled downtime, and greater system-level reliability. Investing in a module with a high V_RRM margin and proven passivation technology is a strategic decision to enhance the robustness of high-power control systems. This forward-looking approach ensures that equipment not only meets current performance specifications but is also built to withstand the rigors of industrial operation for years to come, securing a better return on investment. For designers working on similar power levels but requiring integrated solutions, exploring components like the 6MBP25VAA120-50 IPM could offer a different integration path.
