Mitsubishi PM100CVA120 | Integrated CIB IGBT Module for Compact Motor Drives

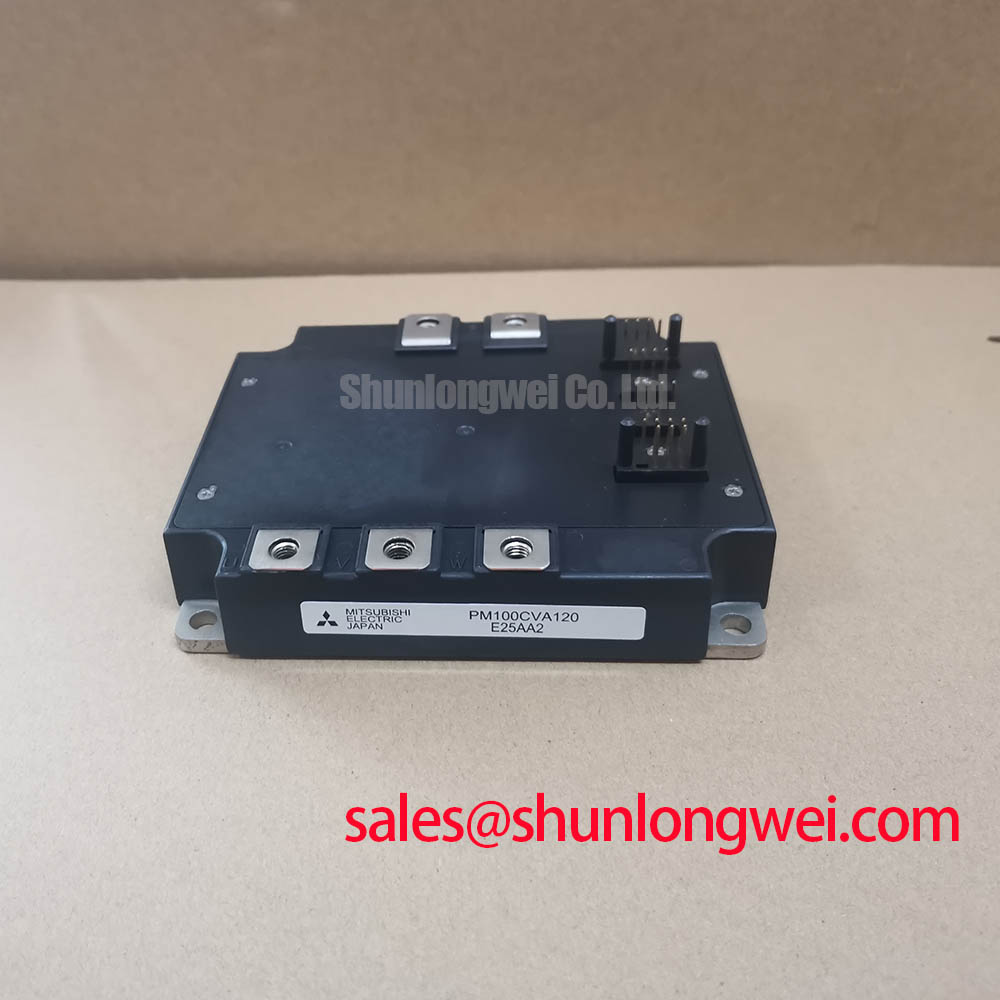

The Mitsubishi PM100CVA120 is an intelligent power module that delivers a highly integrated solution for variable frequency drives and other motor control applications up to approximately 37 kW. By combining a three-phase converter, a three-phase inverter, and a brake chopper into a single, compact C-Series package, this module dramatically simplifies system design, reduces assembly complexity, and enhances overall reliability.
Key Technical Specifications at a Glance
For engineers requiring immediate access to critical performance data, the following table outlines the essential parameters of the PM100CVA120. For a comprehensive breakdown, you can download the full datasheet here.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 1200V |
| Collector Current (IC) - Inverter | 100A |
| Forward Current (IF) - Converter | 100A |
| Collector-Emitter Saturation Voltage (VCE(sat)) (Typ. @ IC=100A) | 1.80V |
| Circuit Topology | Converter + Inverter + Brake (CIB) |
| Integrated Feature | NTC Thermistor |
Technical Deep Dive: The Advantage of Integrated Architecture
From an engineering perspective, the core value of the PM100CVA120 lies in its CIB (Converter-Inverter-Brake) architecture. This configuration, often referred to as a PIM (Power Integrated Module), consolidates the entire power stage of a typical motor drive into one component. This isn't just a matter of convenience; it yields tangible benefits:
- Reduced Parasitic Inductance: By minimizing the distance between the rectifier, DC link, and inverter stages within the module, stray inductance is significantly lowered. This reduces voltage overshoots during switching, which in turn simplifies or even eliminates the need for extensive external snubber circuits.

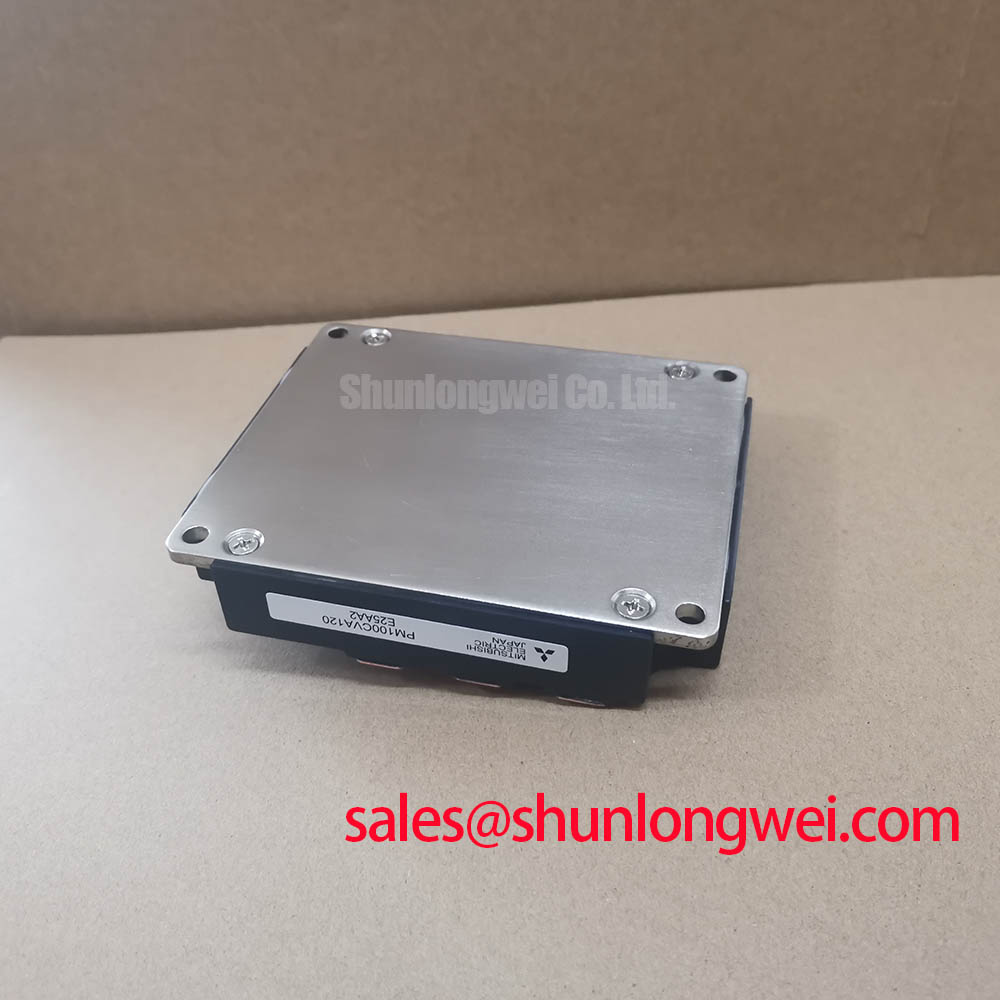

- Simplified Thermal Management: Instead of managing the heat from multiple discrete components spread across a PCB, engineers can focus on a single thermal interface. The module's isolated baseplate provides excellent heat transfer to a heatsink, ensuring more predictable and reliable thermal performance.
- Streamlined Assembly: The PM100CVA120 reduces component count, shrinks PCB footprint, and simplifies the manufacturing process. This directly translates to lower assembly costs and improved production yields.
Internally, this module leverages Mitsubishi's proven chip technology to achieve a low VCE(sat) of 1.80V at nominal current, which keeps conduction losses in check and boosts overall system efficiency.
Application Focus: Where the PM100CVA120 Excels
The highly integrated nature of this module makes it an ideal choice for power conversion systems where space, cost, and reliability are paramount. Its performance characteristics are optimized for:
- Compact Variable Frequency Drives (VFDs): For general-purpose AC motor control, the CIB topology provides a near-complete power stage, allowing designers to create smaller, more cost-effective drive solutions.
- Robotic Servo Drives: In applications requiring precise motion control, the integrated brake chopper is critical for managing regenerative energy during rapid deceleration, ensuring system stability and protecting the DC link. For more on this, see our guide to IGBTs in robotic servo drives.
- Industrial Pumps and Fans: The robust 1200V/100A rating provides ample headroom for driving pumps, fans, and compressors in demanding industrial environments, where reliability is non-negotiable.
- Small-Scale Solar and UPS Systems: The module’s efficiency and integrated design are also beneficial in auxiliary power units and uninterruptible power supplies, where compact and reliable power conversion is essential.
Frequently Asked Questions (FAQ)
Q: When should I choose a PIM like the PM100CVA120 over discrete IGBTs and diodes?
A: A PIM is the superior choice for low-to-mid power applications (typically under 55kW) where design simplification, reduced assembly time, and a smaller footprint are primary objectives. While discrete components offer more layout flexibility for complex or very high-power designs, the PM100CVA120 provides a pre-optimized, reliable, and cost-effective solution for the vast majority of standard motor drive applications.
Q: How does the integrated NTC thermistor add value?
A: The built-in NTC thermistor provides a direct, real-time measurement of the module's baseplate temperature. This is a crucial safety feature, allowing the drive's control system to monitor for over-temperature conditions and trigger protective measures like derating or shutdown. This prevents catastrophic failure and is a key part of effective IGBT failure analysis and prevention.
