PS21869-AP: An In-Depth Technical Review for High-Density Motor Drives

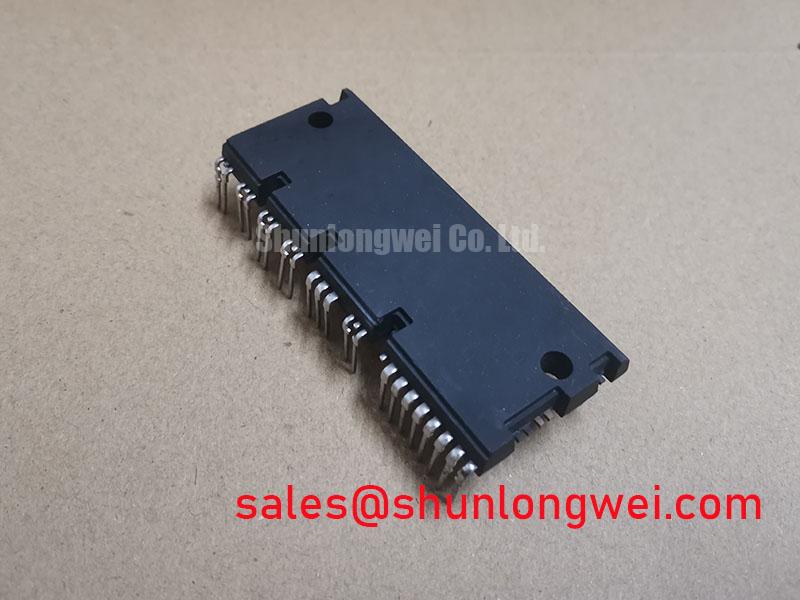

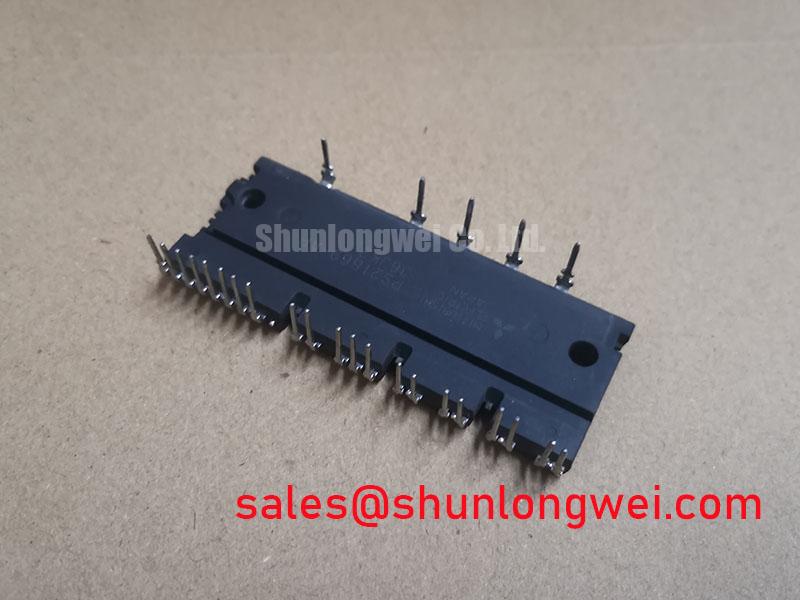

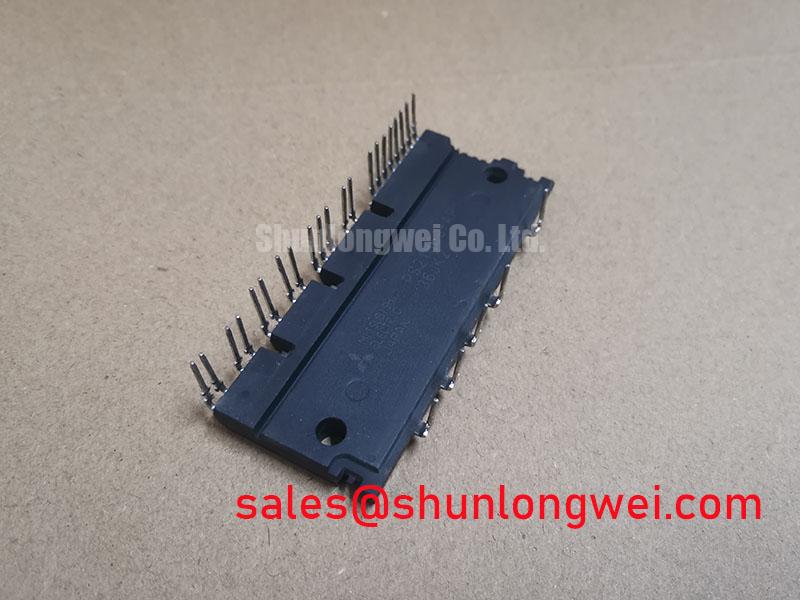

The PS21869-AP is a highly integrated 600V/50A Intelligent Power Module (IPM) engineered to streamline the design of three-phase DC-to-AC power conversion stages. This module integrates robust protection features and Mitsubishi's CSTBT™ (Carrier Stored Trench-gate Bipolar Transistor) technology to deliver a compact, reliable motor drive solution. Key specifications include: 600V VCES | 50A Collector Current | Integrated UV & SC Protection. It excels in simplifying PCB layout and enhancing system-level reliability. A critical advantage of this IPM is its ability to interface directly with microcontrollers, eliminating the need for opto-couplers and reducing component count. For motor control systems in the 1.5kW to 3.7kW range operating on 220 VAC lines, the PS21869-AP's blend of integration and protection provides a direct path to a more robust and compact final product.
Application Scenarios & Value
System-Level Benefits in Compact Industrial Automation
The PS21869-AP is specifically tailored for applications where space is at a premium and reliability is non-negotiable, such as small-to-medium power industrial motor controls, servo drives, and specialized machinery. In a high-density application like a multi-axis CNC machine or a robotic arm, designers face the challenge of managing thermal loads and ensuring electrical robustness in a constrained space. The PS21869-AP directly addresses this by integrating the gate drive and a comprehensive suite of protection circuits into a single package. This includes under-voltage (UV) lockout for both high-side and low-side supplies and short-circuit (SC) protection for the lower-leg IGBTs. This level of integration simplifies the design of the control board, reduces parasitic inductance, and significantly improves noise immunity—a crucial factor in electrically noisy industrial environments governed by standards like IEC 61800-3.
What is the key benefit of its integrated protection? It drastically reduces external component count, simplifying PCB layout and enhancing system reliability against common fault conditions. The module's fault signal output provides immediate feedback to the system's microcontroller, allowing for controlled shutdowns and preventing catastrophic failures. For systems requiring lower current handling, the related PS21865-P offers a similar level of integration at a 20A rating.
Key Parameter Overview
Highlighted Specifications for Performance Evaluation
The technical specifications of the PS21869-AP are optimized for efficient and reliable motor control. The parameters below have been selected to provide engineers with a clear view of its performance capabilities in demanding applications. Key values are highlighted to facilitate quick assessment.
| Parameter | Symbol | Conditions | Value | Unit |
|---|---|---|---|---|
| Collector-Emitter Voltage | VCES | - | 600 | V |
| Collector Current (DC) | ±IC | - | 50 | A |
| Collector Current (Peak) | ±ICP | - | 100 | A |
| Collector Dissipation | PC | - | 70.4 | W |
| Collector-Emitter Saturation Voltage | VCE(sat) | IC = 50A, Tj = 125°C | 2.1 (Typ.) / 2.7 (Max) | V |
| Short-Circuit Protection Trip Level | VSC(ref) | VD = 15V | 0.43 (Min) / 0.53 (Typ) / 0.63 (Max) | V |
| Isolation Voltage | Viso | Sinusoidal, 1 minute | 2500 | Vrms |
| Junction Temperature | Tj | - | -20 to +125 | °C |
Download the PS21869-AP datasheet for detailed specifications and performance curves.
Technical Deep Dive
Inside the Integrated Protection and Drive Circuitry
A significant engineering advantage of the PS21869-AP lies in its sophisticated internal architecture. It incorporates a dedicated High-Voltage IC (HVIC) for the P-side (high-side) drive and a Low-Voltage IC (LVIC) for the N-side (low-side). This architecture is the key to its "intelligent" functionality. The HVIC performs the critical task of high-speed level shifting, allowing the ground-referenced microcontroller to safely control the high-side IGBTs floating on the high DC bus voltage. This is like having a built-in, perfectly matched translator that speaks both the MCU's low-voltage language and the IGBT's high-voltage language, eliminating the design complexity of discrete opto-coupler or pulse transformer circuits.
Furthermore, the N-side LVIC integrates the short-circuit (SC) and under-voltage (UV) protection logic. The SC protection works by sensing the voltage across an external shunt resistor in the DC bus return path. If this voltage exceeds a predefined threshold (VSC(ref)), the LVIC immediately shuts down all lower-leg IGBTs and issues a fault signal (FO). This acts as an incredibly fast fuse, protecting the expensive IGBTs from destructive currents far quicker than a system-level controller could react. This integrated, localized protection enhances the overall robustness of the Variable Frequency Drive (VFD) or servo system, ensuring safer operation under fault conditions.
Frequently Asked Questions (FAQ)
How does the integrated short-circuit (SC) protection in the PS21869-AP improve system reliability?
The integrated SC protection provides a rapid, hardware-based response to overcurrent events. By sensing current via an external shunt and triggering a shutdown of the lower-leg IGBTs within microseconds, it prevents catastrophic failure of the power stage. This is significantly faster and more reliable than software-based monitoring, directly contributing to a more durable and safer motor drive.
What is the purpose of the fault (Fo) signal output?
The FO pin provides a clear, active-low signal to the host microcontroller whenever a fault condition—either a short circuit on the lower side or an under-voltage event on the low-side control supply—is detected. This enables the system to immediately halt operations, log the error, and prevent further damage, simplifying diagnostics and improving overall machine safety.
Can the PS21869-AP be directly driven from a 3.3V or 5V MCU?
Yes, the input interface is designed for CMOS/TTL compatibility and can be directly driven by standard 3V or 5V microcontroller logic levels. Internal pull-down resistors are included on the logic inputs, ensuring a safe state if the MCU connection is lost. This direct interface capability eliminates the need for intermediate buffer or driver stages, reducing component count and simplifying the PCB design.
Strategic Considerations for System Design
Integrating the PS21869-AP into a power system offers a strategic advantage beyond mere component consolidation. It shifts the design focus from discrete gate drive and protection complexities to higher-level system optimization. By entrusting critical, high-speed protection to the IPM itself, engineers can allocate more processing power and development time to perfecting motor control algorithms, improving user interface responsiveness, or implementing advanced diagnostic features. This module acts as a foundational building block of reliability, allowing design teams to innovate with greater confidence and accelerate their time to market for robust, power-dense motor control applications.
