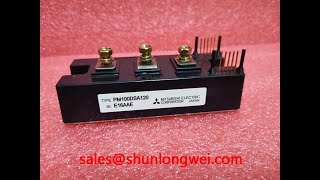

Benchtop Waveform Tuning: Mitigating Turn Off di/dt Induced Vpeak Clamping on PM100DSA120
For a PM100DSA120 evaluation in a commercial string inverter or micro-grid energy-storage power stage, start with the switching loop rather than assuming that a 1200.0 V rating alone resolves transient stress. During turn-off, the measured collector-emitter peak is influenced by DC-link voltage plus the product of stray loop inductance and the changing current. This is an Engineering Calculation principle expressed as Vpeak = VDC + Lσ multiplied by di/dt. It is useful as a measurement framework, not as a substitute for device-specific switching limits.
Probe placement matters. A long oscilloscope ground lead can create an apparent ringing signature that is not present at the module terminals. Use a measurement method suitable for high-voltage switching work, observe the voltage close to the intended device connection points, and compare the result with the DC-link waveform and gate command. If overshoot changes substantially with probe location, gate-loop routing, or busbar pressure, the next action is to validate the measurement arrangement before changing components.
Design Consideration: minimize the commutation-loop area between the DC-link capacitor, the PM100DSA120 power terminals, and the return path so that turn-off inductive overshoot is suppressed. A compact, symmetric planar busbar arrangement can help reduce parasitic inductance when the mechanical stack-up supports it. Snubber selection should be based on captured switching energy, the measured ringing frequency, capacitor current capability, and the verified voltage margin of the complete circuit. The system engineer should validate peak voltage under the actual DC-link, temperature, load, and gate-drive conditions rather than applying a universal capacitor value.
Where the inverter contains a separate input or auxiliary conversion stage, engineers can document the role of related power positions such as the CM100DY-12E without treating it as an automatic replacement. Circuit function, terminal arrangement, drive architecture, and the original schematic remain the deciding evidence. Mitsubishi Electric’s power semiconductor and high-power module information is also a useful manufacturer reference when reviewing the device family context.
Transient Dynamics and Electrical Design: Transient Thermal Impedance on PM100DSA120
Transient thermal assessment begins by separating short pulse heating from steady-state dissipation. The PM100DSA120 nameplate ratings of 1200.0 V and 100.0 A do not, by themselves, provide a complete pulsed-overload thermal limit. A valid junction-temperature assessment requires the relevant manufacturer transient thermal impedance data, actual pulse duration and repetition, conduction and switching losses, case temperature, and the installed heat-sink path.
Engineering Recommendation: use the applicable junction-to-case transient thermal impedance curve or approved thermal model to evaluate each operating pulse, then combine the result with the measured or calculated baseplate and heat-sink temperatures. Multi-stage RC thermal models are commonly used because thermal response changes with pulse duration; they should only be populated with values confirmed for the applicable device documentation. Avoid inferring a safe surge-current limit from the 100.0 A continuous rating.
Before dynamic testing, confirm that every power terminal and control connection matches the host equipment drawing. Check creepage and clearance in the finished assembly, including any conductive busbar hardware, heat-sink features, and accumulated contamination paths. A vibration-resistant fastening arrangement should maintain uniform contact without forcing the module terminals out of alignment. If a waveform indicates uneven current transition, inspect physical loop symmetry, connector seating, and drive-reference routing before attributing the issue to the module.
For repair assessment, capture the case temperature, DC-link voltage, load current, switching command, and measured terminal waveform as one test record. This avoids a misleading conclusion drawn from a single static measurement. Engineers evaluating wide-bandgap alternatives or mixed-technology power stages can review Wide Bandgap Revolution for broader design context, while keeping PM100DSA120 validation tied to its own documented electrical and thermal boundaries.
PM100DSA120 Circuit Protection and Reliability: Calibrating Static and Dynamic Current Distribution
Parallel current distribution must be treated as a complete assembly characteristic, not as a guaranteed property of a single PM100DSA120 module. In many IGBT operating regions, a positive temperature coefficient of collector-emitter saturation voltage can support static sharing as temperature rises. This is a Design Consideration only. The actual balance depends on device matching, temperature gradients, conductor resistance, gate-drive timing, switching conditions, and protection behavior.
When multiple power paths are present, route equivalent gate-drive conductors with comparable physical geometry and keep their return paths deliberate and symmetric. Unequal gate-loop impedance can cause one position to switch earlier or later, even where static conduction readings appear similar. Check gate commands and collector-emitter transitions with the same measurement method at each location. A difference may indicate wiring asymmetry, driver-reference disturbance, unequal busbar resistance, or a protection event that requires investigation against the original control schematic.
Static checks are still valuable before applying power. With the inverter de-energized, compare diode-mode behavior across equivalent circuit positions, inspect for unintended low-resistance paths, and verify isolation from the heat sink using the test method specified by the equipment procedure. Do not use an arbitrary meter threshold as a pass or fail rule because surrounding circuitry can change the observed reading. The useful result is a documented comparison between corresponding paths under controlled conditions.
For a horizontal comparison during sourcing or design review, SKIIP37AC12T4V1 can be reviewed as a separate product reference. Its suitability cannot be determined from current or voltage labels alone. The system integrator should verify topology, control interface, terminal layout, thermal interface, protection coordination, and all manufacturer specifications before considering any circuit change.
PM100DSA120 Circuit Protection and Reliability: Calibrating Baseplate Convexity Compensation and Screw Mounting
The thermal interface is a controlled mechanical process. Clean the heat-sink contact surface, inspect it for burrs or contamination, and confirm that the module baseplate sits without rocking before final fastening. Design Consideration: use a uniform, thin thermal-interface layer appropriate to the approved assembly method, with thickness controlled to fill microscopic surface variation rather than act as a bulk insulating layer. The exact material, thickness, and mounting torque must be selected from the module documentation, heat-sink design, fastener specification, and equipment service procedure.
Baseplate curvature and heat-sink flatness can alter contact pressure across the mounting area. Apply fastening progressively in a cross-pattern sequence so the module settles evenly, then perform the final torque sequence according to the approved mechanical drawing. Excess compound around the mounting area can make visual inspection difficult and should not be used as evidence of good thermal contact. After assembly, inspect for shifted busbars, strained control leads, and contact between conductive hardware and adjacent circuitry.
⚠️ Field Alert: Never tighten one mounting screw fully before the others, because uneven clamping can distort the thermal interface and create misleading hot-spot results during load testing.
For equipment recovery, recheck terminal hardware after the prescribed commissioning cycle, then assess temperature behavior together with switching waveforms and load conditions. A local temperature rise may reflect mounting pressure, thermal-interface distribution, cooling-path condition, switching loss, current imbalance, or a combination of factors. Mitsubishi Electric’s global semiconductor device technologies resource provides manufacturer context for power-device technologies, while the installed equipment documentation remains the controlling reference for PM100DSA120 commissioning and service decisions.
