PM100RL1B060 Intelligent Power Module (IPM): A Deep Dive into Mitsubishi's 600V/100A Integrated Power Solution
Engineering Product Analysis
Streamlining System Design with Integrated Protection and Control

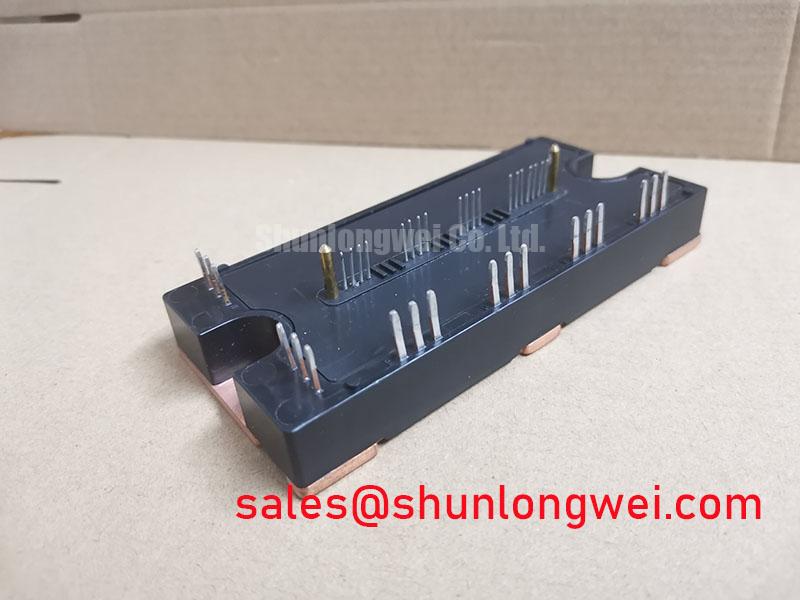

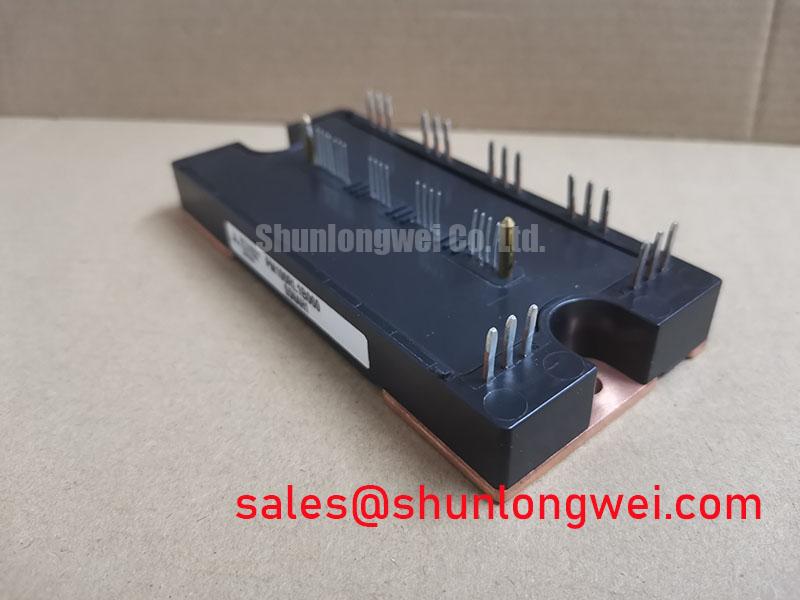

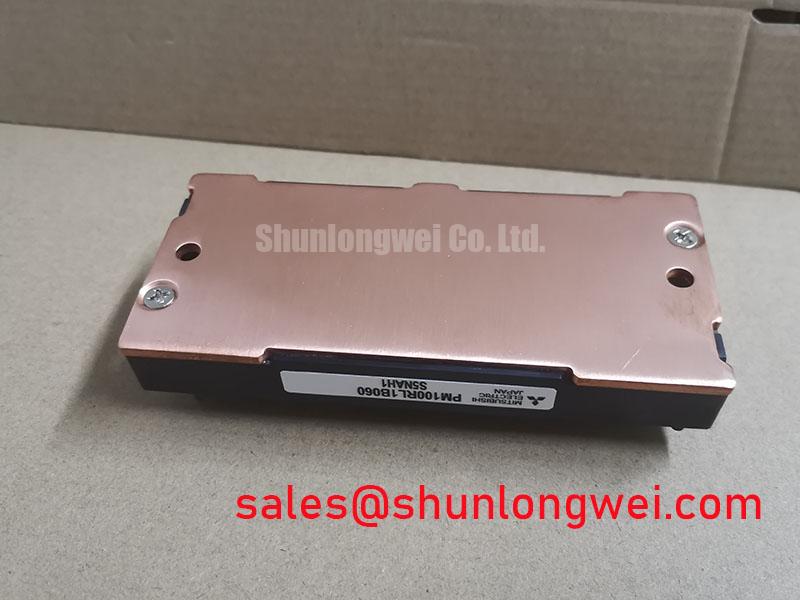

The Mitsubishi PM100RL1B060 is a 600V, 100A Intelligent Power Module (IPM) that integrates a 3-phase converter, a brake chopper, and their corresponding gate drive and protection circuits into a single, compact package. This level of integration delivers simplified system design and enhanced operational reliability. Key specifications include: 600V | 100A | Integrated Gate Drive & Protection. The primary advantages are reduced component count and built-in safety mechanisms against critical fault conditions. For engineers designing compact motor control systems, this module directly addresses the challenge of implementing robust protection without complex external circuitry. What is the primary benefit of its integrated design? Simplified implementation of critical protection features like short-circuit and over-temperature detection. Best Fit: For motor drives up to 22kW requiring a compact, highly integrated power stage with robust, built-in fault management, the PM100RL1B060 is an optimal design choice.
Key Parameter Overview
Decoding the Specs for Integrated Motor Drive Applications
The technical specifications of the PM100RL1B060 are tailored for efficiency and reliability in AC motor control and general-purpose inverter applications. The parameters below highlight its capabilities as a comprehensive power stage solution.
| Characteristic | Symbol | Condition | Value | Unit |
|---|---|---|---|---|
| Absolute Maximum Ratings (Tj = 25°C unless otherwise noted) | ||||
| Collector-Emitter Voltage | VCES | - | 600 | V |
| Collector Current (DC) | IC | TC = 25°C | 100 | A |
| Collector Current (Peak) | ICP | TC = 25°C, Pulse Width = 1ms | 200 | A |
| Collector Power Dissipation | PC | TC = 25°C, Per IGBT | 347 | W |
| Junction Temperature | Tj | - | -20 to +150 | °C |
| Control and Protection Section | ||||
| Control Supply Voltage | VCC | - | 20 | V |
| Short Circuit Withstand Time | tsc | VCC=15V, Tj=125°C | >10 | µs |
| Electrical Characteristics (Tj = 25°C, VCC = 15V) | ||||
| Collector-Emitter Saturation Voltage | VCE(sat) | IC = 100A | 2.7 (Max) | V |
Download the PM100RL1B060 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Achieving System-Level Reliability in Variable Frequency Drives (VFDs)
The PM100RL1B060 is engineered specifically for power conversion systems where reliability and integration are paramount. Its most prominent application is in compact Variable Frequency Drives (VFDs) for AC induction and permanent magnet motors. In a typical VFD design, engineers face the challenge of implementing robust protection against short-circuits, ground faults, and overheating. The PM100RL1B060 directly solves this by integrating these functions. For instance, the on-board short-circuit (SC) protection detects a fault and signals the control logic via a fault output pin (Fo), enabling a safe shutdown before catastrophic failure occurs. This integration not only saves valuable PCB space but also significantly reduces design and testing time compared to a discrete solution built from individual IGBTs, diodes, and gate drivers.
This module's 100A rating makes it suitable for motors in the 15-22kW power range (depending on voltage and modulation strategy), covering a wide array of industrial applications like conveyor systems, pumps, fans, and machine tools. For systems demanding higher power output, the related PM150RL1A060 provides a 150A capability within a similar integrated framework.
Frequently Asked Questions (FAQ)
How does the integrated gate drive in the PM100RL1B060 simplify the control interface?
The module features a high-voltage IC (HVIC) that allows direct connection to a microcontroller or DSP. It accepts logic-level (3.3V/5V) PWM signals, translating them internally to the high-current gate drive signals required to switch the IGBTs efficiently. This eliminates the need for external gate driver ICs, optocouplers for isolation, and complex power supply arrangements, significantly simplifying the control board layout and reducing potential noise-related issues.
What is the function of the integrated brake chopper circuit?
The integrated brake chopper is a critical feature for motor drive applications involving deceleration or overhauling loads. When a motor decelerates, it acts as a generator, feeding energy back into the drive's DC bus and causing its voltage to rise. The brake circuit provides a path for this regenerative energy. By connecting an external braking resistor, the chopper can dissipate this excess energy as heat, preventing the DC bus voltage from exceeding safe limits and protecting the drive from overvoltage faults. This built-in functionality is essential for applications requiring controlled and rapid braking, such as elevators and cranes.
