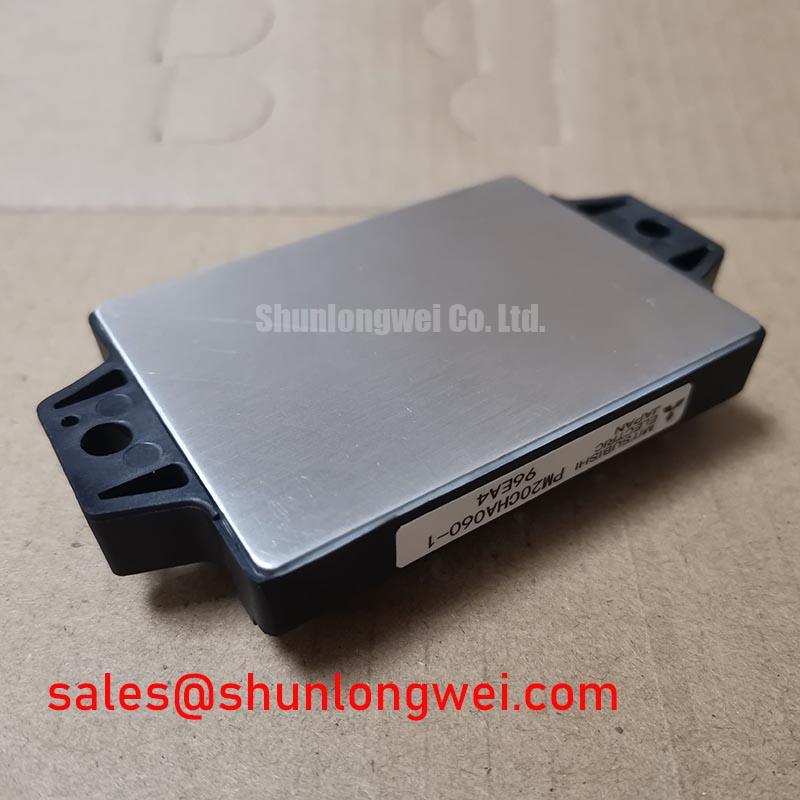

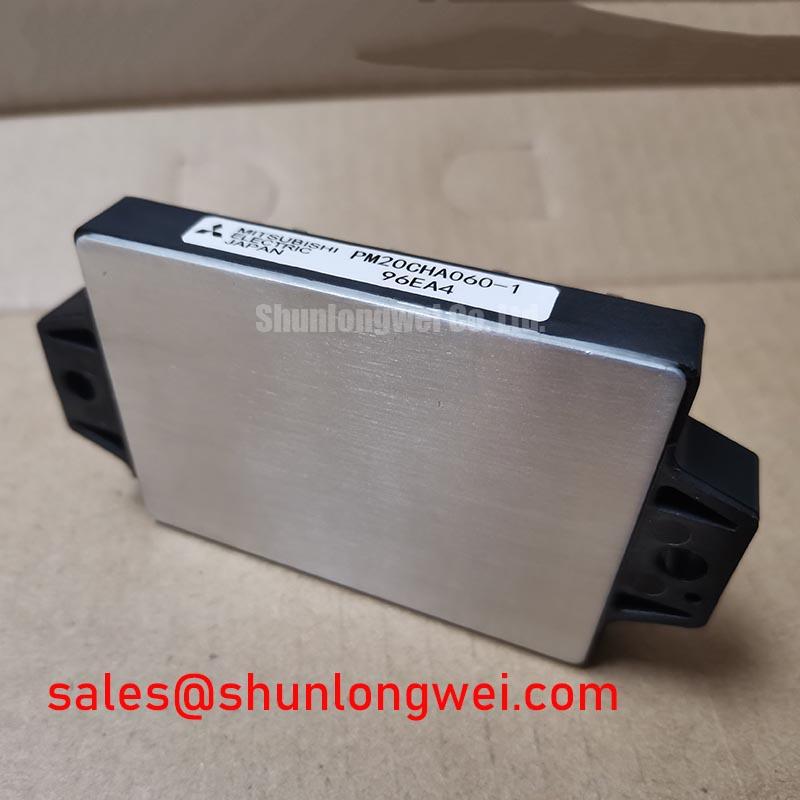

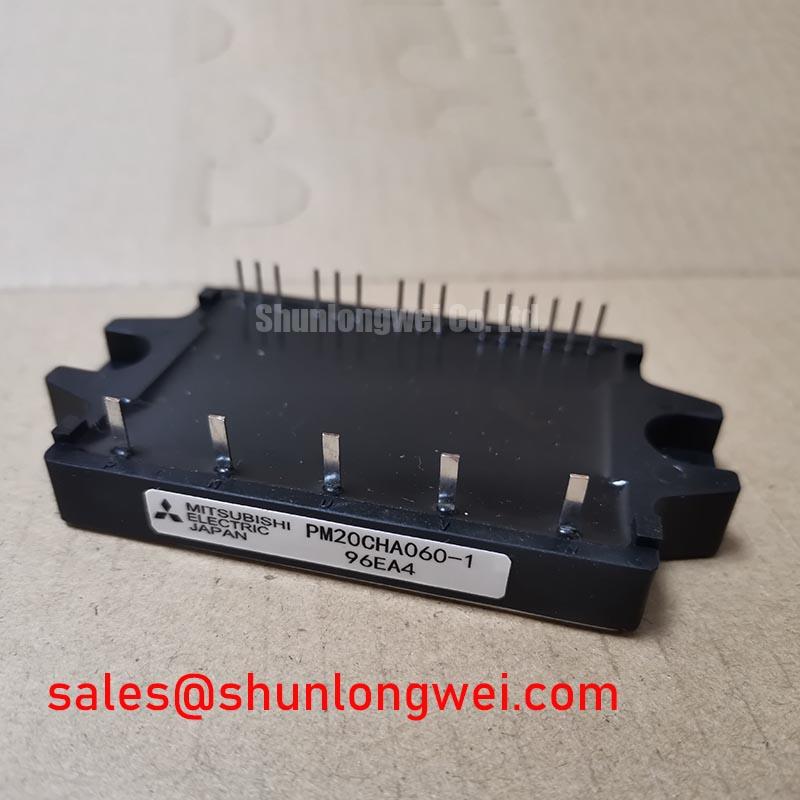

Mitsubishi PM20CHA060-1 | Integrated CIB Module for Compact Motor Drives
The Mitsubishi PM20CHA060-1 is a highly integrated power module designed to simplify and streamline the development of low-power motor control and power conversion systems. As a Converter-Inverter-Brake (CIB) module, it consolidates the three essential stages of a variable frequency drive into a single, compact package. This intelligent integration makes it a go-to solution for engineers looking to reduce system size, shorten design cycles, and enhance the reliability of their industrial automation applications.
Unpacking the "All-in-One" Advantage: The CIB Architecture
At the heart of the Mitsubishi PM20CHA060-1's value is its CIB topology. Instead of sourcing, qualifying, and assembling separate components, this module provides a thermally and electrically optimized subsystem. For system designers, this translates directly into tangible benefits.
- Converter Stage: Features a three-phase diode bridge rectifier to efficiently convert incoming AC power into a stable DC bus voltage. This eliminates the need for an external rectifier, saving valuable PCB real estate and reducing assembly complexity.
- Inverter Stage: A robust three-phase bridge built with six 600V/20A IGBTs forms the core of the motor drive. These components are carefully matched within the module for balanced switching characteristics, minimizing harmonics and ensuring smooth motor operation.
- Brake Chopper: An integrated IGBT and freewheeling diode create a brake circuit. This is critical for managing regenerative energy during motor deceleration, preventing DC bus overvoltage and allowing for rapid, controlled stopping in dynamic applications like servo drives.
Solving Real-World Challenges with the PM20CHA060-1
The true measure of a component is how it performs in the field. The Mitsubishi PM20CHA060-1 excels by addressing specific pain points across various industrial sectors:
- General-Purpose Inverters & Small Conveyors: In space-constrained control cabinets, the module's high level of integration is a significant advantage. It allows for a smaller overall drive footprint and simplifies thermal management by consolidating major heat sources into one well-defined area, making heatsink design more effective.
- Servo Drives & Machine Tool Control: The built-in brake chopper is indispensable for applications requiring precise positioning and fast dynamic response. It provides a reliable, integrated solution for dissipating braking energy, enhancing system safety and performance without the complexity of an external braking unit.
- Compact Uninterruptible Power Supply (UPS) Systems: Reliability is paramount in UPS applications. By using a single, factory-tested module like the PM20CHA060-1, you reduce the number of interconnects and potential points of failure compared to a discrete solution, leading to a more robust and dependable power conversion stage.
Key Technical Specifications at a Glance
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (Vces) | 600V |
| Collector Current (Ic) | 20A |
| Configuration | Three-Phase Converter + Three-Phase Inverter + Brake Chopper |
| Isolation Voltage (Viso) | 2500V (AC, 1 minute) |
| Package Type | CHA Module |
Is the PM20CHA060-1 the Right Fit for Your Design?
Choosing the right power module is crucial for project success. The PM20CHA060-1 is an ideal choice for new designs or retrofits of low-power systems (typically under 2.2 kW) where development speed, reliability, and compactness are key drivers. While a fully discrete component solution might offer more layout flexibility, it comes at the cost of increased design and validation time. Compared to more advanced Intelligent Power Modules (IPMs), the PM20CHA060-1 offers a cost-effective solution for applications that do not require integrated gate drivers and extensive built-in protection features. It provides the core power stage, giving designers the freedom to implement their own custom control and protection schemes.
For designers focused on building dependable, cost-efficient, and compact power conversion systems, the integrated CIB architecture of the Mitsubishi PM20CHA060-1 offers a clear path to success. To explore other power modules or discuss the specific needs of your application, you can explore more IGBT Modules on our platform.
If you have determined this module meets your technical requirements, please do not hesitate to contact us for a quote and to verify current stock levels.
