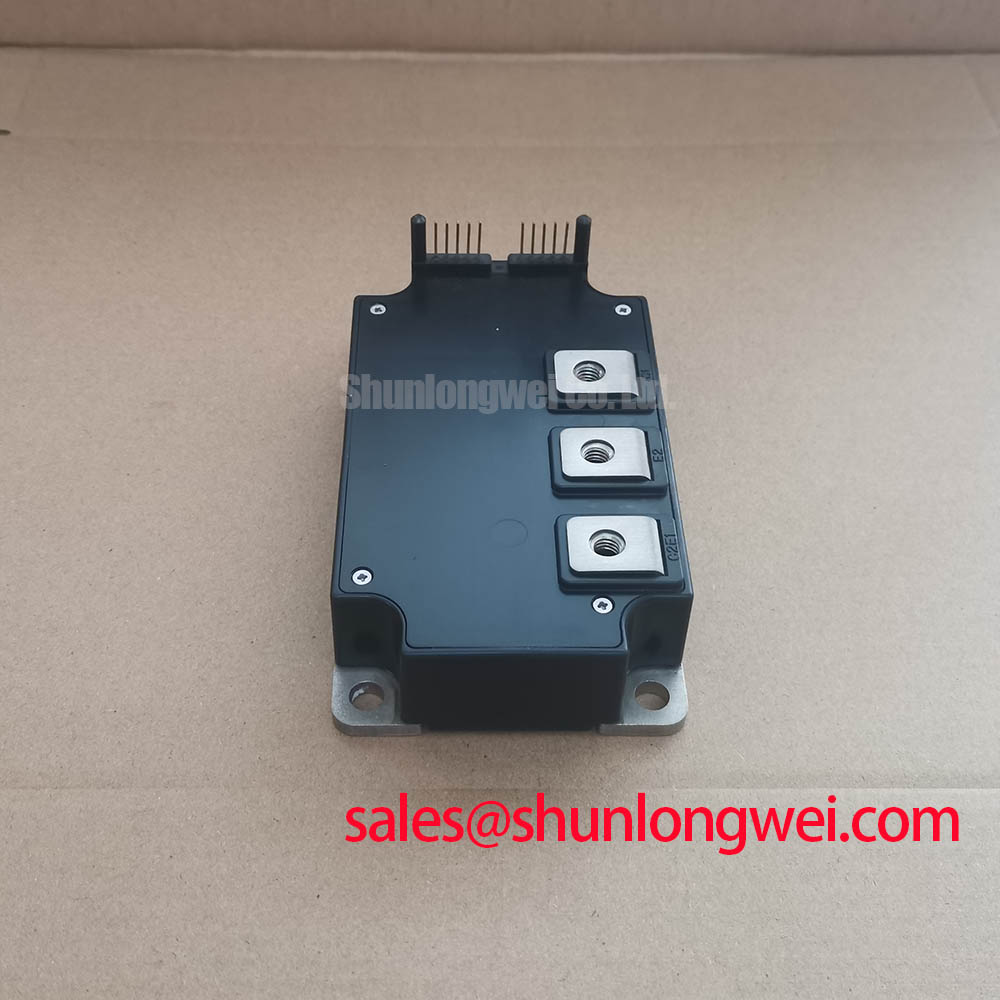

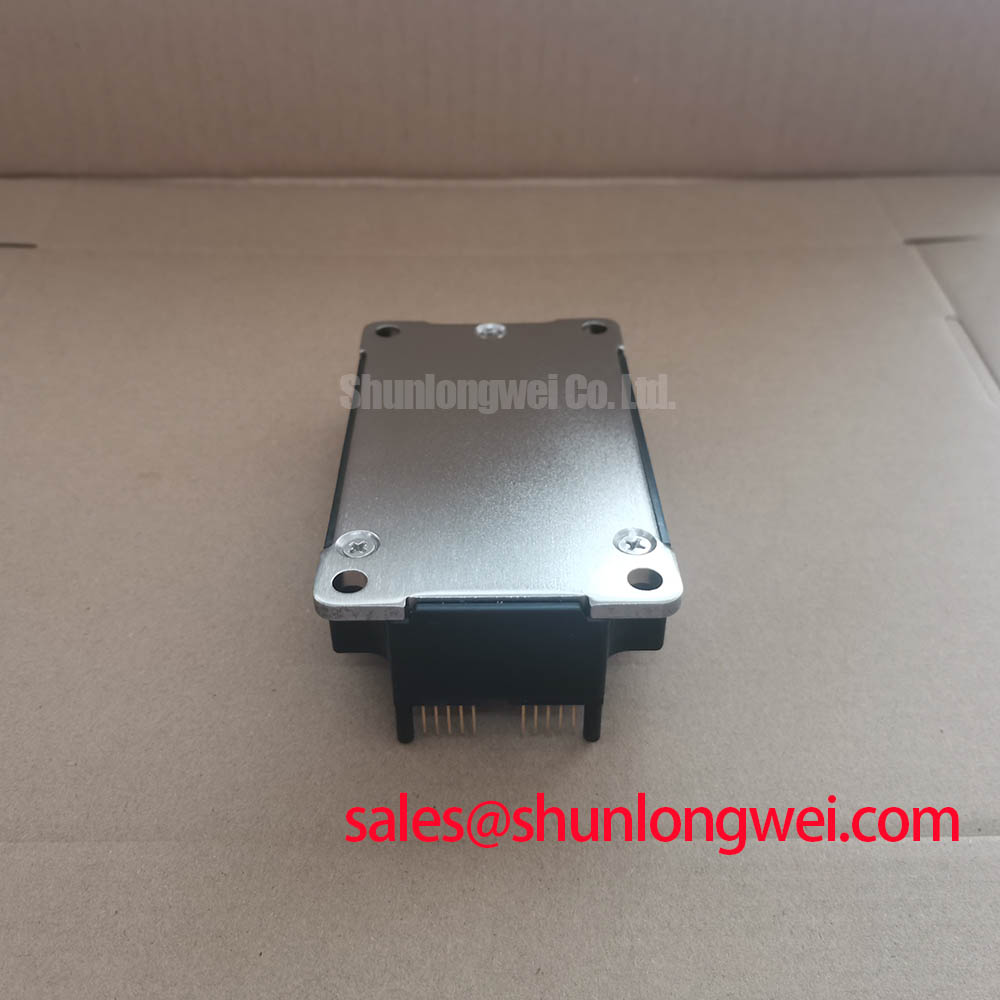

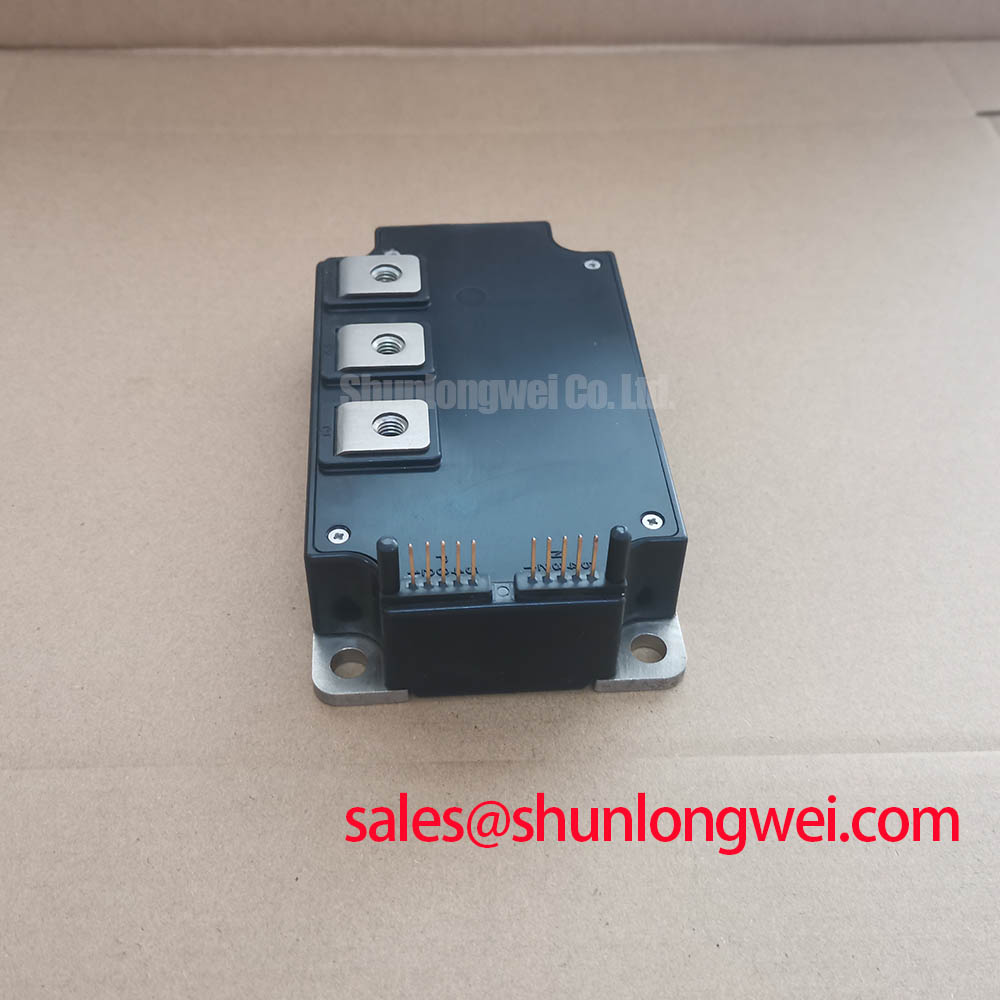

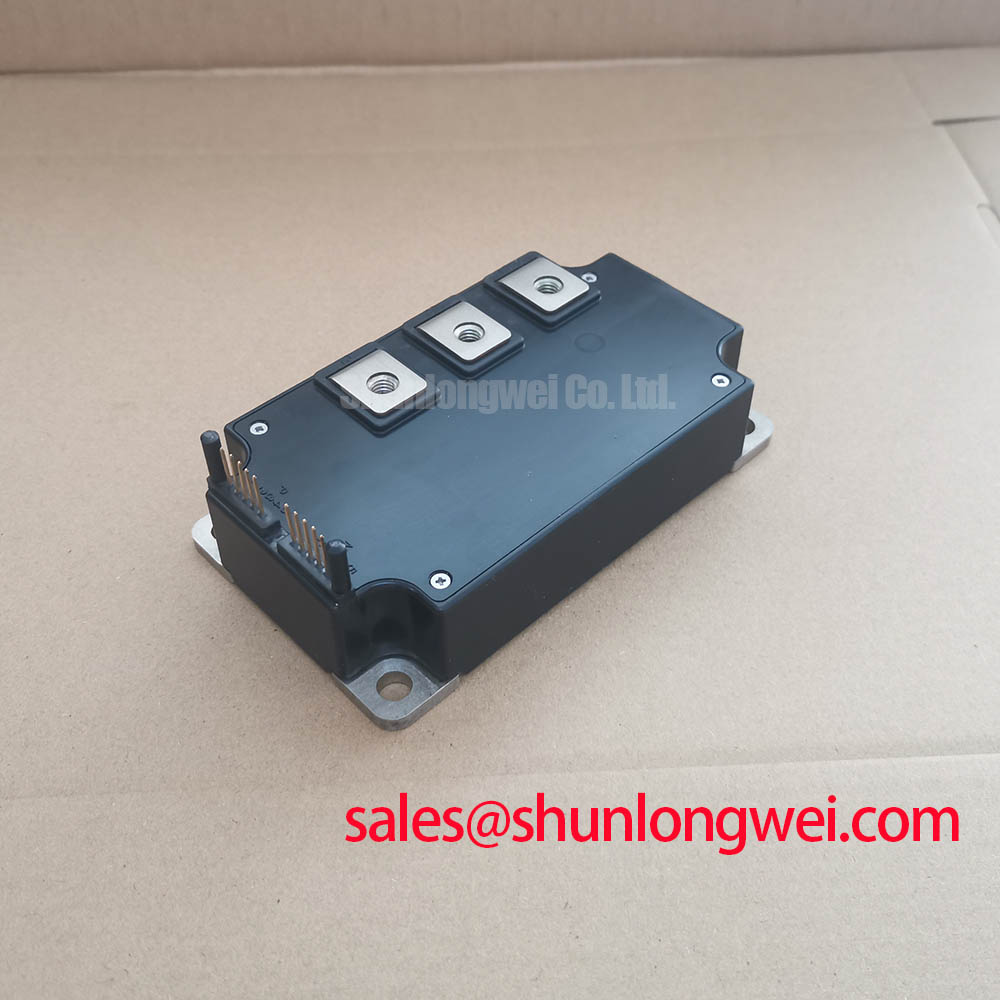

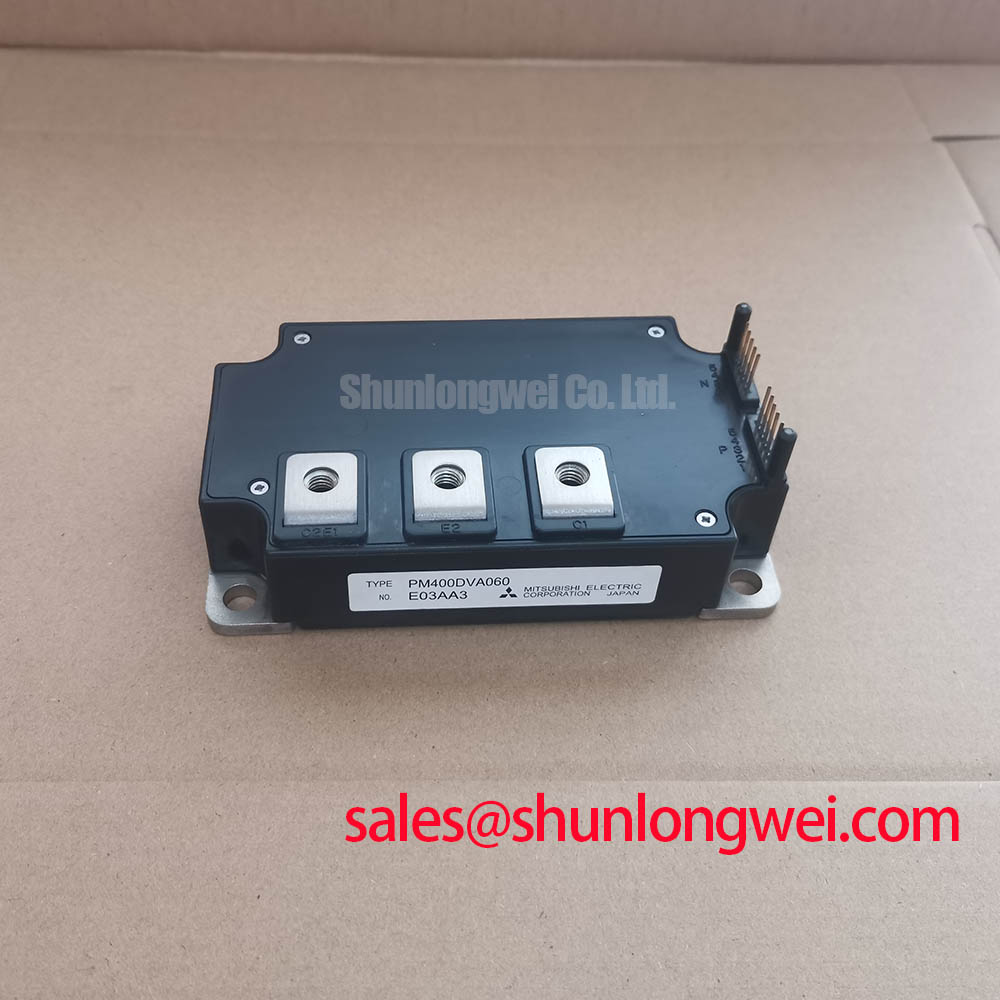

Mitsubishi PM400DVA060 | High-Reliability 600V/400A Intelligent Power Module (IPM)
The Mitsubishi PM400DVA060 is an advanced D-Series Intelligent Power Module (IPM) engineered for high-power, high-reliability inverter applications. This module integrates a three-phase IGBT inverter bridge, a brake chopper, and optimized gate drive and protection circuitry into a single, compact package. It is designed to simplify system design, reduce time-to-market, and enhance the operational robustness of demanding power conversion systems.
Core Advantages of the PM400DVA060
- Exceptional Efficiency: Leverages Mitsubishi's proprietary CSTBT™ (Carrier Stored Trench-Gate Bipolar Transistor) technology to achieve a low VCE(sat), significantly reducing conduction losses and improving overall system efficiency.
- Integrated System Protection: Features built-in protection circuits for short-circuit (SC), over-temperature (OT), and control supply under-voltage (UV), providing a robust defense against common failure modes.
- Simplified Design & Assembly: By integrating the power stages with the gate driver and protection logic, the PM400DVA060 drastically reduces PCB complexity, component count, and potential points of failure associated with discrete solutions.
- High Power Density: The consolidated design enables a more compact power stage, allowing for smaller and more cost-effective end products without sacrificing performance.
Technical Deep Dive: Engineering for Performance and Reliability
The performance of the PM400DVA060 stems from two key engineering pillars: the silicon itself and the intelligence built around it.
First, the use of Mitsubishi CSTBT™ silicon is a critical differentiator. Unlike standard trench IGBTs, this technology incorporates an n-type carrier-stored layer which dramatically lowers the on-state voltage drop (VCE(sat)). For a 400A module, this directly translates to lower power dissipation, reducing the thermal load on the heatsink and improving the system's energy efficiency—a crucial factor in applications like high-power motor control. Understanding the nuances of on-state voltage is fundamental in power electronics, as detailed in this guide to IGBT selection beyond Vce(sat).
Second, the integrated "intelligence" provides a layer of protection that is difficult and costly to replicate with discrete components. The gate driver is perfectly matched to the IGBT characteristics, ensuring optimal switching performance while the high-speed short-circuit and over-temperature detection circuits can shut down the device before catastrophic failure occurs. This pre-validated protection scheme removes significant design and testing burdens from the engineering team.
Application Focus: Where the PM400DVA060 Excels
This module's specifications make it an ideal choice for several high-stakes industrial applications:
- General Purpose & High-Performance Inverters: In applications like industrial conveyors, pumps, and fans, the PM400DVA060 provides the power handling and efficiency needed for reliable, continuous operation. The integrated brake chopper is particularly valuable for managing regenerative energy during motor deceleration.
- AC Servo Drives & Robotics: The precise control and rapid fault protection are essential for powering robotic servo drives. The module's low conduction losses contribute to cooler operation in compact, often space-constrained, robotic arms and controllers.
- Uninterruptible Power Supplies (UPS): For commercial and industrial UPS systems, reliability is paramount. The integrated protection and high thermal performance of the PM400DVA060 ensure that critical loads remain powered during grid instability.
Key Technical Specifications
The following table outlines the essential performance parameters of the Mitsubishi PM400DVA060. For comprehensive design data, including characteristic curves and thermal information, please refer to the official PM400DVA060 datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 600V |
| Collector Current (IC) | 400A |
| Collector-Emitter Saturation Voltage (VCE(sat)) (Typ. @ 400A) | 1.75V |
| Maximum Junction Temperature (Tj) | 150°C |
| Isolation Voltage (Viso) | 2500V (AC, 1 minute) |
| Integrated Functions | 3-Phase Inverter + Brake IGBT, Gate Drive, SC, OT, UV Protection |
Frequently Asked Questions (FAQ)
Q1: What is the main benefit of the integrated brake chopper in the PM400DVA060?
The integrated brake chopper provides a ready-made solution for managing regenerative energy in motor drive applications. During deceleration, a motor acts as a generator, sending current back to the inverter. The brake chopper safely dissipates this energy through an external resistor, preventing DC bus overvoltage and potential damage to the inverter. This integration simplifies the bill of materials and circuit design.
Q2: What are the key considerations for the gate drive power supply?
The PM400DVA060 requires a 15V supply for the control circuit. It is critical that this supply is stable and well-regulated, as the internal under-voltage (UV) lockout will disable the module if the voltage drops below the specified threshold. Each supply input (for upper and lower arms) should be decoupled with high-quality ceramic and electrolytic capacitors placed as close to the module pins as possible to ensure clean power and reliable operation.
For expert guidance on selecting the right IGBT modules for your specific power conversion project, please contact our technical team for a detailed consultation.
