PVC75-16 Nihon Inter 1600V 75A Thyristor Diode Module

Content last revised on September 25, 2026

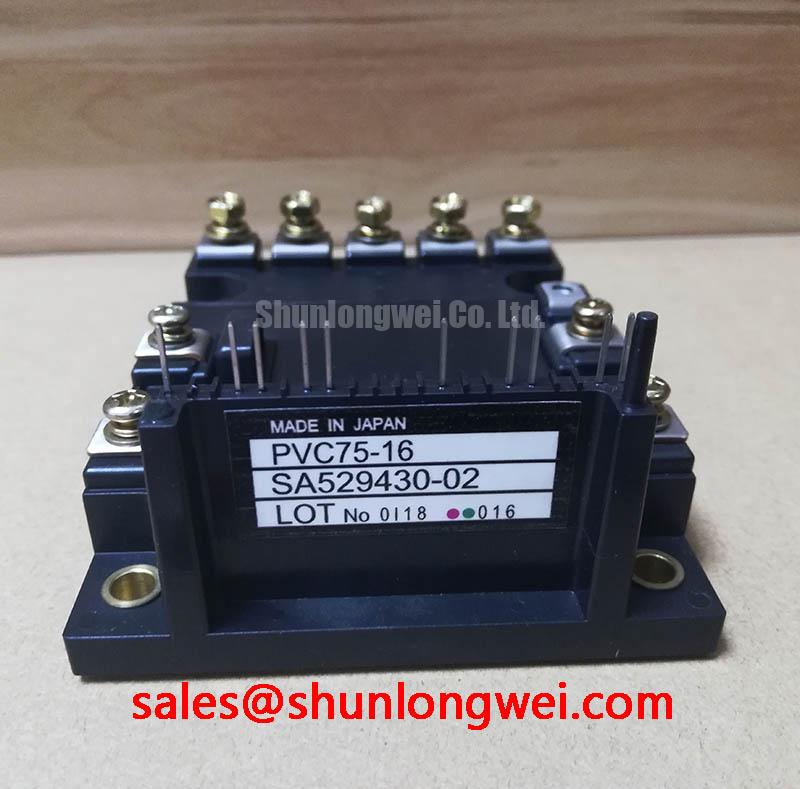

PVC75-16 Incoming Inspection and Identification

Begin incoming inspection by confirming the PVC75-16 marking, checking the isolated power module housing for visible damage, and recording the cold-state resistance and diode-test readings between the identified terminals before any circuit connection is made.

The Nihon Inter (NIEC) PVC75-16 is specified as a 75.0 A, 1600.0 V Thyristor / Diode Module in an Isolated Power Module package. These are the available official product specifications. The manufacturer data supplied for this product does not establish the complete terminal drawing, gate characteristics, reverse-recovery data, surge-current rating, fuse coordination table, insulation test voltage, or mechanical tightening torque. Those values should be taken from the original NIEC documentation or verified against the existing assembly before replacement.

For incoming QA, use a calibrated multimeter with the device completely isolated from the control board and power circuit. Confirm terminal identity from the original equipment drawing rather than relying on physical appearance alone. A diode-range reading can help compare the forward conduction path with a known-good unit, but a multimeter result is not a substitute for a controlled high-voltage blocking test or a dynamic switching test. Record polarity, open-circuit behavior, and any unusual asymmetry for engineering review.

💡 Bench Tip: Use ESD controls and compare cold-state readings with a known-good reference from the same equipment family before applying gate or power connections.

Assembly Integrity & Layout Architecture: Implementing Reverse-Recovery Charge and Temperature Coefficients for PVC75-16

The PVC75-16 rating identifies the voltage and current class of the module, but it does not by itself provide the reverse-recovery charge, peak reverse-recovery current, recovery time, or temperature coefficient required for a switching-loss calculation. Designers evaluating this device in a high-voltage three-phase motor solid-state soft starter should obtain those parameters from the applicable NIEC datasheet or qualification document. If the values are unavailable, the commutation network should be validated on the bench with the intended line voltage, load, firing angle, temperature range, and fault protection in place.

In a soft-starter power path, the physical arrangement of the module, busbar, snubber, fuse, and gate wiring affects the measured switching waveform. A practical layout consideration is to keep the high-current commutation loop compact and to avoid routing gate wiring alongside rapidly changing power conductors for long distances. The purpose is to reduce unwanted coupling and to make any observed voltage overshoot easier to distinguish from a gate-control problem. Final clearance, creepage, insulation, and enclosure requirements remain system-level design responsibilities.

Do not enter an assumed reverse-recovery value into a loss model simply because the module carries a similar current rating to another device. The electrical behavior of a replacement module must be checked against the original circuit’s line frequency, load inductance, antiparallel conduction path, and transient suppression network. The PGH50N16 may be reviewed as a related replacement option during material planning, but its electrical compatibility must be established independently rather than inferred from package resemblance.

Terminal fastening is equally important. The supplied product information does not specify the PVC75-16 terminal screw size, recommended torque, baseplate flatness, or permissible clamping method. Use the original NIEC installation instructions or the equipment manufacturer’s assembly specification. Excessive force can distort a terminal or baseplate, while insufficient force can increase contact resistance and thermal instability. Verify the complete terminal map before connecting anode, cathode, gate, or auxiliary leads.

For electrical insulation assessment, the module’s “isolated” package description should not be treated as a complete insulation certification. The test voltage, duration, insulation resistance criterion, and test points must be confirmed from the applicable source document. General background on dielectric breakdown testing is available through Dielectric Strength and High-Voltage Breakdown Testing. That reference does not replace the NIEC rating for this specific product.

PVC75-16 Thermal-Electrical Optimization: Current-Limit Mode vs Linear Voltage Ramp Practical Tuning

A high-voltage three-phase motor solid-state soft starter may use current limiting, phase-angle control, a voltage ramp, or a combination selected by the system designer. The commonly discussed motor locked-rotor current range and a desired reduction below a particular multiple of rated current are system targets, not official PVC75-16 specifications. The module should therefore be evaluated by measuring motor current, line voltage, firing angle, heatsink temperature, and transient voltage under the actual motor and cable conditions.

Current-limit operation can produce a different thermal pattern from a linear voltage ramp. A current-limited start may hold the thyristor conduction angle in a demanding region for longer, while a voltage ramp may create a different balance between acceleration time, motor torque, and semiconductor dissipation. The PVC75-16’s official ratings confirm a 75.0 A current class and 1600.0 V voltage class; they do not define a permissible start profile for every motor, duty cycle, ambient temperature, or heatsink arrangement.

During commissioning, begin with the original control settings documented by the equipment builder. Capture the phase current on all three lines and compare the waveforms for balance. An abnormal difference between phases may require inspection of gate timing, terminal contact, fuse condition, motor winding balance, current-transformer installation, or the power-device path. Avoid assigning a single cause from a current waveform alone.

Thermal integration should be checked at the longest intended start duration and the highest expected repetition rate. The supplied product data does not provide thermal resistance, junction-temperature limits, transient thermal impedance, or a heatsink requirement. Designers should verify those values before calculating allowable conduction loss. Airflow design can be evaluated with temperature measurements and, where appropriate, computational analysis; general reference material on Computational Fluid Dynamics for Forced Air Heat Sinks explains the method, but it does not provide a product-specific thermal limit.

Thermal interface material should be applied according to the module and heatsink manufacturer’s instructions. The supplied PVC75-16 information does not confirm a required compound type, coating thickness, surface roughness, or tightening sequence. Keep the mating surfaces clean, use an even layer appropriate to the interface, and verify temperature at the module mounting location rather than relying only on an enclosure air sensor.

For a soft starter feeding a long motor cable, the system engineer should also examine reflected-wave behavior and transient voltage at the module terminals. Cable length, impedance, motor input characteristics, switching speed, and suppression components determine the result. A filter, snubber, or MOV network may be considered when measured overshoot approaches the verified device and insulation limits, but component values must be selected from the actual waveform and the relevant coordination study.

PVC75-16 Circuit Protection & Reliability: Calibrating ITSM Safety Derating across Repetitive Motor Starts

The repetitive surge capability of a thyristor or diode module cannot be established from the 75.0 A continuous rating alone. The supplied specifications do not state the PVC75-16 ITSM, sinusoidal half-cycle duration, peak surge current, junction-temperature condition, or associated I2t value. These parameters must be confirmed in the original NIEC technical documentation before selecting a semiconductor fuse or approving a repetitive motor-start duty.

For a repair evaluation, inspect the existing fuse part number, fuse class, clearing characteristic, and coordination documentation. A fuse with a suitable voltage rating is not automatically coordinated with the module’s surge capability. The prospective fault current, supply impedance, motor contribution, clearing time, and temperature all affect the result. The fuse and module should be assessed as a coordinated protection system rather than as independent parts.

A current probe and isolated voltage probe can help verify the relationship between the fault or inrush waveform and the protection response. Measurements should be made with suitable high-voltage equipment, controlled access, and a test procedure approved for the installation. If the waveform approaches an unknown surge limit, do not infer safe repetitive operation from the absence of immediate failure. Obtain the missing ITSM and I2t values or reduce the test scope to a nonenergized inspection.

Reverse voltage reapplication is another point requiring evidence. In a three-phase soft starter, the phase relationship, firing sequence, commutation interval, motor back EMF, and suppression network influence the voltage seen by the semiconductor. The PVC75-16 product information supplied here does not specify a commutation limit or recovery condition. Engineers should verify peak voltage during switching tests against the confirmed blocking rating and the complete circuit insulation design.

Where a MOV is used for transient absorption, its continuous operating voltage, energy capability, clamping characteristic, ageing behavior, and fault containment must be evaluated for the actual line system. A MOV should not be treated as a universal substitute for correct fuse coordination, controlled wiring inductance, or a validated snubber. The same principle applies to RC networks: their values and pulse ratings should be selected from measured switching behavior and the applicable design standard.

For field troubleshooting, compare the three phase paths with power removed first, then inspect fuse continuity, terminal pressure, gate wiring, and heatsink contact. A difference in static readings can indicate a damaged conduction path, wiring error, contamination, or a measurement setup problem. Confirm the result with a second instrument or a known-good reference before replacing the module.

PVC75-16 Circuit Protection & Reliability: Calibrating High-di/dt Gate Firing: Pulse-Train Timing

The PVC75-16 is identified as a thyristor / diode module, so gate-drive timing must be matched to the actual thyristor terminal configuration and the original controller. The supplied product parameters do not specify gate trigger current, gate trigger voltage, gate power, pulse rise time, holding current, latching current, or a required pulse-train pattern. A proposed gate-current rise rate must not be treated as a PVC75-16 requirement without a supporting NIEC document.

During a controlled bench test, confirm gate polarity from the original terminal drawing and observe the gate-to-cathode waveform with an appropriately rated isolated probe. Check that the pulse reaches the intended terminal under the real wiring arrangement and that the return path is short, defined, and separated from high-current commutation conductors. Gate ringing can be caused by wiring inductance, driver impedance, coupling from the power loop, or an unsuitable pulse source; the waveform should be compared with a known-good assembly before changing components.

Pulse-train firing may be useful when the controller must maintain triggering across a changing line current or noisy industrial environment, but the pulse width, repetition rate, amplitude, and duty cycle are system decisions constrained by the verified gate limits. Do not assume that a longer or stronger pulse improves reliability. Excess gate energy, poor return routing, or repeated false triggering can increase stress without solving the original commutation problem.

The Precision Gate Drive Design reference can support a broader review of gate-loop layout, damping, pulse integrity, and measurement practice. It should be used as an engineering reference rather than as a substitute for the PVC75-16 gate specifications. When integrating the module into a soft starter, designers should verify firing symmetry across all phases, confirm the controller’s inhibit behavior during faults, and test the complete power stage at the intended operating temperature.

Before reconnecting a serviced module, inspect the mounting interface, confirm terminal polarity, check the protection network, and verify that the control board is deenergized. Safety Interlock Note: disconnect and verify the absence of hazardous voltage before inserting or removing any module, gate lead, probe, or power cable.
