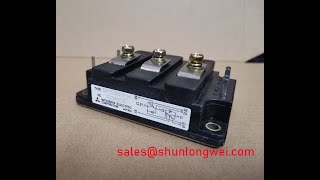

Mitsubishi QM150DY-H Darlington Transistor Module | Rugged 6-Pack for Industrial Power Control
The Mitsubishi QM150DY-H is a high-power Darlington Transistor Module engineered for exceptional reliability in demanding industrial power conversion systems. This module integrates six Darlington transistors with free-wheeling diodes into a single, robust IGBT module packaging, creating a complete three-phase inverter bridge. Designed for 600V/150A operation, the QM150DY-H is the go-to solution for applications prioritizing durability and proven performance over ultra-high switching frequencies.
Technical Deep Dive: Core Strengths of the QM150DY-H
While modern IGBTs have advanced, the foundational technology of the Mitsubishi QM150DY-H offers distinct advantages in specific operational contexts. Its design philosophy centers on stability and power handling capability.
- High DC Current Gain (hFE): The Darlington configuration provides exceptionally high current gain. This simplifies the gate drive circuitry, as the module requires less input current to achieve full saturation. For engineers, this translates to reduced complexity and cost in the driver stage design, a critical factor in cost-sensitive industrial automation projects.
- Integrated Free-Wheeling Diodes (FWD): Each transistor is paired with an FWD. This is crucial for inductive loads, such as electric motors, where the diodes provide a safe path for current to circulate when the transistor switches off. This integration minimizes voltage spikes, protects the transistors, and simplifies the overall three-phase IGBT inverter design.
- Electrically Isolated Baseplate: The module features a baseplate that is electrically isolated from the power terminals (rated at 2500V AC). This allows multiple modules to be mounted onto a common heatsink without the need for additional insulating pads, streamlining mechanical assembly and improving thermal transfer efficiency.
Application Scenarios: Where Reliability Meets Performance
The robust construction and electrical characteristics of the QM150DY-H make it an ideal choice for the following high-stress environments:
- AC Motor Drives: In variable frequency drives (VFDs), this module provides the rugged power stage needed to control three-phase induction motors. Its ability to handle high current surges during motor startup and braking makes it a reliable workhorse for conveyors, pumps, and fans.
- Uninterruptible Power Supplies (UPS): For industrial-grade UPS systems, long-term reliability is paramount. The QM150DY-H's proven design ensures stable power inversion, protecting critical infrastructure from power disturbances.
- Welding Equipment: Welding applications demand components that can withstand intense, cyclical current loads. This module's high power handling and thermal stability are essential for building durable and consistent welding power sources. Need a different power component? Explore More IGBT Modules to find the perfect fit.
Key Technical Parameters at a Glance
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 600V |
| Collector Current (IC) | 150A |
| Collector-Emitter Saturation Voltage (VCE(sat)) | 2.5V (Max) |
| DC Current Gain (hFE) | 75 (Min) |
| Isolation Voltage (Visol) | 2500V (AC, 1 min.) |
| Package Type | H-Series Module |
For a comprehensive list of specifications, please refer to the official QM150DY-H Datasheet.
Selection Guidance: Darlington vs. Modern IGBTs
When choosing a power module, it's essential to understand the trade-offs. The Mitsubishi QM150DY-H offers a compelling case for systems where simplicity and ruggedness are key.
- QM150DY-H (Darlington): Best for low-to-medium frequency applications (<5 kHz) like AC motor drives and welders. Its higher Vce(sat) results in more conduction loss, but the simpler gate drive can be an advantage.
- Modern Trench/FS IGBT Modules: These are superior for high-frequency applications ( >10 kHz) like solar inverters and high-efficiency UPS systems. They offer lower Vce(sat) and faster switching, reducing overall power loss, but often require more sophisticated gate drive circuits. The choice between BJT vs IGBT technology fundamentally depends on the application's efficiency and frequency requirements.
Frequently Asked Questions (FAQ)
- What are the main considerations for driving the QM150DY-H?As a Darlington module, it is current-driven. Ensure your gate driver can supply sufficient base current (specified in the datasheet) to fully saturate the transistor and minimize conduction losses.
- How do I ensure proper thermal management for this module?A flat, clean heatsink surface is critical. Use a quality thermal interface material (TIM) and ensure proper mounting torque is applied to the module's screws to minimize thermal resistance and prevent overheating under load.
For customized solutions or to discuss your specific power conversion needs, do not hesitate to Contact Us for a Quote. Our team of experts is ready to help you select the optimal components for your system.
