SEMIX453GB12E4S: Engineering a New Standard for Reliability in 1200V Power Modules
An In-Depth Technical Review for Power System Designers

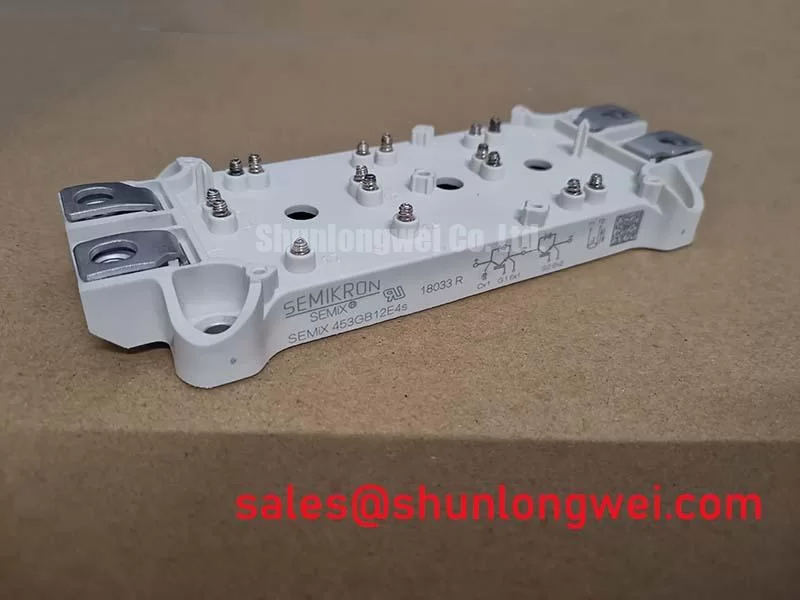

The SEMIX453GB12E4S is a high-performance half-bridge IGBT module designed for demanding power conversion systems. It delivers superior operational reliability through a solder-free spring contact system, eliminating a primary cause of module failure in high-vibration and thermally cyclic environments. With its core specifications of 1200V Collector-Emitter Voltage and a 450A nominal Collector Current, this module provides robust power handling and exceptional long-term stability. Key benefits include drastically enhanced system lifetime and simplified, highly reliable thermal management. For engineers designing high-vibration industrial drives or renewable energy systems requiring maximum uptime, the SEMIX453GB12E4S's spring-contact design offers unparalleled long-term reliability.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal and Electrical Performance
The electrical and thermal characteristics of the SEMIX453GB12E4S are a direct result of its advanced internal design, featuring Trench Field-Stop IGBT 4 (T4) technology and a complementary CAL 4 freewheeling diode. These specifications are foundational to achieving high efficiency and ensuring system robustness under demanding load conditions.
| IGBT Characteristics (per switch, at Tvj = 25 °C unless otherwise specified) | |
|---|---|
| Collector-Emitter Voltage (Vces) | 1200 V |
| Continuous Collector Current (Ic,nom) | 450 A (Tc = 25 °C) |
| Collector-Emitter Saturation Voltage (VCE(sat)) | 1.7 V (Typ. at Ic,nom, Tvj = 25 °C) | 2.15 V (Typ. at Ic,nom, Tvj = 125 °C) |
| Gate-Emitter Threshold Voltage (VGE(th)) | 5.0 V to 6.5 V |
| Diode Characteristics (per switch, at Tvj = 25 °C unless otherwise specified) | |
| Forward Voltage (VF) | 1.7 V (Typ. at IF = 450 A, Tvj = 25 °C) | 1.8 V (Typ. at IF = 450 A, Tvj = 125 °C) |
| Peak Reverse Recovery Current (Irrm) | 470 A (Typ. at Tvj = 125 °C) |
| Thermal and Mechanical Specifications | |
| Thermal Resistance, Junction to Case (Rth(j-c)) | 0.17 K/W (per IGBT) | 0.28 K/W (per Diode) |
| Operating Junction Temperature (Tvj,op) | -40 °C to +150 °C |
| Integrated Temperature Sensor | NTC Thermistor |
Download the official SEMIX453GB12E4S datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Achieving System-Level Benefits in High-Reliability Power Systems
The SEMIX453GB12E4S is engineered for applications where operational availability and long-term reliability are paramount. The positive temperature coefficient of its VCE(sat) is a critical feature for safe paralleling of modules to scale power output, ensuring even current distribution without the risk of thermal runaway. This makes it a strong candidate for high-power inverter stacks. What is the key reliability feature of the SEMIX453GB12E4S? Its solder-free spring contact system eliminates solder fatigue failures, a common wear-out mechanism in conventional modules.
- AC Inverter Drives: In demanding industrial motor drives, the module's mechanical robustness from its spring contacts ensures reliable operation even in high-vibration factory environments, directly contributing to reduced machine downtime.
- Uninterruptible Power Supplies (UPS): For critical infrastructure, the high short-circuit capability and thermal headroom provide the resilience needed to handle unexpected load conditions, ensuring continuity of power.
- Renewable Energy Inverters: In solar and wind power converters, which experience significant daily thermal cycling, the elimination of solder joints via spring contacts directly translates to a longer service life, improving the total cost of ownership (TCO) of the energy installation.
For systems that require different power levels but similar reliability features, designers may also evaluate the SEMIX303GB12E4S or the higher-current SEMIX604GB12VS to optimize component selection based on specific load profiles.
Technical Deep Dive
A Closer Look at the Solder-Free Spring Contact System
The defining feature of the SEMIX453GB12E4S is its reliance on Semikron's proven spring contact technology for all signal and power connections. This design choice fundamentally addresses a primary failure point in traditional power modules: solder joint fatigue. Think of a conventional solder joint like a rigid metal bridge. Every time the module heats up and cools down, this bridge expands and contracts. Over thousands of cycles, microscopic cracks form and grow, eventually leading to a complete electrical failure. This is particularly problematic in applications like renewable energy, where power generation fluctuates throughout the day, causing significant temperature swings.
The spring contact system replaces this rigid bridge with a flexible, high-force connection. It acts more like a suspension system in a car, constantly adjusting to maintain a reliable connection despite the expansion and contraction of the surrounding materials. This flexibility provides several distinct engineering advantages:
- Enhanced Power Cycling Capability: The module can withstand a far greater number of thermal cycles before wear-out, directly extending the operational lifetime of the end-system.
- Vibration Immunity: The constant pressure of the springs ensures a secure connection that is highly resistant to loosening or intermittent faults caused by mechanical shock and vibration, a critical requirement for motor drives and transportation applications.
- Simplified Assembly and Service: The press-on nature of the connections allows for faster, more reliable mounting and dismounting, simplifying both initial assembly and any potential field service.
By replacing solder with a superior mechanical connection, the module's design provides a level of long-term reliability that is difficult to achieve with conventional technologies. This is a crucial consideration for any engineer aiming to build a truly robust and durable power electronics system.
Frequently Asked Questions (FAQ)
What is the primary benefit of the Trench IGBT 4 technology used in the SEMIX453GB12E4S?
Trench IGBT 4 technology provides an excellent balance between low collector-emitter saturation voltage (VCE(sat)) and reduced switching losses. This dual benefit leads to higher overall inverter efficiency by minimizing both conduction losses during the on-state and energy loss during switching transitions.
How does the integrated NTC thermistor improve system design?
The built-in NTC thermistor allows for precise, real-time temperature monitoring of the module's baseplate. This data is critical for implementing effective over-temperature protection, preventing the module from operating beyond its safe thermal limits. It also enables advanced strategies like dynamic performance optimization, where the system can adjust its output based on the module's current thermal state.
Are special tools required to mount a module with spring contacts?
Mounting a SEMiX module with spring contacts requires a specific mounting jig or tool that ensures even pressure is applied across the module during installation. This guarantees that all spring contacts are properly engaged with the PCB, ensuring a reliable, low-resistance connection for both the main terminals and the auxiliary contacts.
To further explore the engineering principles behind this module, consider reviewing resources on unlocking IGBT thermal performance and the fundamental design of an IGBT module. For detailed information on the core technologies, refer to documentation from Semikron.
For technical inquiries or to request a quote for the SEMIX453GB12E4S, please contact our technical sales team for assistance.
