SKD110/04: The Engineer's Bridge Rectifier for High-Reliability Industrial Power

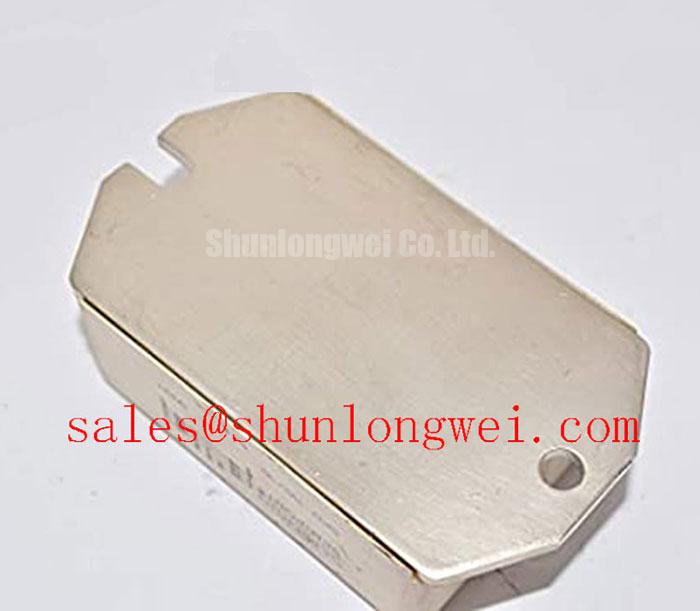

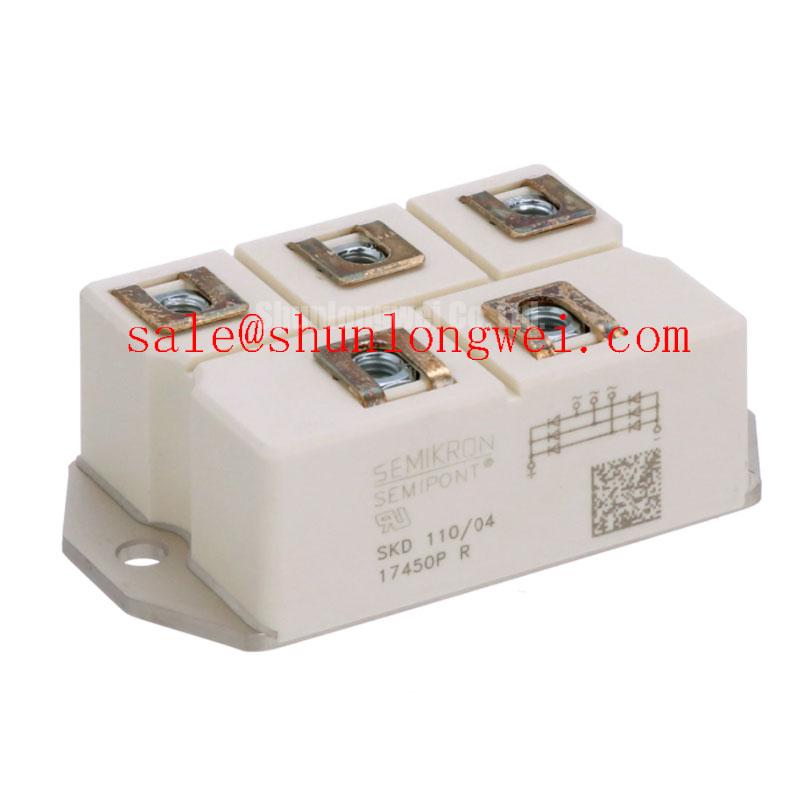

The SKD110/04 by Semikron is a three-phase, uncontrolled bridge rectifier module engineered for robust performance in demanding industrial power conversion systems. It delivers a dependable **400V** reverse voltage rating and a substantial **110A** output current capability, all housed within the industry-proven SEMIPONT® 4 package. Key benefits include superior thermal efficiency and high surge current tolerance. This module directly addresses the need for a durable front-end rectifier in systems susceptible to line voltage fluctuations and inrush currents, making it the optimal choice for creating a stable DC bus in high-power variable frequency drives.
Application Scenarios & Value
Delivering a Stable DC Bus in Demanding Industrial Environments
The **SKD110/04** is engineered to be the dependable front-end of high-power conversion systems. Its primary function is the full-wave rectification of three-phase AC input, establishing a stable DC bus which is critical for the subsequent inverter or DC/DC stages. For an OEM engineer designing a **Variable Frequency Drive (VFD)**, the primary challenge at the input stage is handling not only the continuous load but also the high inrush currents during startup and potential overvoltage from the AC line. The **SKD110/04**'s high surge current rating (**I_FSM** of **1200A** at 25°C) provides the necessary resilience to withstand these punishing conditions without degradation, a crucial factor in ensuring the long-term reliability of a motor drive.
This module is particularly well-suited for:
- Input rectifiers for **Variable Frequency Drives (VFDs)** up to approximately 45 kW.
- High-capacity power supplies for industrial automation and control systems.
- DC motor field supplies where ruggedness and thermal stability are paramount.
- Battery charging systems requiring high current and dependable performance.
Its robust construction and electrical characteristics ensure it can serve as a cornerstone component in systems governed by standards like IEC 61800-3 for adjustable speed electrical power drive systems. For applications demanding higher voltage withstand, such as those on a 690V line, the related SKD160/16 offers a blocking voltage of 1600V.
Key Parameter Overview
Critical Specifications Highlighting Thermal and Electrical Robustness
The technical specifications of the **SKD110/04** underscore its suitability for high-stress industrial environments. The parameters are optimized for thermal stability and electrical ruggedness, which are critical factors in achieving a long operational lifespan. Understanding these values is key to maximizing system performance, a topic further explored in our guide to decoding power module datasheets.
| Parameter | Value | Engineering Significance |
|---|---|---|
| Repetitive Peak Reverse Voltage (V_RRM) | 400V | Provides sufficient margin for standard 230V three-phase systems, ensuring reliability against line voltage swells. |
| DC Output Current (I_D) | 110A (at T_case = 100°C) | Highlights the module's strong current handling capacity even at elevated operating temperatures, a core requirement for power density. |
| Max. Surge Forward Current (I_FSM) | 1200A (10ms, T_vj = 25°C) | Critical for surviving the high inrush currents typical of motor start-ups or capacitor charging, preventing premature failure. |
| Thermal Resistance, Junction to Case (R_th(j-c)) | 0.15 °C/W (total) | A low thermal resistance is crucial for efficient heat extraction, enabling more compact heatsink designs and improving overall system reliability. The importance of this parameter is detailed in our analysis of unlocking thermal performance. |
| Isolation Voltage (V_isol) | 3000V~ (1 min) | Ensures high electrical isolation between the terminals and the baseplate, which is a fundamental safety requirement for equipment and personnel. |
Download the SKD110/04 datasheet for detailed specifications and performance curves.
Technical Deep Dive
The Engineering Behind the SEMIPONT® 4's Durability
The long-term reliability of a power module like the **SKD110/04** is not just a function of its silicon, but also its mechanical and thermal design. The SEMIPONT® 4 housing utilizes a large, isolated copper baseplate. This design choice is fundamental to the module's performance. The low total thermal resistance of **0.15 °C/W** is a direct result of this construction. To put this into perspective, think of thermal resistance as the thickness of insulation on a hot water pipe. A lower value, like that of the SKD110/04, is akin to thinner insulation, allowing heat to escape the diode junctions and transfer to the heatsink much more effectively. This efficiency directly translates to lower operating junction temperatures, which is the single most important factor in extending the operational life and preventing common modes of failure in power electronics.
Furthermore, the internal construction with robust screw terminals provides a secure and reliable electrical connection, resistant to vibration and thermal cycling. The surge current capability, represented by the I²t value of **7200 A²s**, can be thought of as the module's ability to absorb a sudden "punch" of energy. It's analogous to a mechanical shock absorber; it quantifies the thermal energy the device can withstand during a non-repetitive fault event (like an AC line short-circuit) before failure, a critical safety parameter for any robust power system. This level of built-in resilience simplifies the design of protective circuits and enhances the overall ruggedness of the end application.
Frequently Asked Questions (FAQ)
What is the primary benefit of the 110A rating at a high case temperature of 100°C?
This specification demonstrates excellent thermal performance, allowing the **SKD110/04** to maintain high current output in compact designs or high-ambient-temperature environments where maintaining a low case temperature is challenging and costly. It provides engineers with greater thermal design margin.
How does the SKD110/04's isolated baseplate simplify system design?
The integrated isolation, rated for **3000V**, allows the module to be mounted directly to a grounded chassis or a common heatsink shared with other components without the need for additional, often thermally inefficient, insulating layers. This simplifies mechanical assembly, reduces part count, and improves thermal transfer.
What does the 1200A surge current rating (I_FSM) mean for a VFD application?
It signifies the module's ability to reliably withstand the large, brief inrush current that occurs when the DC bus capacitors in a **Variable Frequency Drive (VFD)** are first charged upon power-up. This robustness prevents rectifier failure during the most common stress events, enhancing field reliability.
Is the SKD110/04 suitable for use on a 400V nominal AC line?
Yes. The module's **400V** V_RRM rating is specified for the rectifier's blocking capability. For a three-phase 230V AC system, the peak DC voltage is well within this limit, providing a safe operating margin. It is designed precisely for these standard industrial voltage levels.
From a strategic perspective, the **SKD110/04** serves as a foundational building block for cost-effective and reliable industrial power conversion. Its integration of high current capacity and robust thermal management within a standard, easy-to-mount package allows engineering teams to streamline their design and manufacturing processes, focusing resources on higher-level system innovation rather than on complex discrete rectifier designs.
