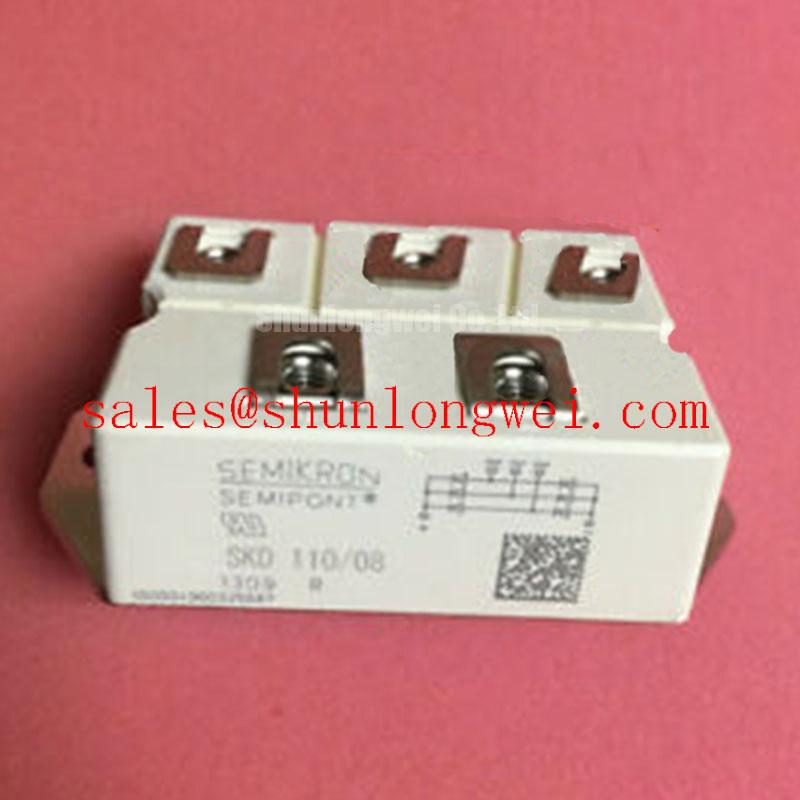

Datasheet directory SKD110/08
.Robust plastic case with screw terminals
.Large,solated base pate
.Blocking woltage up to 1400V
.High surg crrents
.Therr phase bridge rectifer
.Easy chassis mounting
Typical Applications
.Three phase rectifiers for power supplies
.Rectifiers for DC motor field supplies
.Battery charger rectifiers
1）Available in limited Quantities
2)Mounted on a painted metal sheet of min.250*250*1mm;Rth(c-a）＝1,4K/W
Absolute maximum ratings (Tc=25°C unless without specified)
Collector-Emitter voltage Vces:800V
Gate-Emitter voltage VGES:±20V
Collector current Ic Continuous Tc=25°C :110A
Collector current Icp 1ms Tc=25°C :220A
Collector power dissipation Pc:900W
Isolation Voltage VIsol (AC 1 minute) :3600V
Operating junction temperature Tj:+150°C
Storage temperature Tstg :-40 to +125°C
Mounting screw torque 5±15% N·m
Weight 270g
