SKD110/16 Semikron 3-Phase Bridge Rectifier: 1600V 110A Engineering Analysis
The SKD110/16, manufactured by Semikron Danfoss, delivers exceptional surge current robustness and thermal stability, forming a highly reliable rectification front-end for heavy-duty industrial systems. Featuring core specifications of 1600V, 110A, and an isolation voltage of Visol 3000V, this three-phase diode bridge module is engineered for uncompromising performance. What is the primary benefit of the isolated baseplate? It ensures safe thermal management by separating electrical paths from the heatsink. By providing a high I²t rating, this component inherently limits fault damage during grid transients. Furthermore, the standardized isolated baseplate dramatically simplifies heatsink mounting procedures and reduces assembly time.
Application Scenarios & Value
Taming Inrush Currents in Variable Frequency Drives
For 400V to 690V industrial AC drives prioritizing thermal margin and surge handling, this 1600V diode bridge is the optimal choice. Engineers often face significant challenges when designing the AC-to-DC rectification stages for high-inertia loads. When a large Variable Frequency Drive (VFD) or an AC motor drive powers up an industrial conveyor system, the initial inrush current can easily exceed the steady-state load by a factor of ten. The SKD110/16 excels in these precise environments.
By integrating this module into the inverter front-end, engineers can leverage its robust 1150A surge forward current capability to absorb startup spikes without risking semiconductor degradation. In Uninterruptible Power Supply (UPS) topologies, it reliably acts as the primary power conversion block before the PFC stage, ensuring grid transients do not cascade into sensitive downstream inverter components. While this model handles 110A efficiently, for systems requiring higher continuous current capacities under the same form factor, the related SKD160/16 provides elevated current handling. Alternatively, for applications with lower power requirements, the SKD115/16 is another valuable complement in the same ecosystem.
Technical Deep Dive
Decoding the Thermal Architecture for Prolonged Field Reliability

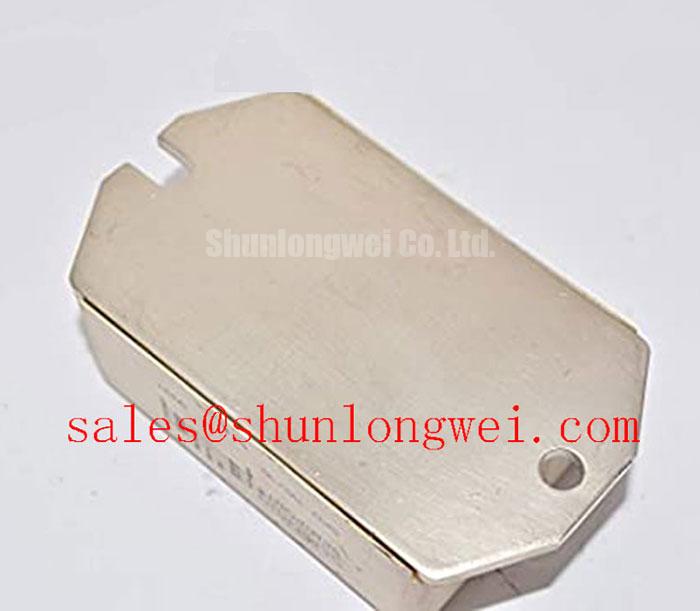

The true engineering value of the SKD110/16 lies beyond its voltage rating; it is anchored in its advanced mechanical and thermal management architecture. Operating a three-phase bridge rectifier at continuous currents approaching 110A generates substantial localized heat. To combat this, the module utilizes a high-grade isolated copper baseplate. Think of the isolated baseplate as a thermal superhighway with built-in traffic barriers; it rapidly moves heat away from the silicon die to the external cooling surface while strictly blocking any electrical current from reaching the chassis. This ensures safety and maximizes heat dissipation efficiency.
Furthermore, the module's internal construction is optimized for extreme power cycling. The high I²t surge rating (approximately 6600 A²s) acts like an electrical shock absorber, effortlessly absorbing transient power spikes from heavy industrial loads without degrading the internal semiconductor structure. This characteristic is critical for heavy-duty industrial drives where line disturbances are frequent. The rigid screw terminal connections also eliminate the risk of solder fatigue caused by the micro-movements inherent in high-vibration industrial environments, granting the system enhanced mechanical resilience.
Key Parameter Overview
Critical Specifications for System-Level Integration
The following table categorizes the core parameters of the SKD110/16 based on functional relevance, assisting hardware designers in evaluating system compatibility.
| Functional Group | Parameter | Value / Rating |
|---|---|---|
| Maximum Ratings | Repetitive Peak Reverse Voltage (V_RRM) | 1600V |
| Maximum Ratings | Output Current (I_D) @ Tc = 100°C | 110A |
| Electrical Characteristics | Surge Forward Current (I_FSM) @ 10ms | 1150A |
| Electrical Characteristics | Fusing Integral (I²t) | 6600 A²s |
| Thermal & Mechanical | Isolation Voltage (Visol) | 3000V |
| Thermal & Mechanical | Mounting Style | Screw Terminals / Isolated Baseplate |
Download the SKD110/16 datasheet for detailed specifications and performance curves.
Frequently Asked Questions
Expert Answers on Protection and Thermal Sizing
- How does the 6600 A²s I²t rating of the SKD110/16 impact semiconductor fuse selection in Variable Frequency Drives?
The I²t rating determines the thermal energy the diode can withstand during a short-circuit event. Engineers must select a high-speed semiconductor fuse with an I²t let-through value strictly lower than 6600 A²s to ensure the fuse clears the fault before the rectifier bridge is irreversibly damaged. - What are the key thermal design considerations when mounting the SKD110/16's isolated baseplate?
To achieve the documented thermal resistance, it is mandatory to apply a uniform, ultra-thin layer of high-quality thermal interface material (TIM) between the baseplate and the heatsink. Proper torque specifications must be strictly adhered to during screw fastening to prevent baseplate warping and eliminate insulating air gaps.
