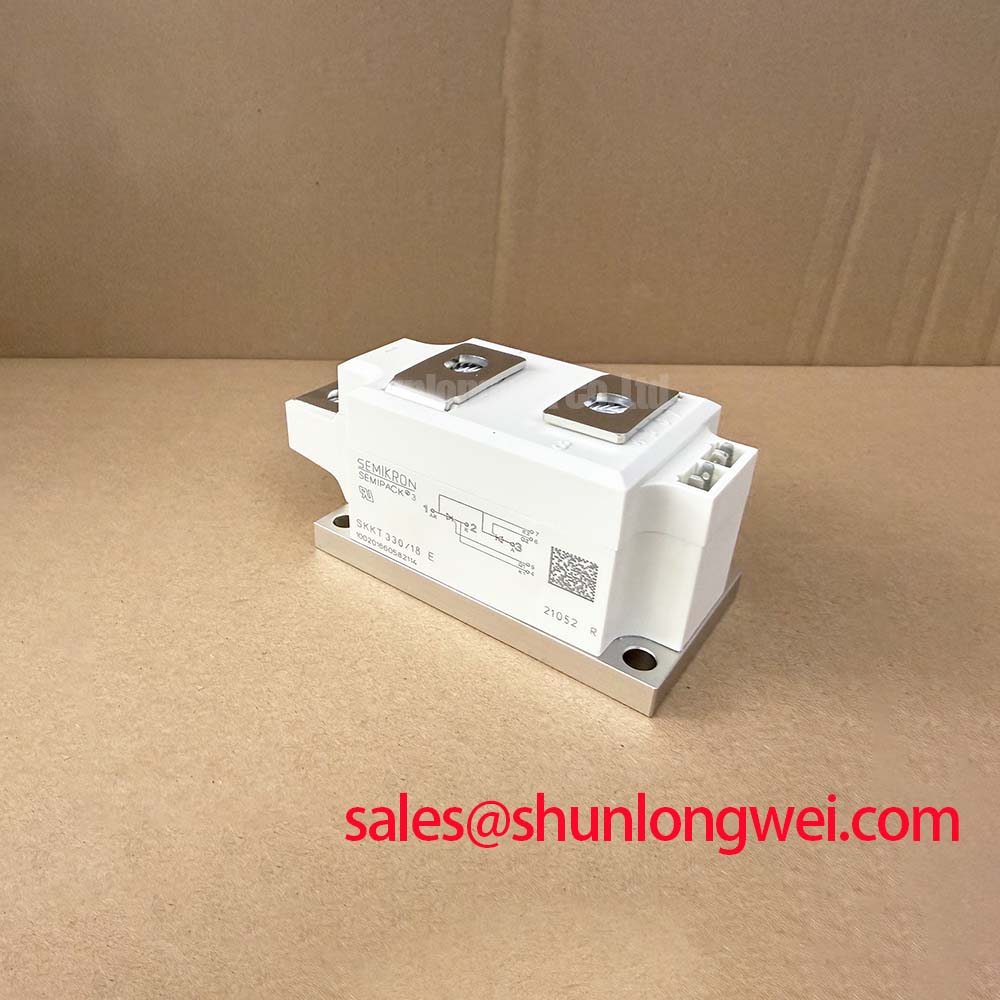

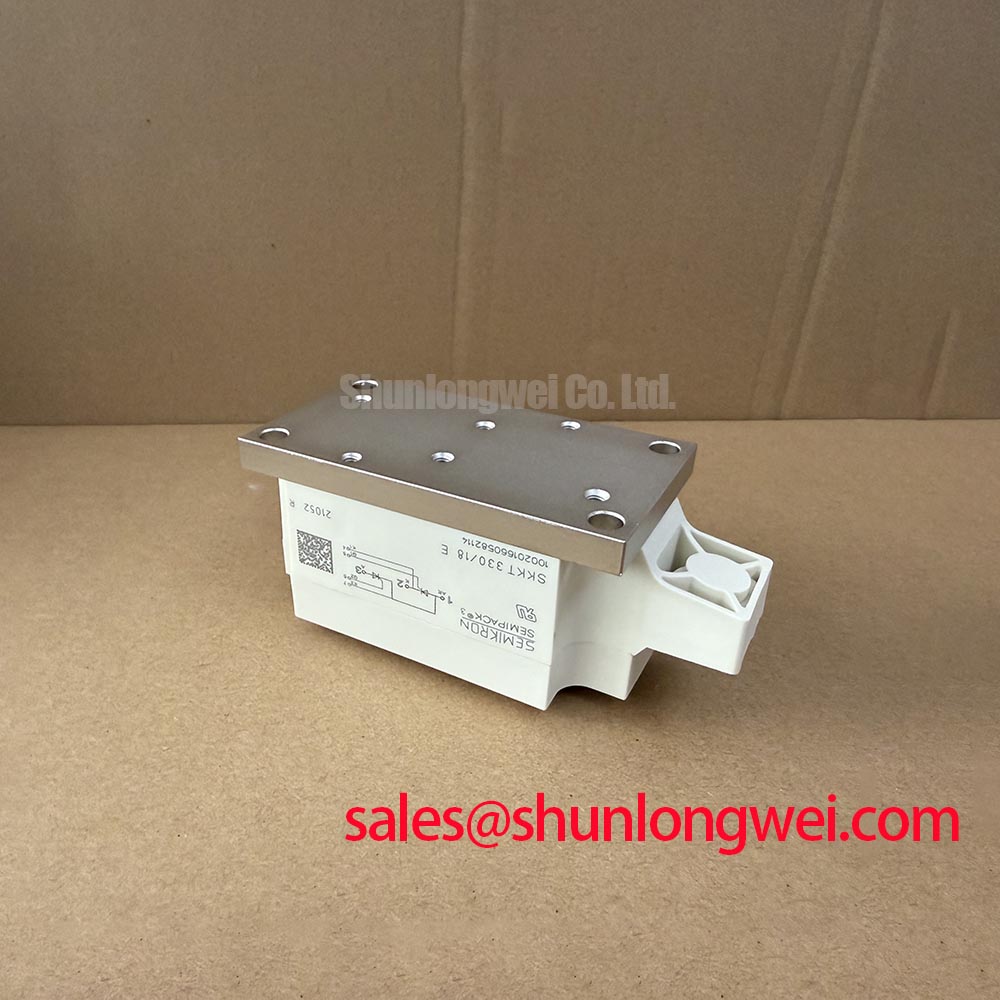

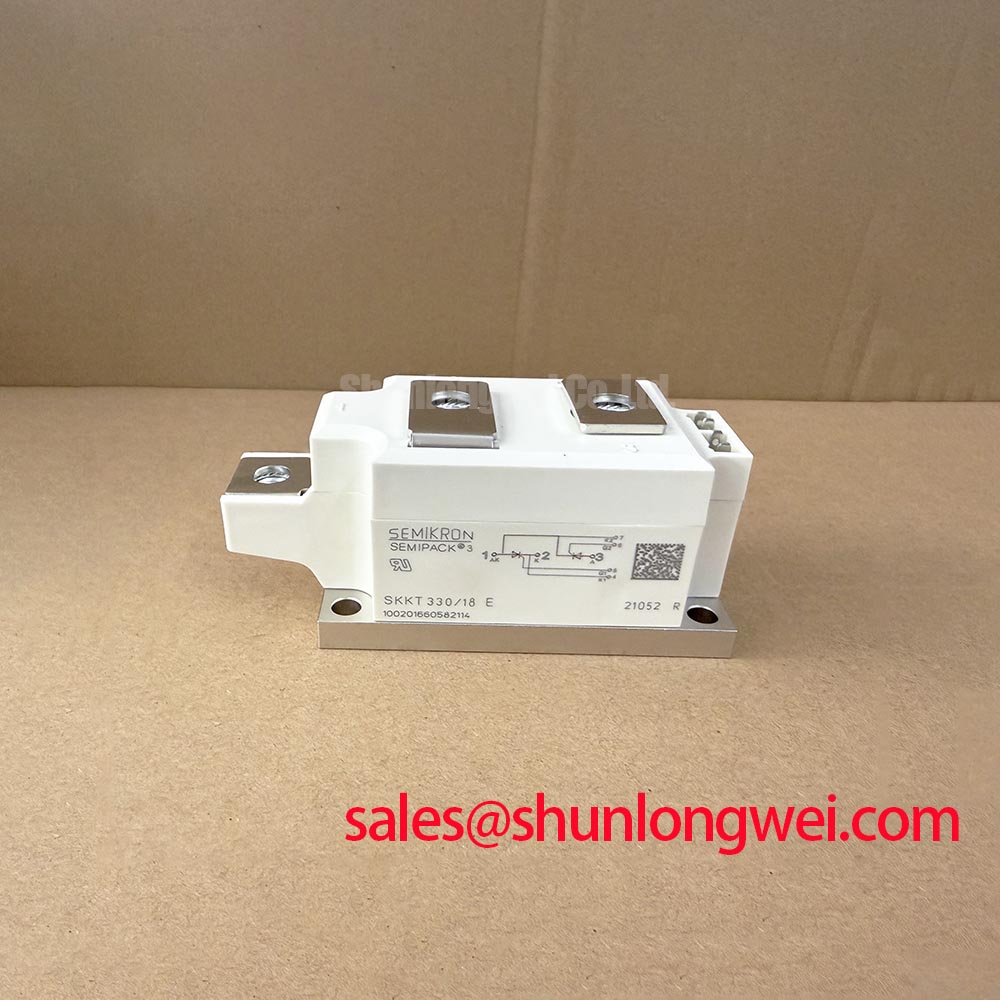

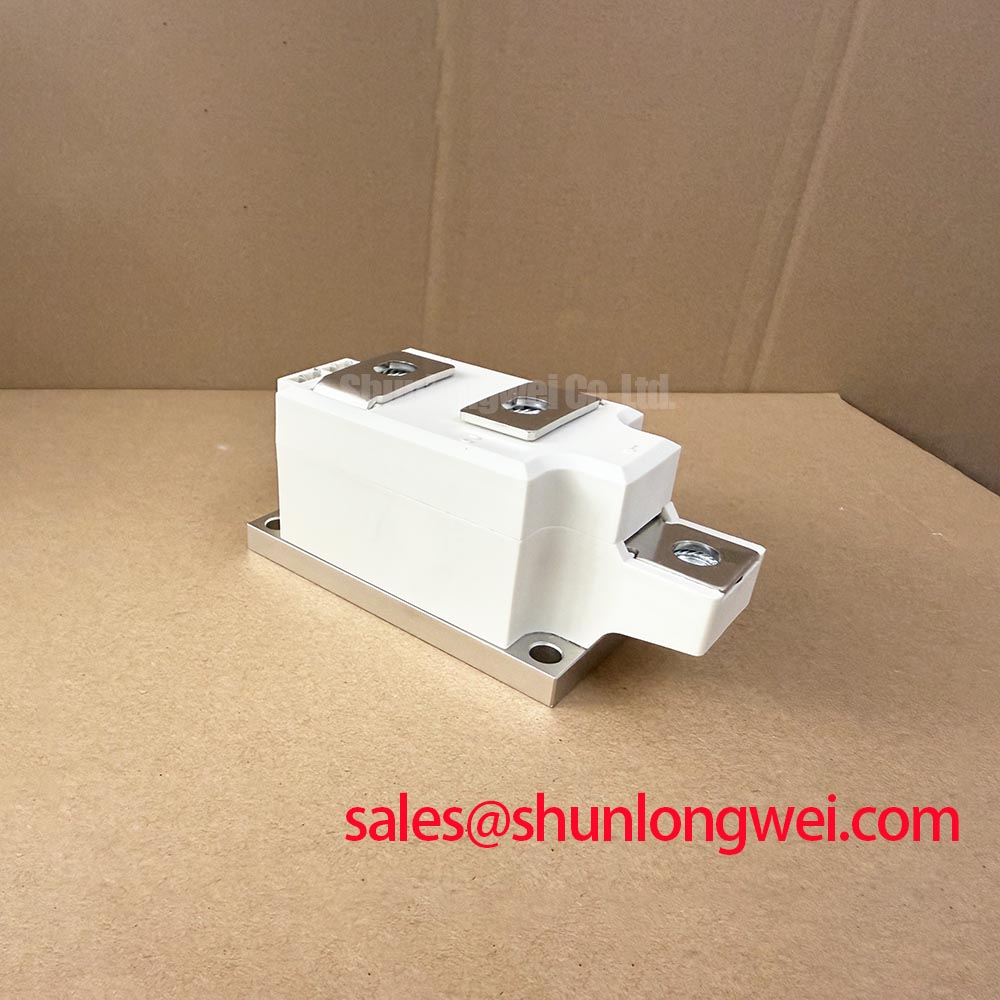

SKKT 330/18E Semikron 1800V 330A Thyristor/Diode Module

Content last revised on September 21, 2026

Field Diagnostics & Commissioning: Thermal Interface Material Spreading across SKKT 330/18E Topologies

Remove old thermal compound from both the copper baseplate and heatsink mounting surface before installation. The contact faces should be clean, flat, and free from burrs, oxide debris, and localized pressure marks. Apply thermal interface material as a thin, continuous layer sufficient to fill surface irregularities; the correct quantity is system dependent and should be confirmed during assembly validation rather than treated as a fixed module parameter.

The official 0.11 K/W Rth(j-c) value is specified per thyristor. It does not represent the complete thermal path from junction to ambient. Heatsink resistance, interface resistance, airflow, enclosure temperature, and neighboring power devices must be included in the thermal assessment. During commissioning, record heatsink temperature and terminal-side temperature under a controlled load, then compare phases for unusual deviation. A phase imbalance may require inspection of cable resistance, gate triggering, mounting pressure, or load symmetry rather than immediate replacement of the module.

Use the SEMIPACK 3 mounting arrangement and the manufacturer’s mechanical instructions for the actual hardware and tightening sequence. The supplied parameter set does not establish a model-specific mounting torque, so the maintenance team should verify that value from the applicable Semikron mechanical drawing before final tightening. Terminal connections should be clean, correctly identified, and tightened according to the relevant manufacturer documentation. ⚠️ Maintenance Note: Schedule heatsink cleaning and thermal-interface inspection while monitoring contact temperature and airflow, especially where dust or condensation can accumulate.

For equipment using several semiconductor positions, the replacement decision should also consider electrical topology and current-sharing requirements. The compatible-device evaluation may include SKKH273/18E, but its ratings, circuit function, and mechanical compatibility must be checked independently before use.

Field Diagnostics & Commissioning: High-di/dt Gate Firing: Pulse-Train Timing in SKKT 330/18E Topologies

Gate commissioning should begin with the original control schematic, terminal identification, and the specified Semikron gate-trigger data for the exact circuit arrangement. The supplied factory parameter set confirms the main voltage, current, thermal, housing, and isolation ratings, but it does not provide gate trigger current, gate trigger voltage, gate pulse rise time, holding current, or a guaranteed multi-pulse timing sequence. Those values should not be inferred from the 330 A nominal class.

For a high-voltage three-phase soft starter, inspect the gate-driver wiring for excessive loop area, loose return connections, insulation damage, and coupling from the main current path. Oscilloscope measurements should be made using suitable differential and isolation practices. Confirm that the trigger waveform reaches the required gate conditions at the device terminals, not only at the controller output. If a pulse-train strategy is used, the system designer should verify firing consistency across phases and across the expected temperature and load range.

A repeated gate command does not by itself prove correct thyristor turn-on. The commissioning record should correlate gate activity with the main terminal voltage and load current, while checking for missed firing, uneven phase conduction, or abnormal commutation behavior. Any requested negative gate bias, shielding method, or common-mode filtering is a system design choice and must be validated against the driver documentation and the finished insulation system.

SKKT 330/18E Circuit Protection & Reliability: Calibrating Minimizing Commutation Turn-Off Voltage

In a controlled rectifier or soft-starter circuit, commutation performance depends on the supply impedance, wiring inductance, load characteristics, firing angle, and the thyristor’s specified recovery behavior. The available official data identifies the reverse-voltage boundary as 1800 V VRRM, but it does not provide thyristor recovery current, recovery time, softness factor, or a guaranteed EMI level for the assembled equipment.

Keep high-current commutation paths compact and arranged to reduce unnecessary parasitic inductance. The system engineer should verify peak voltage at the module terminals during switching and compare the measured result with the applicable device and insulation limits. A probe connected at the controller or a remote busbar point may not capture the actual semiconductor terminal transient.

EMI assessment belongs to the complete soft-starter assembly, including the enclosure, cable routing, control wiring, suppression network, and grounding arrangement. This discrete power module should not be described as independently certified to an equipment EMC standard. For background on power conversion behavior in appliance and industrial power stages, review Resonant Topologies in Home Appliances and compare the topology discussion with the actual soft-starter schematic.

The manufacturer’s Semikron SEMIPACK thyristor and diode module reference should be used alongside the exact product documentation when assessing recovery behavior, isolation, and installation requirements.

Field Diagnostics & Commissioning: Short-Circuit Withstand Limits: Coordinating SKKT 330/18E Protection

The published 9500 A ITSM value is a surge on-state current rating under the stated test condition of 25°C and 10 ms. It is not a universal short-circuit withstand guarantee and should not be used as a substitute for semiconductor fuse coordination. Protection selection must use the manufacturer’s applicable fuse coordination information, prospective fault current, supply impedance, clearing time, and installation conditions.

When the fuse I²t value is compared with the semiconductor withstand requirement, use the exact pre-arcing and total-clearing data for the selected fuse family. The supplied product parameters do not include a fuse I²t coordination table, so a numerical clearing-energy limit cannot be assigned to this module here. The protection study should also consider repetitive overloads, fuse tolerance, ambient temperature, cable impedance, and the behavior of upstream breakers.

After a protective event, isolate the equipment and inspect the module, fuse, busbars, gate wiring, heatsink interface, and insulation barriers before applying test voltage. Check for changed terminal resistance, visible housing damage, contamination paths, and mechanical movement. A satisfactory low-voltage inspection does not replace the controlled dielectric and functional tests required by the equipment procedure. The 3000 V isolation voltage for 1 minute is an official module specification; the assembled starter’s insulation verification remains dependent on the complete construction and applicable safety requirements.
