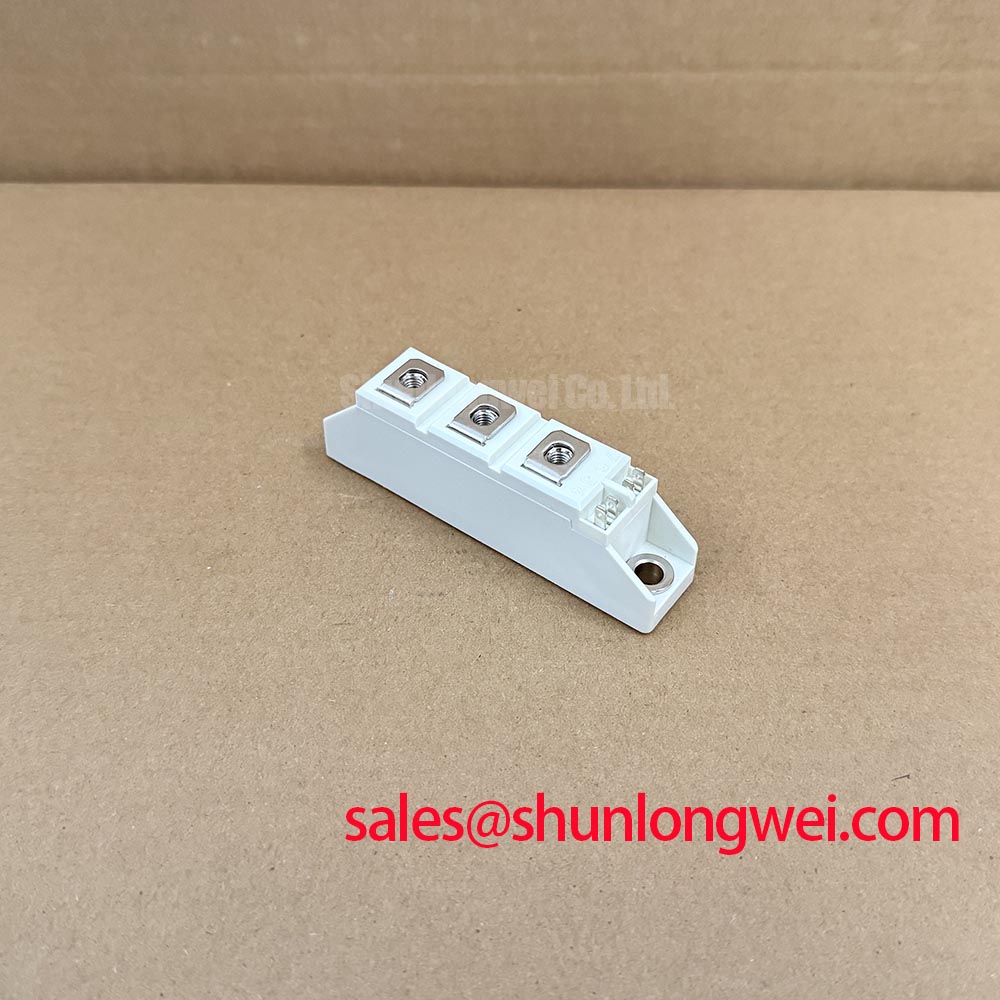

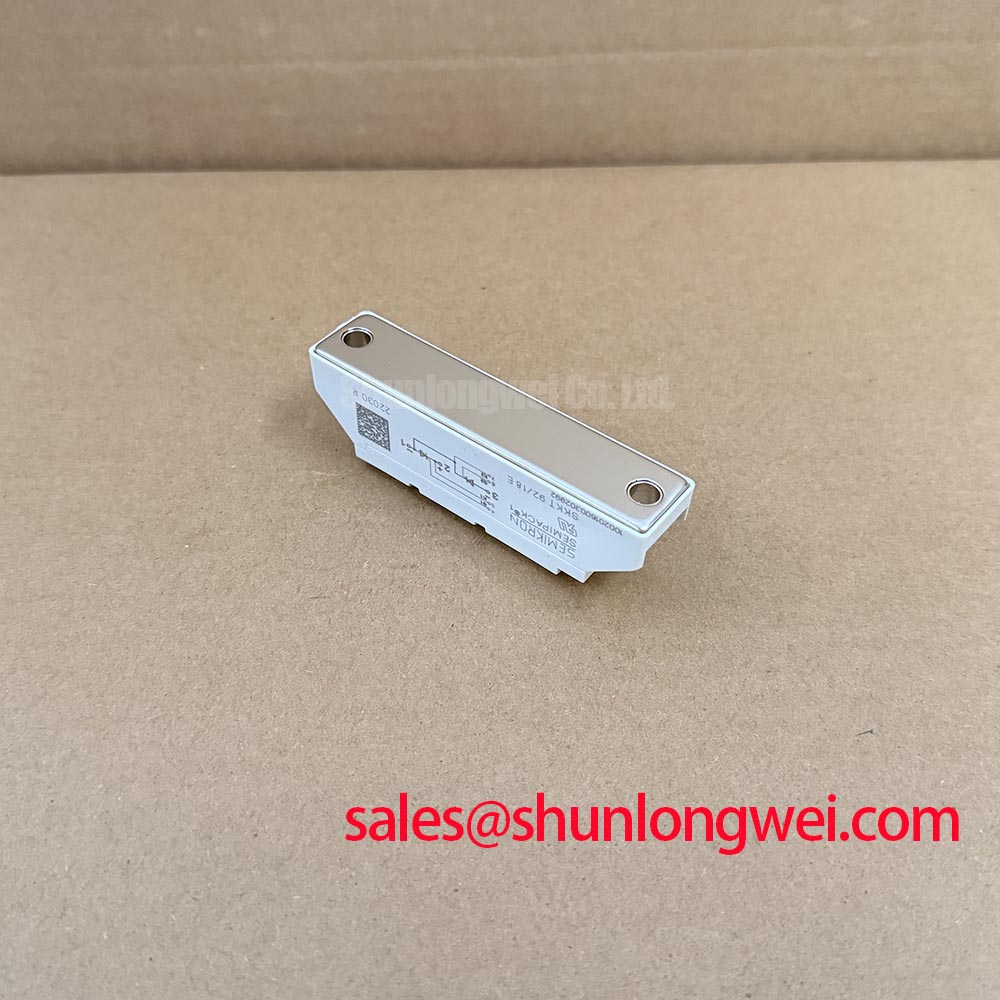

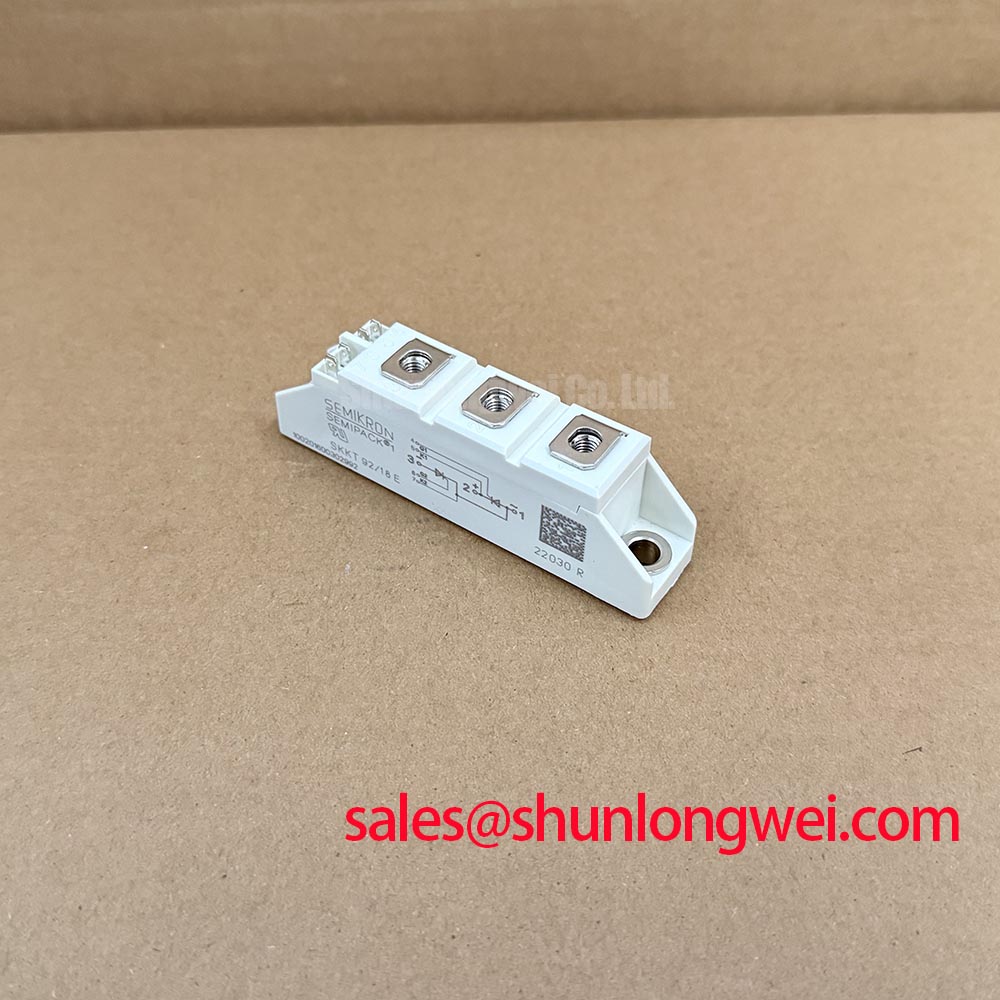

SKKT92/18E Semikron SEMIPACK 1 Thyristor Module: 1800V Phase-Control Power Block
High-voltage robustness (1800V) paired with industry-proven SEMIPACK 1 thermal isolation secures continuous phase control in heavy industrial systems. This power semiconductor features key technical specifications of 1800V blocking voltage, 95A continuous average on-state current, and a thermal resistance of 0.28 °C/W. These values minimize thermal stress while preventing overvoltage breakdowns. To address high-voltage power-line fluctuations, the 1800V blocking capability provides an exceptional safety margin on standard 400V or 480V industrial power lines. For 480V industrial line systems prioritizing thermal fatigue resistance, this 1800V thyristor module is the optimal choice.
Application Scenarios & Value
Achieving System-Level Benefits in High-Voltage Motor Control
Engineers often face the severe challenge of high thermal cycling fatigue in heavy motor starters. In applications like heavy industrial AC motor soft starters, massive transient inrush currents occur during start-up. The SKKT92/18E handles these transients smoothly through its high surge current rating of 2000A. This robust surge handling capability acts like a structural flood wall: it is not designed for daily baseline flows, but it safely contains massive, short-duration electrical surges without breaking down.
Beyond soft starters, this dual thyristor module is highly reliable in industrial DC motor drives. By utilizing precise phase control, the module manages motor torque under varying mechanical loads. These operations rely on rugged line-commutation components that withstand persistent environmental stress.
For configurations requiring a thyristor-diode combination rather than dual thyristors, the SKKH92/16E offers similar physical packaging. Meanwhile, if your system current demands exceed the 95A limit, the higher-rated SKKT106/12E provides additional design margin. Integrating these reliable modules protects overall system health while decreasing unscheduled downtime.
Technical Deep Dive
Thermal Optimization and Joint Integrity in SEMIPACK 1 Packaging
The mechanical integrity of the SKKT92/18E relies on its specialized SEMIPACK 1 package. This module uses an aluminum oxide ceramic isolated metal baseplate. This structure provides a certified isolation voltage of 3000 Vrms to ensure compliance with international safety standards.
To understand its thermal path, consider this analogy: the ceramic isolated baseplate functions as an engineered thermal highway. It quickly transfers heat away from the silicon die to the heatsink, much like a radiator transfers heat away from a vehicle engine. By keeping the junction Thermal Resistance down to 0.28 °C/W per thyristor, the design prevents localized hot spots that lead to early failure.
Furthermore, the module employs hard soldered joints for internal electrical connections. Solder joint construction offers excellent power cycling capability compared to alternative layouts at this power rating. Engineers designing control circuitry can find more about high-power module design via our ultimate guide to power modules or utilize classic datasheet interpretation techniques to calculate exact thermal limits.
What is the primary benefit of the aluminum oxide ceramic isolation? It provides safe galvanic isolation up to 3000 Vrms. Why is the 2000A surge rating important? It protects the thyristors from massive transient inrush currents.
Key Parameter Overview
Decoding Key Metrics for Enhanced Thermal Reliability
| Key Performance Metric | Value / Spec | Engineering Significance |
|---|---|---|
| Repetitive Peak Reverse Voltage (VRRM) | 1800V | Prevents peak line transient damage on 480V networks. |
| Continuous On-State Average Current (ITAV) | 95A (at Tc = 85°C) | Baseline load current handling for steady industrial operation. |
| Maximum RMS On-State Current (IRMS) | 150A | Absolute maximum continuous current without module degradation. |
| Surge On-State Current (ITSM) | 2000A (at 10ms, Tj = 25°C) | Handles direct AC motor start-up rushes safely. |
| Thermal Resistance, Junction-to-Case (Rth(j-c)) | 0.28 °C/W (per thyristor) | Low resistance ensures reliable heat transfer to heatsink. |
| Isolation Voltage (Visol) | 3000 Vrms (1 min) | Ensures galvanic isolation to downstream microcontrollers. |
Download the SKKT92/18E datasheet for detailed specifications and performance curves.
FAQ
Technical Insights on Module Application and Stress Management
How does the 1800V maximum reverse blocking voltage of the SKKT92/18E benefit standard 480V AC networks?
An 1800V rating provides a high voltage buffer of more than three times the nominal peak line voltage. This prevents module damage from inductive transient spikes.
What is the critical role of the 3000 Vrms isolation rating in this SEMIPACK 1 module?
It provides safe electrical isolation between the high-power circuit and the grounded aluminum metal baseplate. This protects downstream low-voltage gate drives and control logic.
Why is the 0.28 °C/W thermal resistance critical for high-load cycles?
A low Rth(j-c) of 0.28 °C/W speeds up heat extraction to the heatsink. This decreases thermal junction temperature spikes during heavy industrial cycles.
Can the SKKT92/18E thyristor module be used in place of diode modules?
Thyristors require gate triggering to conduct, whereas diodes conduct automatically. However, thyristors can be fully biased on to behave like diodes when continuous firing signals are applied.
Strategic Application Value
Future-Proofing Industrial Power Control Systems
By using the robust SKKT92/18E, system integrators can ensure long-term stability in harsh grid conditions. As industrial networks face more fluctuation from renewable integration, choosing components with reliable safety margins and proven packaging becomes a strategic advantage. Working with a dedicated distributor like Semikron partners secures authentic technology for infrastructure integrity.
