SKM 152 GA 123 IGBT: Efficiency in 1200V/150A Switching
Technical Deep Dive into High-Efficiency Power Conversion

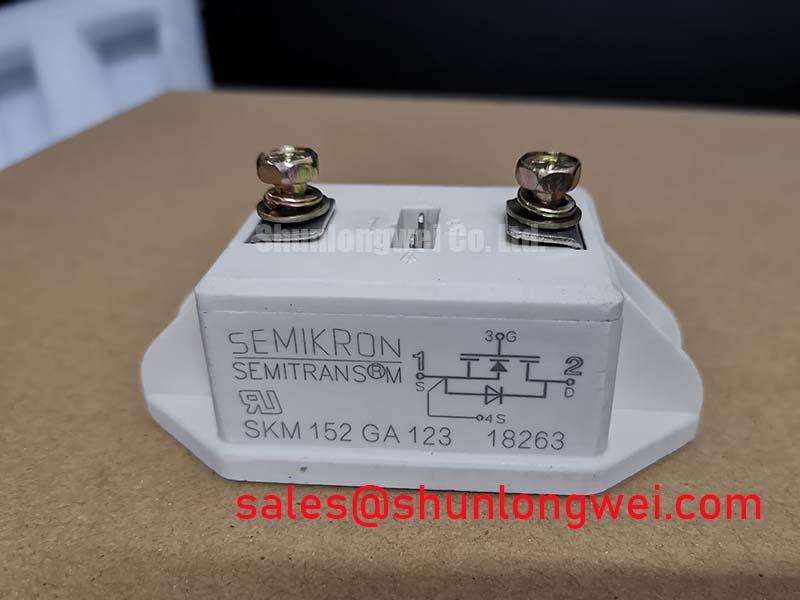

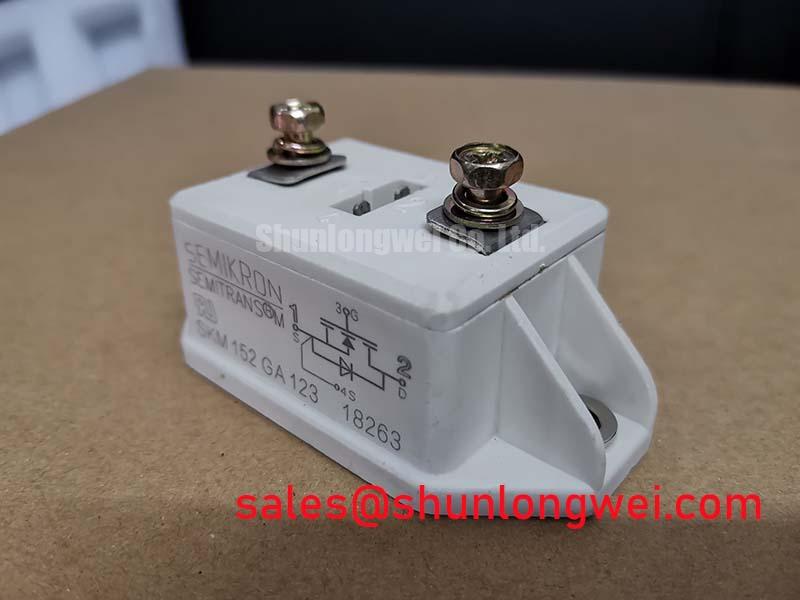

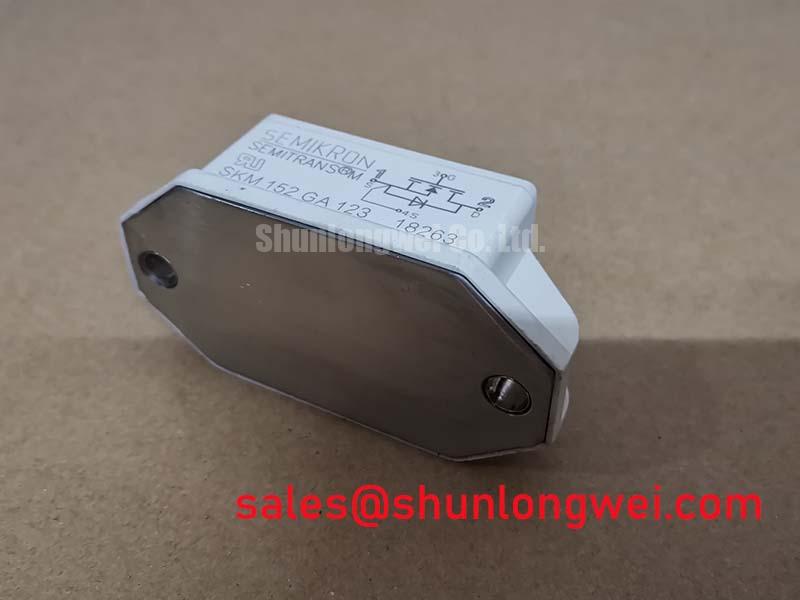

The Semikron SKM 152 GA 123 is a SEMITRANS M IGBT module engineered for superior efficiency in demanding power conversion systems. At its core, this module leverages an advanced NPT-IGBT and a CAL (Controlled Axial Lifetime) free-wheeling diode to minimize both static and dynamic power losses. Its key specifications are: 1200V | 150A | VCE(sat) of 2.5V. This design delivers two primary engineering benefits: significantly reduced thermal load and the capability for higher switching frequencies. For designers asking where a single-switch chopper configuration is most effective, the SKM 152 GA 123 excels in applications like DC-DC converters, motor drives, and switched-mode power supplies where precise control and high efficiency are paramount.
Applications Optimized for Low-Loss Performance
The specific electrical characteristics of the SKM 152 GA 123 make it a strong candidate for power systems where energy conservation and thermal stability are key design drivers. Its single-switch (chopper) topology provides fundamental building blocks for a range of high-power applications.
- High-Frequency Switched-Mode Power Supplies (SMPS): The module's fast switching characteristics allow designers to operate at higher frequencies. What is the engineering benefit of higher frequency operation? It enables the use of smaller, lighter, and more cost-effective inductors and capacitors, increasing the overall power density of the final system.
- DC Motor Drives and Choppers: In DC motor control, precise and efficient power modulation is essential. The low VCE(sat) of the SKM 152 GA 123 directly translates to lower heat generation within the drive, improving system reliability and potentially reducing the size of the required heatsink. For an in-depth look at how these components form the heart of modern drives, see our guide on IGBTs in robotic servo drives.
- Uninterruptible Power Supplies (UPS): The module's ability to handle high currents (up to 150A) with minimal conduction losses is vital for UPS systems, ensuring maximum energy is available during battery operation and minimizing wasted power during standby.
Best Fit Scenario: For industrial power conversion systems operating up to 1200V that prioritize minimal conduction losses and high power density, this module offers an optimized balance of performance and thermal efficiency.
Key Specifications for Efficient Performance
Technical data provides the foundation for any system design. The SKM 152 GA 123 is defined by several key parameters that directly influence its behavior and suitability for specific applications. Understanding these specifications is the first step in successful integration. To fully grasp all parameters, it is advisable to Download the Datasheet.
| Parameter | Value | Engineering Significance |
|---|---|---|
| Collector-Emitter Voltage (V_CES) | 1200 V | Provides a significant safety margin for applications running on 400V, 480V, or even higher DC bus voltages, ensuring robustness against voltage spikes. |
| Continuous Collector Current (I_C @ 25°C) | 150 A | Defines the maximum continuous current the module can handle under ideal heatsink conditions, indicating its high power-handling capability. |
| Collector-Emitter Saturation Voltage (V_CE(sat)) | 2.5 V (Typ. @ I_C = 100 A, T_j = 25°C) | A primary indicator of conduction loss. This low value directly reduces power dissipated as heat when the IGBT is on, improving overall system efficiency. |
| Gate-Emitter Threshold Voltage (V_GE(th)) | 4.5V to 6.5V | Dictates the gate voltage required to begin turning the device on. The specified range ensures predictable switching behavior and good noise immunity. |
| Thermal Resistance, Junction-to-Case (R_th(j-c)) | 0.14 K/W (per IGBT) | This parameter is like the narrowness of a pipeline for heat; a lower value signifies more efficient heat transfer from the semiconductor chip to the case and heatsink. |
| Short Circuit Withstand Time (t_psc) | 10 µs | A critical reliability metric, defining how long the IGBT can survive a direct short circuit, allowing time for protection circuits to engage and prevent catastrophic failure. |
Meeting Modern Demands for Energy Efficiency
The push for greater energy efficiency and reduced carbon footprints is reshaping industrial technology. Regulations and market expectations demand power systems that waste less energy, and the SKM 152 GA 123 is well-aligned with this trend. Its design, focusing on minimizing Switching Loss and conduction loss, directly supports the development of eco-friendly and cost-effective solutions. Systems built with high-efficiency components like this module consume less electricity, generate less heat, and often have a lower total cost of ownership due to reduced cooling needs and energy bills. This makes it a strategic component for forward-looking designs in industrial automation and power conversion.
A Closer Look at Conduction and Switching Performance
The efficiency of an IGBT Module is determined by the sum of its losses, primarily categorized as conduction and switching losses. The SKM 152 GA 123 is engineered to address both.
Conduction Loss Analysis: The primary factor here is the Collector-Emitter Saturation Voltage, or VCE(sat). This value represents the voltage drop across the device when it is fully "on." You can think of VCE(sat) as the friction inside a pipeline; lower friction means less energy is wasted just moving the water (current) through. With a typical VCE(sat) of 2.5V at 100A, the SKM 152 GA 123 keeps these static losses low, which is especially important in applications with high duty cycles where the switch remains on for long periods.
Switching Loss Dynamics: The integrated CAL (Controlled Axial Lifetime) diode is a key feature for reducing switching losses. This fast and "soft" recovery diode minimizes voltage overshoot and ringing during the IGBT's turn-on phase. This soft recovery behavior reduces electromagnetic interference (EMI) and lowers the energy lost during each switching transition (E_on), contributing to higher efficiency, particularly in systems operating at higher frequencies.
Engineering Questions on the SKM 152 GA 123
1. What are the primary advantages of the CAL free-wheeling diode in the SKM 152 GA 123?
The integrated CAL diode is engineered for fast and soft recovery. This reduces turn-on energy loss (E_on) in the IGBT, minimizes voltage overshoot, and lowers electromagnetic interference (EMI). This allows for higher efficiency and can simplify the design of external snubber circuits.
2. How does the VCE(sat) of this module impact thermal design?
The low typical VCE(sat) of 2.5V at 100A directly reduces the power lost as heat during conduction (P_loss = VCE(sat) * I_C). A lower heat load means a smaller, less expensive heatsink may be used, or it provides greater thermal margin for reliability in high-temperature environments, a concept further explored in discussions on thermal resistance.
3. Is this module suitable for paralleling to achieve higher current?
Yes, the datasheet specifies characteristics favorable for paralleling. The positive temperature coefficient of VCE(sat) helps ensure thermal stability and current sharing among parallel modules. However, careful gate drive design and symmetrical layout are essential for reliable operation. For systems requiring significantly higher current from a single package, the SKM300GA123D offers a higher current rating within a similar voltage class.
4. What type of gate driver is recommended for the SKM 152 GA 123?
A gate driver capable of providing the recommended gate-emitter voltage (typically +15V for turn-on, and a negative voltage like -8V to -15V for secure turn-off) is essential. A driver with sufficient peak current capability is needed to charge and discharge the gate capacitance quickly for efficient switching. For optimized performance, a compatible driver solution such as the SKHI 24 R can be considered.
5. What does the NPT IGBT technology used in this module mean for my application?
NPT (Non-Punch-Through) IGBT technology provides a more rugged and stable device. It typically features a positive temperature coefficient for VCE(sat), which is beneficial for paralleling, and it offers excellent short-circuit ruggedness, as indicated by its 10 µs short-circuit withstand time.
Data for Your Design Evaluation
When evaluating power modules, comparing key specifications provides objective data for decision-making. The information below is presented to support your technical assessment process. It is not a direct recommendation but a factual comparison of datasheet parameters against a common alternative configuration. Your final selection should be based on a holistic analysis of your specific application's thermal, electrical, and mechanical requirements.
- Voltage Class: The 1200V rating of the SKM 152 GA 123 provides a standard safety margin for systems with DC bus voltages up to 600-650V.
- Current Density: With a nominal current of 100A in its package size, the module offers a solid current handling capability suitable for mid-power applications.
- Topology: As a single-switch or chopper module, it provides maximum design flexibility for custom converter or inverter leg implementations compared to more integrated multi-switch modules.
Real-World Application Focus
In a real-world scenario, such as designing a 50kW DC fast charger, an engineer might choose the SKM 152 GA 123 for the main DC-DC converter stage. Its 1200V rating provides the necessary headroom for a high-voltage bus, while its low conduction and switching losses contribute directly to achieving the high efficiency targets (e.g., >95%) required in modern EV charging infrastructure. The module's robust thermal performance ensures long-term reliability even under continuous high-power operation, a critical factor for public charging stations.
