Semikron SKM195GAL24DN | Engineering High-Frequency Power Conversion with Trench IGBT4 Precision

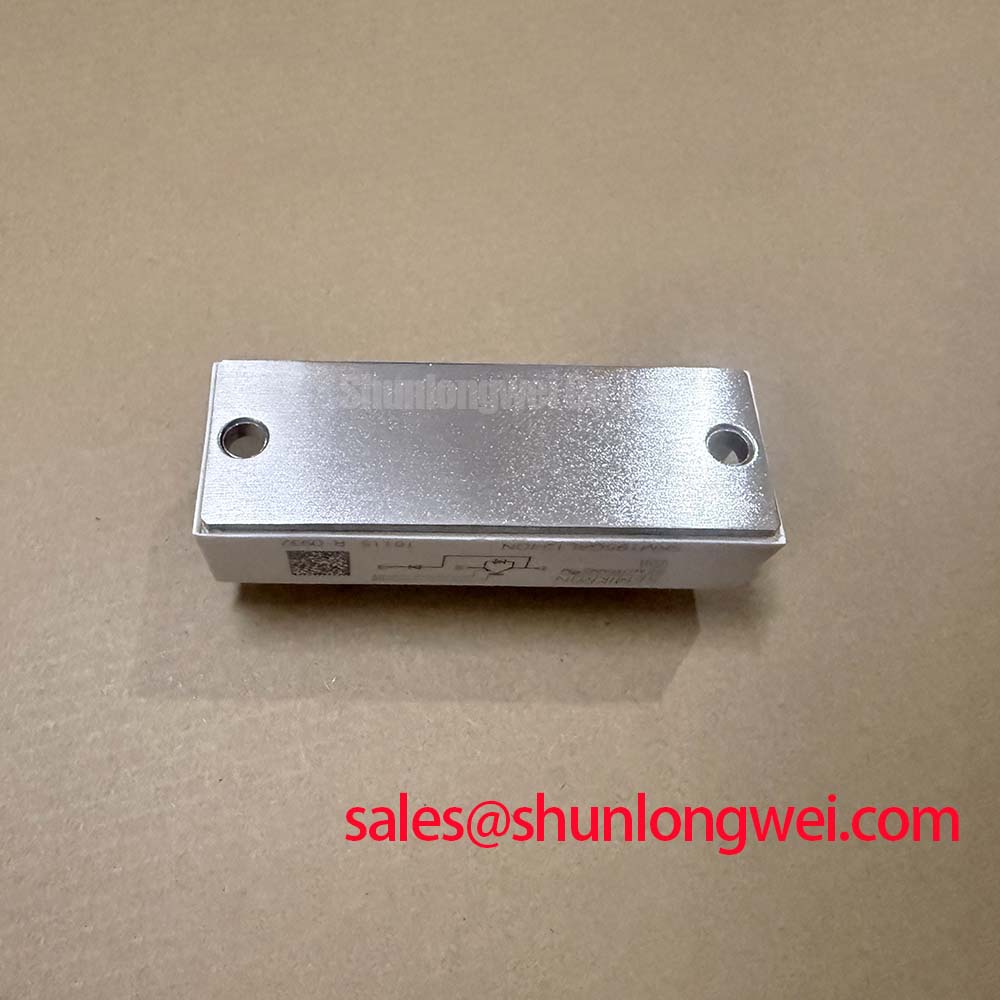

The Semikron SKM195GAL24DN is a high-performance IGBT module engineered for demanding power conversion applications where efficiency, speed, and thermal stability are non-negotiable. As a key component in the SEMITRANS 2 family, this module is not just a collection of switches; it is a highly integrated solution designed to simplify system design, reduce losses, and enhance reliability in high-frequency circuits.
Technical Deep Dive: The Core of Performance
The SKM195GAL24DN's superior performance is rooted in two of Semikron's cornerstone technologies: Trench Gate Field-Stop IGBT4 and the CAL4F diode. This combination is deliberately engineered to solve the classic trade-off between conduction and switching losses.
- Trench Gate Field-Stop IGBT4 Technology: This advanced silicon design creates a vertical current path with an optimized carrier profile. The result is a significantly lower collector-emitter saturation voltage (VCE(sat)), which directly translates to reduced conduction losses. Simultaneously, the field-stop layer allows for faster charge carrier removal during turn-off, minimizing switching losses (Eoff). This balance makes the module exceptionally efficient in applications operating at higher PWM frequencies, a critical factor for reducing the size of magnetic components and improving system responsiveness.
- CAL4F (Controlled Axial Lifetime) Free-Wheeling Diode: The integrated free-wheeling diode is as critical as the IGBT itself. The CAL4F diode is engineered for "soft" recovery characteristics. This means it exhibits a smooth, low-overshoot reverse recovery current (Irr), which dramatically reduces voltage spikes and electromagnetic interference (EMI). For design engineers, this simplifies the snubber circuit design and helps achieve EMC compliance more easily.
Key Parameters Overview
Engineers require data at a glance. The table below summarizes the critical specifications that define the operational envelope of the SKM195GAL24DN. These parameters are foundational for thermal modeling, gate drive design, and system-level performance simulation.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (Vces) | 1200 V |
| Continuous Collector Current (Ic) @ 80°C | 150 A |
| Collector-Emitter Saturation Voltage (VCE(sat)) @ 150A, 25°C | Typ. 1.70 V |
| Topology | Half-Bridge (Chopper) |
| Short Circuit Withstand Time (tsc) | 10 µs |
| Thermal Resistance, Junction to Case (Rth(j-c)) per IGBT | 0.17 K/W |
| Integrated Features | NTC Temperature Sensor, Kelvin Emitter |
Application Focus: Where the SKM195GAL24DN Excels
This module's specific characteristics make it a premier choice for several high-stakes applications:
- High-Frequency Motor Drives: In advanced Servo Drives and VFDs, the module's fast switching capability allows for higher carrier frequencies. This results in smoother motor operation, reduced audible noise, and higher control precision—essential for robotics and CNC machinery. The integrated Kelvin Emitter provides a clean voltage feedback path for the gate driver, ensuring stable switching and preventing parasitic turn-on.
- Renewable Energy Inverters: For solar and wind power conversion, efficiency is paramount. The low VCE(sat) of the SKM195GAL24DN directly boosts the energy harvest by minimizing power lost as heat during operation. Its robust thermal performance ensures reliability even under the demanding cyclic loads typical of renewable energy sources.
- Uninterruptible Power Supplies (UPS): In double-conversion UPS systems, the inverter stage operates continuously. The module's high efficiency reduces cooling requirements and operational costs over the system's lifetime. Its proven reliability is critical for ensuring uptime in data centers and industrial facilities.
Selection Guidance: Choosing the Right Tool for the Job
When selecting a power module, context is key. The SKM195GAL24DN is optimized for high-frequency designs (typically 8 kHz to 20 kHz). If your application operates at lower frequencies (< 5 kHz) where conduction losses dominate, a module with an even lower VCE(sat) might be preferable, even at the cost of higher switching losses. However, for modern, compact designs that leverage higher frequencies to shrink passive components, the balanced loss profile of this Trench IGBT4 module offers a distinct advantage. For designs requiring an all-in-one solution, exploring our range of integrated IGBT modules or PIMs might reveal a more suitable topology.
Frequently Asked Engineer Questions (FAQ)
- What is the primary benefit of the isolated copper baseplate?The DCB (Direct Copper Bonded) substrate with its isolated copper baseplate provides excellent thermal conductivity while ensuring high electrical isolation (typically >2500V). This simplifies mounting onto a heatsink, improves thermal management, and enhances the module's overall power cycling capability by reducing thermomechanical stress.
- How critical is the Kelvin Emitter for my gate drive design?For fast-switching applications, it is extremely critical. The Kelvin Emitter provides a dedicated, low-inductance return path for the gate drive circuit, separate from the high-current power emitter path. This prevents stray inductance in the power path from inducing voltage drops that could distort the gate-emitter voltage (Vge), leading to unstable switching, increased losses, and potential shoot-through. Utilizing this pin is a best practice for robust gate drive design.
For detailed application notes or to discuss how the SKM195GAL24DN can be optimized for your specific power conversion project, please contact our technical team for expert consultation.
